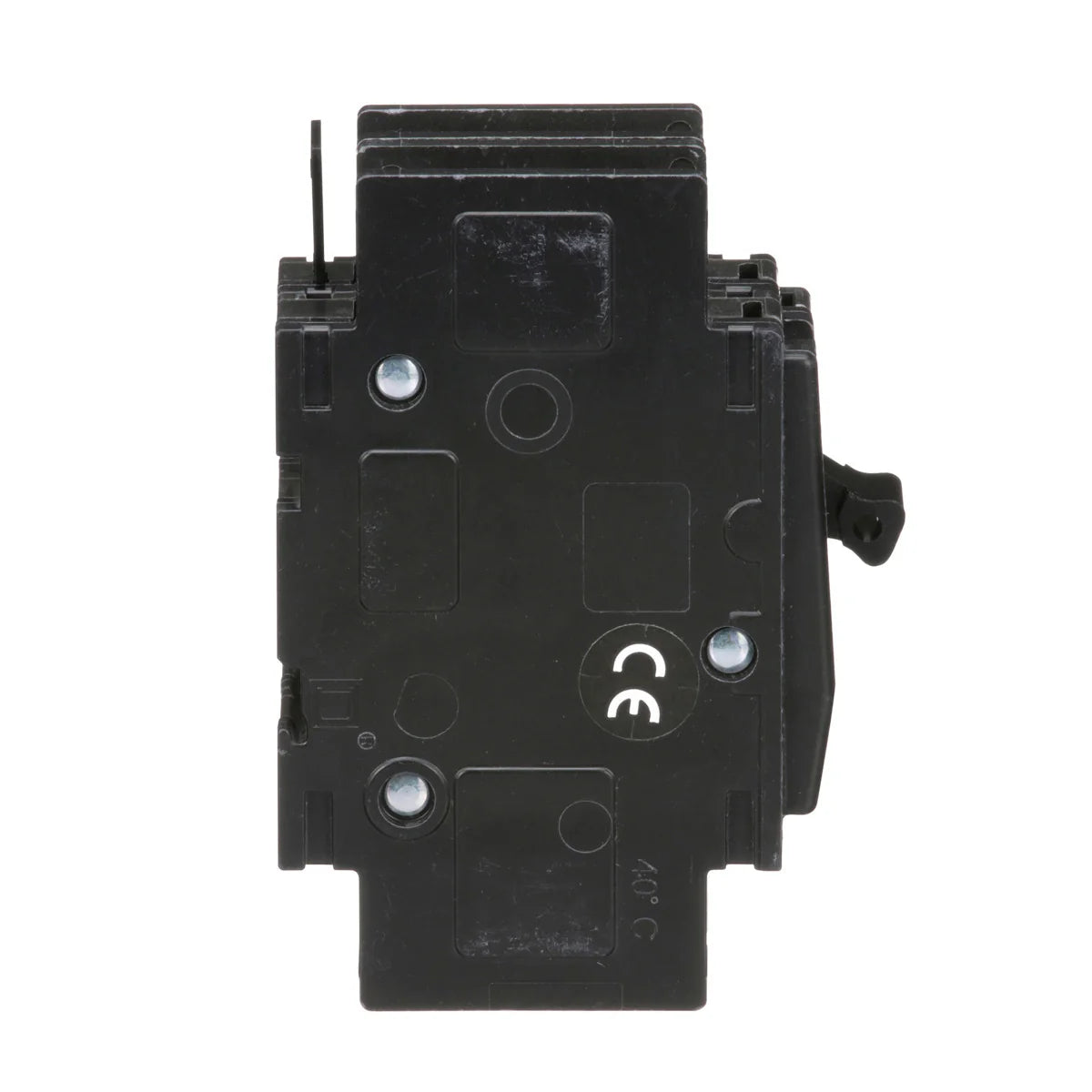

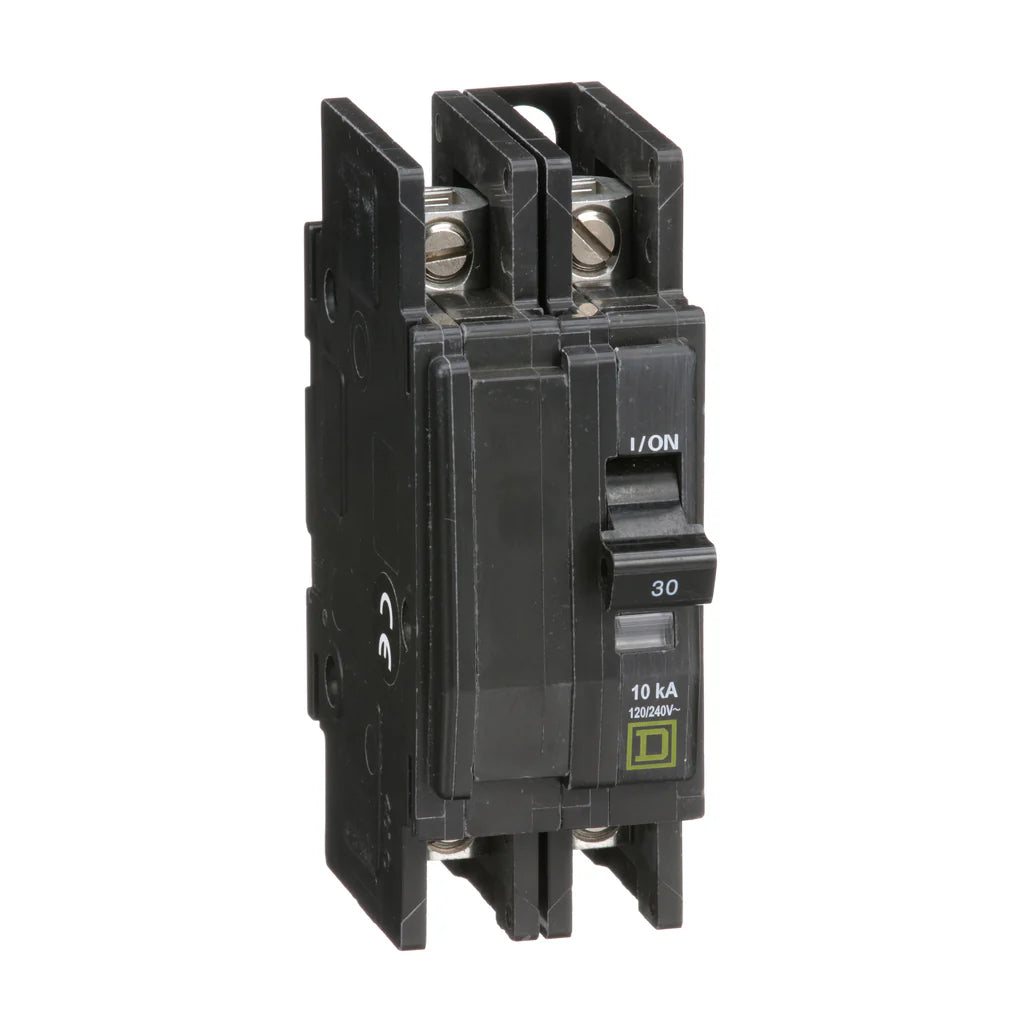

Square D QOU230 Miniature Circuit Breaker 30 Amp 120/240 Volt 10 kA

Product Description

Square D QOU230 is a two-pole miniature circuit breaker designed for electrical protection in a variety of settings. It operates at a voltage of 120 to 240 volts and has a current rating of thirty amps. The circuit breaker is aimed at OEM applications and is suitable for both alternating current (AC) and direct current (DC) systems.

• Rated for 120/240 volts with a breaking capacity of 10 kA.
• UL Listed and CSA Certified for safety.
• Suitable for mounting on DIN rails, surface, or flush mounted applications.

Product Highlights

This circuit breaker features VisiTrip trip indication, alerting users visually when it has tripped. Quick-make and quick-break toggle action ensures reliable operation.

Product Information

Standard Information

• Catalog Number: QOU230
• Manufacturer: Schneider Electric

Technical Specifications

• Rated Voltage: 120/240 VAC
• Rated Current: 30 A
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Mounting Type: DIN rail, surface, flush
• Conductor Size: Accepts 14 to 2 AWG copper or aluminum wire
• Dimensions: Height 4.05 inches, Width 1.5 inches, Depth 2.95 inches
• Country of Origin: Mexico
• Warranty Length: 18 months
