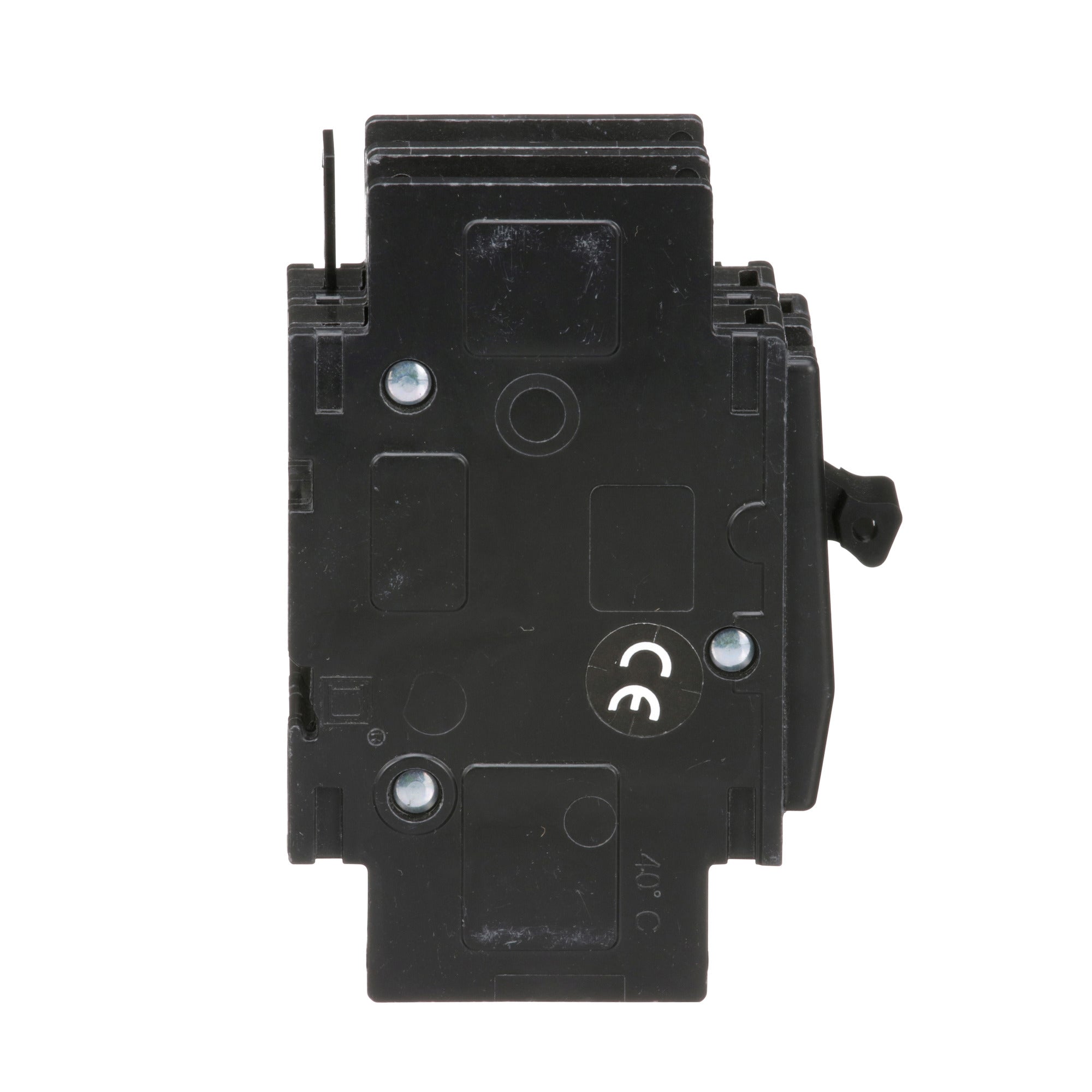

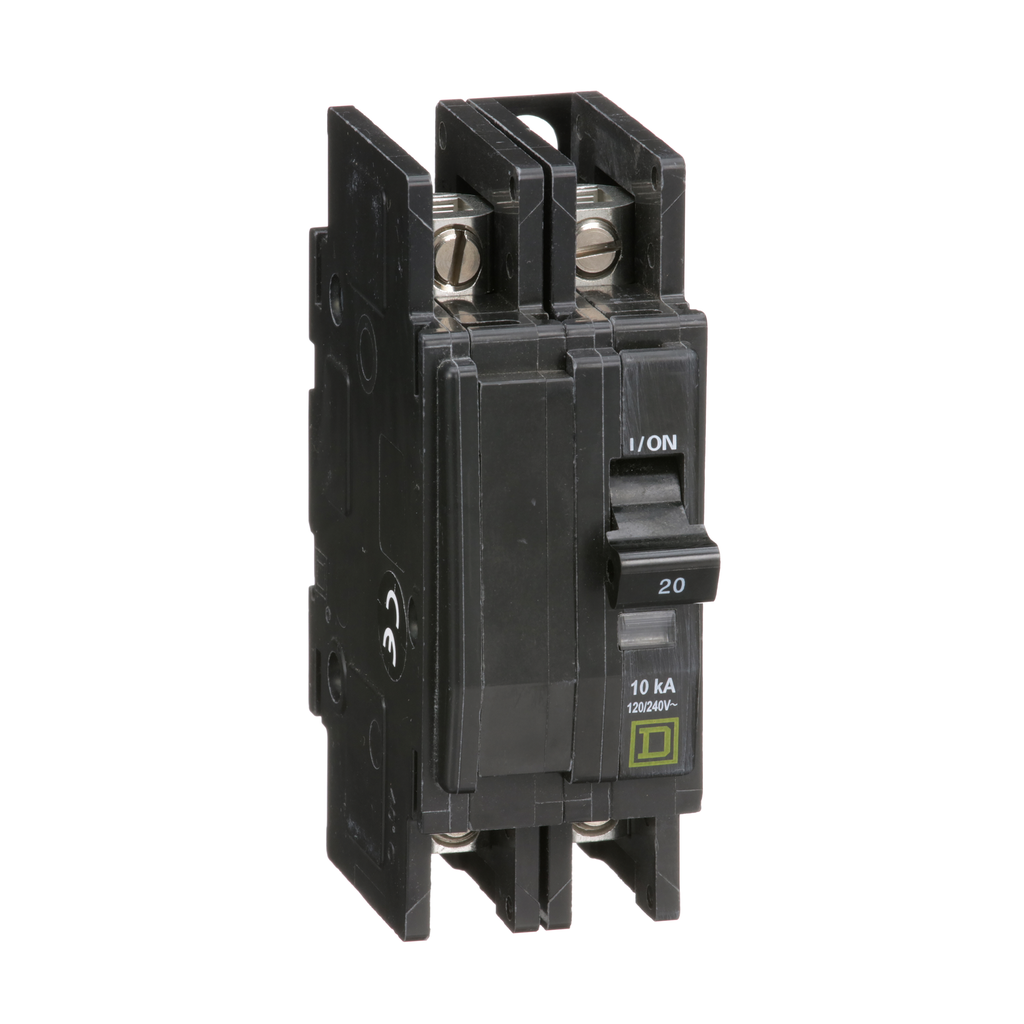

Square D QOU220 Miniature Circuit Breaker 20A 120/240V 2P

Product Description

The Square D QOU220 miniature circuit breaker has a part number of QOU220. This circuit breaker provides overcurrent protection for electrical systems up to 20 amps on both alternating current and direct current circuits. It is rated for 120/240 volts and has a breaking capacity of 10 kA. This model can be mounted in various configurations including DIN rail, surface, or flush mounting.

• Two-pole design rated for 20A, 240VAC
• UL Listed and CSA Certified for reliable safety compliance
• Quick-make, quick-break operation with positive handle indication

Product Highlights

This circuit breaker includes VisiTrip trip indication to show when the breaker has tripped, ensuring easy identification of faults. The breaker features slotted box lugs accepting wire sizes from 14 AWG to 2 AWG and can be installed efficiently in a variety of setups. Applications include HACR and switching duty rated circuits.

Product Information

Standard Information

• Catalog Number: QOU220
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature Circuit Breaker
• Width: 1.5 inches
• Height: 4.05 inches
• Depth: 2.95 inches
• Voltage: 120/240 AC
• Amperage: 20 Amp
• Number of Poles: 2 Pole
• Mounting Type: Unit Mount
• Breaking Capacity: 10 kAIC
