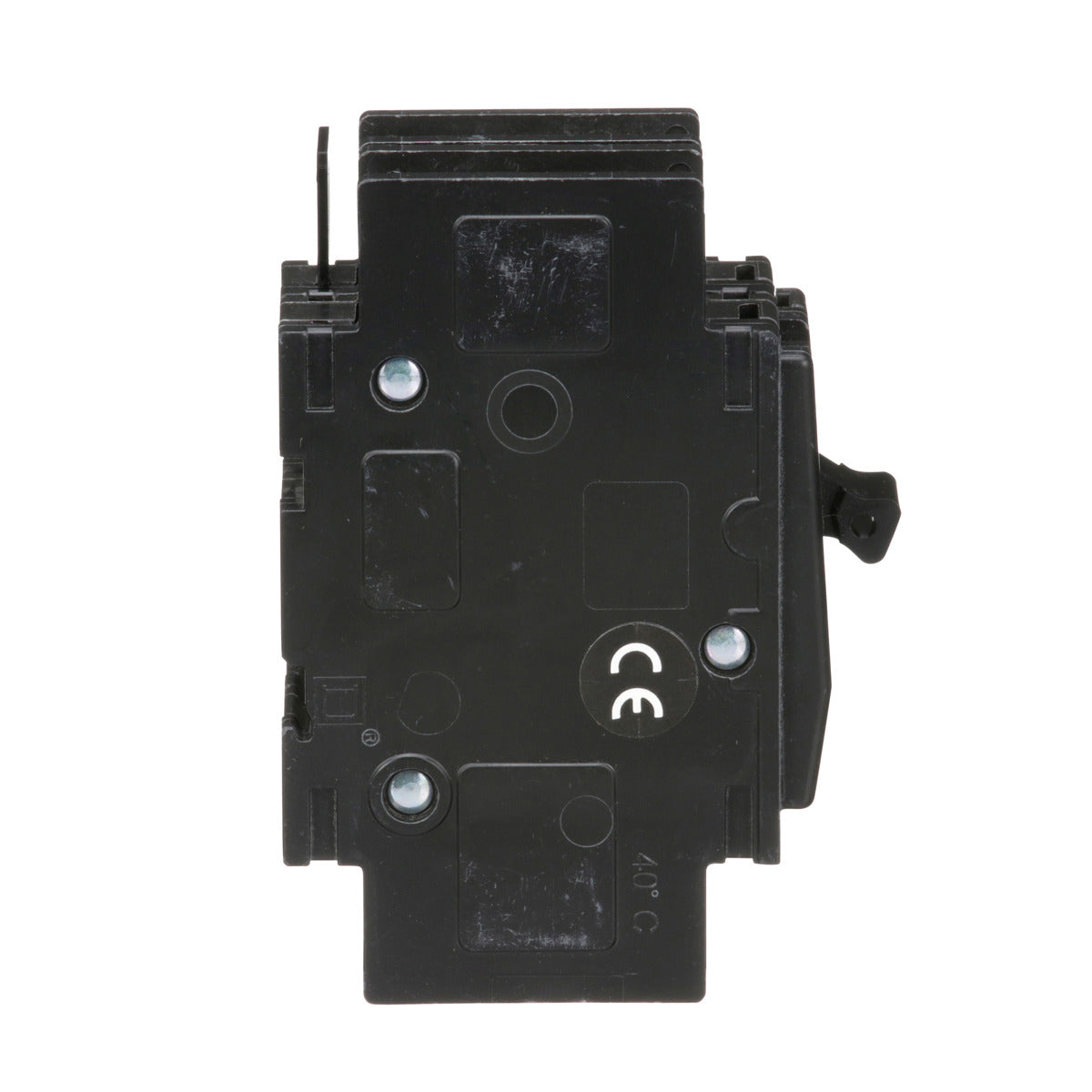

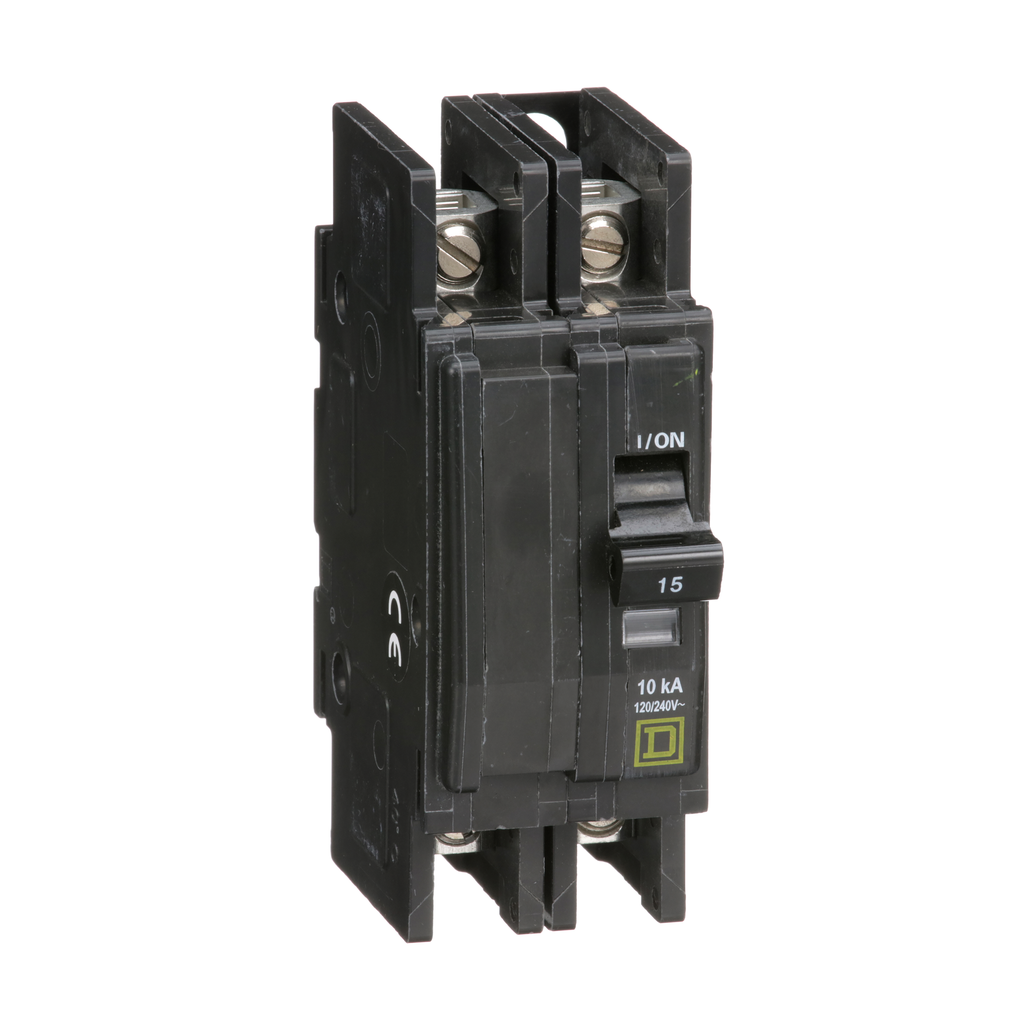

Square D QOU215 Miniature Circuit Breaker 15A 120/240V

Product Description

The Square D QOU215 Miniature Circuit Breaker is a reliable component for overcurrent protection in both AC and DC electrical systems. Its design is suitable for various OEM applications. These circuit breakers not only provide switching capabilities but also ensure manual circuit opening.

• Automatically opens a circuit during overload or short circuit conditions.
• Can operate in any orientation.
• Designed with lugs at both ends for easy cable-in/cable-out construction.

Product Highlights

Features Visi-Trip for easy trip detection. All poles can trip together. Fully tested and certified for reverse connection use without restrictive markings.

Product Information

Standard Information

• Catalog Number: QOU215
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature Circuit Breaker
• Depth: 2.95 inches
• Width: 1.5 inches
• Height: 4.05 inches
• Voltage: 120 volts
• Amperage: 15 amps
• Number of Poles: 2 pole
• Interrupt Rating: 10 kAIC
