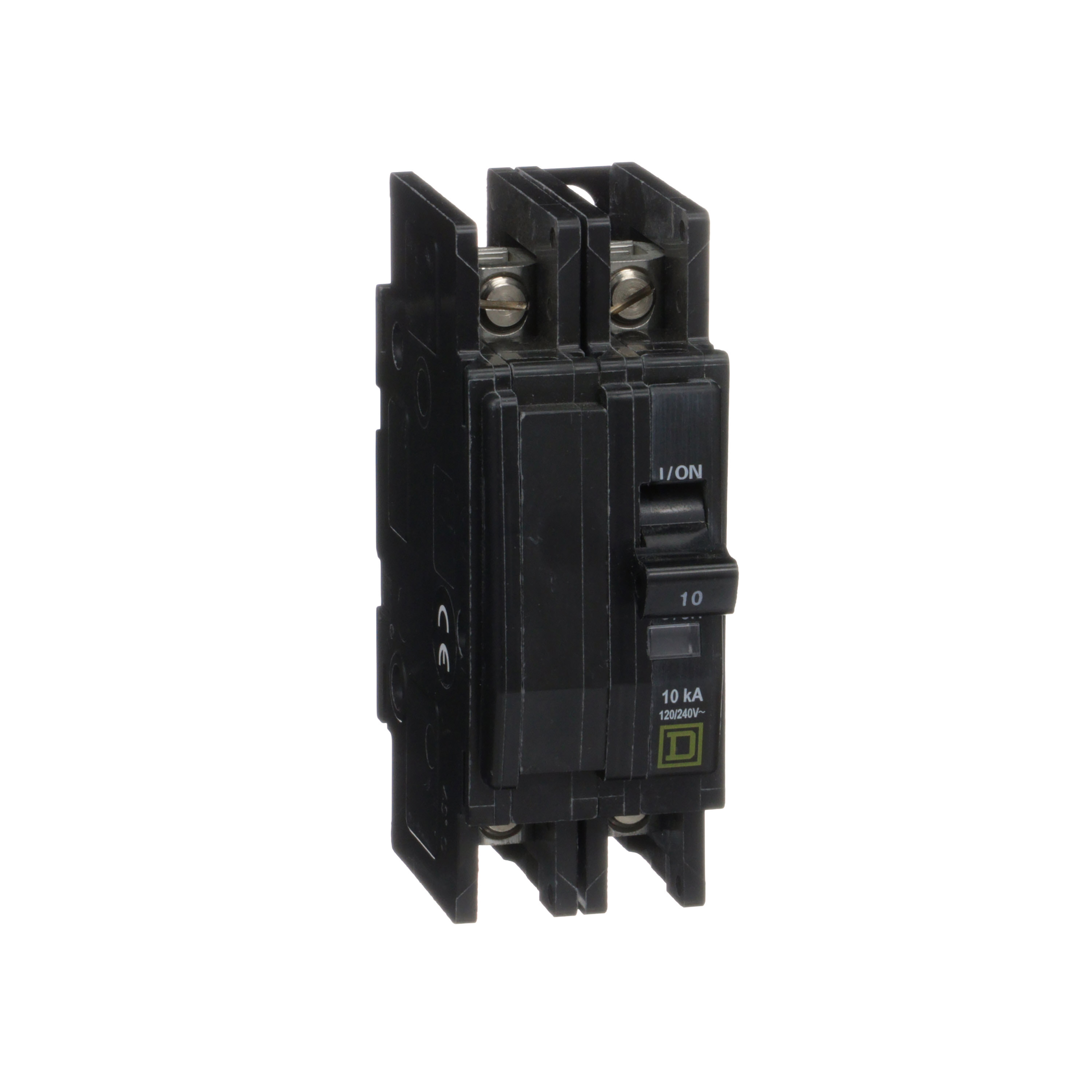

Square D QOU210 Miniature Circuit Breaker 120/240 Volt 10 Amp

Product Description

The Square D QOU210 Miniature Circuit Breaker delivers reliable overcurrent protection for various electrical systems. This device operates at 120/240 Volts and has a rating of 10 Amps. It is suitable for both residential and commercial applications and features manual circuit interruption using internal magnetic strips. The circuit breaker also supports both AC and DC electrical systems.

• UL Listed and CSA certified for reverse connection
• Versatile mounting options: flush, surface, or DIN rail
• Visi-Trip technology for easy trip detection

Product Highlights

This circuit breaker automatically opens a circuit under overload and short circuit conditions, ensuring enhanced safety for electrical installations.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QOU210
• Voltage Rating: 120/240 V AC
• Amperage: 10 Amp
• Number of Poles: 2 Pole
• Height: 4.45 Inch
• Width: 1.5 Inch
• Depth: 2.95 Inch
• Interrupt Rating: 10 kAIC
• Country of Origin: Mexico
• Warranty: 18 Months
