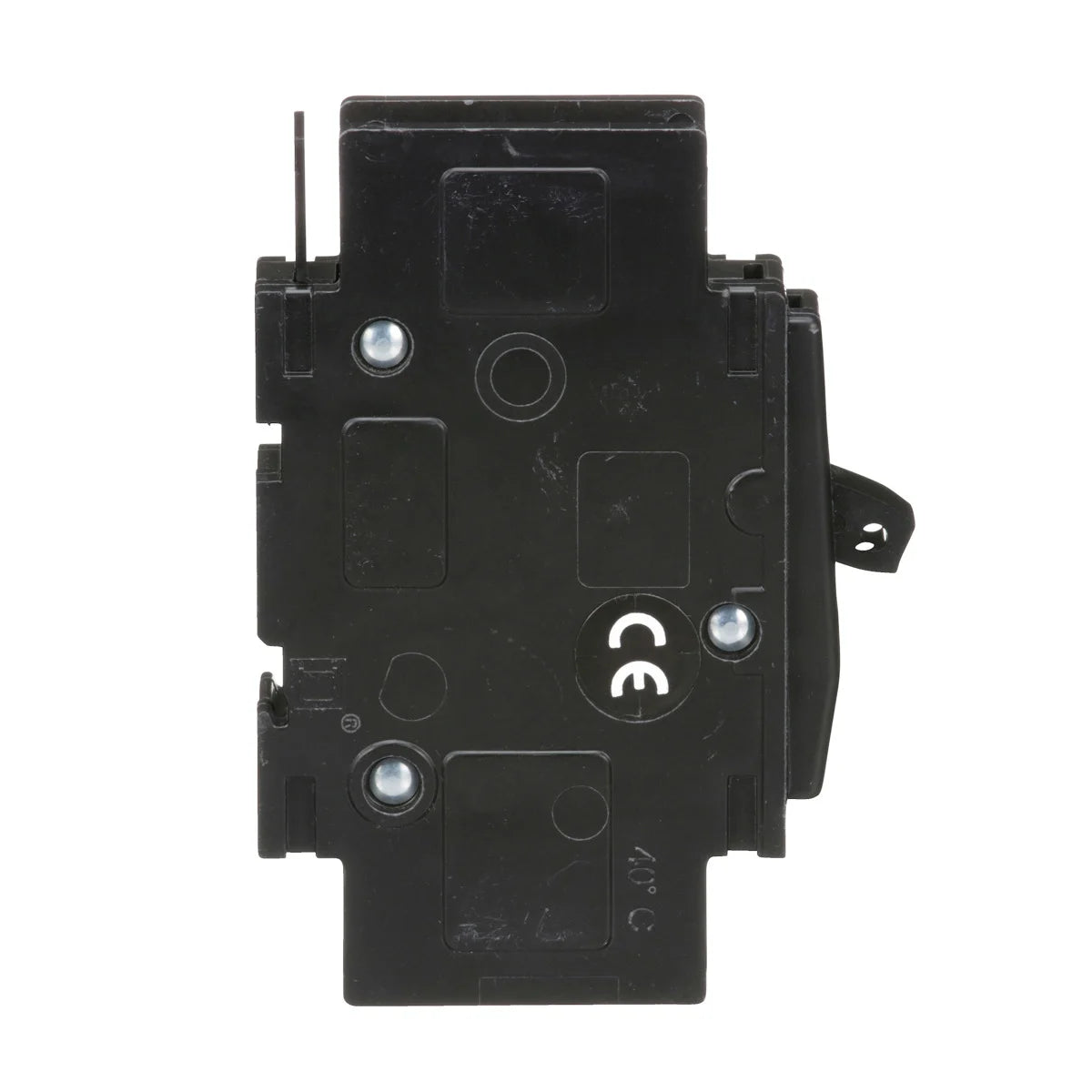

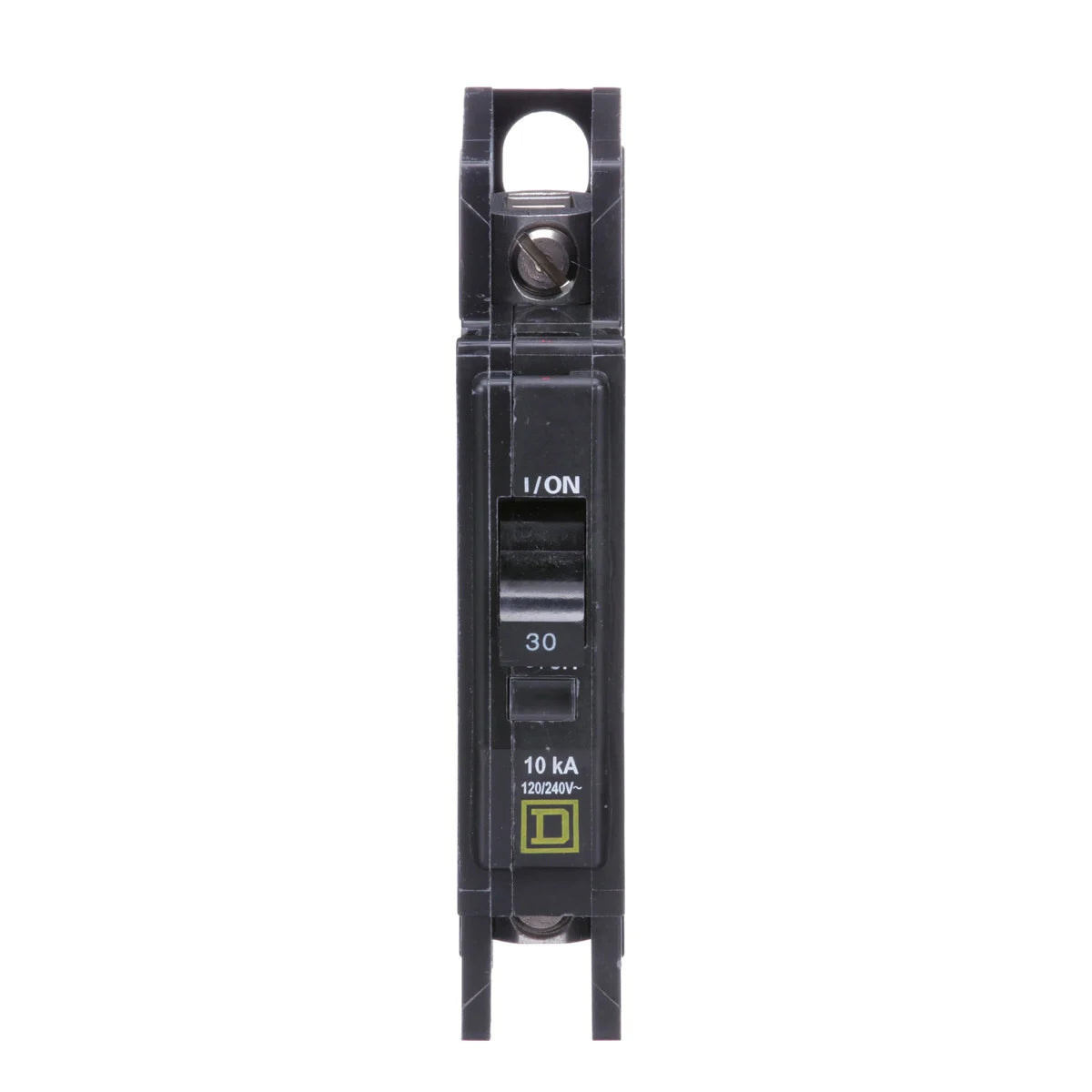

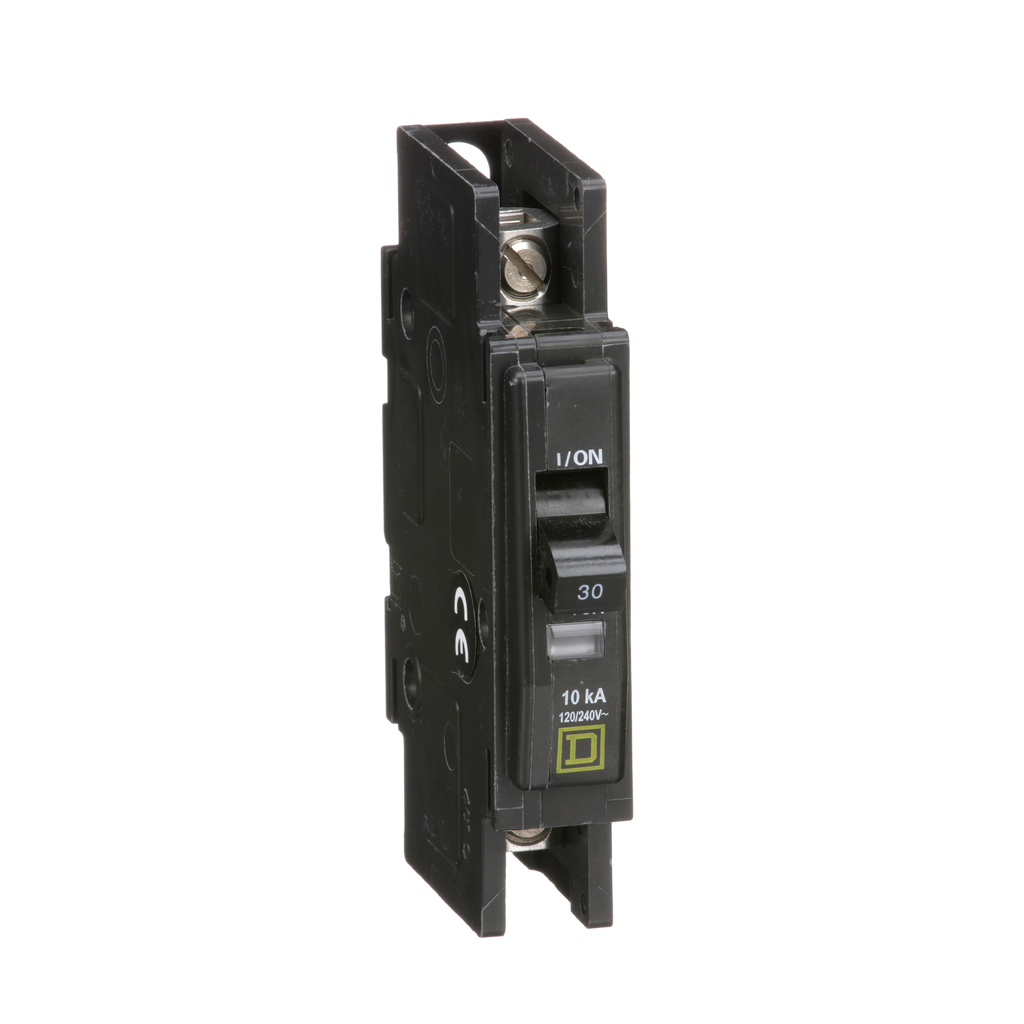

Square D QOU130 120/240 Volt 30 Amp Miniature Circuit Breaker

Product Description

The Square D QOU130 is a 120/240 Volt 30 Amp miniature circuit breaker. It is designed for use in residential and commercial applications. This circuit breaker is effective for overcurrent protection and switching in both AC and DC electrical systems. The QOU130 features an internal mechanism that allows for manual circuit opening. It is compatible with various mounting options and offers flexibility in installation.

• Feature common tripping of all poles.
• Fully tested, UL Listed, and CSA certified for reverse connection.
• Automatically opens a circuit under overload or short circuit conditions.

Product Highlights

The Square D QOU130 circuit breaker ensures safety and efficiency in electrical systems. Its compact design allows for installation in tight spaces, and it operates reliably across various electrical load types.

Product Information

Standard Information

• MPN: QOU130
• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 120 Volt
• Amperage: 30 Amp
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Depth: 2.95 inches
• Width: 0.75 inches
• Height: 4.05 inches
• Country of Origin: Mexico
• Warranty Length: 18 months
• Applications: HACR rated
