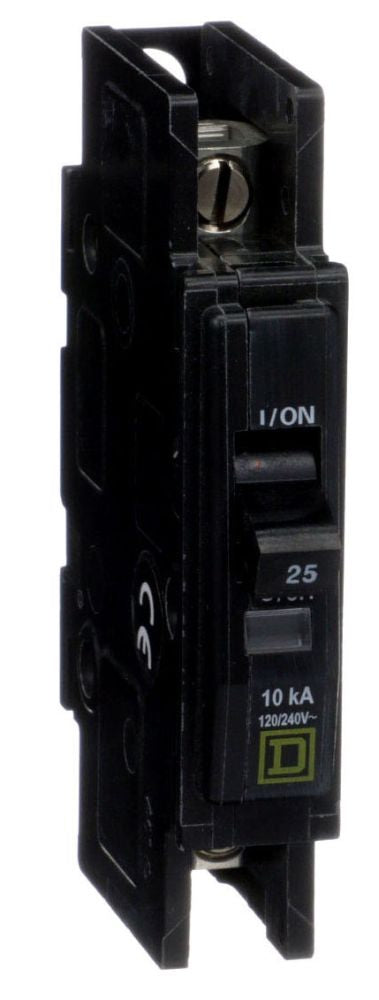

Square D QOU125 Miniature Circuit Breaker 120/240V 20A

Product Description

The Square D QOU125 is a miniature circuit breaker with a voltage rating of 120/240 volts and a current rating of twenty-five amps. This product is suitable for use with wire sizes ranging from fourteen to two AWG, both copper and aluminum. The QOU125 model is approved for use under UL and CSA standards and is designed for various mounting options including DIN rail, surface, and flush mounting.

• Standard type with compact size for easy installation.
• UL and CSA approved for safety and compliance.
• Includes features like a visi-trip indicator for clear status.

Product Highlights

This circuit breaker offers reliable protection and is ideal for use in OEM panels and unit enclosures.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Model: QOU

Technical Specifications

• Voltage Rating: 120/240 Volt AC at 50/60 Hertz, 48 Volt DC
• Current Rating: 25 Amp
• Interrupting Rating: 10 Kiloamp at 120/240 Volt AC, 5 Kiloamp at 48 Volt DC
• Size: 0.75 Inch Width x 2.95 Inch Depth x 4.05 Inch Height
• Wire Size: 14 to 2 AWG (Copper/Aluminum)
• Mounting: 35 Millimeter DIN Rail, Flush/Surface
• Approval: UL 489, CSA C22.2
• Type: Thermal Magnetic, Common Trip
