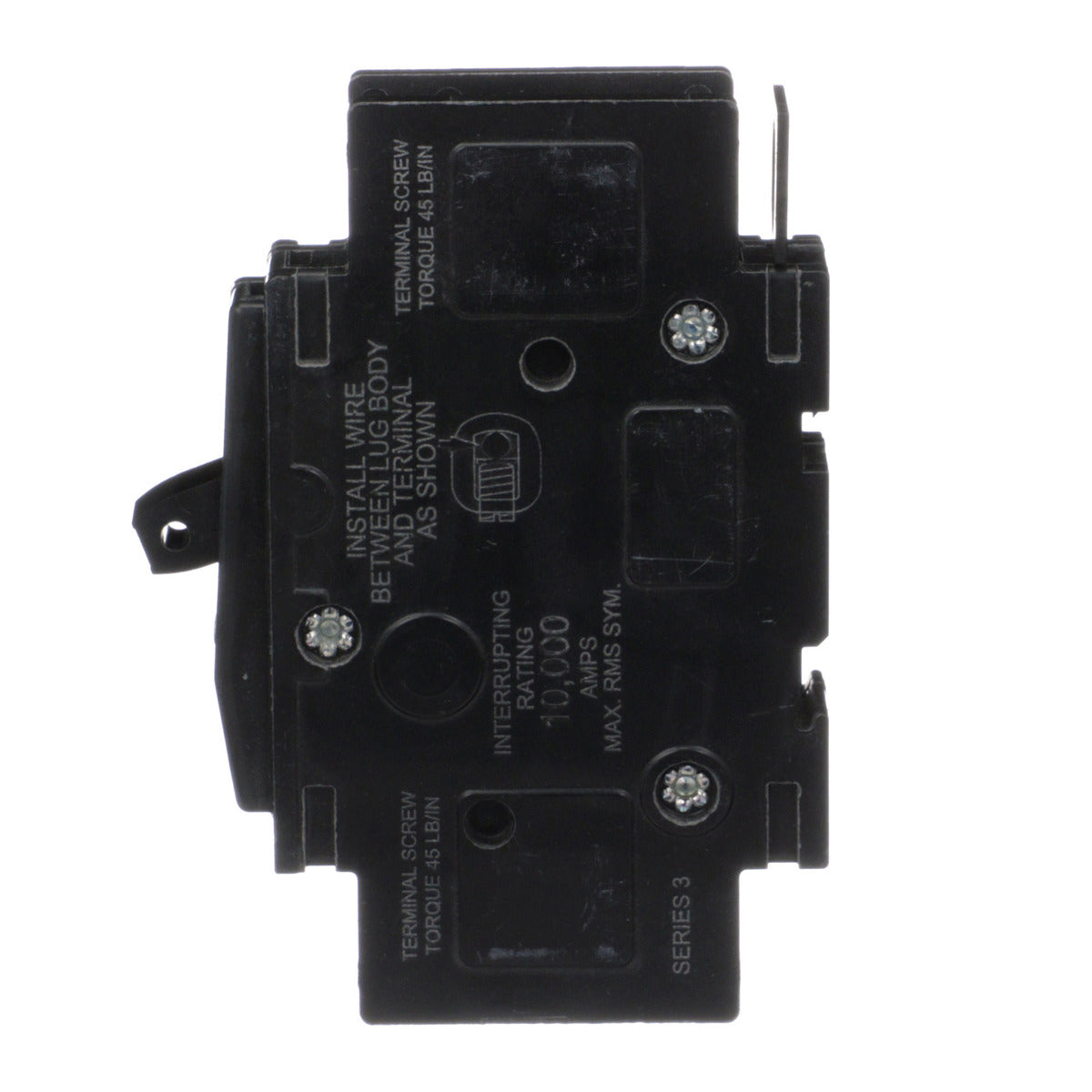

Square D QOU125 1-Pole 20 Amp 120/240 Volt Thermal Magnetic/Common Trip Miniature Circuit Breaker

Product Description

Square D QOU125 is a miniature circuit breaker designed for residential and commercial applications. This circuit breaker offers reliable protection against overcurrent in both AC and DC electrical systems. Additionally, it allows manual operation to open circuits, enhancing safety and control.

• 1 pole configuration
• Rated for 120/240 volts
• Compatible with various mounting types including flush and DIN rail

Product Highlights

This breaker ensures professional-grade protection and is fully tested, UL Listed, and CSA certified, suitable for reverse connections.

Product Information

Standard Information

• Brand: Square D
• MPN: QOU125

Technical Specifications

• Catalog Number: QOU125
• Voltage: 120/240 V AC
• Amperage: 25 A
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Height: 4.05 in
• Width: 0.75 in
• Depth: 2.95 in
• Warranty Length: 18 months
• Country of Origin: Mexico
• Certifications: UL Listed, IEC, CSA
