Product Description

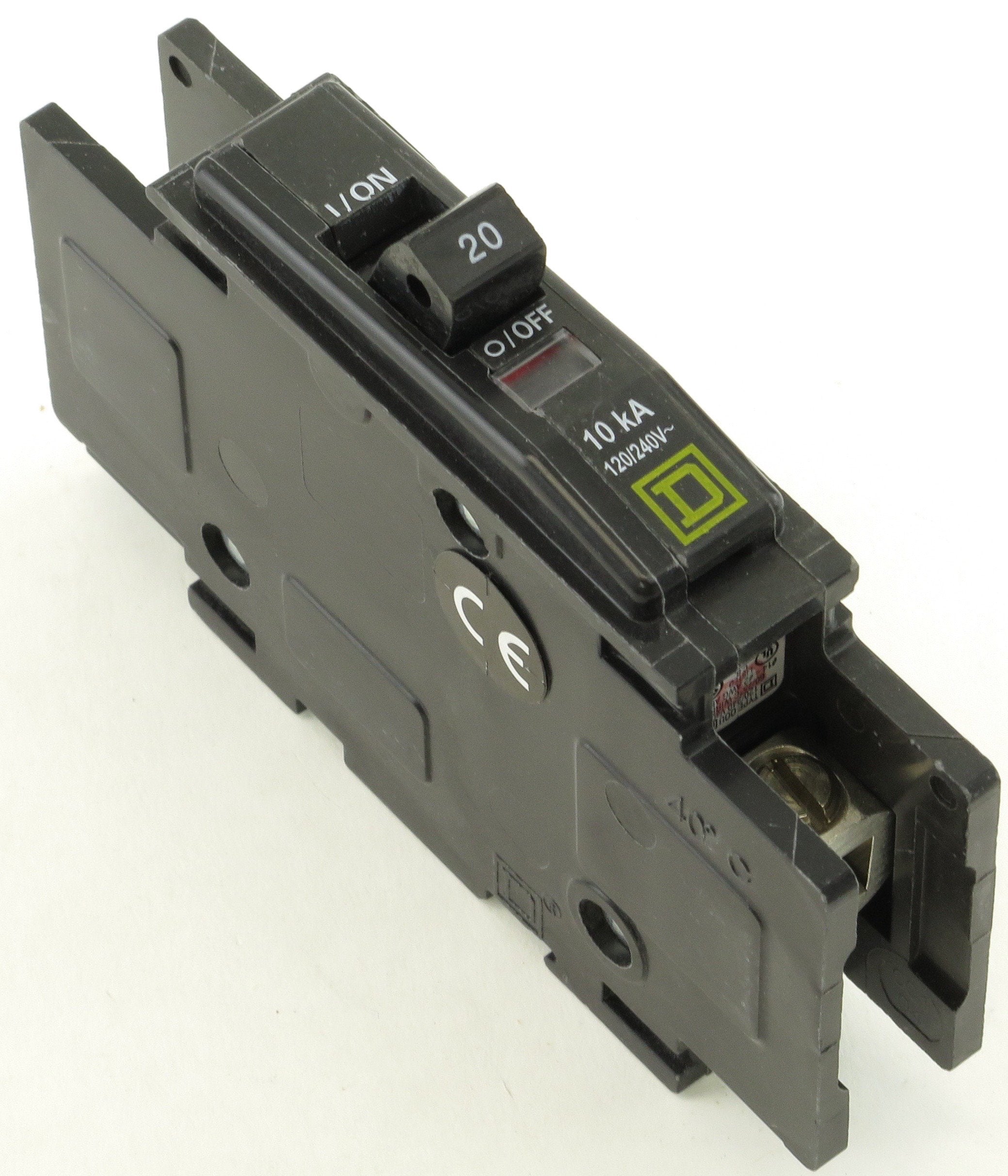

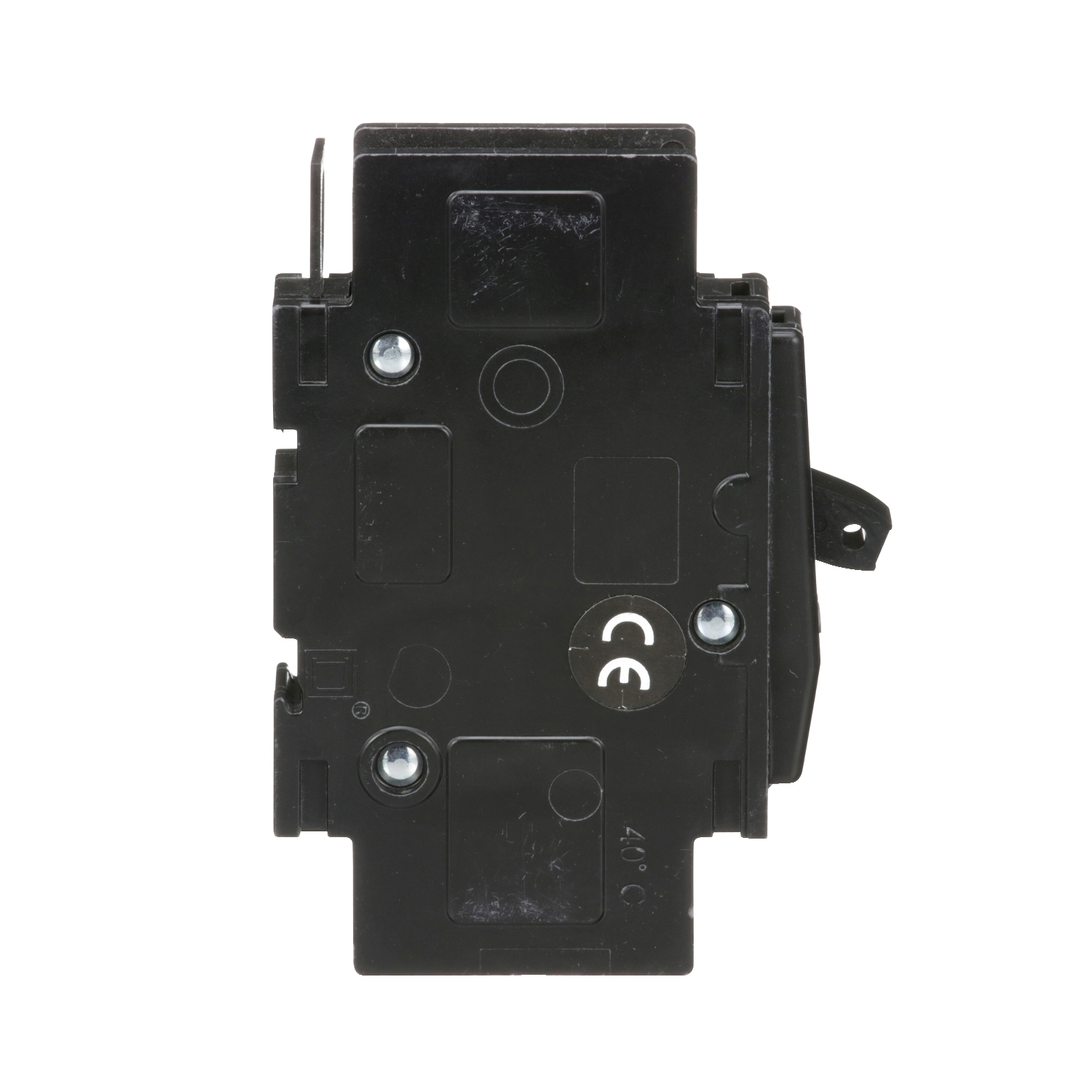

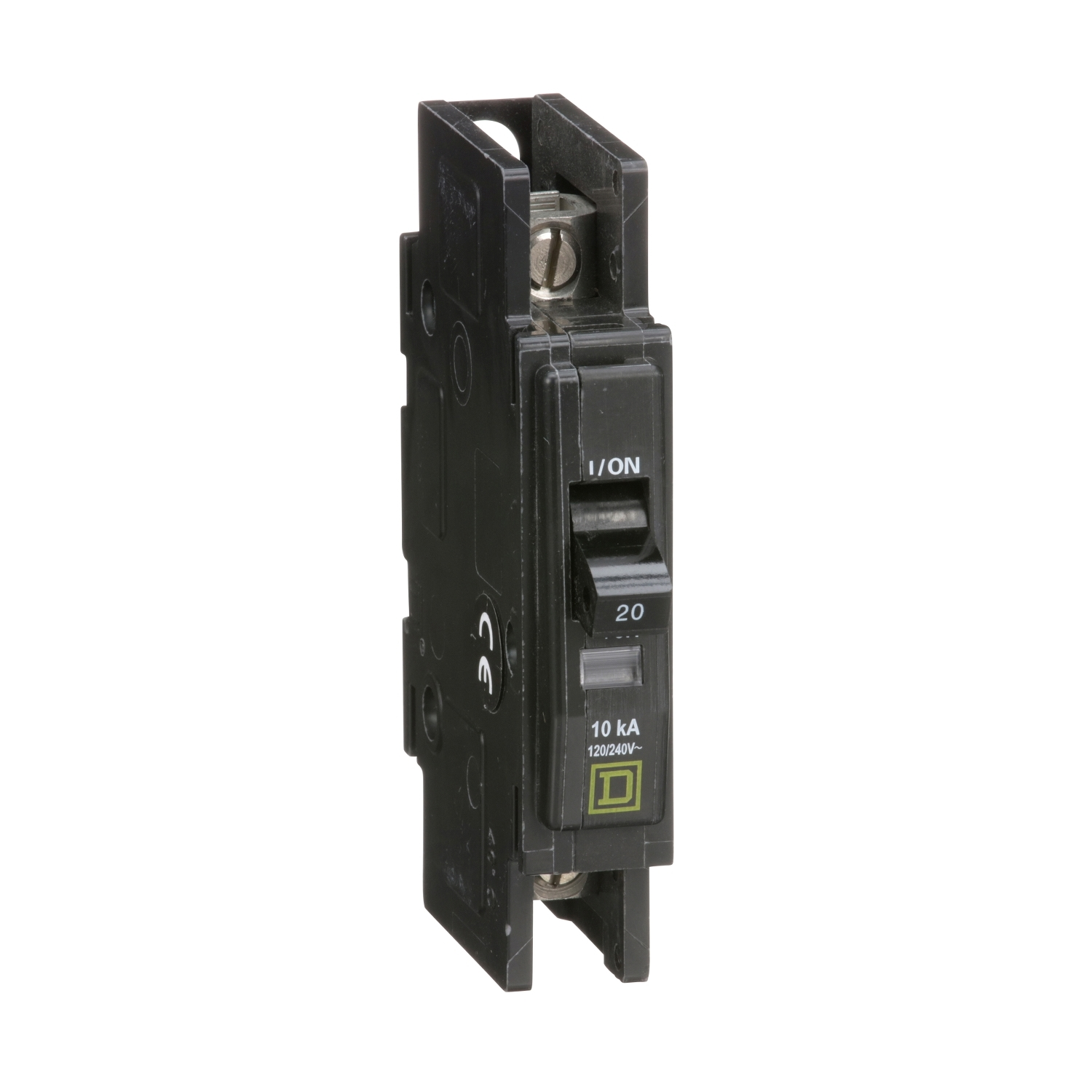

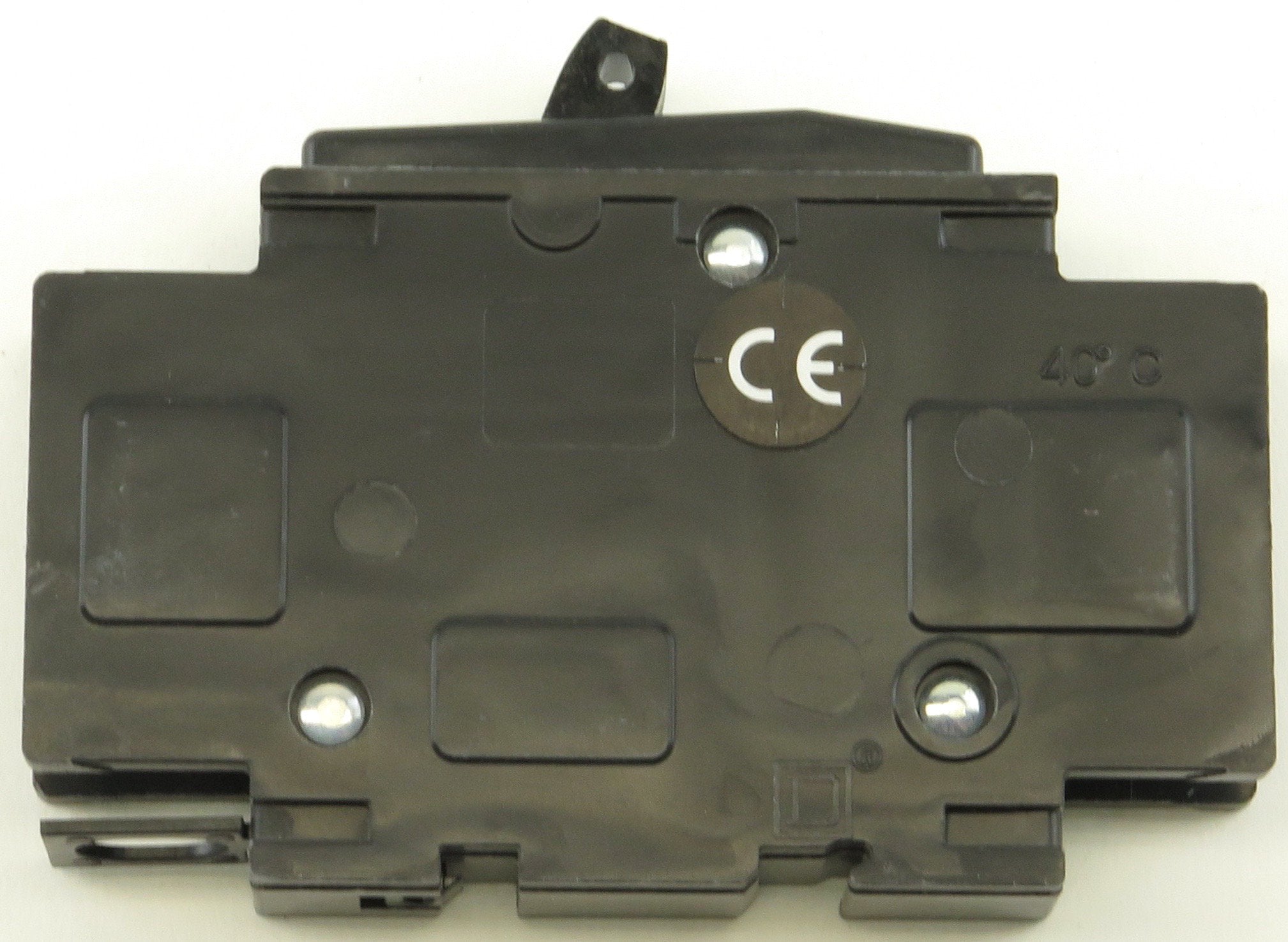

The Square D QOU120 miniature circuit breaker is ideal for OEM applications. This QOU miniature circuit breaker is used for overcurrent protection and switching on both AC and DC electrical systems. It provides a means to manually open a circuit. It is fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings.
- Automatically open a circuit under overload or short circuit conditions
- Visi-Trip on all the circuit breakers for easy trip detection
- Can be flush-, surface-, or DIN rail- Mounted
Product Highlights
The Square D QOU120 is a miniature circuit breaker used for overcurrent protection in AC and DC systems. It features easy trip detection and multiple mounting options.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QOU120
-
Country of Origin: Mexico
Technical Specifications
-
Type: Miniature circuit-breaker
-
Brand: Square D
-
Depth: 2.95 Inch
-
Width: 0.75 in
-
Height: 4.05 Inch
-
Length: 2.95 Inch
-
Voltage: 120 Volt
-
Amperage: 20 Amp
-
Sub Brand: QOU
-
Applications: HACR and Switching Duty rated
-
Mounting Type: Unit Mount
-
TC Connection: LINE: BOX LUG - LOAD: BOX LUG #14-2 AWG(AL/CU)
-
Certifications: CSA,IEC,UL Listed
-
Number of Poles: 1 Pole
-
Interrupt Rating: 10 kAIC
-
Line Rated Current: 20 A
-
Circuit Breaker Type: Standard
-
Short Circuit Current: 10 kA
-
Catalog Number: QOU120
-
Manufacturer: Schneider Electric
-
Country of Origin: United States
-
Made in USA: Yes
-
Voltage Rating: 120/240 VAC
-
Current Rating: 20 Amps
-
Terminal Type: Lug
-
Wire Size: 14 - 2 AWG (Aluminum/Copper)
-
Mounting: 35 mm DIN rail/flush/surface mounting, standard flush
-
Protection: Over current
-
Range Of Product: QOU
-
Electrical Connection: slotted box lugs, line side || slotted box lugs, load side
-
[Ue] Rated Operational Voltage: 120/240 V AC || 120 V AC || 48 V DC
-
Awg Gauge: AWG 14...AWG 2 aluminium/copper
-
IGCC: 4897
-
Application: HACR rated
-
Family group: DISTRIBUTION EQUIPMENT
-
Mounting Mode: Unit mount
-

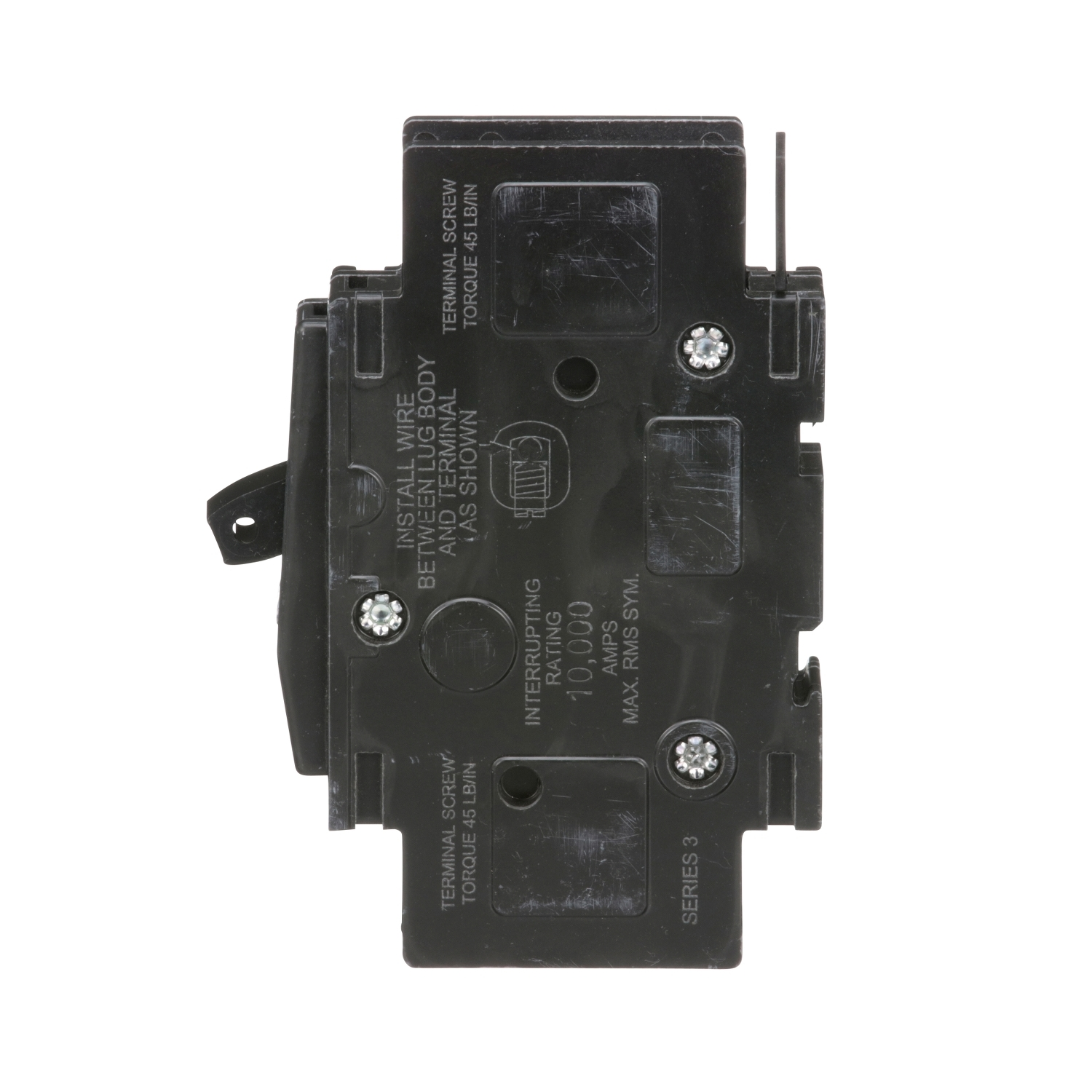

Tightening Torque: 45-45 lbf.in (AWG 14...AWG 2)
-
Line Rated Current - Metric: 20 A
-
Poles: 1
-
Amps: 20 A
-
AC Voltage Rating: 120/240V AC
-
DC Voltage Rating: 48V DC
-
Circuit Breaker Actuator: Toggle
-
Circuit Breaker Mounting Style: Surface/DIN Rail
-
Compatible Panelboard/Load Center Series: QO
-
Phase: Single
-
Max. AIR Rating: 10kA at 120/240V AC
-
For Use With: Air Conditioning and Refrigeration Equipment; Heating
-
Terminal Connection: Slotted Box Lug (Reversible Line and Load)
-
Frame Size: 100A/QOU
-
Min. Wire Size: 14 AWG
-
Max. Wire Size: 2 AWG
-
Standards: IEC; UL listed
-
UNSPSC: 39121603
-
Frame: QOU
-
Trip Type: Thermal Magnetic
