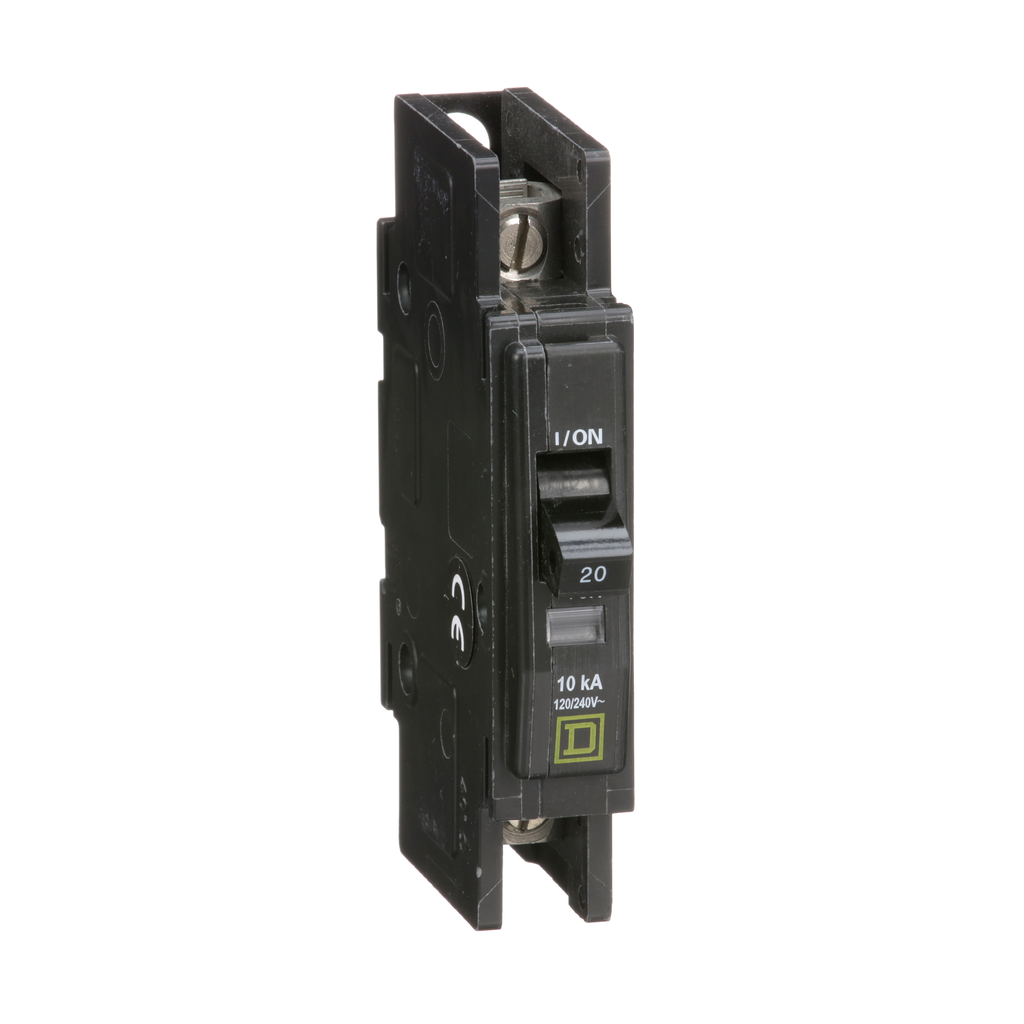

Product Description
The Square D QOU120 Miniature Circuit Breaker, MPN QOU120, is designed for overcurrent protection in electrical systems. It is suitable for OEM applications and offers versatility for both AC and DC connections.
- Fully tested and UL Listed for reverse connection.
- Operates in any position for convenience.
- Features Visi-Trip for clear trip indication.
Product Highlights
This circuit breaker allows manual opening of the circuit and provides automatic trip during overload or short circuit conditions.
Product Information
Standard Information
-
Catalog Number: QOU120
-
Manufacturer: Schneider Electric
Technical Specifications
-
Depth: 2.95 inches
-
Width: 0.75 inches
-
Height: 4.05 inches
-
Voltage Rating: 120/240 V AC
-
Amperage: 20 Amp
-
Line Rated Current: 20 A
-
Number of Poles: 1 Pole
-
Interrupt Rating: 10 kAIC
