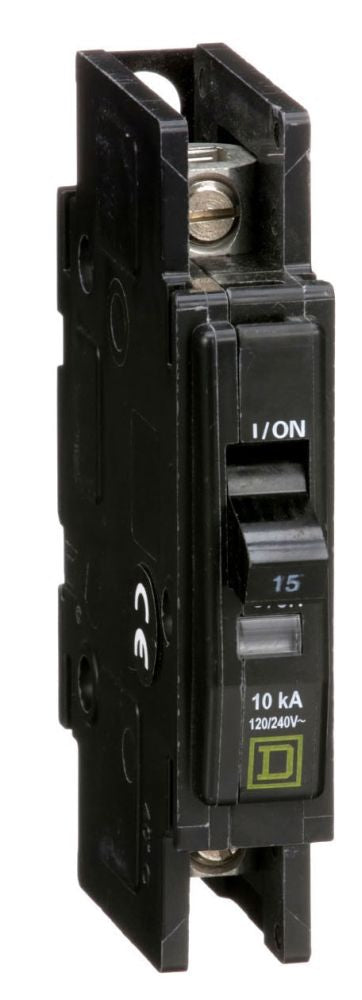

Square D QOU115 Miniature Circuit Breaker 120/240V 15A

Product Description

Square D offers the QOU115 Miniature Circuit Breaker. This device is suitable for 120/240 Volt AC and rated at 15 Amps. It finds usage in various settings requiring reliable circuit protection.

• Type: Thermal Magnetic, Common Trip.
• Size: 0.75 inches wide, 2.95 inches deep, and 4.05 inches high.
• Mounting: Compatible with DIN rail, flush, and surface installations.

Product Highlights

Designed for efficient protection in residential and commercial applications. The device supports wire sizes from 14 to 2 AWG, ideal for different electrical systems.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Approval: UL 489, CSA C22.2

Technical Specifications

• Voltage Rating: 120/240 Volt AC at 50/60 Hertz, 48 Volt DC
• Current Rating: 15 Amp
• Interrupting Rating: 10 Kiloamp at 120/240 Volt AC, 5 Kiloamp at 48 Volt DC
• Wire Size: 14 to 2 AWG (Aluminum/Copper)
• Size: 0.75 inches Width x 2.95 inches Depth x 4.05 inches Height
• Number of Poles: 1
• Model: QOU
