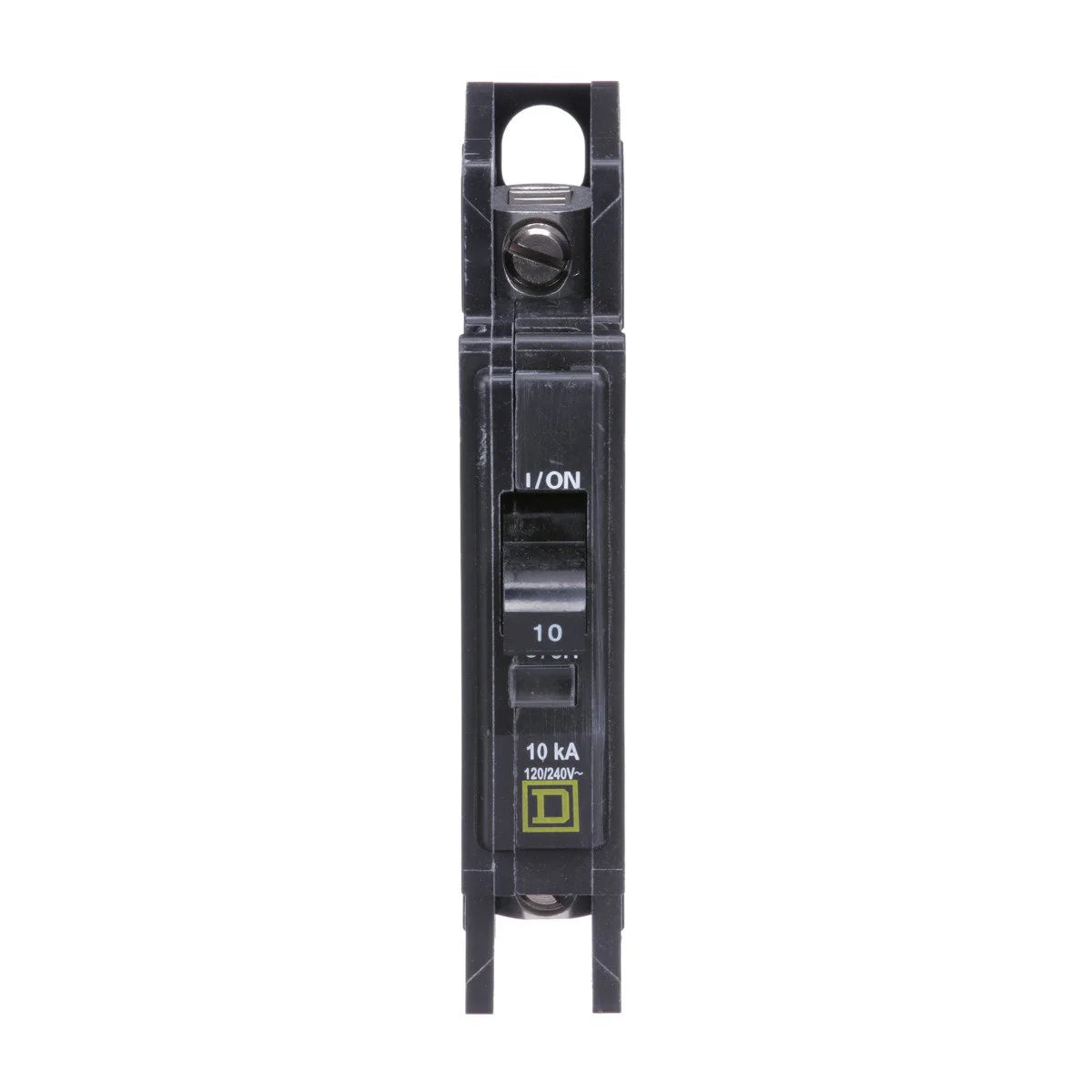

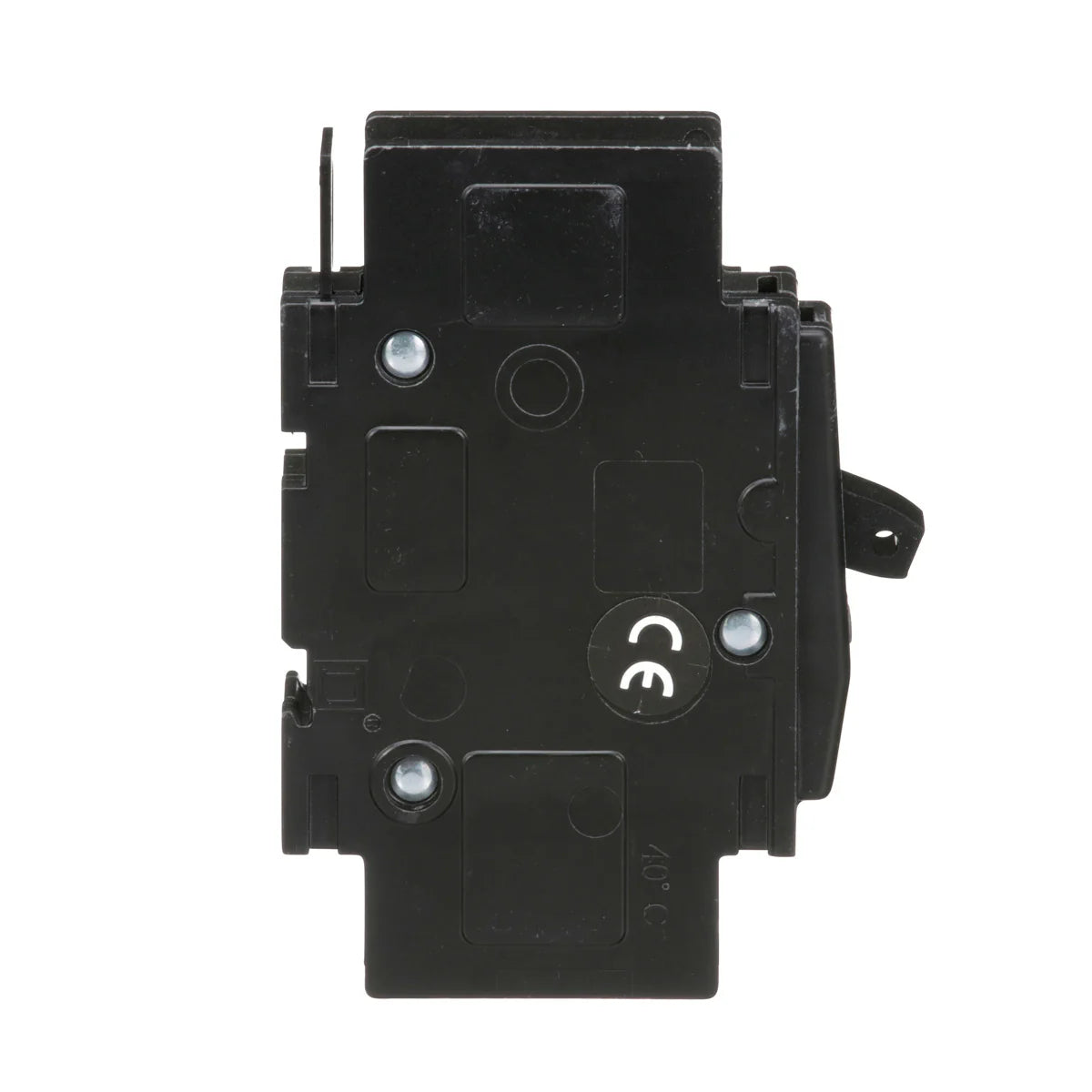

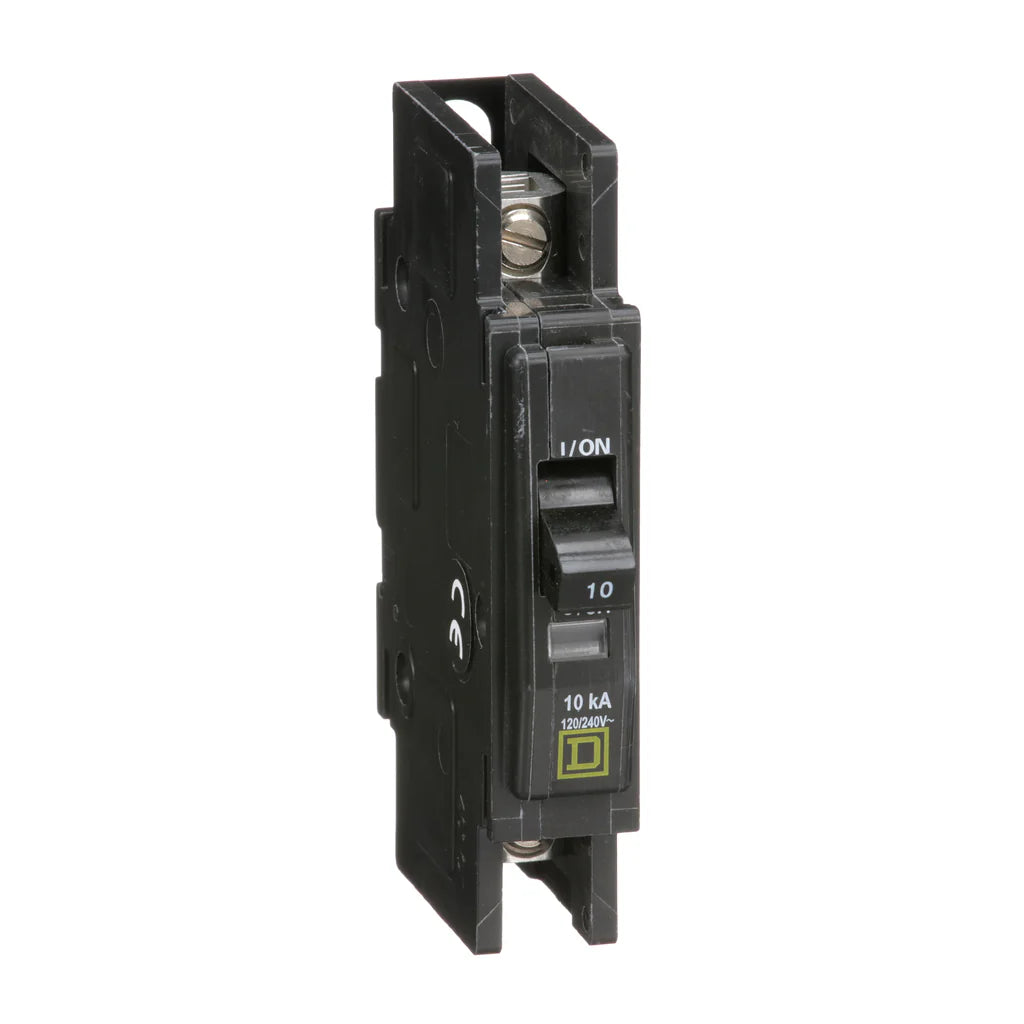

Square D QOU110 Miniature Circuit Breaker 10A 120/240V

Product Description

The Square D QOU110 Miniature Circuit Breaker is designed for overcurrent protection and switching in both AC and DC electrical systems. With a current rating of ten amps and a dual voltage rating of one hundred twenty and two hundred forty volts, this device is suitable for various OEM applications. It provides a manual means to open a circuit when necessary.

• Can be mounted in flush, surface, or DIN rail configurations.
• Includes lugs at both ends for cable-in/cable-out installation.
• Features Visi-Trip technology for enhanced trip detection.

Product Highlights

This circuit breaker features UL listing and CSA certification, ensuring compliance with safety standards. The QOU110 operates in any position and can automatically open under overload or short circuit conditions.

Product Information

Standard Information

• Catalog Number: QOU110
• Brand: Square D

Technical Specifications

• Voltage Rating: 120/240 Volt AC
• Amperage: 10 Amp
• Interrupt Rating: 10 kAIC
• Number of Poles: 1 Pole
• Depth: 2.95 inches
• Width: 0.75 inches
• Height: 4.05 inches
• Country of Origin: Mexico
