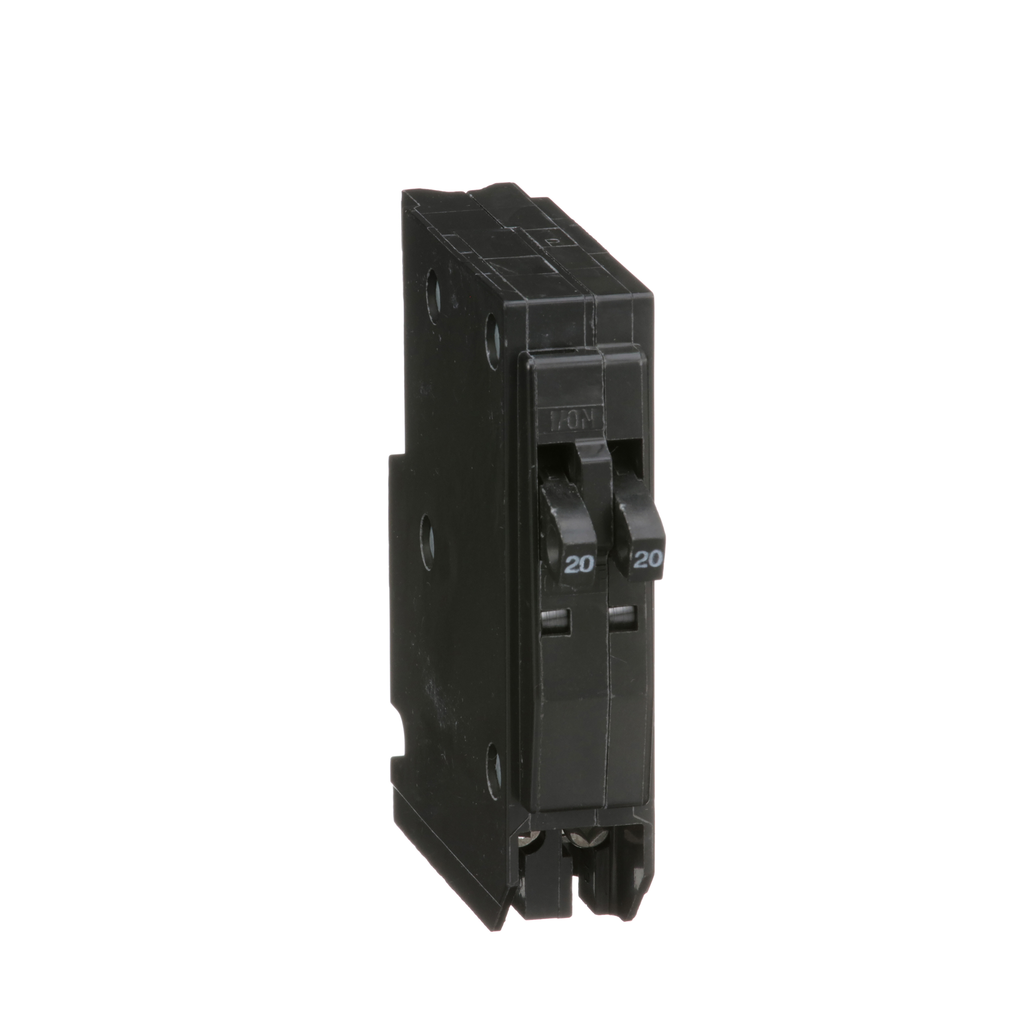

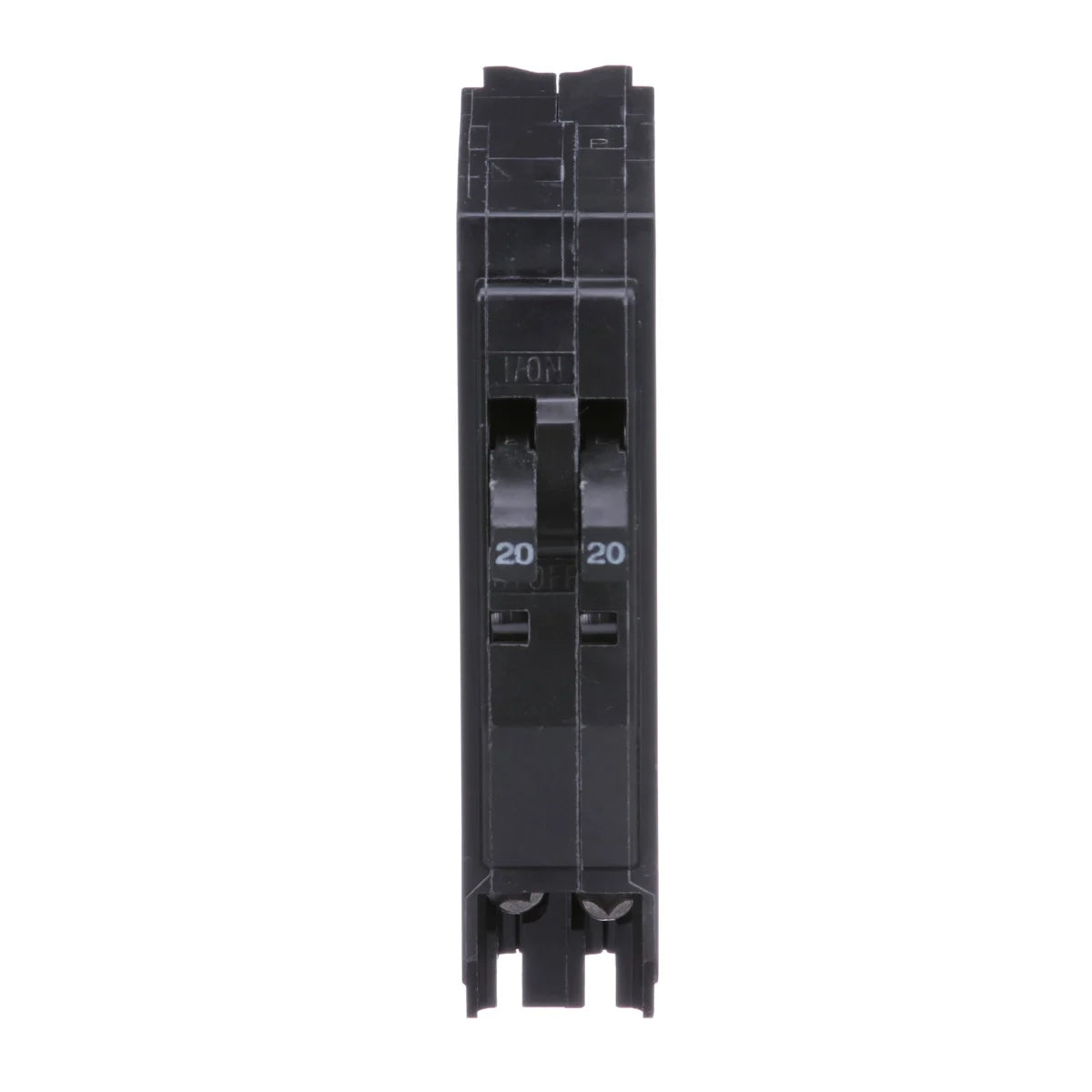

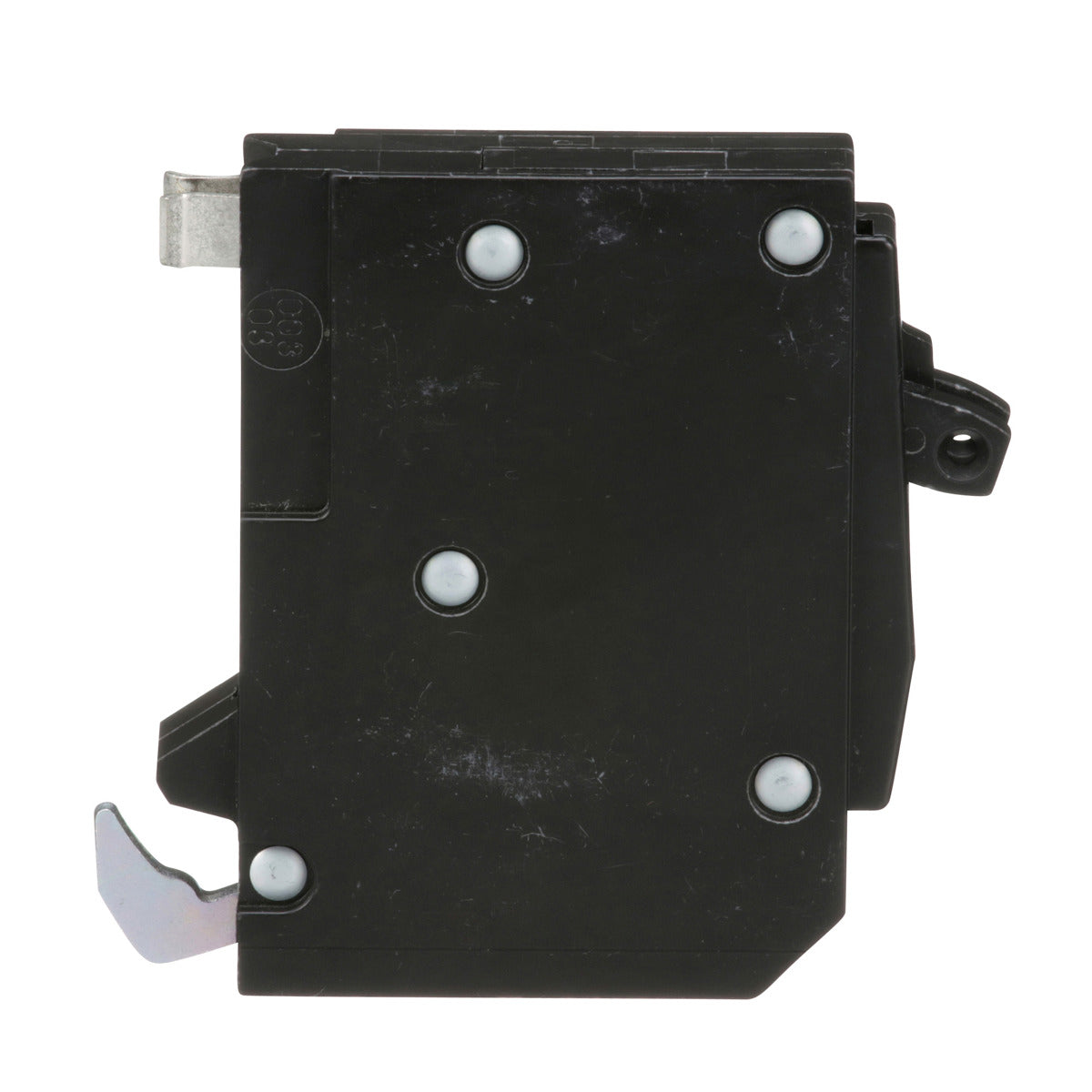

Square D QOT2020 Tandem Circuit Breaker 20A/20A 120/240V 1Ph

Product Description

The Square D QOT2020 is a tandem circuit breaker designed for overcurrent protection in AC and DC systems. This breaker features a unique combination of two single pole breakers, both rated at twenty amps, allowing efficient use of space in electrical panels. Its design is suitable for applications requiring a compact solution without sacrificing performance.

• Rated for 20 amps and suitable for 120/240 volts
• 10 kA interrupt rating for reliable circuit protection
• Plug-on mounting for easy installation

Product Highlights

This circuit breaker integrates thermal magnetic trip technology, ensuring swift response to overloads or short circuits. It features a trip-free toggle mechanism that allows for a positive handle indication when a trip occurs.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QOT2020
• Depth: 2.91 inches
• Width: 0.75 inches
• Height: 3.5 inches
• Current Rating: 20 Amps
• Voltage Rating: 120/240 Volt
• Amperage: 20 Amp
• Number of Poles: 1 Pole
• Mounting Type: Plug-on
• Interrupt Rating: 10 kA
• Applications: HACR rated
• Weight: 0.32 kg
• Country of Origin: Mexico
• Certifications: UL Listed, CSA Certified
• Warranty Length: 18 months
