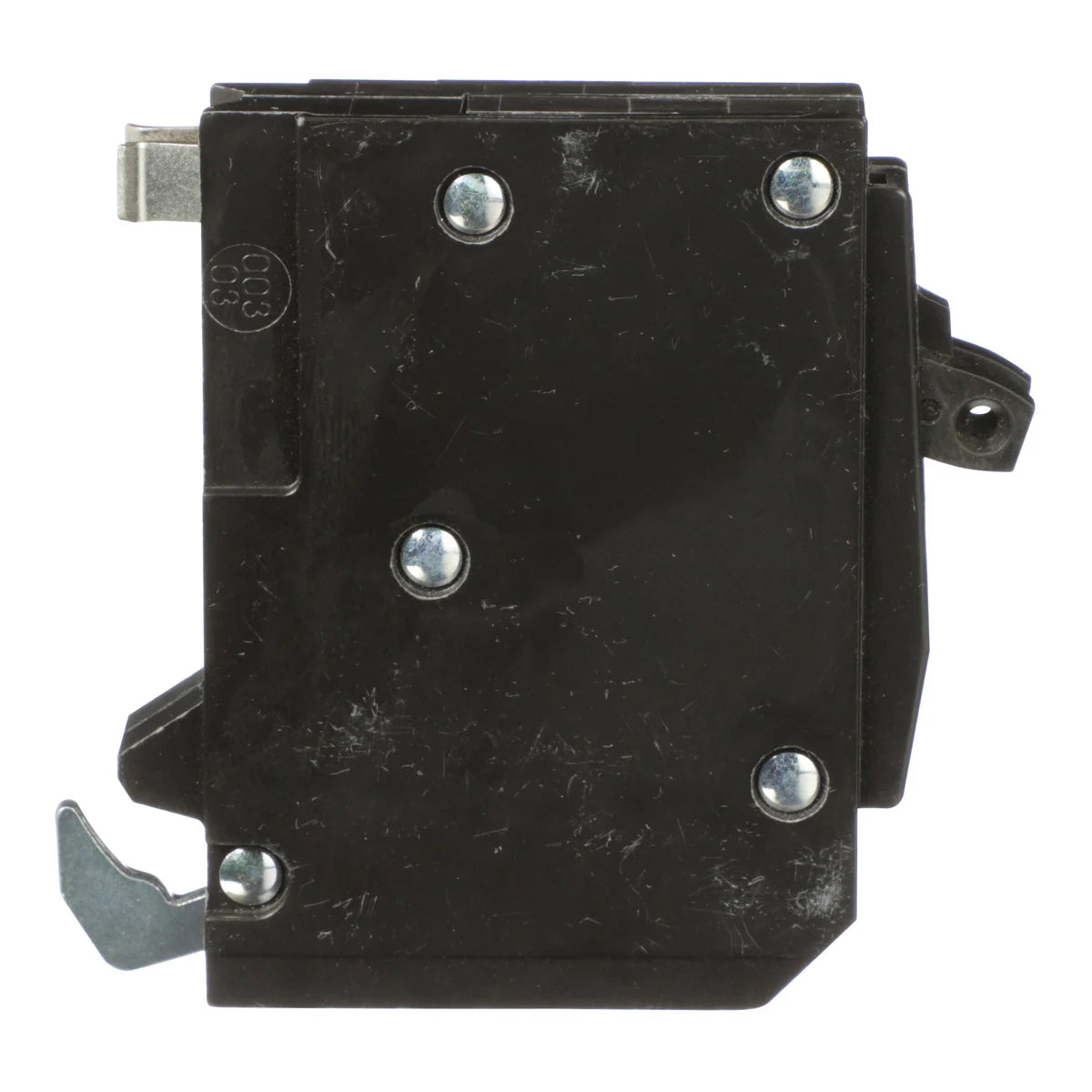

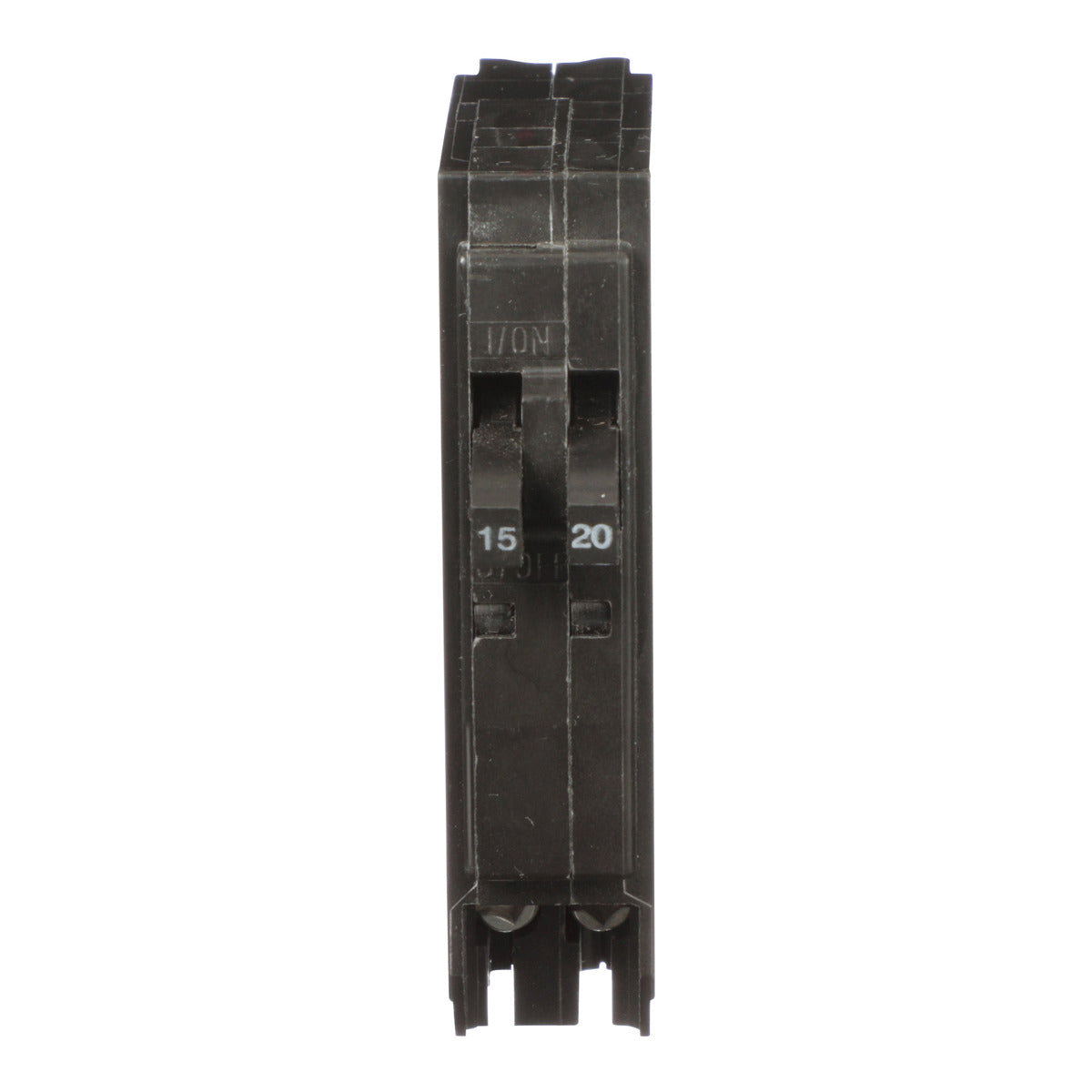

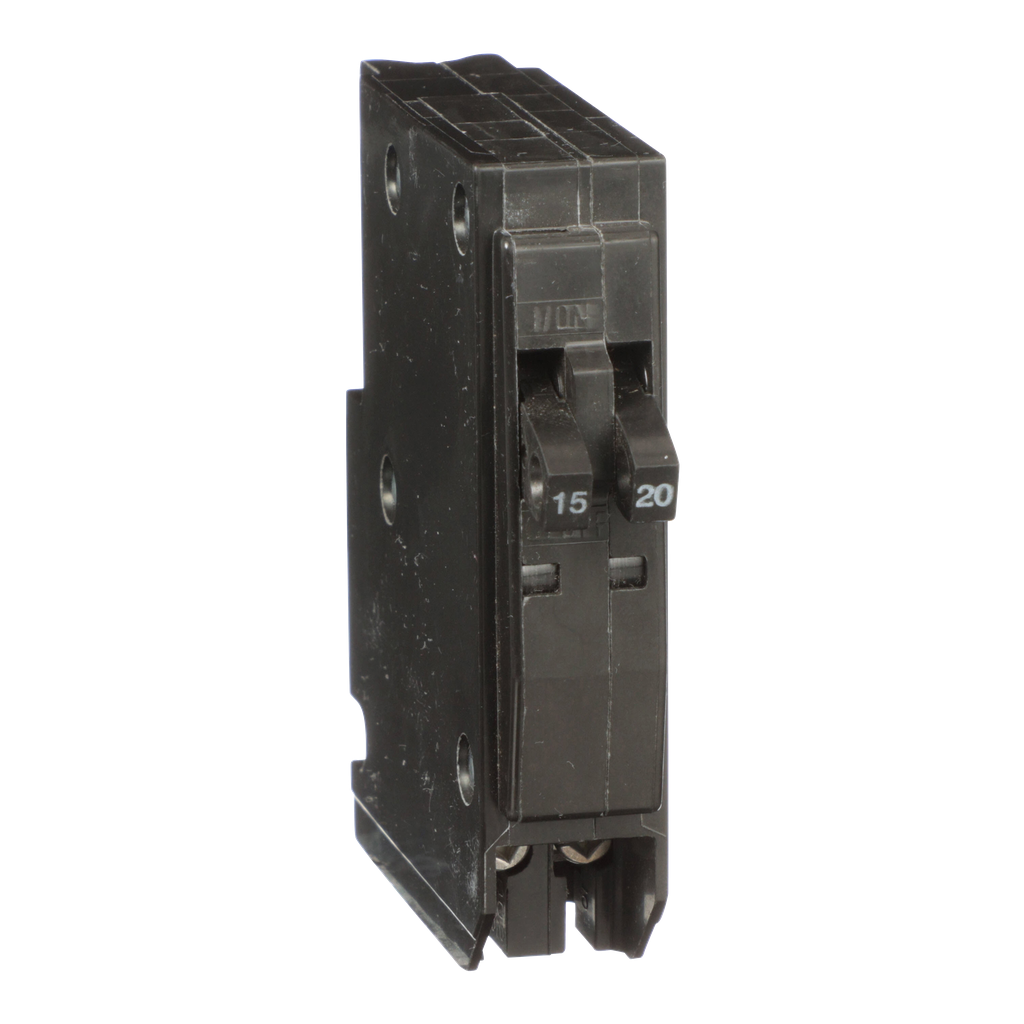

Square D QOT1520 Tandem Circuit Breaker 15A/20A 120/240V 1Ph , Plug-On

Product Description

The Square D QOT1520 Tandem Circuit Breaker is designed for overcurrent protection in AC and DC electrical systems. This device features a plug-on mounting style, allowing for easy installation in compatible panels. This circuit breaker has dual ratings of fifteen amps and twenty amps, suitable for both one pole at 15A and one pole at 20A for 120/240 volts.

• UL Listed and CSA Certified for safety and performance.
• Offers a breaking capacity of ten kiloamperes.
• Equipped with VisiTrip technology for visual indication of tripped status.

Product Highlights

This tandem circuit breaker is ideal for residential and commercial electrical setups. It effectively manages electrical loads, ensuring safety and reliability.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: QOT1520
• Current Rating: 15 Amp / 20 Amp
• Voltage Rating: 120/240 Volt
• Type: Miniature Circuit Breaker
• Width: 19 mm
• Height: 82 mm
• Length: 2.91 inches
• Interrupt Rating: 10 kAIC
• Country of Origin: Mexico
• Wire Size: AWG 14 to AWG 8 copper; AWG 12 to AWG 8 aluminum
• Warranty Length: 18 months
