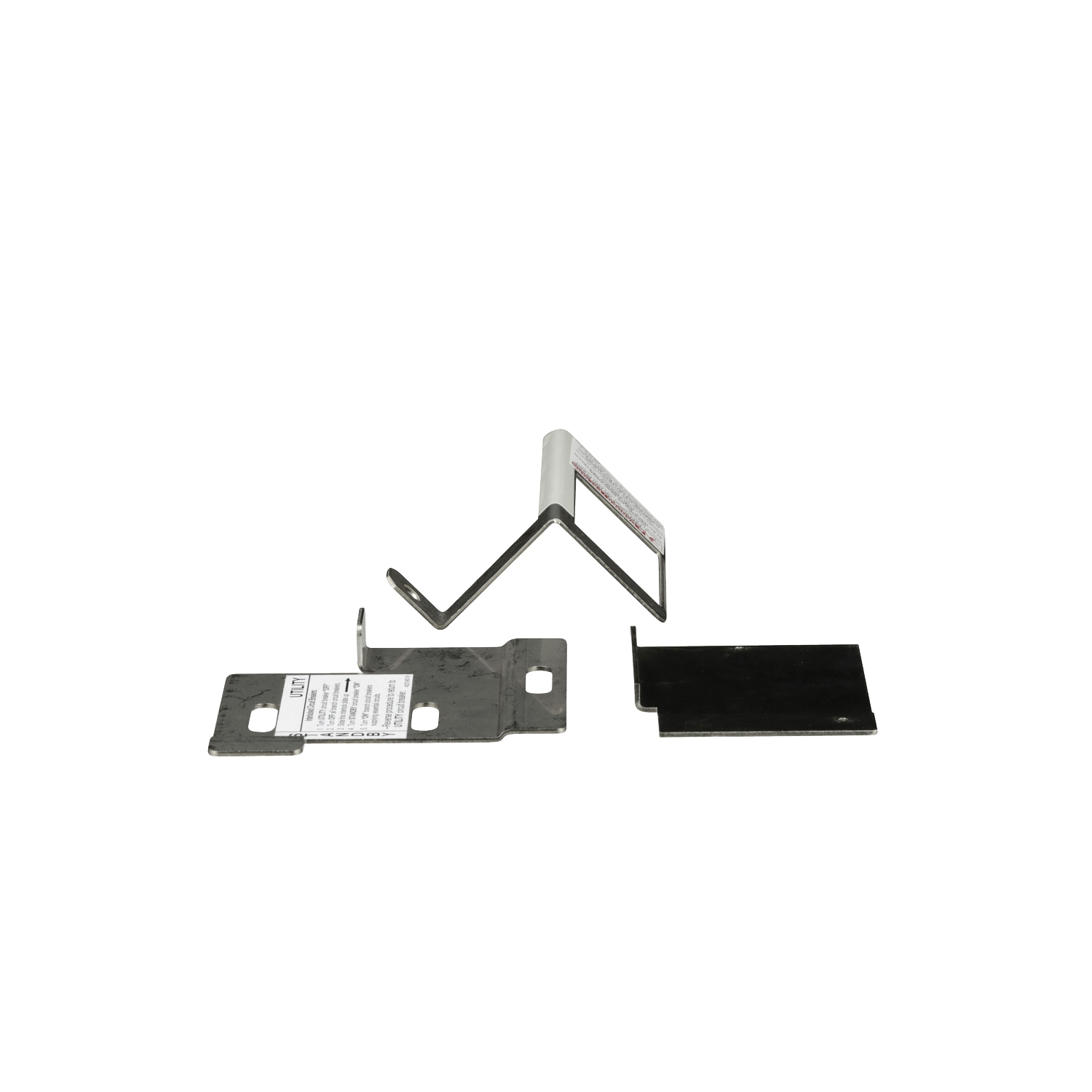

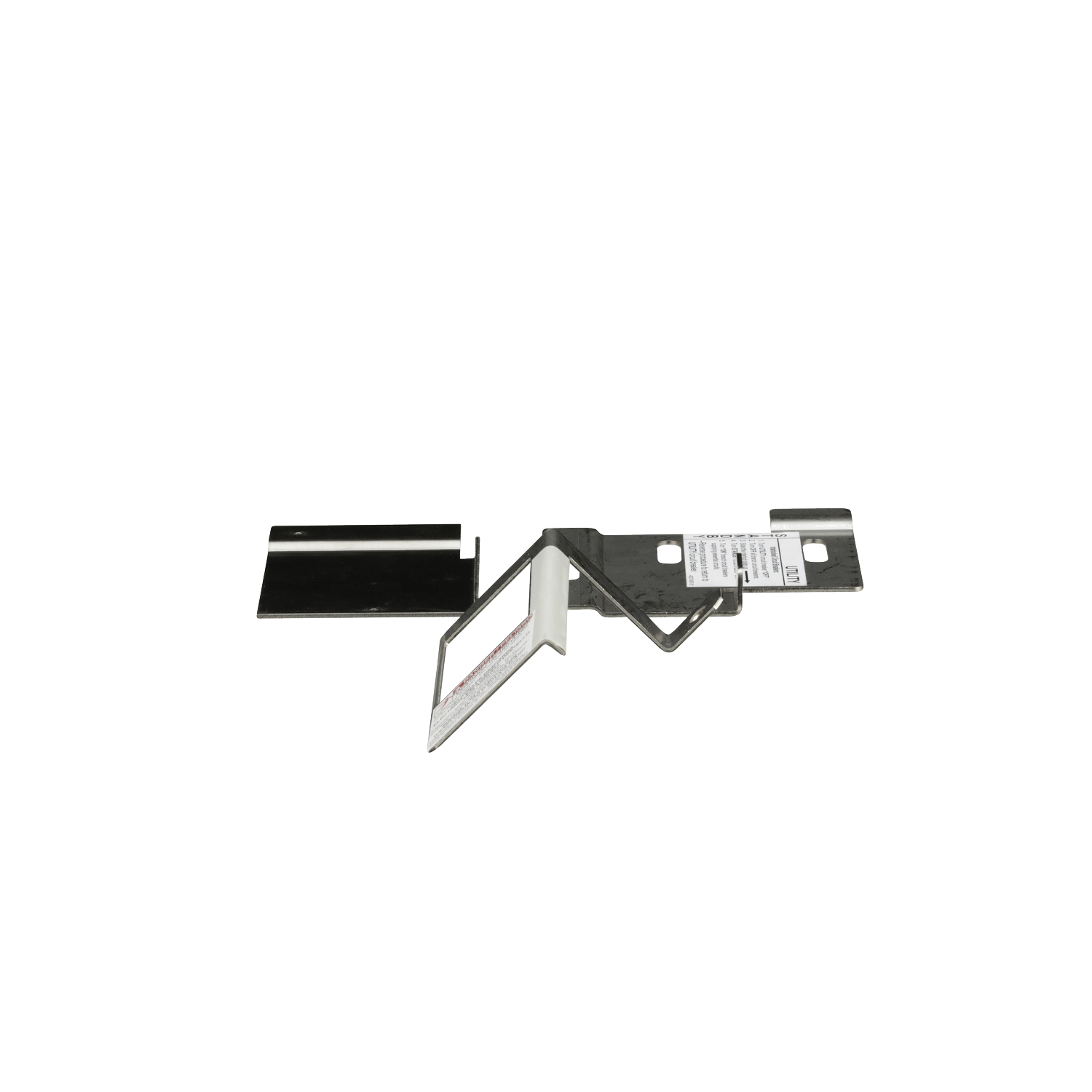

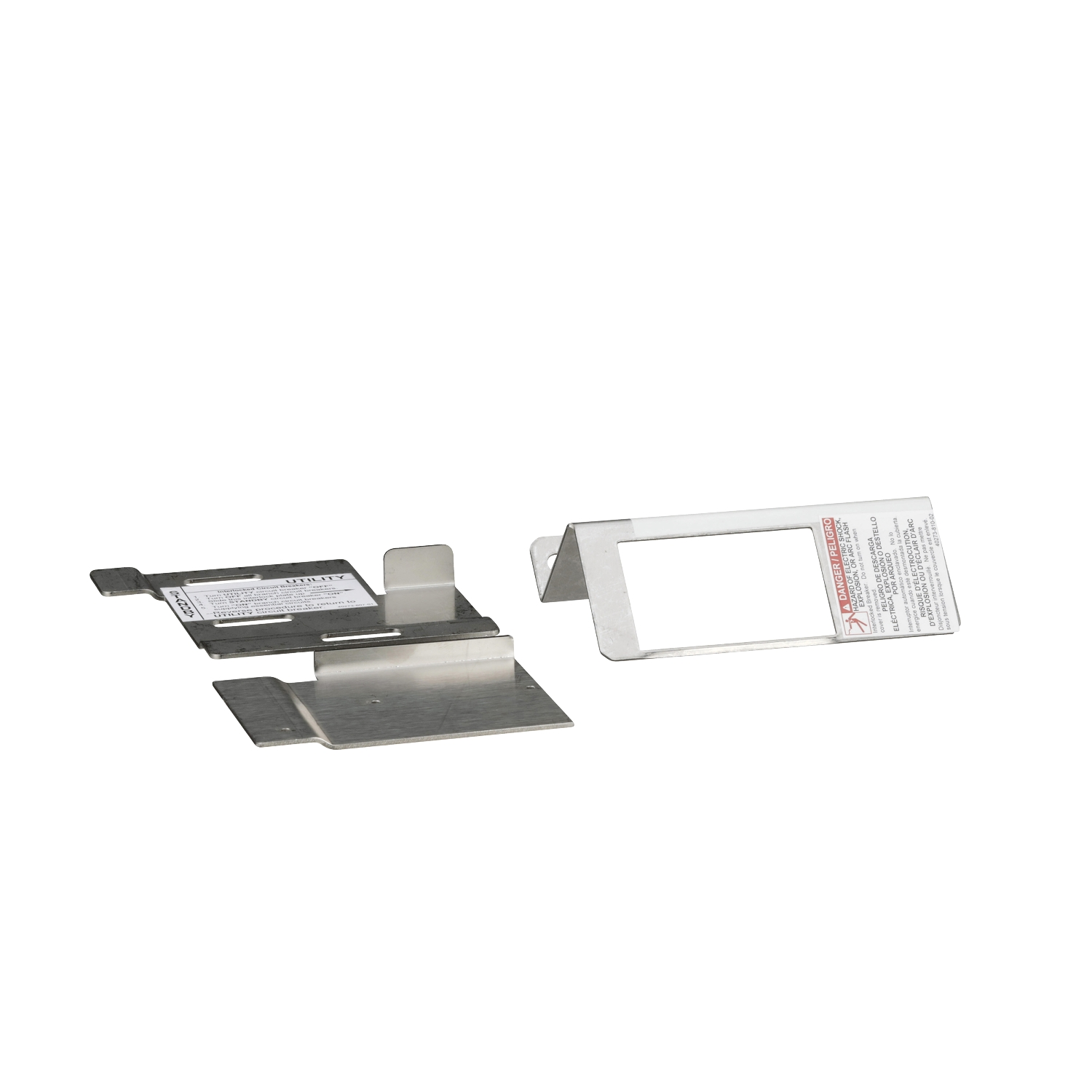

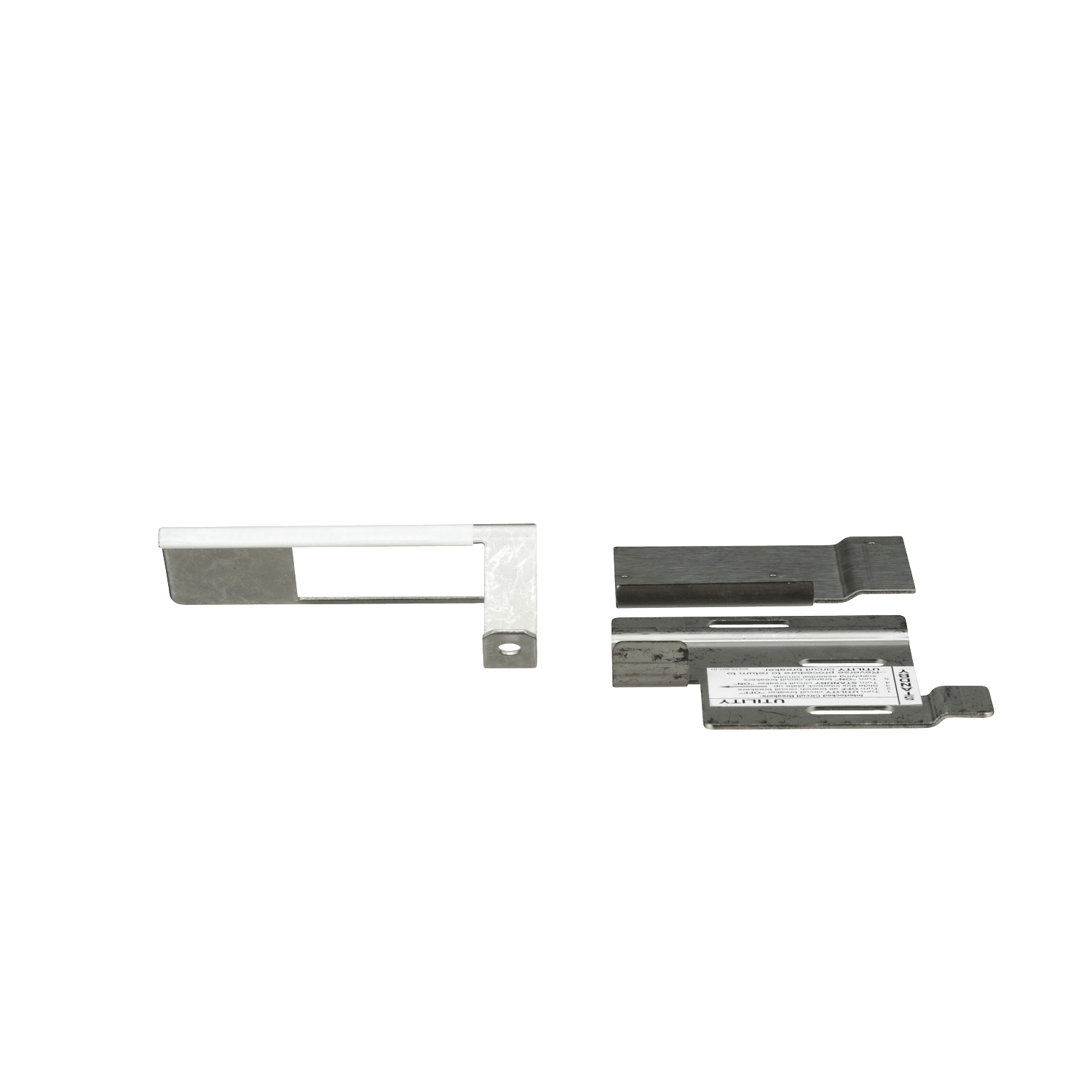

Square D QORBGK2C 150 to 225 Amp Outdoor Load Center Generator Circuit Breaker Interlock Kit

Product Description

The Square D QORBGK2C is a QO generator panel for manual transfer from utility to generator power and back-up power applications. This sub-panel connects directly to the main load center and provides four single pole spaces that will accommodate up to eight circuits dedicated for back-up power. It is used to interlock a QOM2 two pole main circuit breaker of the load center with a QO two pole branch circuit breaker.

• For manual transfer from utility to generator power
• Connects directly to the main load center
• Factory installed mechanical interlock prevents both main breakers being in the "ON" position at the same time

Product Highlights

The Square D QORBGK2C interlock kit is for use on "S2" NEMA 3R QO generator load centers. It is used to interlock a QOM2 two pole main circuit breaker of the load center (150A to 225A) with a QO two pole (15A to 125A) branch circuit breaker.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QORBGK2C
• Country of Origin: United States

Technical Specifications

• Type: Load Center Generator Panel Interlock Kit
• Brand: Square D
• Sub Brand: QO
• Circuit Breaker Type: QO
• Depth: 7.3 Inch
• Width: 5 in
• Height: 1.7 Inch
• CA Prop65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Catalog Number: QORBGK2C
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Made in USA: Yes
• UPC: 785901616795
• GTIN: 00785901616795
• Used On: QO S2 Series Load Center
• RoHS Compliant: Yes
• Enclosure Rating: NEMA 3R
• Includes: Retaining Kit
• Range Of Product: QO
• Product Or Component Type: interlock
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Eu Rohs Directive: Compliant with Exemptions
• Circularity Profile: N/A
• Take-Back: No
• Amperage Rating: 150 to 225 A
• Series: QO
• Amperage: 150-225
• Poles: 2
• Approval: UL, CSA
• For Use With: QO Load Center
• Standards: RoHS, REACh, ANSI
• ECCN: EAR99
