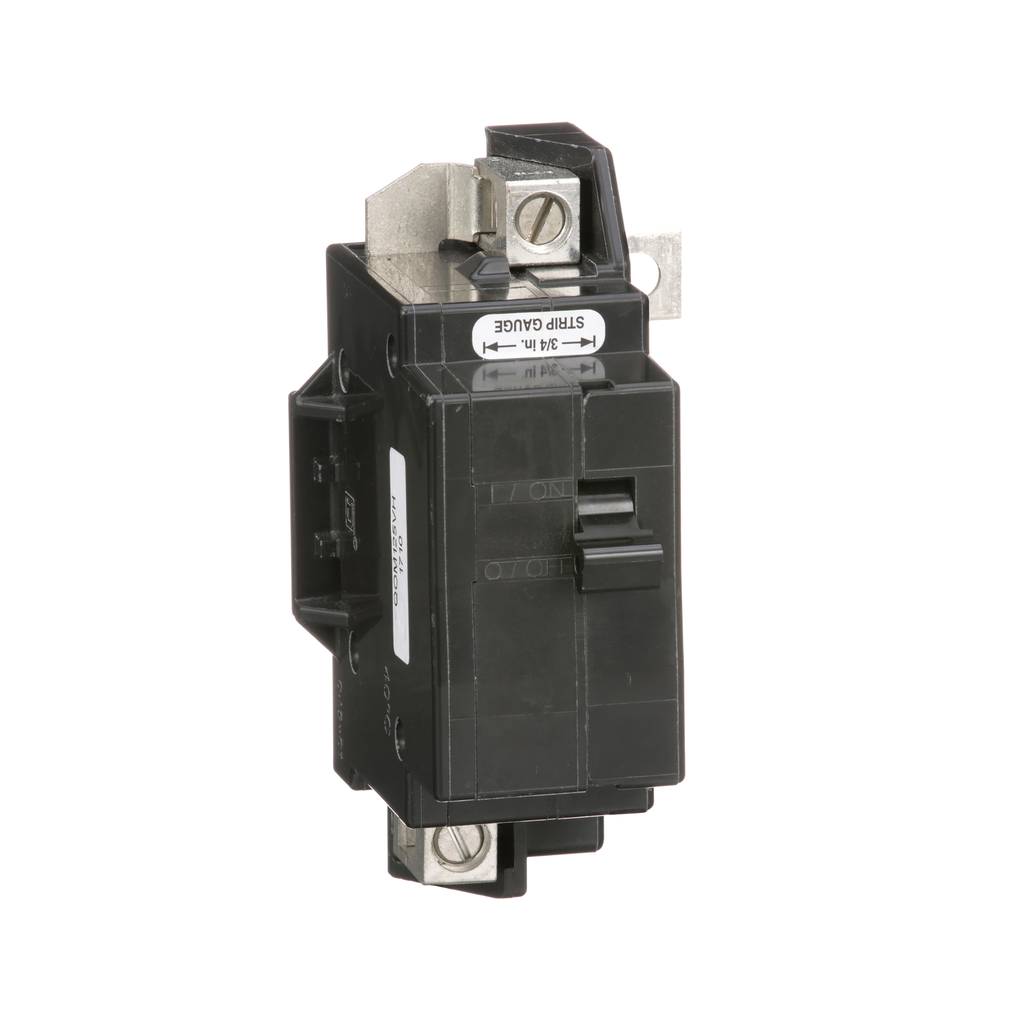

Square D QOM90VH Main Circuit Breaker 90A 120/240V 1Ph 2P

Product Description

The Square D QOM90VH Main Circuit Breaker is designed for reliable overcurrent protection and quick switching in AC and DC systems. This two-pole circuit breaker is rated for ninety amperes at one hundred twenty to two hundred forty volts. It features a trip-free toggle mechanism with a quick make and break action, ensuring safety and responsiveness in electrical applications.

• Rated at 90A, suitable for 120/240VAC.
• 22kA breaking capacity for safety.
• Compatible with 4 AWG to 2/0 copper or aluminum wire.

Product Highlights

This breaker also includes VisiTrip indication for visual feedback when tripped, ensuring efficient monitoring. The unit supports bolt-on mounting and comes with various factory-installed accessories.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QOM90VH
• Amperage: 90 Amp
• Voltage: 120/240 Volt
• Poles: 2 Pole
• Mounting Type: Bolt-on
• Height: 5.09 inches
• Width: 3.47 inches
• Depth: 5.00 inches
• Net Weight: 0.567 kg
• Certifications: CSA, UL Listed
