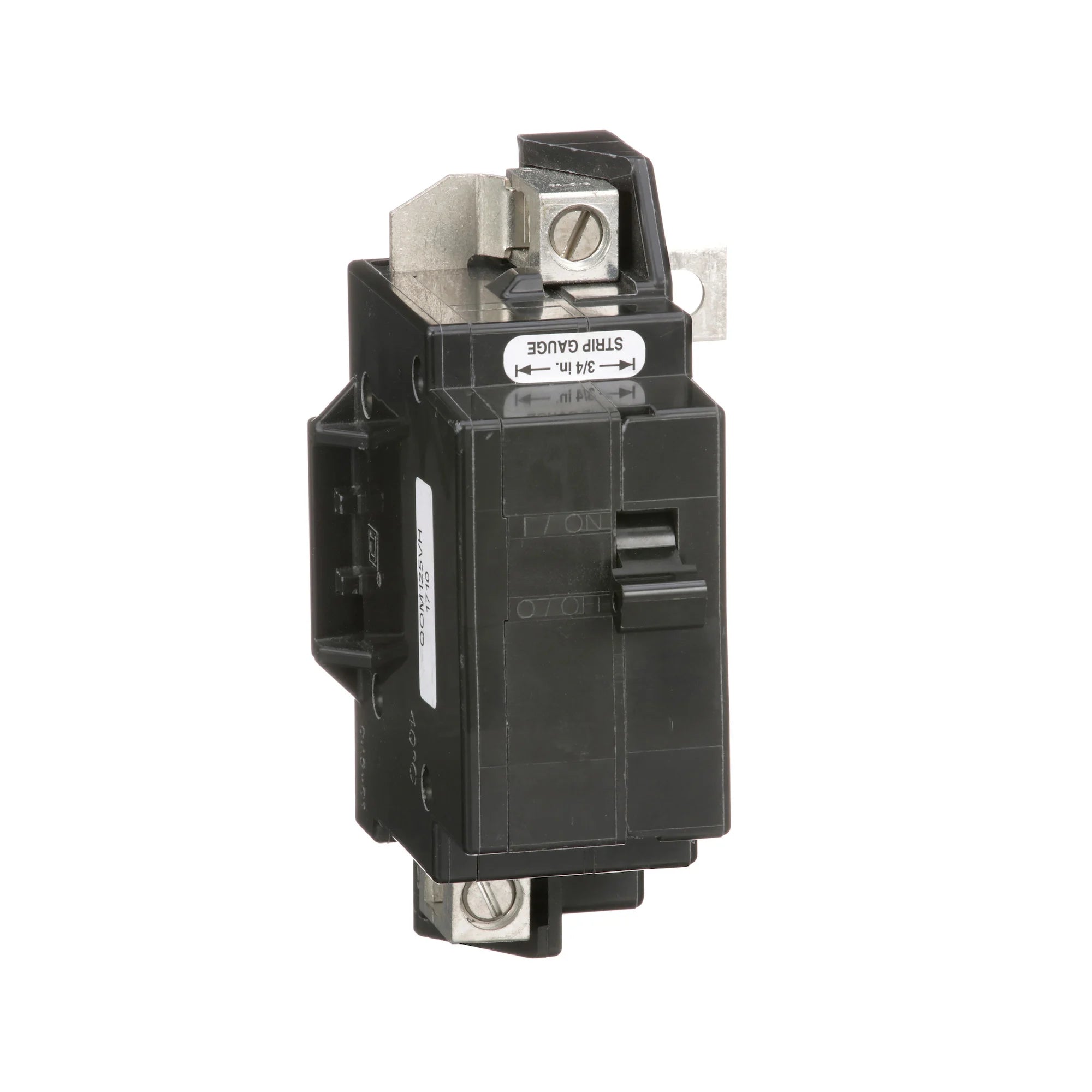

Square D QOM80VH Main Circuit Breaker 80A 120/240V 1Ph 2P

Product Description

The Square D QOM80VH Main Circuit Breaker has a rating of 80 Amps and operates at 120/240 Volts. This two-pole breaker provides both overcurrent protection and switching capabilities for AC and DC systems. It features a trip-free toggle mechanism, ensuring reliable operation.

• Rated at 80A, suitable for residential and commercial use
• Includes VisiTrip indication for easy circuit status monitoring
• Compatible with QO load centers and Homeline load centers

Product Highlights

The QOM80VH is UL Listed and CSA certified, featuring bolt-on mounting and various factory-installed accessories. It accepts wire sizes from one four AWG to two zero for copper or aluminum connections.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: QOM80VH
• Voltage: 120/240 Volts
• Amperage: 80 Amps
• Number of Poles: 2 Pole
• Height: 5.09 inches
• Width: 3.47 inches
• Depth: 5.00 inches
• Breaking Capacity: 22 kA
• Wire Size: AWG 4 to AWG 2/0
• Mounting Type: Bolt-on
• Certifications: UL, CSA
• Country of Origin: Mexico
• Warranty Length: 18 months
