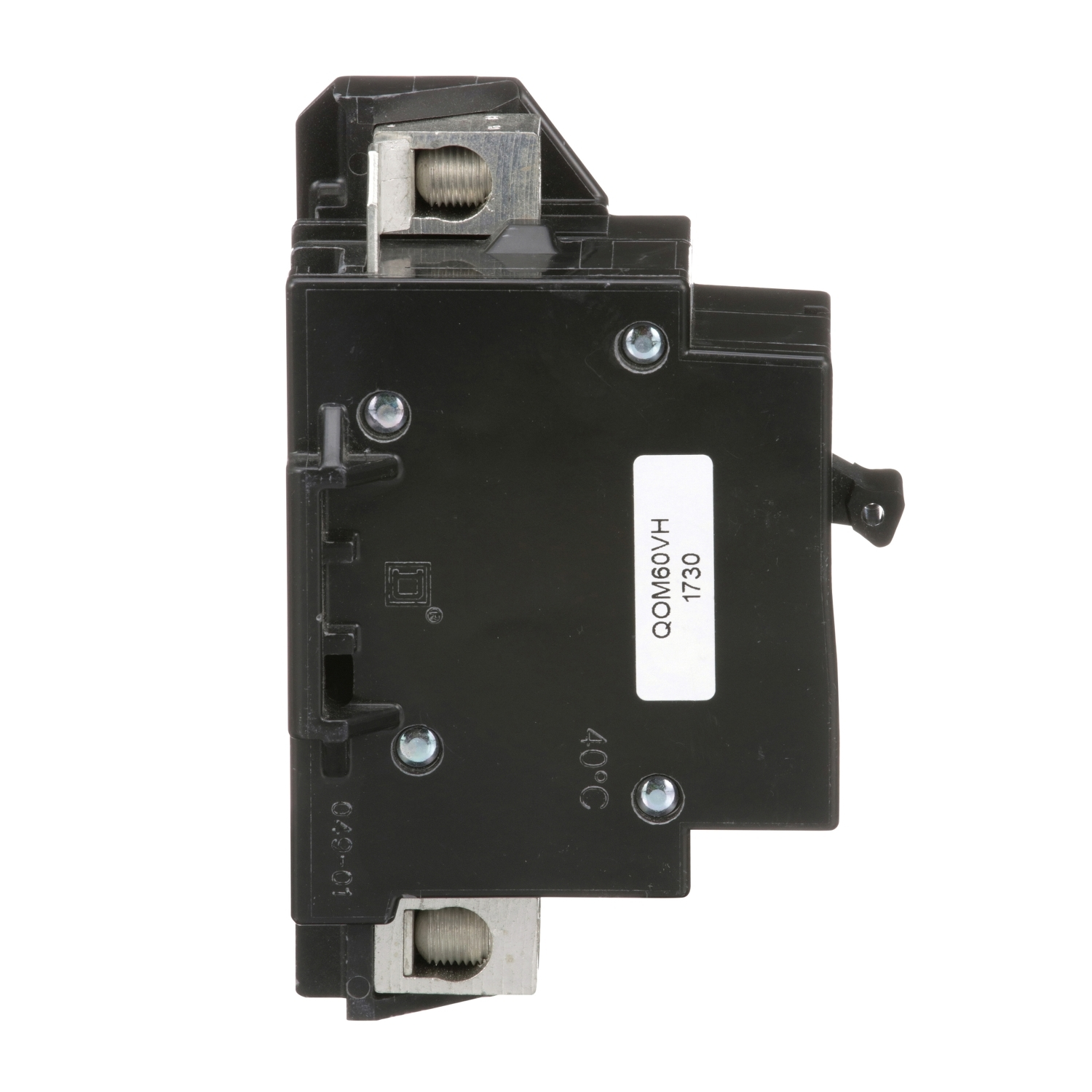

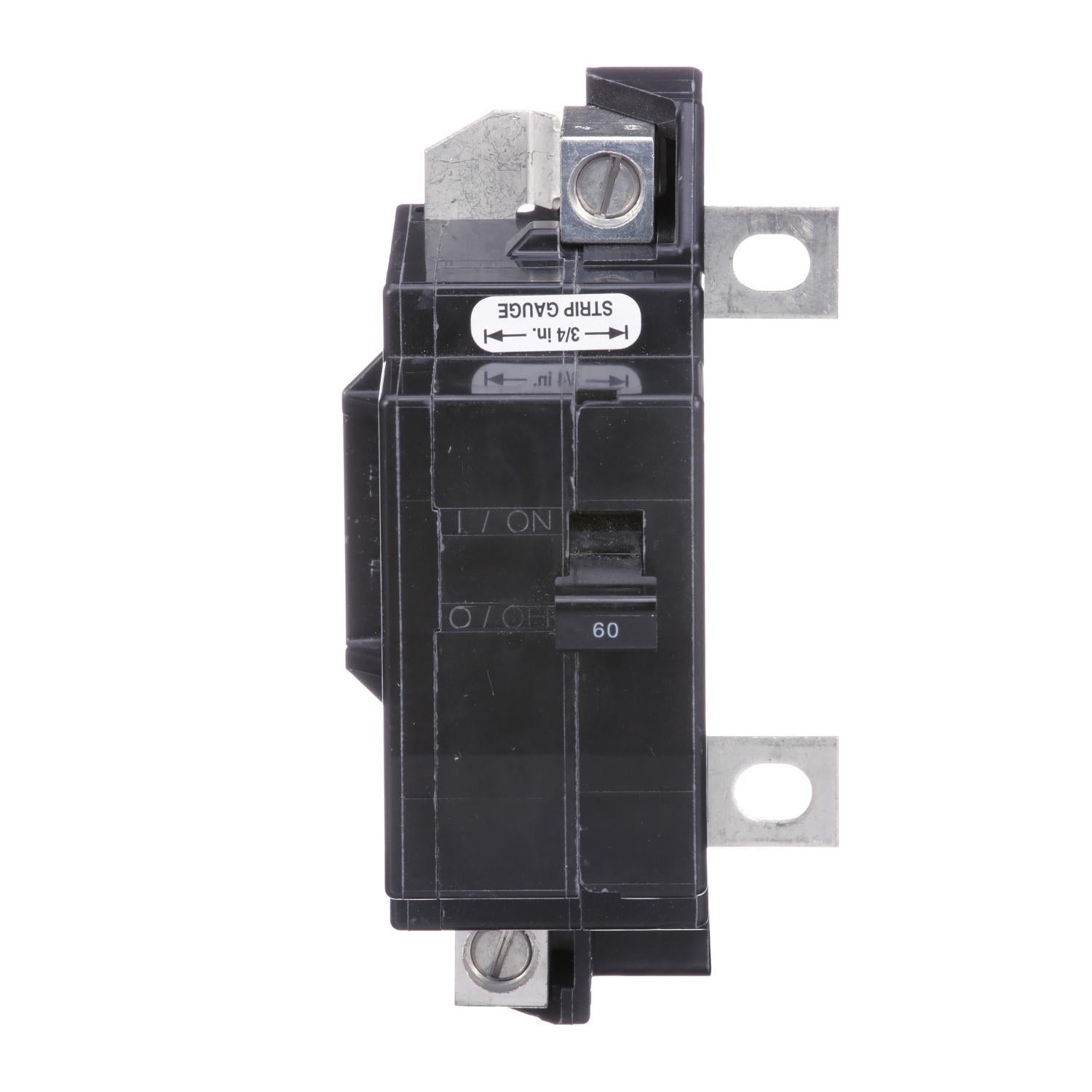

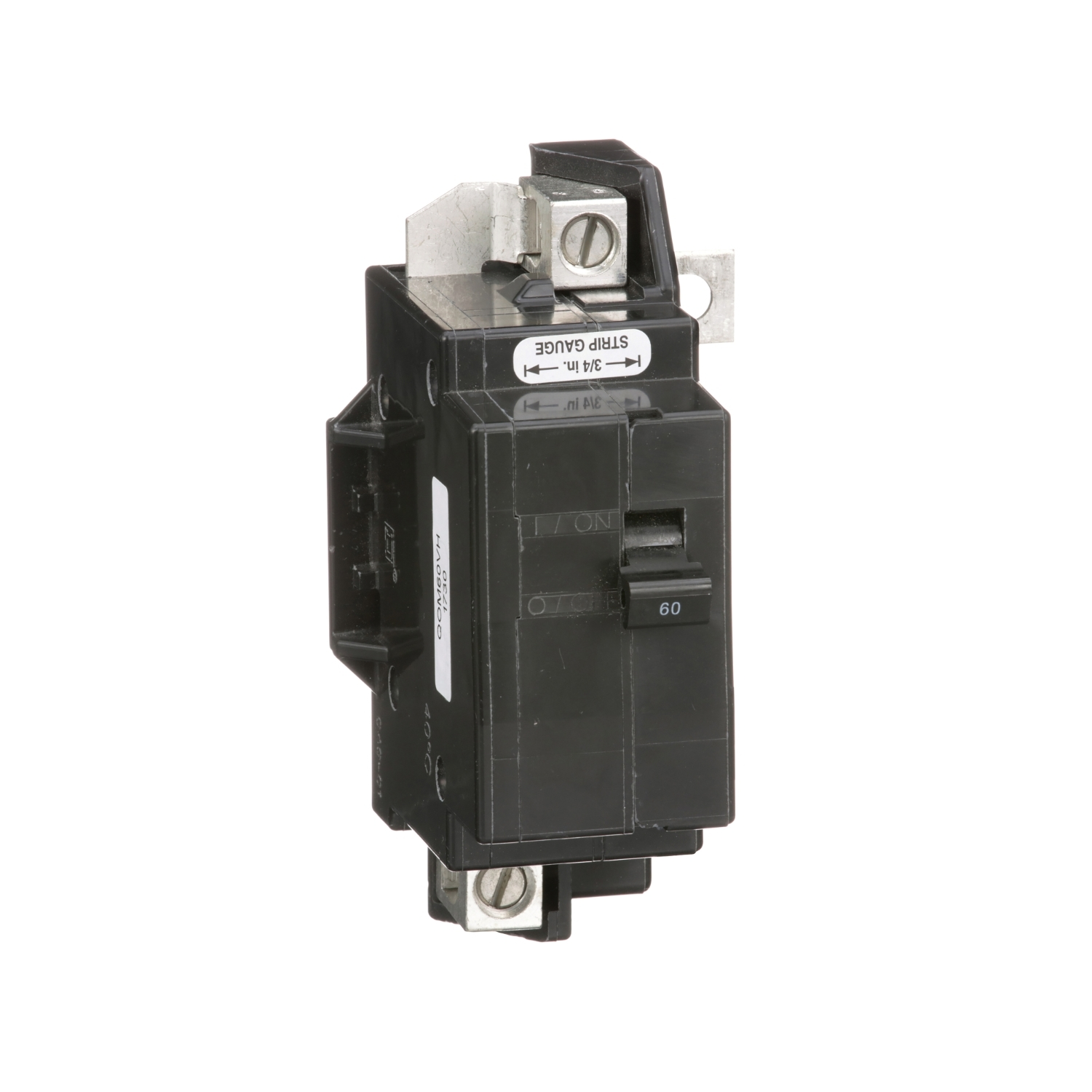

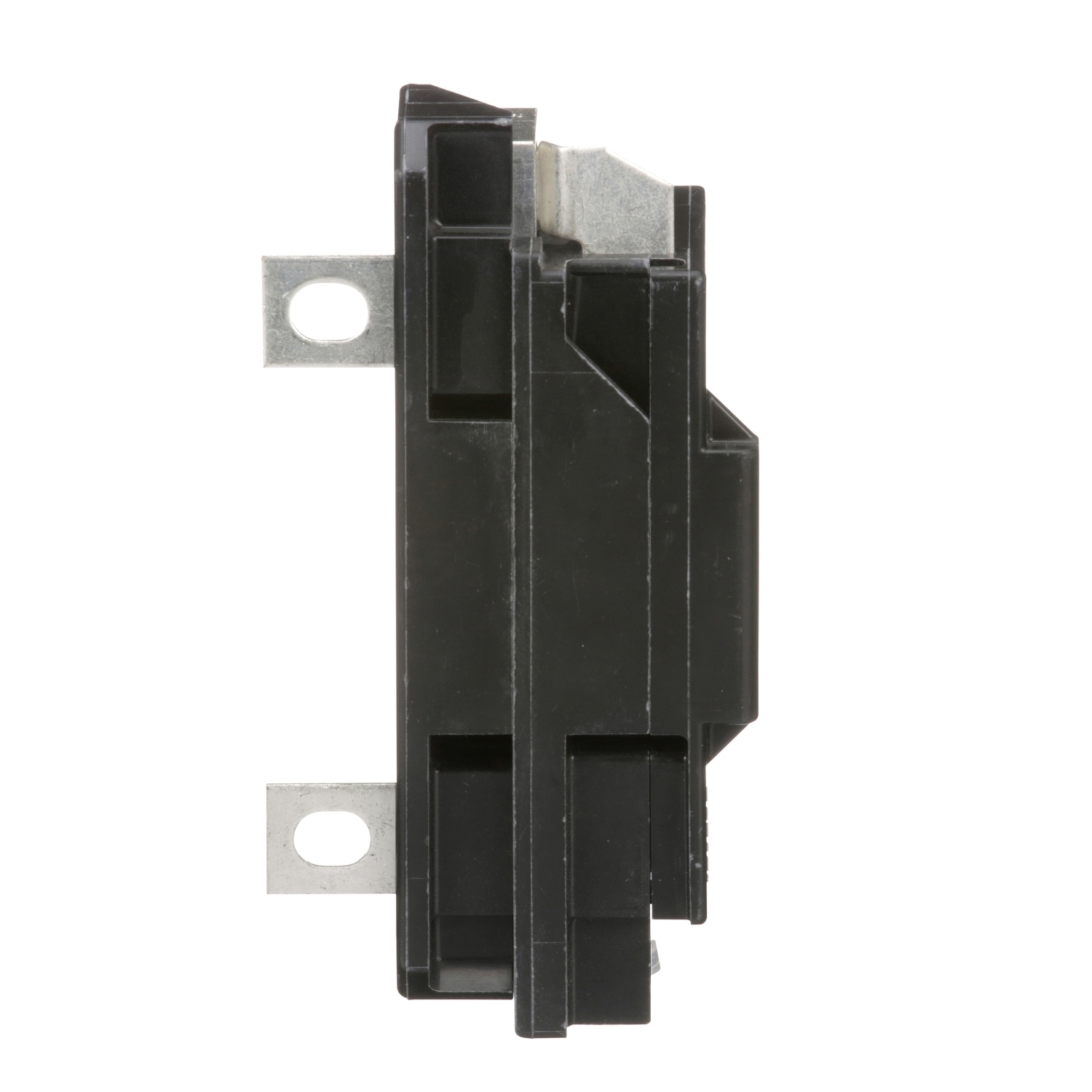

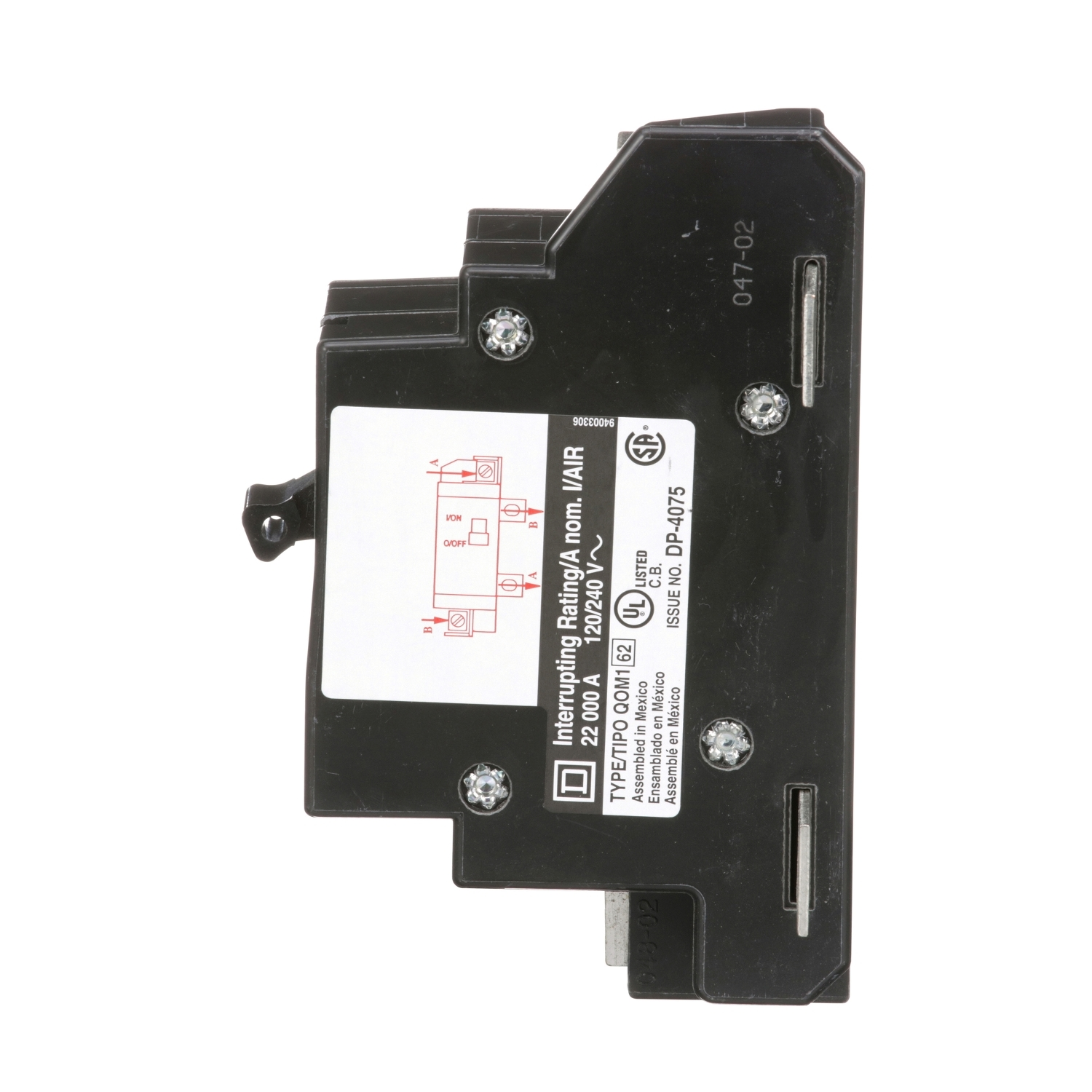

Square D QOM60VH Main Circuit Breaker 60A 120/240V 1Ph 2P, Bolt-On

Product Description

The Square D QOM60VH is a QO and QOB thermal magnetic circuit breaker that provides overcurrent protection and switching on AC and DC systems. This 2-pole breaker is rated at 60A and 120/240V and can be used as a main breaker. It features a trip-free toggle mechanism with quick-make, quick-break action and VisiTrip trip indication.

• Provides overcurrent protection
• Enables switching on AC and DC systems
• Features a trip-free toggle mechanism

Product Highlights

The Square D QOM60VH offers reliable circuit protection with a compact design and easy bolt-on mounting for QO and Homeline load centers.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QOM60VH
• Country of Origin: Mexico

Technical Specifications

• Type: CIRCUIT BREAKER
• Brand: Square D
• Range: QO NULL
• Current: 60 Amp
• Voltage: 240 VAC
• Amperage: 60 Amp
• Sub Brand: QO
• Used With: QO load center;Homeline load center NULL
• Wire Size: AWG 4...AWG 2/0 aluminium/copper NULL
• Trip Range: 60 A
• Product UPC: 78590187960
• 12-Digit UPC: 785901879602
• Applications: LOAD CENTER MAIN BREAKER
• Mounting Type: Bolt-on
• TC Connection: BOX LUGS
• Certifications: CSA,UL Listed
• Conductor Size: 4-2/0 AWG
• Number of Poles: 2 Pole
• Interrupt Rating: 22 kAIC
• Number of Phases: 1 Phase
• Line Rated Current: 60 A
• Circuit Breaker Type: Standard
• Phase: 1
• Manufacturer: Schneider Electric
• Terminal Type: Lug
• Frequency: 50/60 Hz
• Actuator: Toggle
• Connection: Box Lug
• Wire: 4 to 2/0 AWG
• Breaking Capacity: 22 kA 120/240 V AC
• Mounting Mode: bolt-on
• Poles Description: 2P
• Electrical Connection: lugs
• [Ue] Rated Operational Voltage: 120/240 V AC
• Tightening Torque: 6-6 N.m 4-65 mm² (AWG 12...AWG 2/0)
• Product Destination: QO load center || Homeline load center
• Awg Gauge: AWG 4...AWG 2/0 aluminium/copper
• Load Center Type: main breaker
• Product Certifications: UL Listed || CSA
• Ambient Air Temperature For Operation: 40 °C
• Model: QOM60VH
• MPN: QOM60VH
• AC Voltage Rating: 240VAC
