Product Description

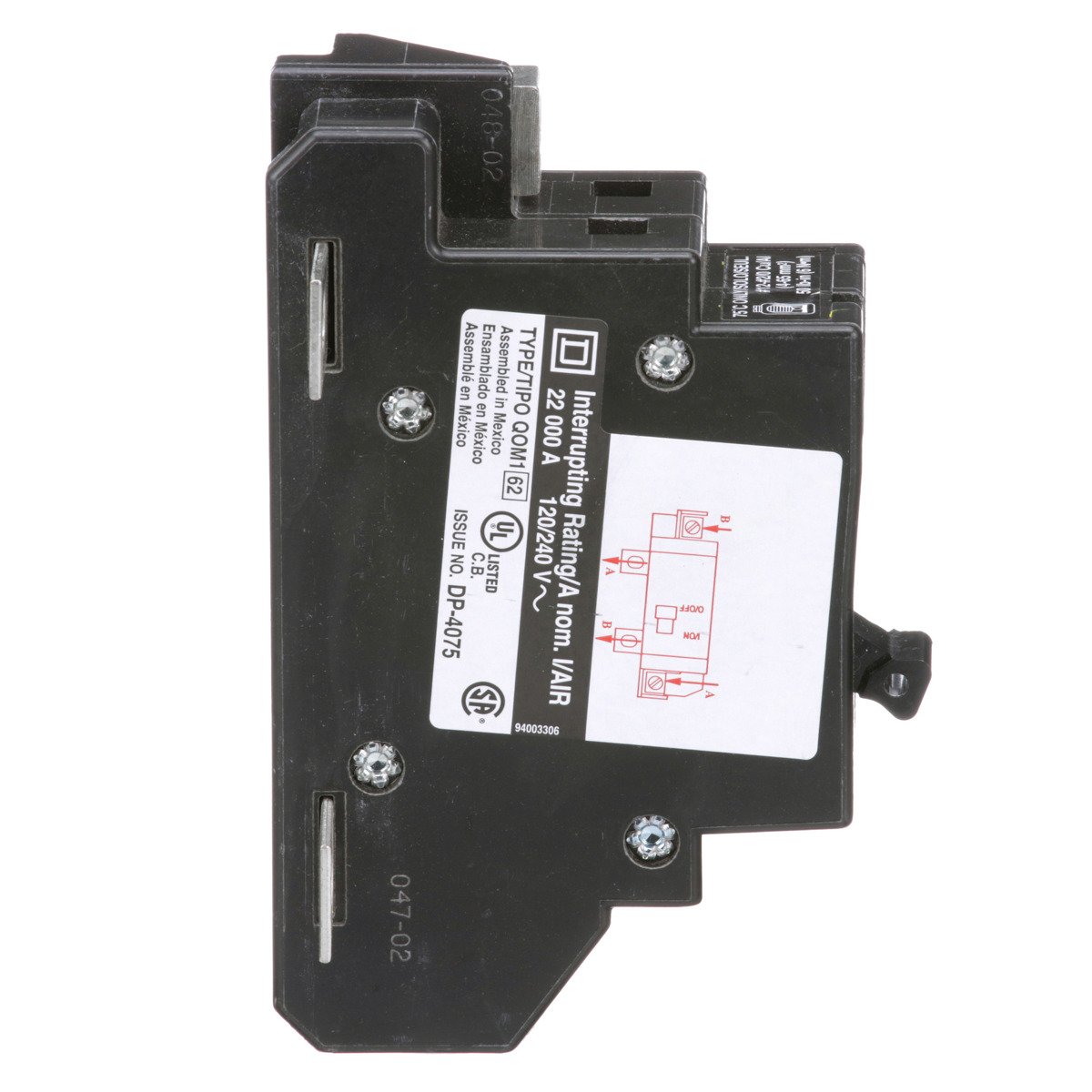

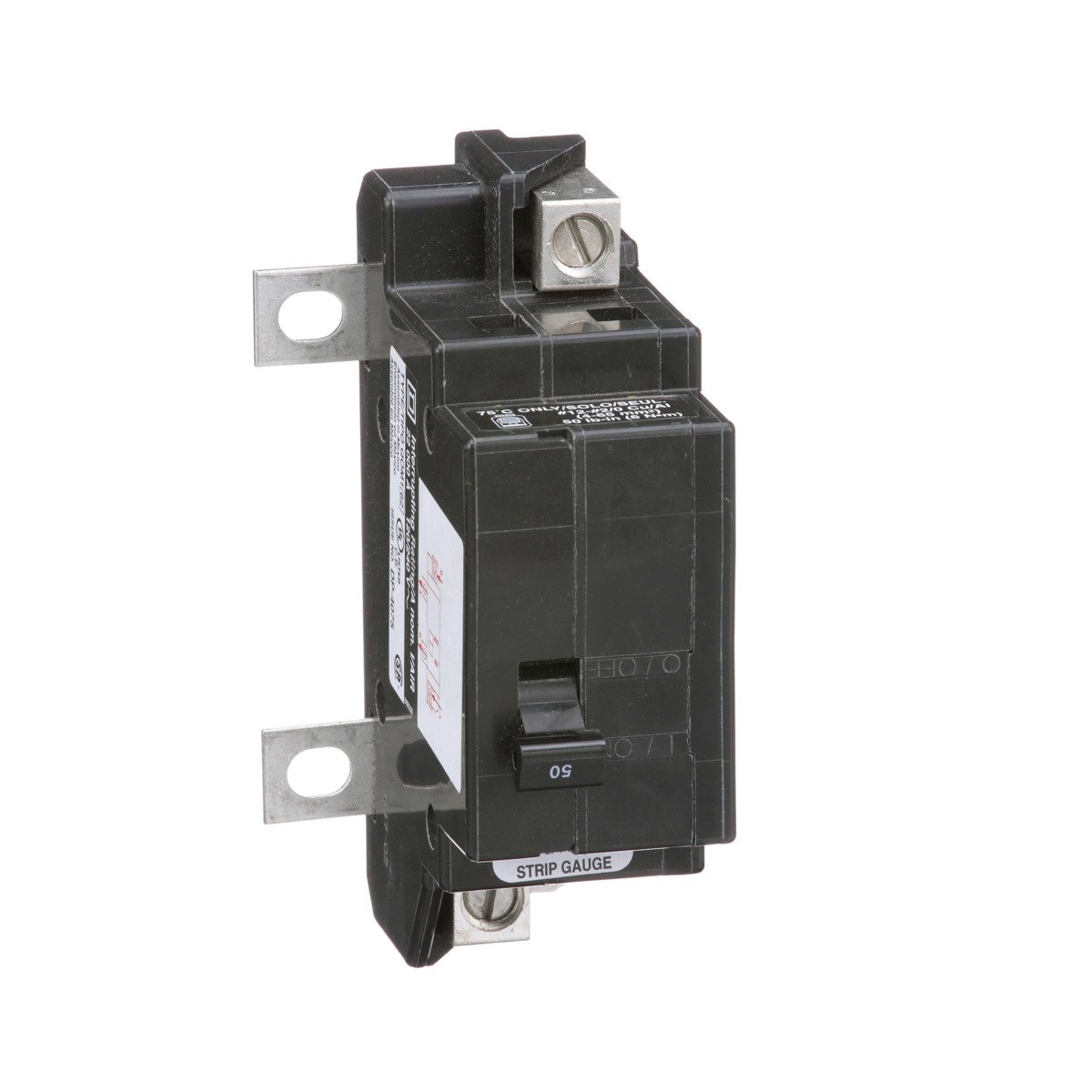

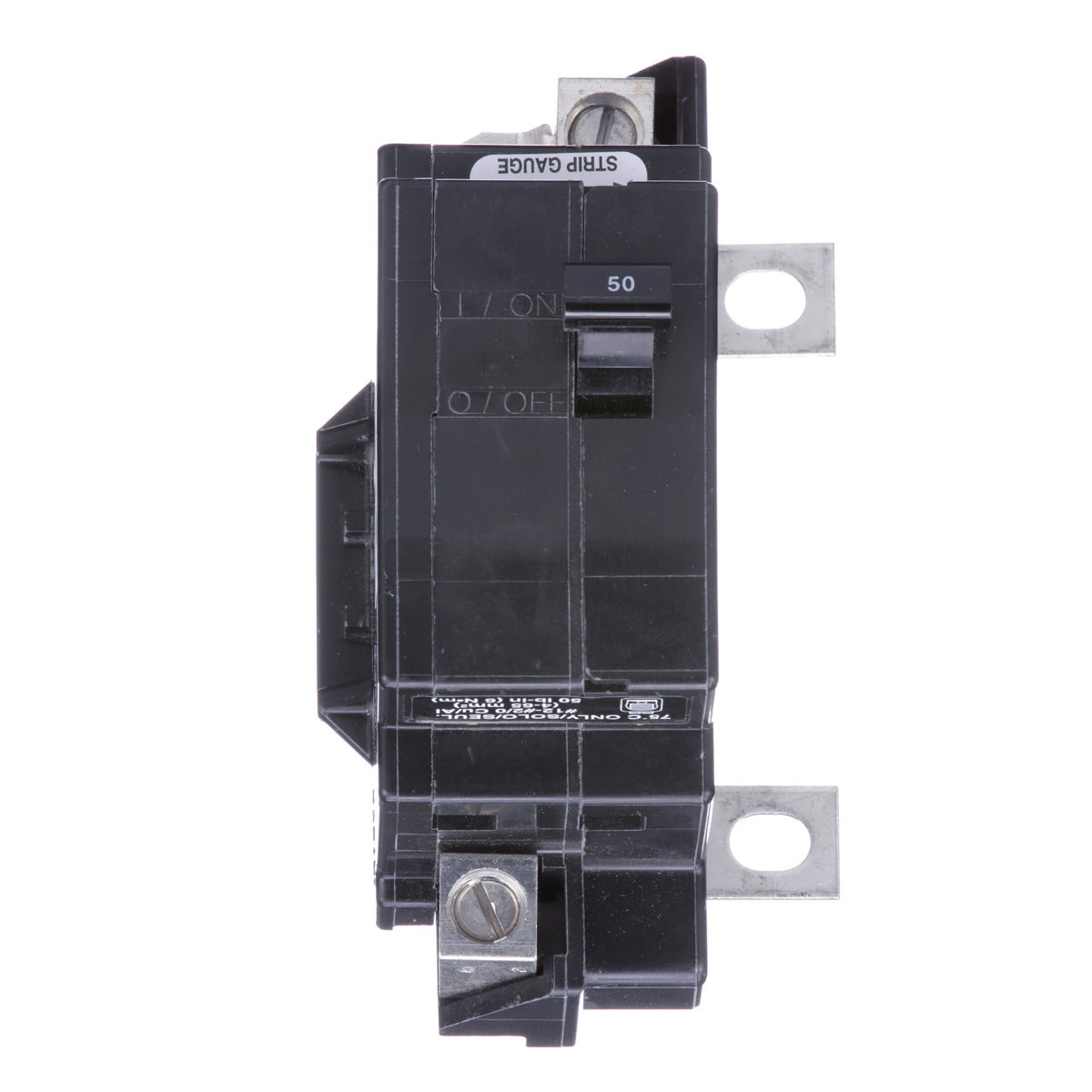

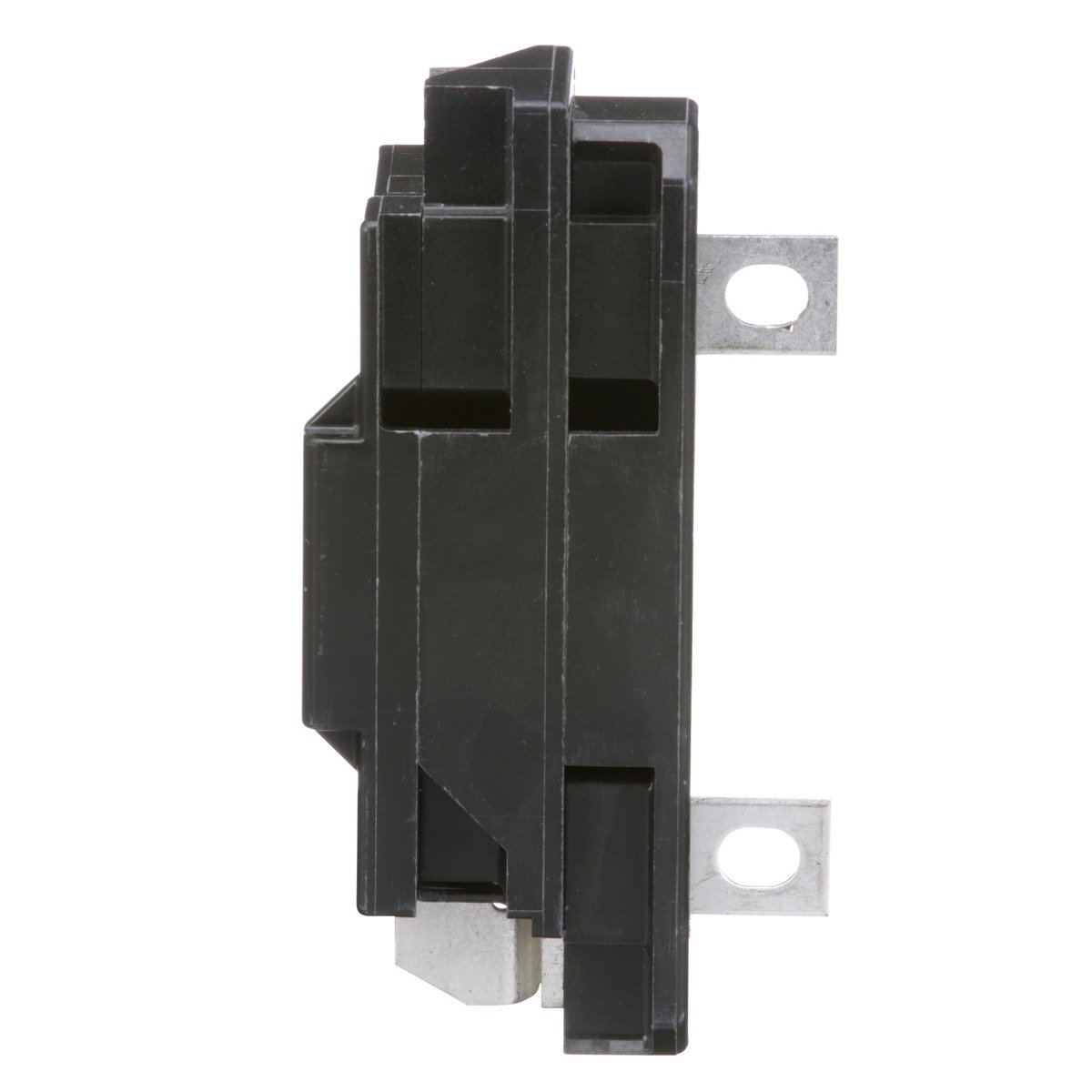

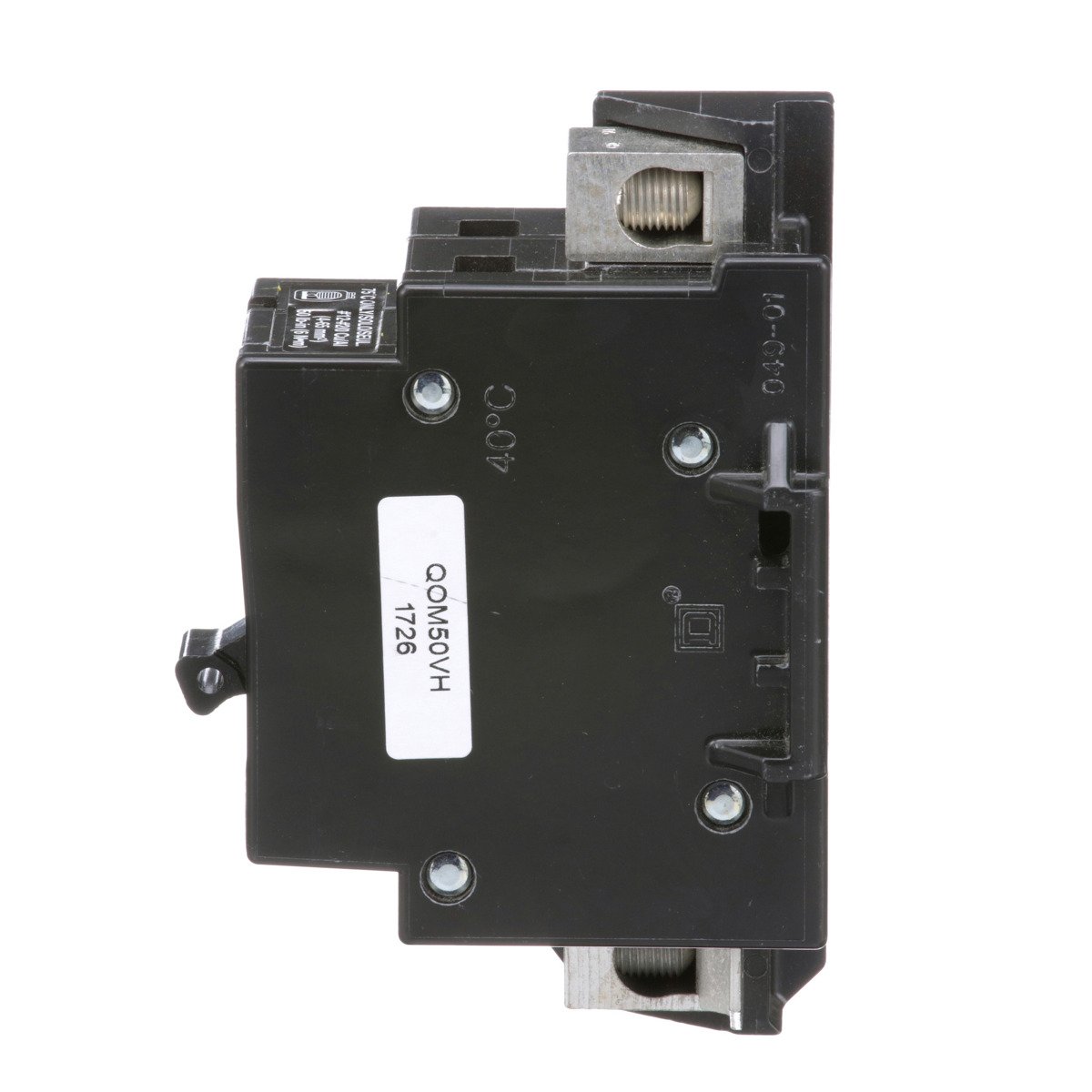

The Square D QOM50VH is a 50A, 120/240V, two-pole thermal magnetic circuit breaker designed for overcurrent protection and switching in AC and DC systems. It features a trip-free toggle mechanism for quick make and break action, along with VisiTrip trip indication. This breaker offers a 22kA breaking capacity and bolt-on mounting, and a compact design for a small system footprint.
- Provides overcurrent protection and switching on AC and DC systems.
- Features a trip-free toggle mechanism for quick make and break action.
- Offers VisiTrip trip indication for visual indication of tripped circuit.
Product Highlights
Provides reliable circuit protection with quick installation and clear diagnostics for load center applications.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QOM50VH
-
Country of Origin: Mexico
Technical Specifications
-
Type: Main Breaker
-
Brand: Square D
-
Range: QO
-
Current: 50 Amp
-
Voltage: 120/240 Volt
-
Amperage: 50 Amp
-
Sub Brand: QO
-
Used With: QO load center;Homeline load center
-
Wire Size: AWG 4...AWG 2/0 aluminium/copper
-
Trip Range: 50 A
-
Product UPC: 78590187959
-
12-Digit UPC: 785901879596
-
Applications: LOAD CENTER MAIN BREAKER
-
Mounting Type: Bolt-on
-
TC Connection: BOX LUGS
-
Certifications: CSA,UL Listed
-
Conductor Size: 4-2/0 AWG
-
Number of Poles: 2 Pole
-
Interrupt Rating: 10, 22 kAIC
-
Number of Phases: 1 Phase
-
Country of Origin: Mexico
-
Line Rated Current: 50 A
-
Circuit Breaker Type: Standard
-
Operating Temperature: 40 Adegrees C
-
Short Circuit Current: 10 kA
-
Manufacturer: Schneider Electric
-
Made in USA: Yes
-
Phase: 1 ph
-
UPC: 00785901879596
-
GTIN: 00785901879596
-
Circuit Configuration: 1-Phase
-
Current Rating: 50 Ampere
-
Voltage Rating: 240 VAC
-
Interrupting Rating: 22 Kiloampere
-
Terminal Type: Lug
-
Used On: QO Loadcenter
-
Frequency: 50/60 Hz
-
Interrupt: 22 kA
-
Trip: Thermal/Magnetic Trip, 50 A Trip
-
Actuator: Toggle Actuator
-
Connection: Box Lug Connection
-
Wire: 4 to 2/0 AWG Wire
-
Mounting: Bolt-On Mounting
-
Temperature: 40 deg C
-
Mounting Style: Panel
-
Number of Throws: 1
-
Operation Method: On/Off
-
Current Type: AC
-
Number of Positions: 2
-
Maximum Amperage: 50 A
-
Accessory Type: Miniature Circuit Breaker 240V 50A
-
UNSPSC: 39121601
