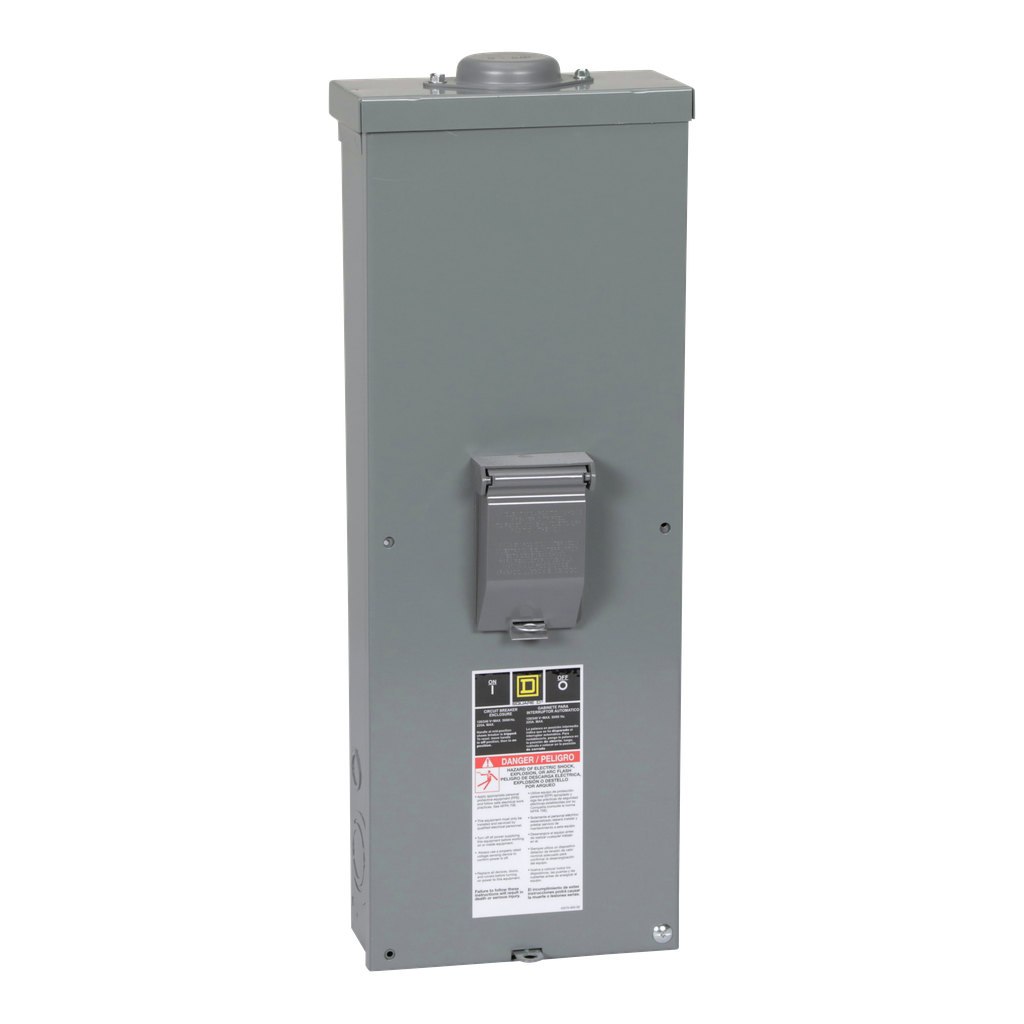

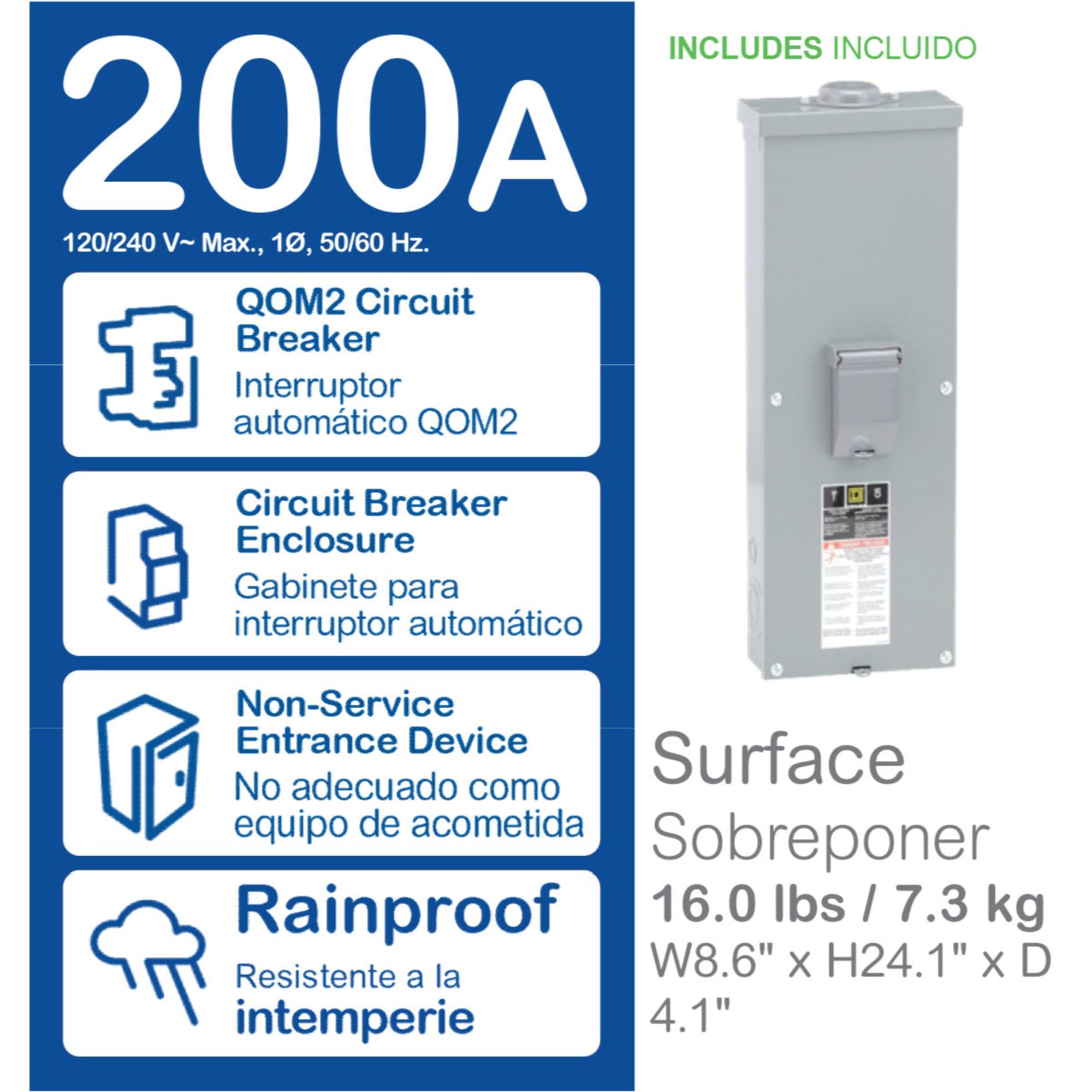

Square D QOM2E2200NRB 120/240 Volt 200 Amp 2-Pole Bolt On Outdoor Enclosed Circuit Breaker

Product Description

The Square D QOM2E2200NRB is a 120/240 volt, 200 amp, 2-pole outdoor enclosed circuit breaker. This device offers effective overcurrent protection for both AC and DC systems. It features a trip-free toggle mechanism that ensures quick make and break action. Positive handle indication and VisiTrip technology provide clear visual cues when the breaker has tripped. This model is designed for a maximum breaking capacity of 22kA, ensuring robust performance in demanding conditions.

• Two-pole configuration for versatility
• Rated for 200 amps at 120/240 volts
• Includes bolt-on mounting for secure installation

Product Highlights

This product is ideal for use in residential and commercial applications where reliable circuit protection is needed. With its NEMA 3R enclosure rating, the QOM2E2200NRB is suitable for outdoor installations, providing durability in various weather conditions.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QOM2E2200NRB
• Voltage: 120/240 Volt
• Current: 200 Amp
• Number of Poles: 2 Pole
• Enclosure Rating: NEMA 3R
• Breaking Capacity: 22 kA
• Mounting Type: Bolt-On
• Country of Origin: Mexico
• Warranty Length: 18 months
