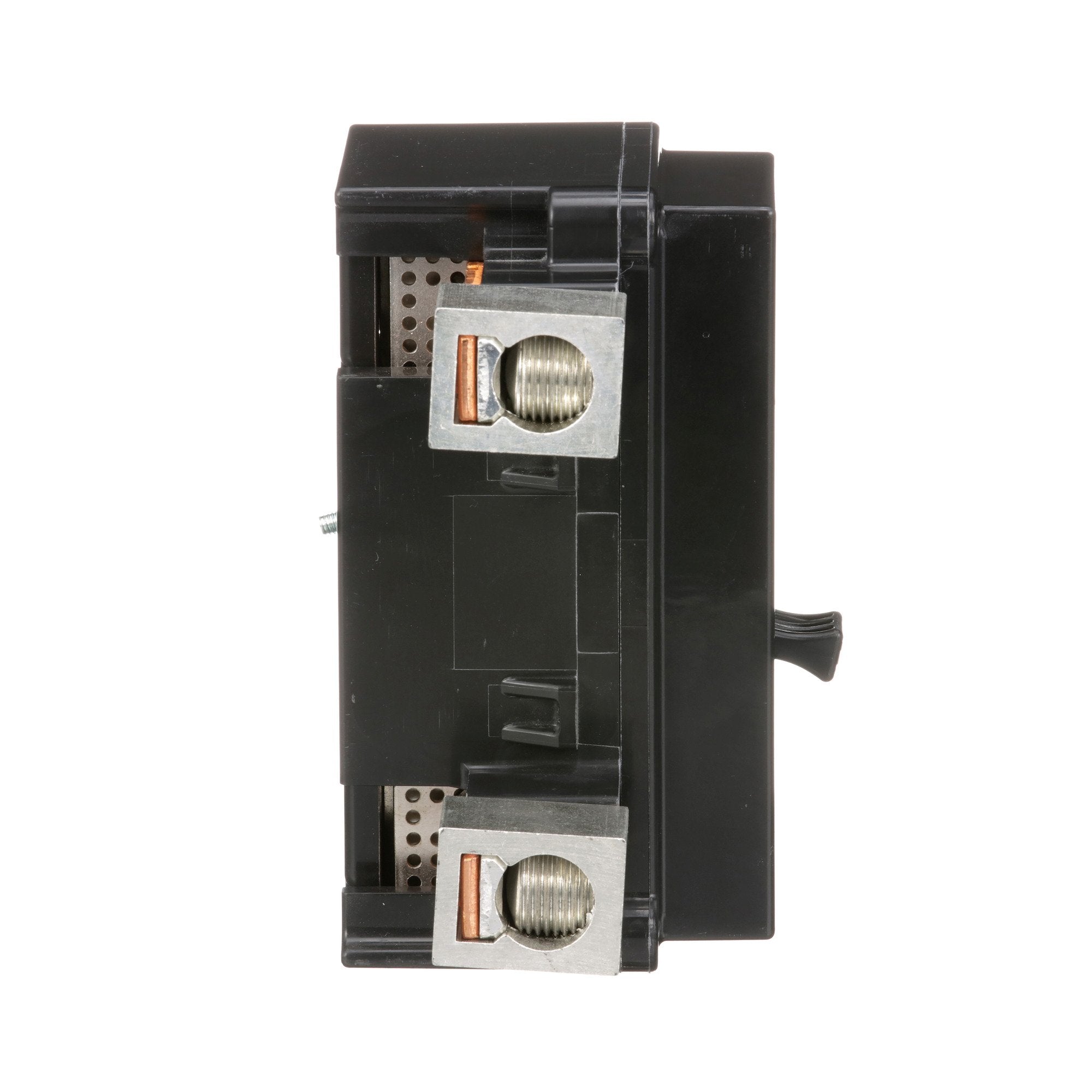

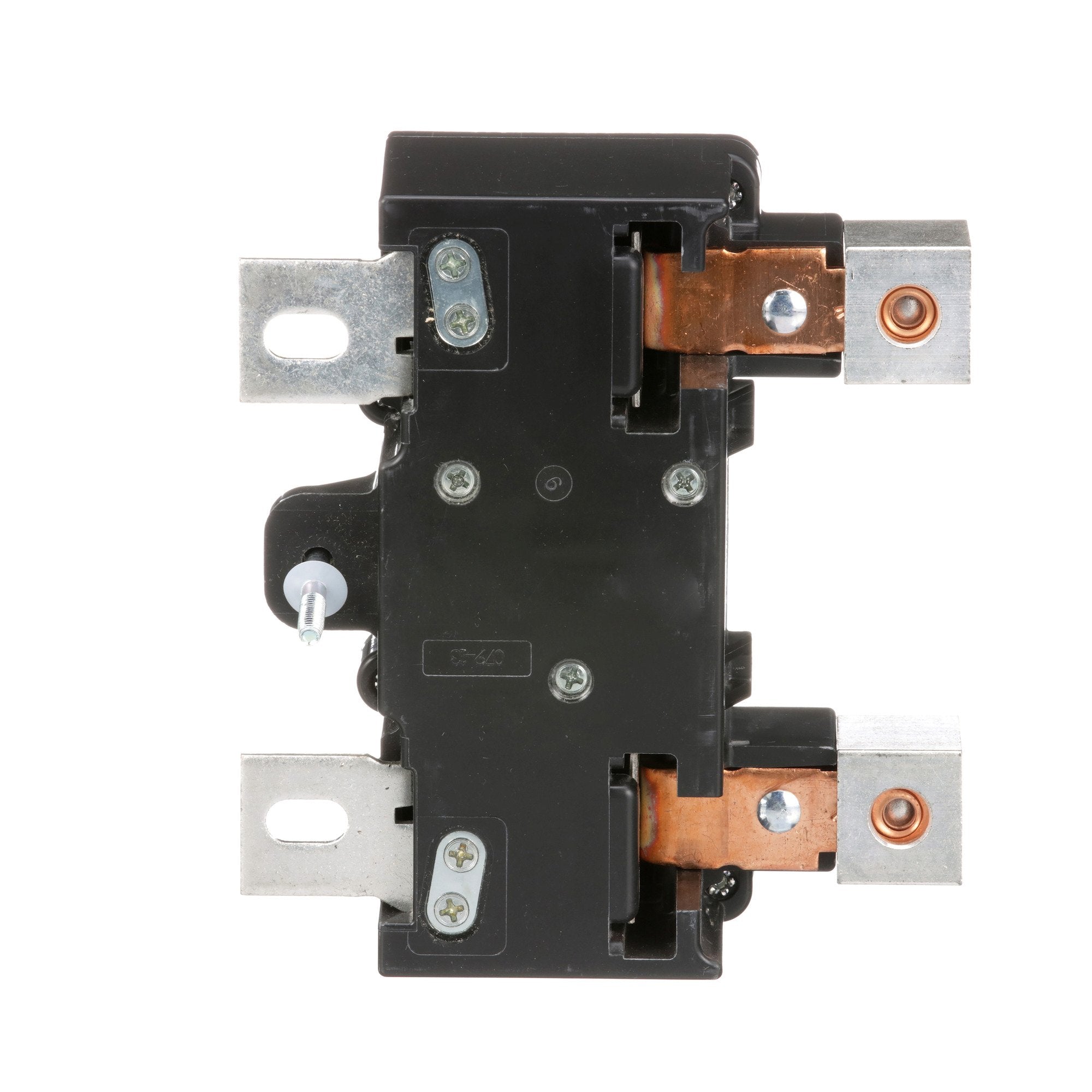

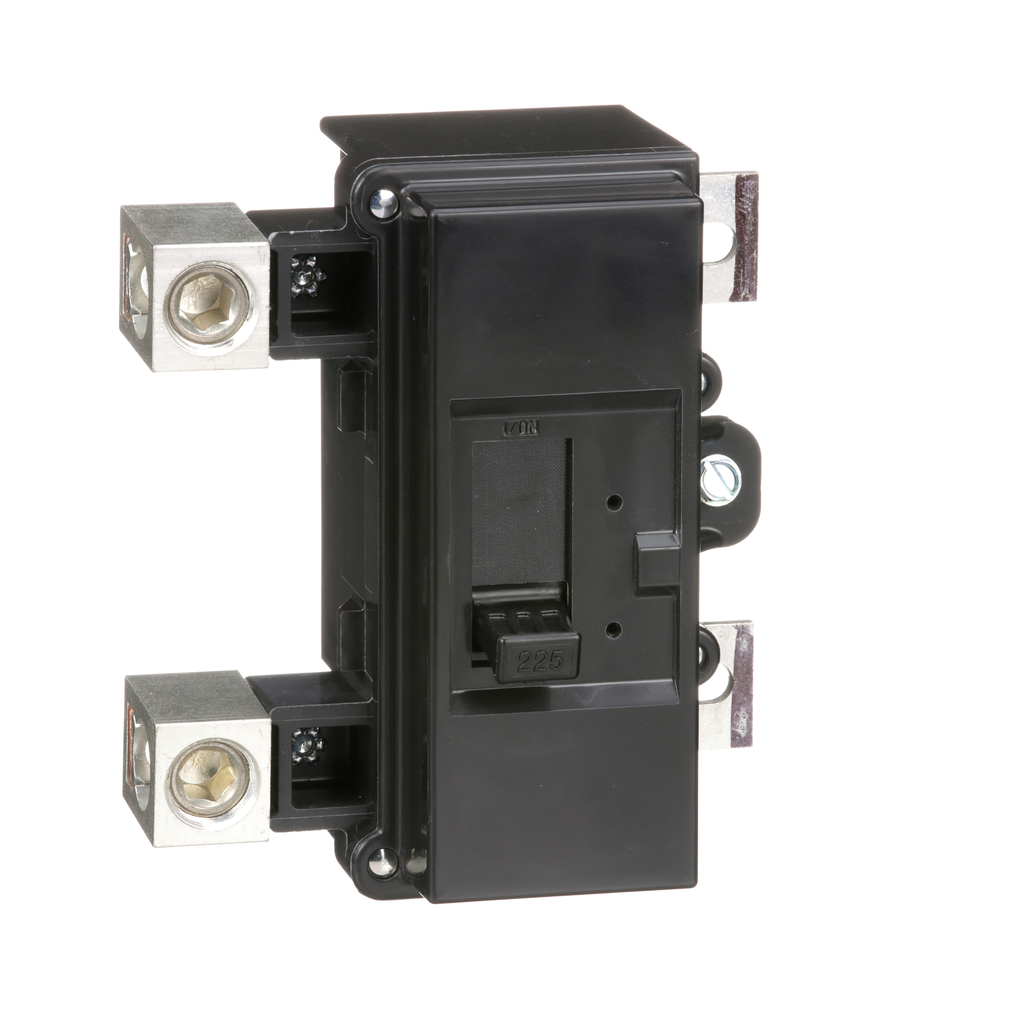

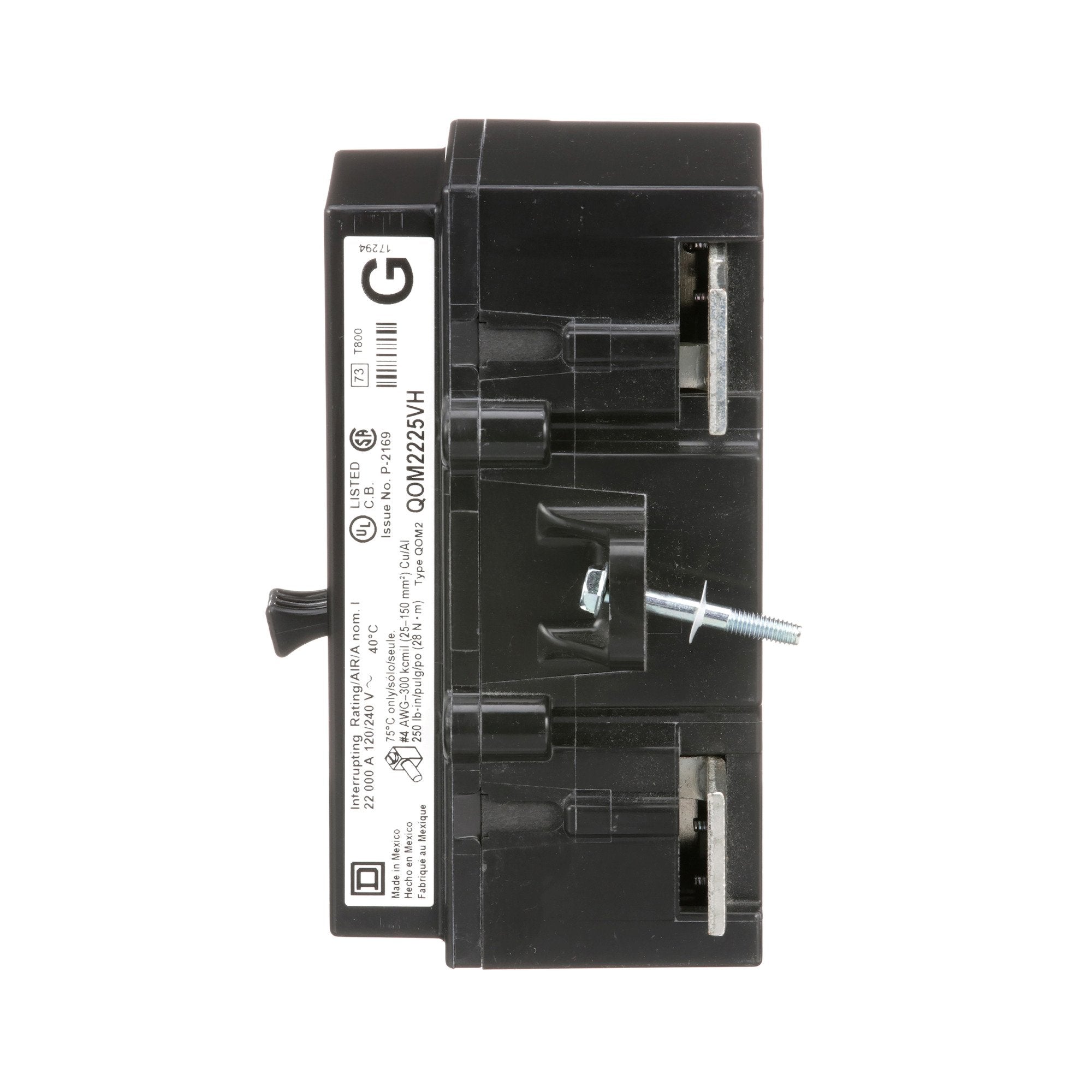

Square D QOM2225VH Main Circuit Breaker 225A 120/240V 1Ph 2P Bolt-On

Product Description

The Square D QOM2225VH is a main circuit breaker designed for use in power distribution systems. This breaker is rated for 225 Amps and operates at 120/240 Volts in a single-phase, two-pole configuration. It features a bolt-on mounting for secure installation and has a robust breaking capacity of twenty-two kiloamperes.

• Compact width of three quarters of an inch for efficient space usage
• Includes VisiTrip indication for easy identification of tripped breakers
• Factory installed accessories are available, including alarm switches

Product Highlights

The QOM2225VH offers reliable overcurrent protection and switching capabilities in AC and DC systems. Designed with a trip-free toggle mechanism, it ensures effective operation and maintenance of your electrical systems.

Product Information

Standard Information

• Catalog Number: QOM2225VH
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Square D
• Type: Circuit Breaker
• Current Rating: 225 Amps
• Voltage Rating: 120/240 Volts
• Number of Poles: 2
• Mounting Type: Bolt-on
• Interrupt Rating: 22 kAIC
• Country of Origin: Mexico
