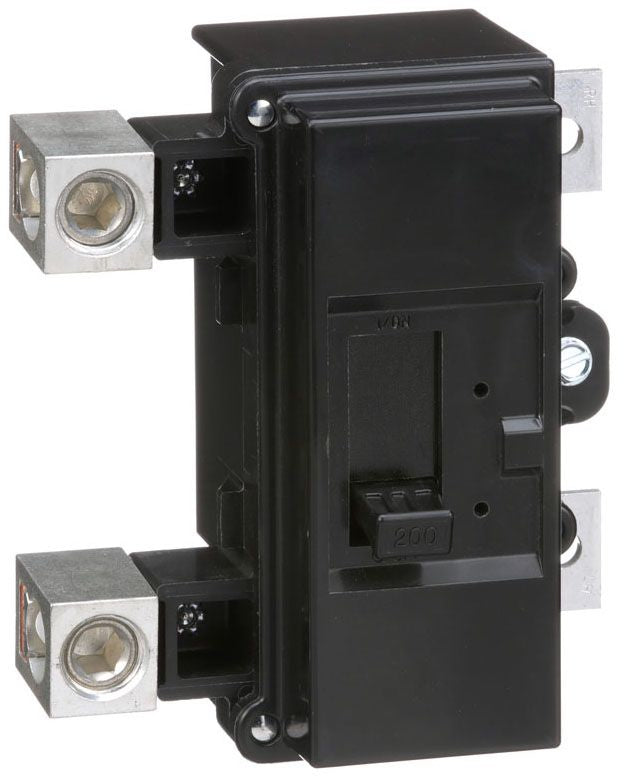

Square D QOM2200VH Miniature Circuit Breaker 120/240V 200A

Product Description

Square D QOM2200VH is a miniature circuit breaker rated at 120/240 volts and 200 amps. It is designed for residential and light commercial applications where reliable circuit protection is necessary. This breaker operates in a one-phase circuit configuration and supports wire sizes from four AWG to 300 kcmil of aluminum or copper. The QOM2200VH is UL approved and RoHS compliant, ensuring safety and sustainability in its design.

• Voltage Rating: 120/240 Volt AC
• Current Rating: 200 Amp
• Interrupting Rating: 22 Kiloamp

Product Highlights

This miniature circuit breaker features a bolt-on mounting type and is suitable for QO Series load centers. Its compact design allows for easy installation while ensuring maximum protection for your electrical systems.

Product Information

Standard Information

• Brand: Square D Co.
• Model: QO

Technical Specifications

• Catalog Number: QOM2200VH
• Number of Poles: 2
• Torque: 6-6 N.m 4-65 mm² (AWG 12...AWG 2/0)
• Additional Information: RoHS Compliant; Used on QO Series Load Center
• Country of Origin: Mexico
• ECCN: EAR99
