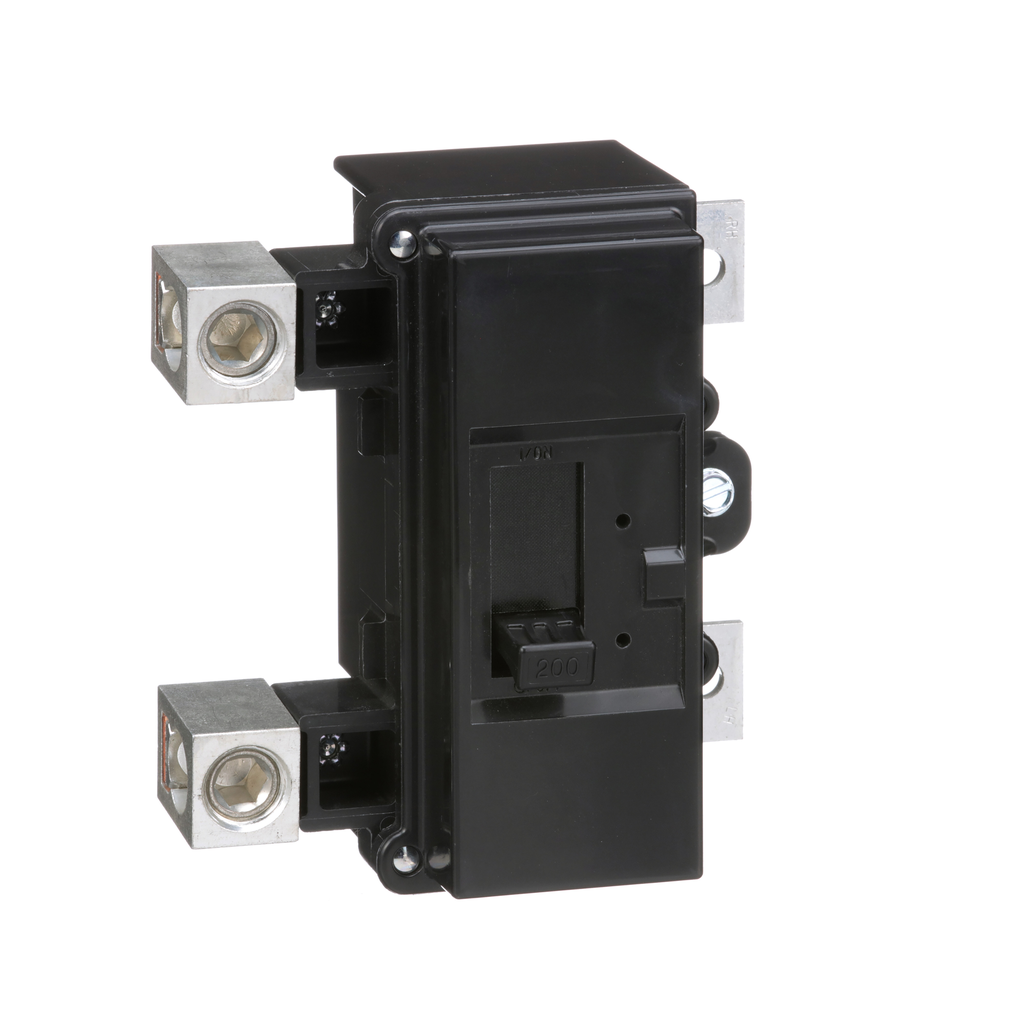

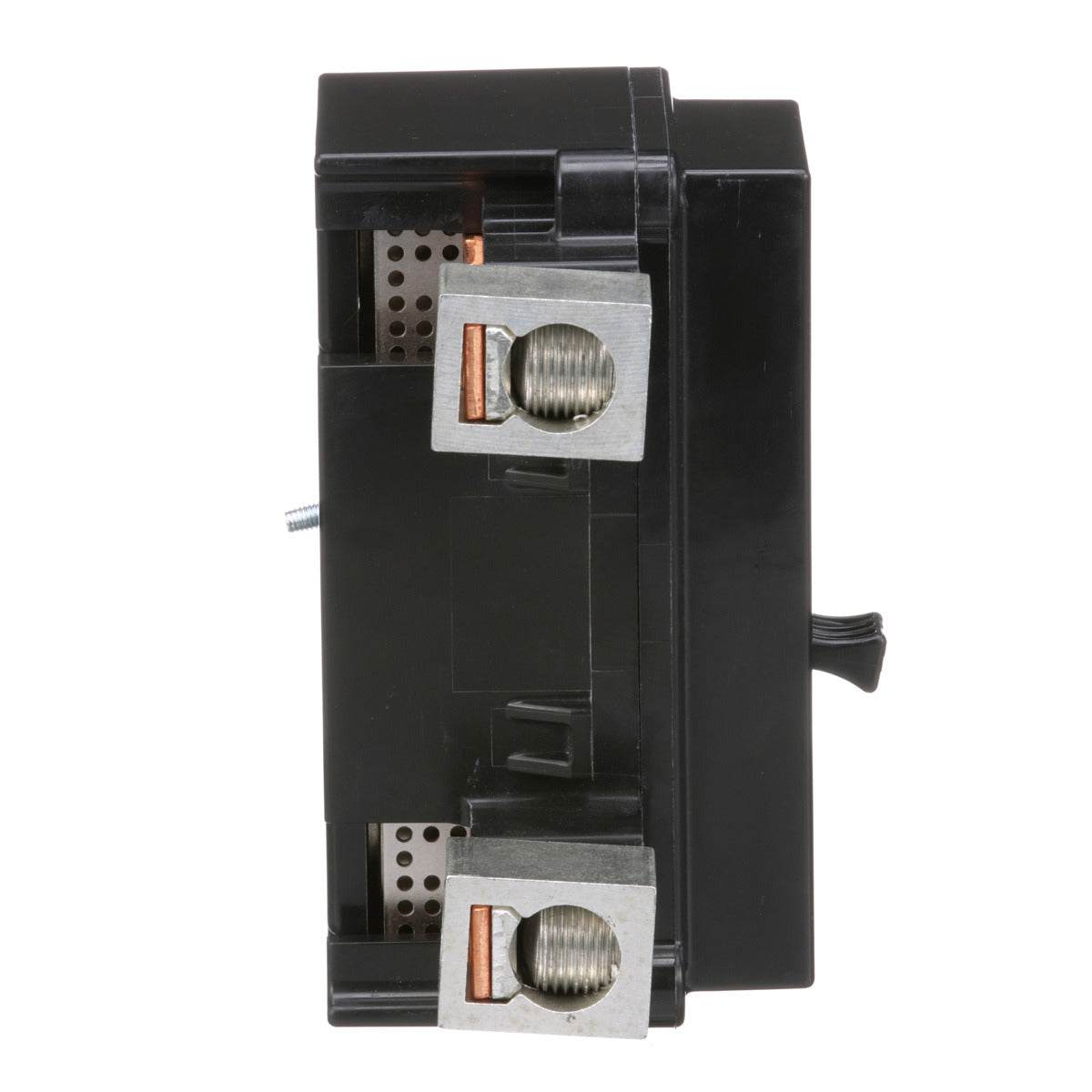

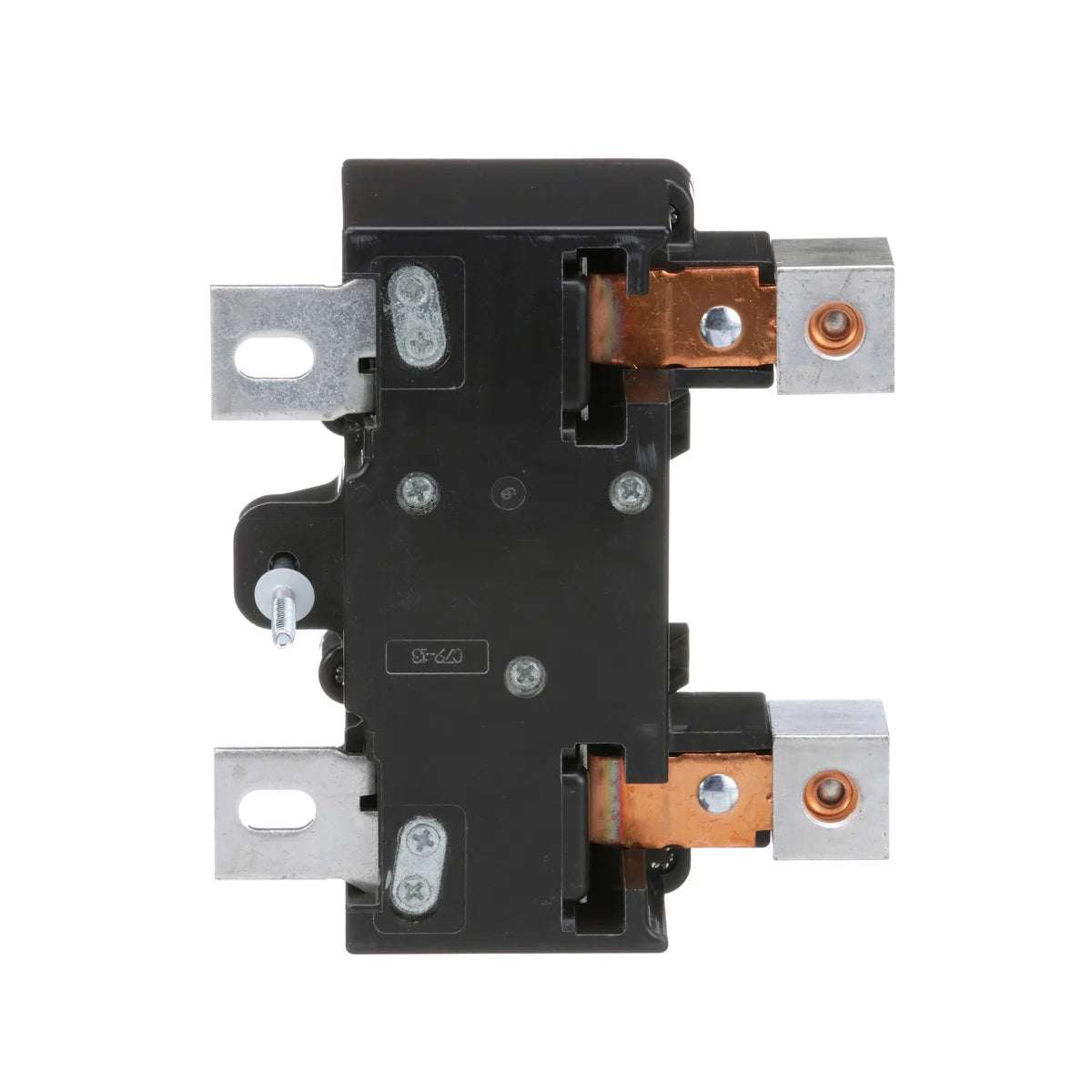

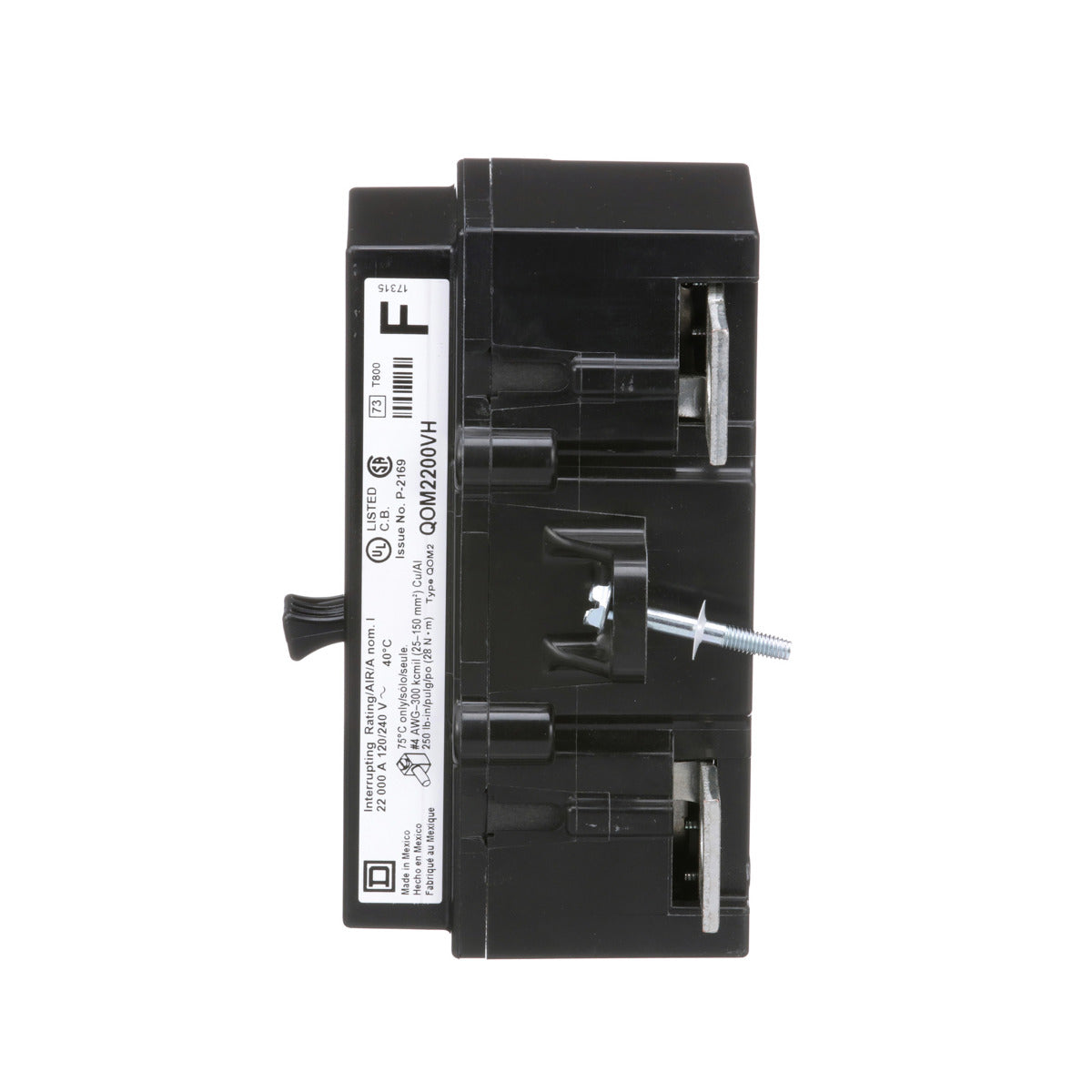

Square D QOM2200VH Main Circuit Breaker 200A 120/240V 1Ph 2P

Product Description

The Square D QOM2200VH is a main circuit breaker rated at two hundred amps and designed for single-phase systems operating at one hundred twenty or two hundred forty volts. This two-pole unit is bolted on for secure installation and provides overcurrent protection for various applications. It features a trip-free toggle mechanism and VisiTrip indication to show when an interruption occurs. A compact design allows for efficient use of space within electrical panels.

• Rated for 200 amps.
• Operates at 120/240 volts.
• 22kA interrupting capacity.

Product Highlights

This circuit breaker is ideal for managing electrical loads in residential and commercial setups while ensuring safety and compliance with applicable standards.

Product Information

Standard Information

• Catalog Number: QOM2200VH
• Brand: Square D

Technical Specifications

• Current Rating: 200 Amp
• Voltage Rating: 120 Volt / 240 Volt
• Number of Poles: 2
• Breaking Capacity: 22 kAIC
• Mounting Type: Bolt-on
• Applications: Load center main breaker
• Wire Size: AWG 4 to 300 kcmil (aluminium/copper)
• Country of Origin: Mexico
