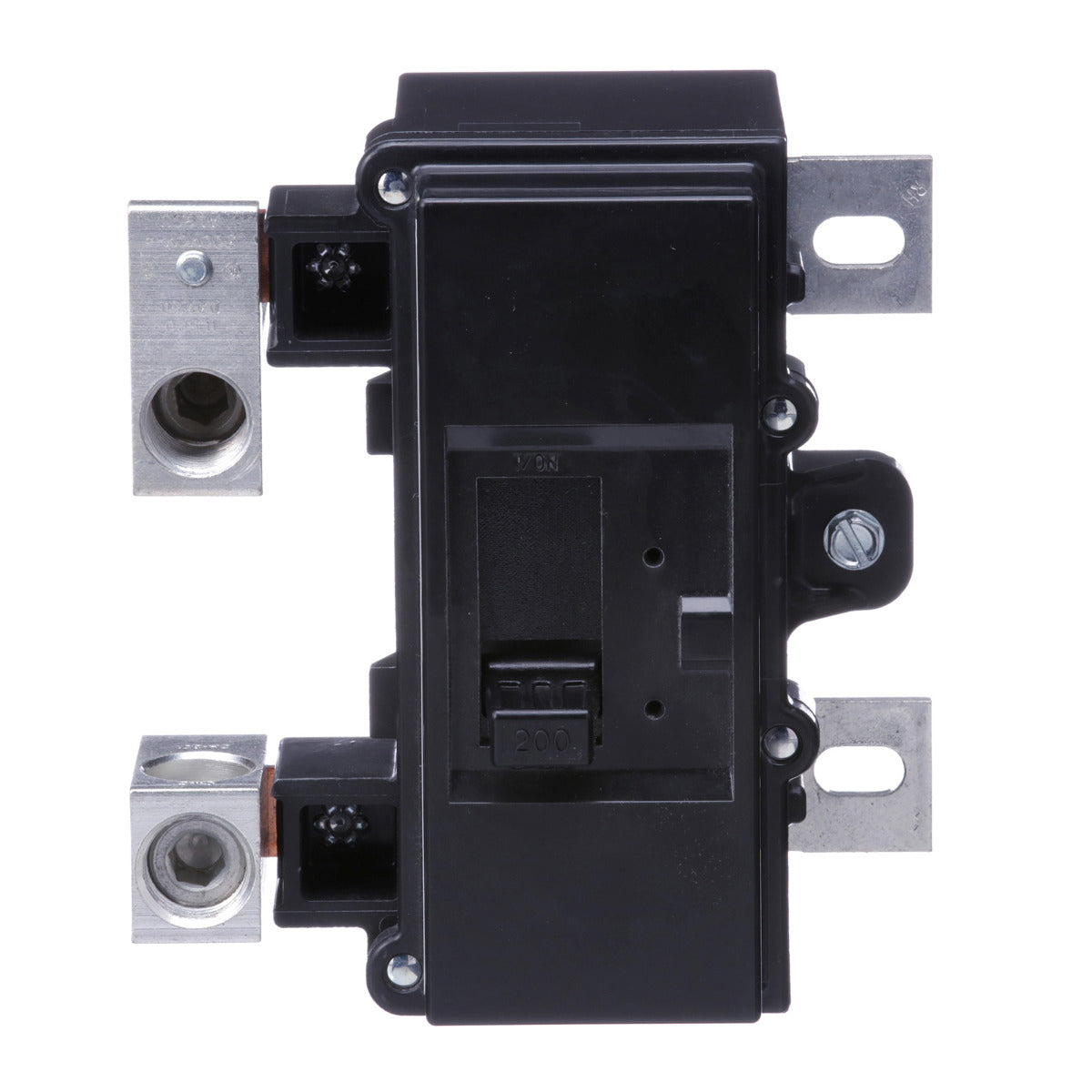

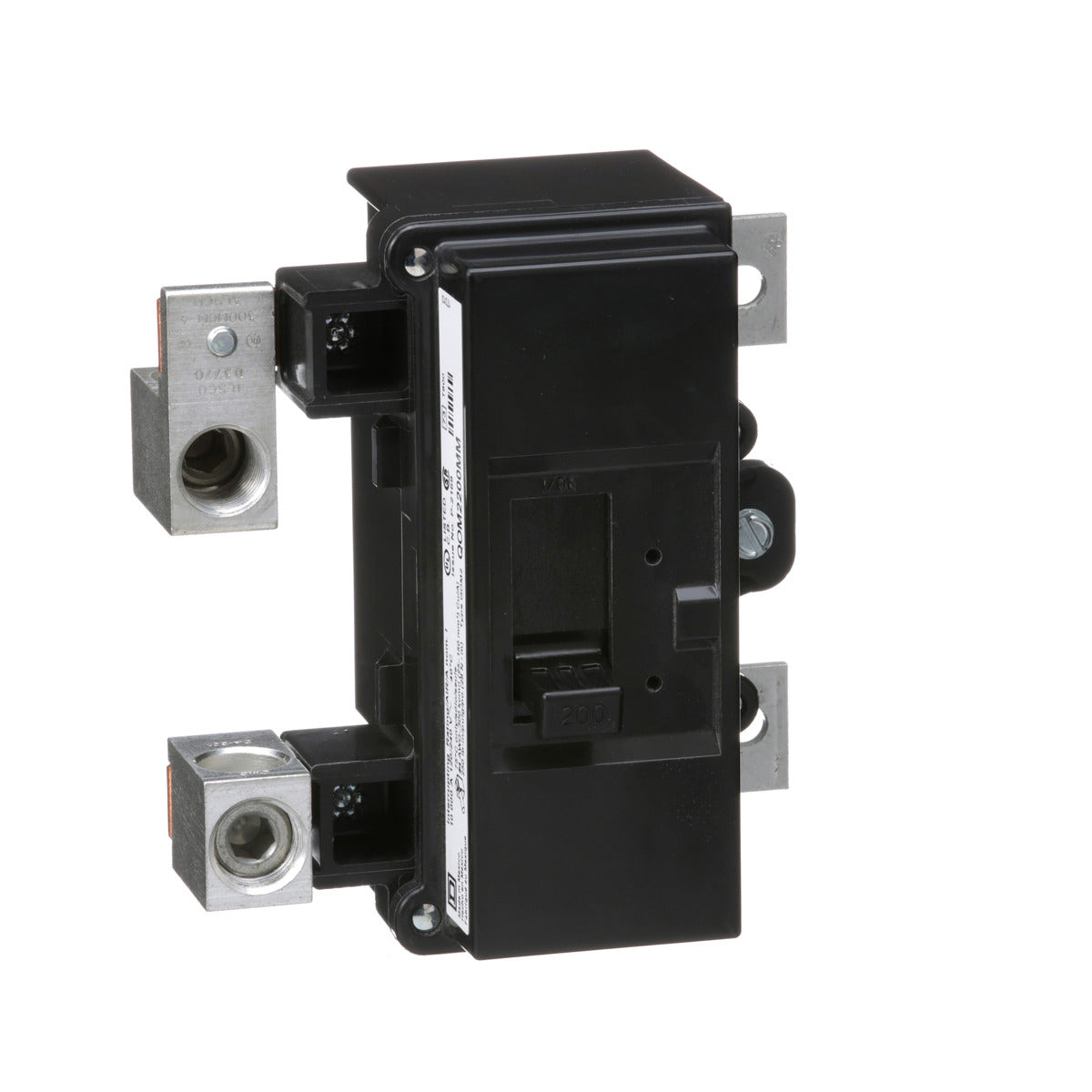

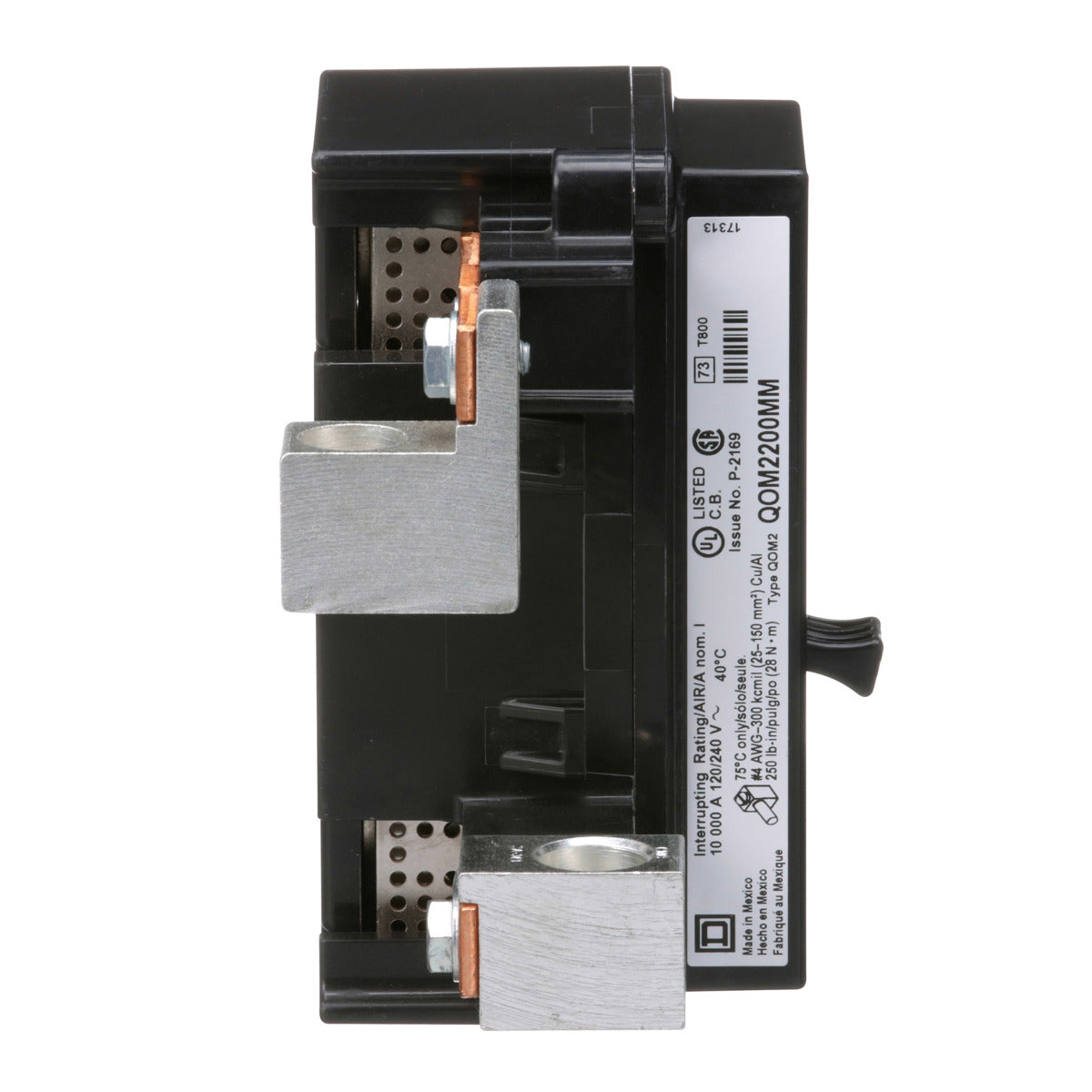

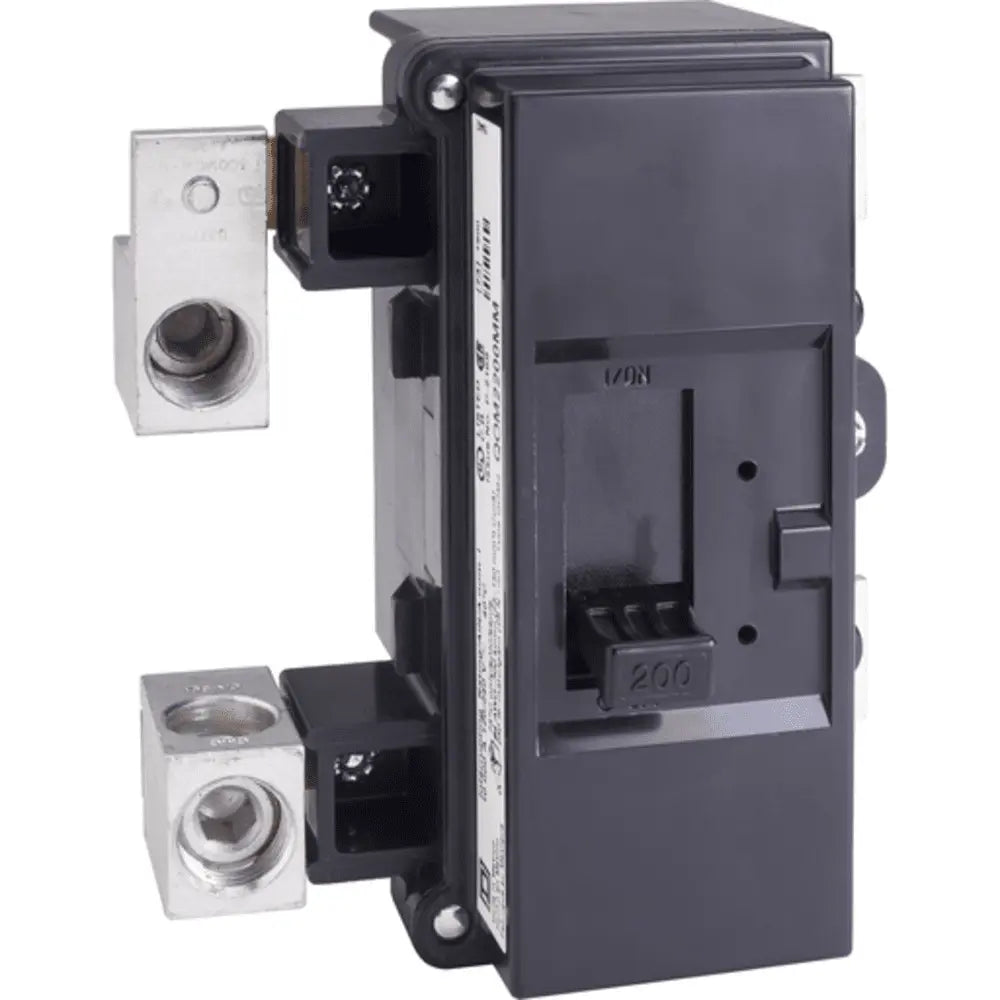

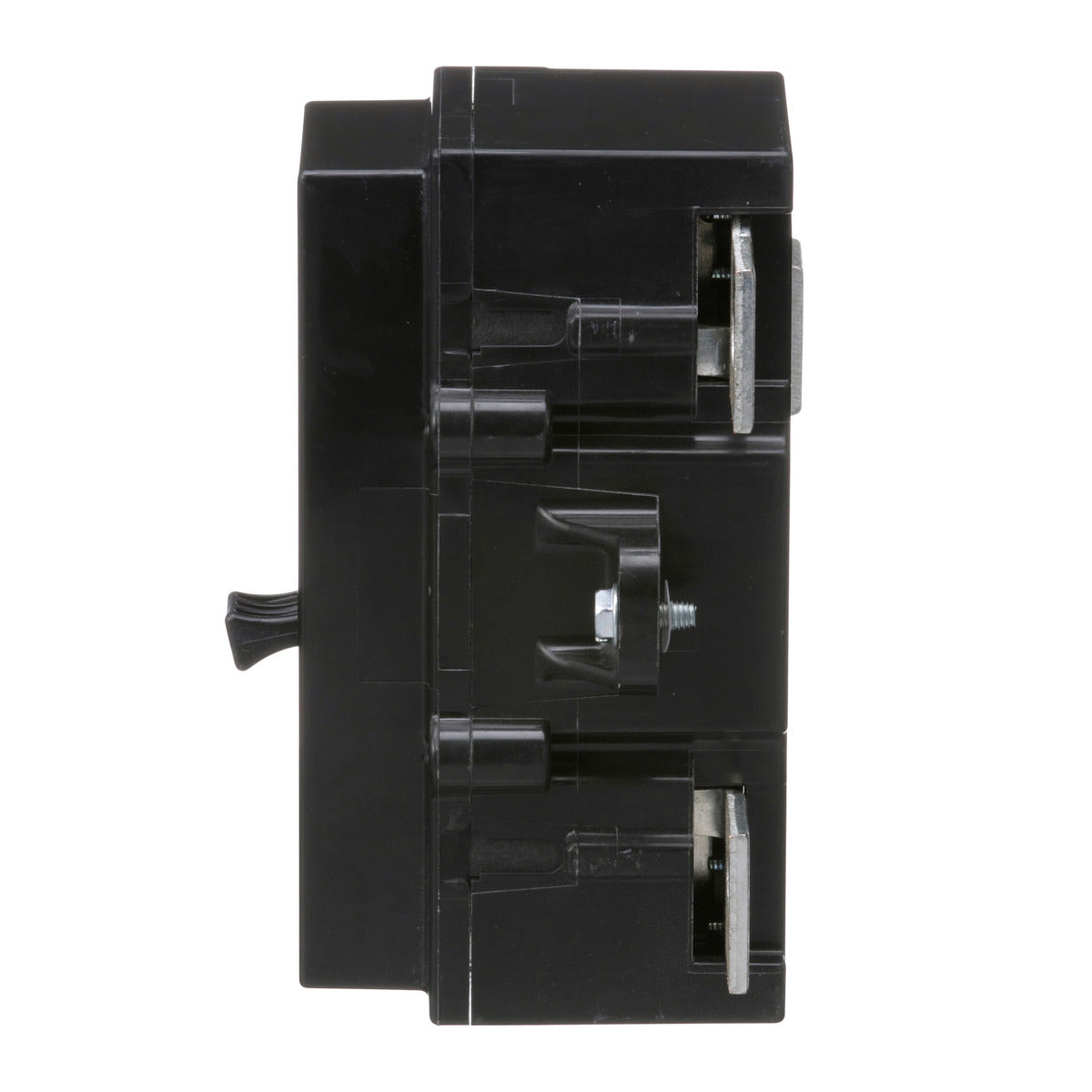

Square D QOM2200MM Type QO Bolt-On Main Breaker for Metering Devices 200A 120/240VAC 2-Pole

Product Description

The Square D QOM2200MM Type QO Bolt-On Main Breaker is designed for metering devices and provides robust overcurrent protection. This specific circuit breaker is rated at two hundred amperes and operates at one hundred twenty to two hundred forty volts AC. It features a two-pole design and is suitable for use in residential and commercial electrical systems.

• Rated at two hundred amperes at one hundred twenty to two hundred forty volts AC.
• Provides high breaking capacity of ten kAIC.
• Utilizes a compact design suitable for standard load centers.

Product Highlights

The QO circuit breaker features thermal magnetic trip technology and a unique toggle mechanism to ensure reliable overcurrent protection and easy operation. This breaker is UL Listed and CSA Certified, ensuring it meets safety requirements.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QOM2200MM
• Amperage Rating: 200 Amperes
• Voltage Rating: 120/240 VAC
• Number of Poles: 2-Pole
• Interrupt Rating: 10 kAIC
• Depth: 3.58 Inches
• Width: 5.08 Inches
• Height: 5.59 Inches
• Weight: 2.59 Pounds
• Country of Origin: United States
• Operating Temperature: 104 °F
