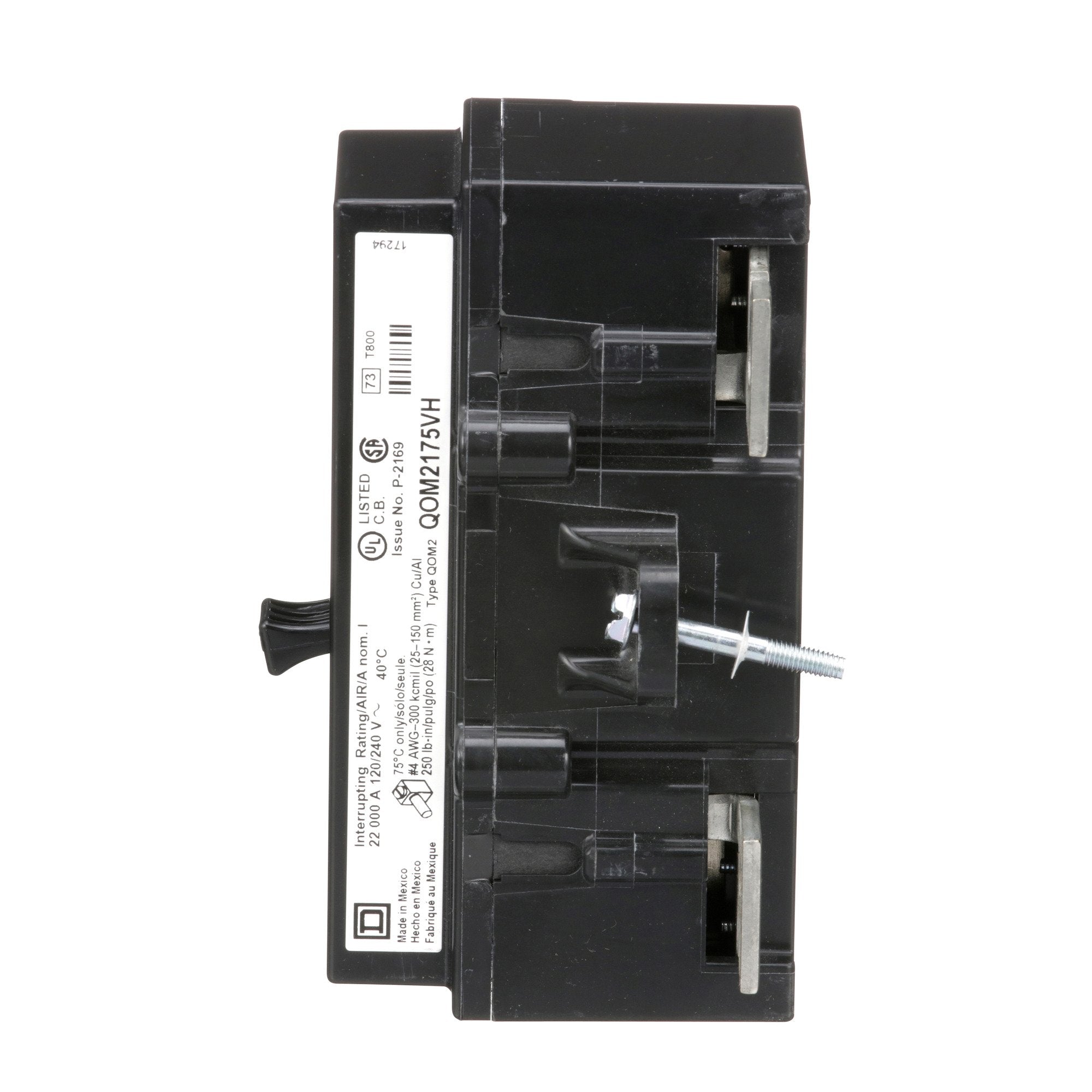

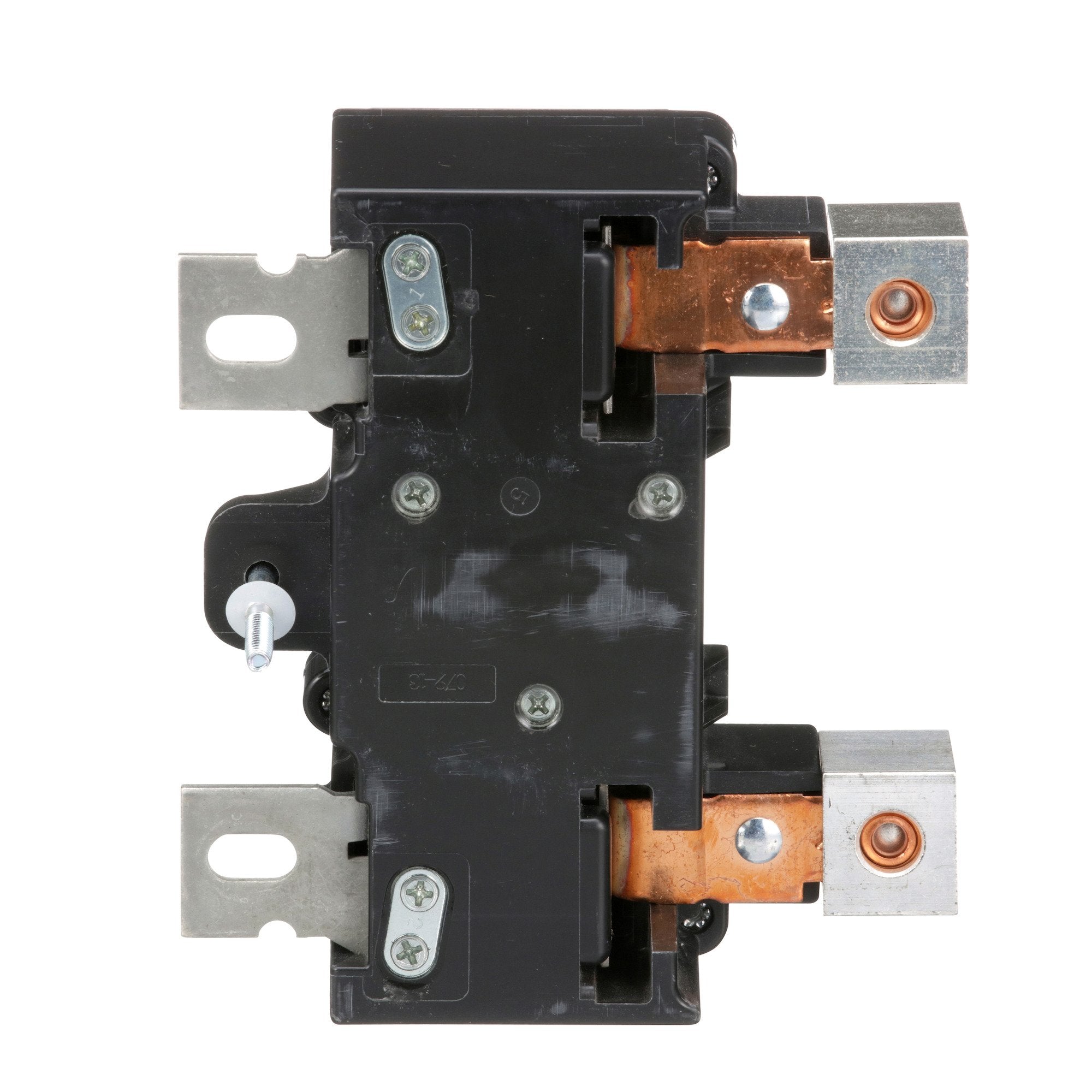

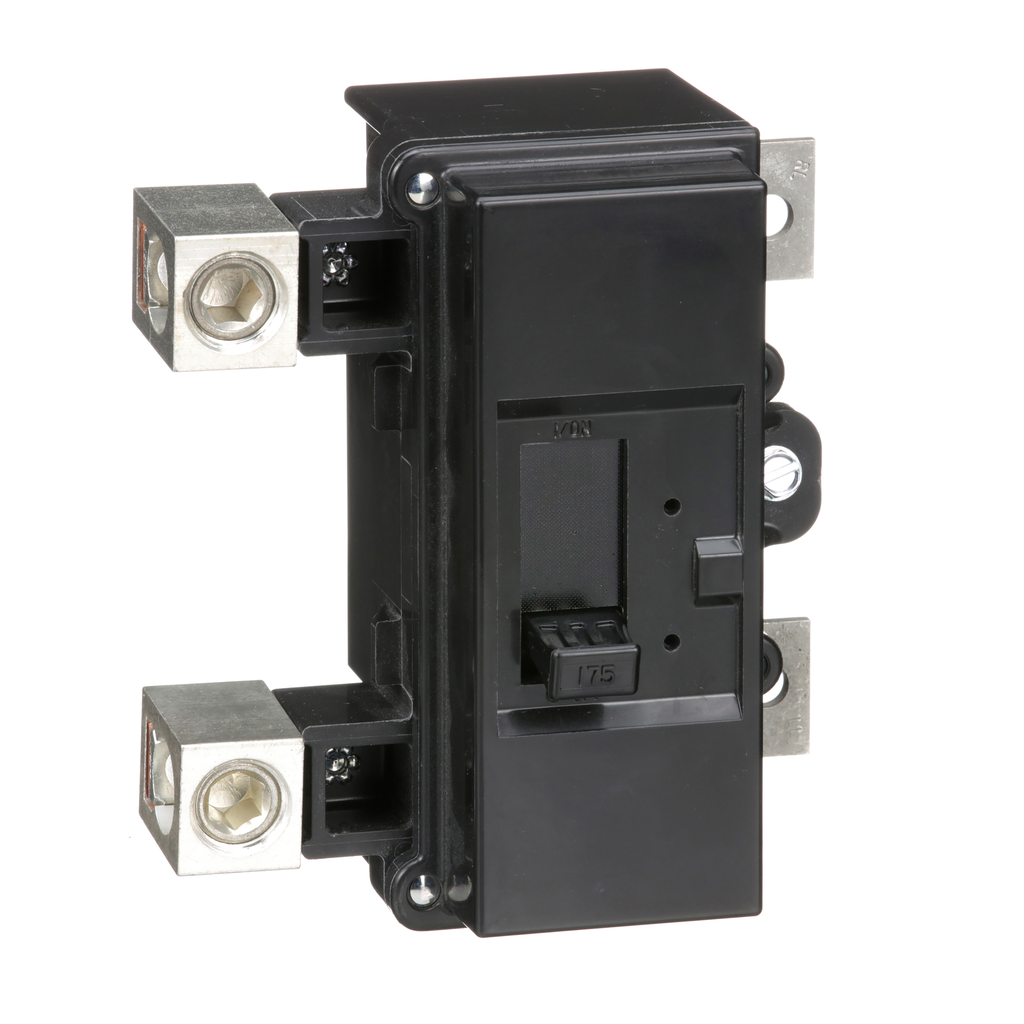

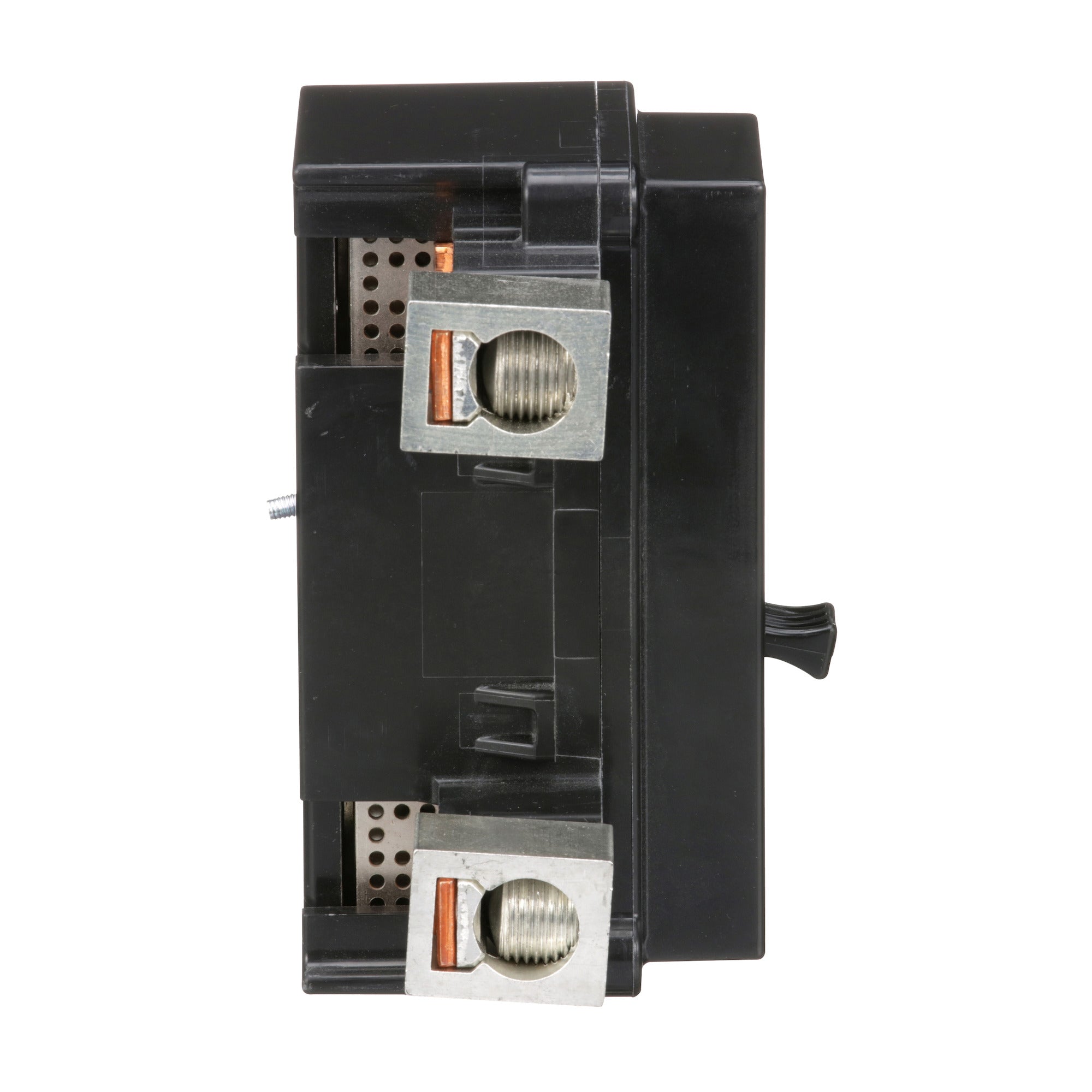

Square D QOM2175VH Main Circuit Breaker 175A 120/240V 1Ph 2P

Product Description

The Square D QOM2175VH is a main circuit breaker designed for use in electrical panels. This two-pole breaker is rated at 175 amperes and operates at 120/240 volts. The QOM2175VH provides essential protection against overcurrent in both AC and DC systems.

• Includes VisiTrip trip indication for easy identification of tripped circuits.
• Features quick make and quick break action for efficient operation.
• Bolt-on mounting offers secure installation.

Product Highlights

This circuit breaker can handle a short-circuit current of 22kA and is compact in design, making it suitable for confined spaces.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Circuit Breaker
• Amperage: 175 Amp
• Voltage: 120/240 Volt
• Number of Poles: 2 Pole
• Height: 5.07 Inch
• Width: 3.58 Inch
• Depth: 5.12 Inch
• Country of Origin: United States
• Certifications: UL, CSA
