Product Description

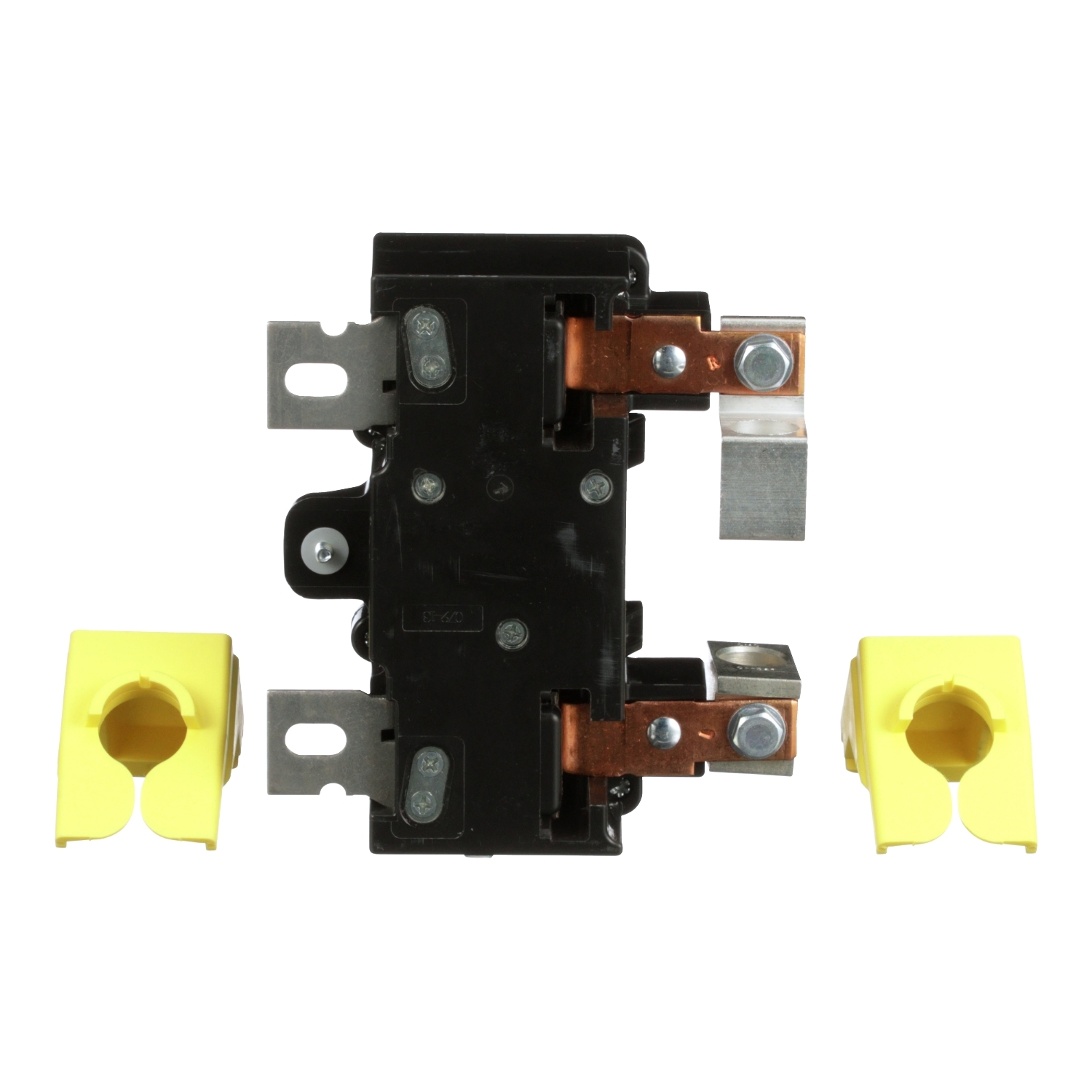

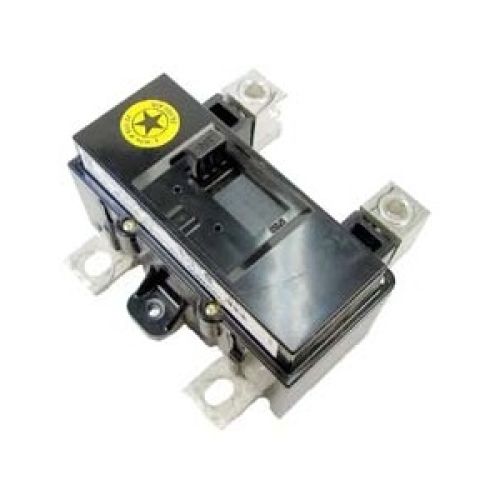

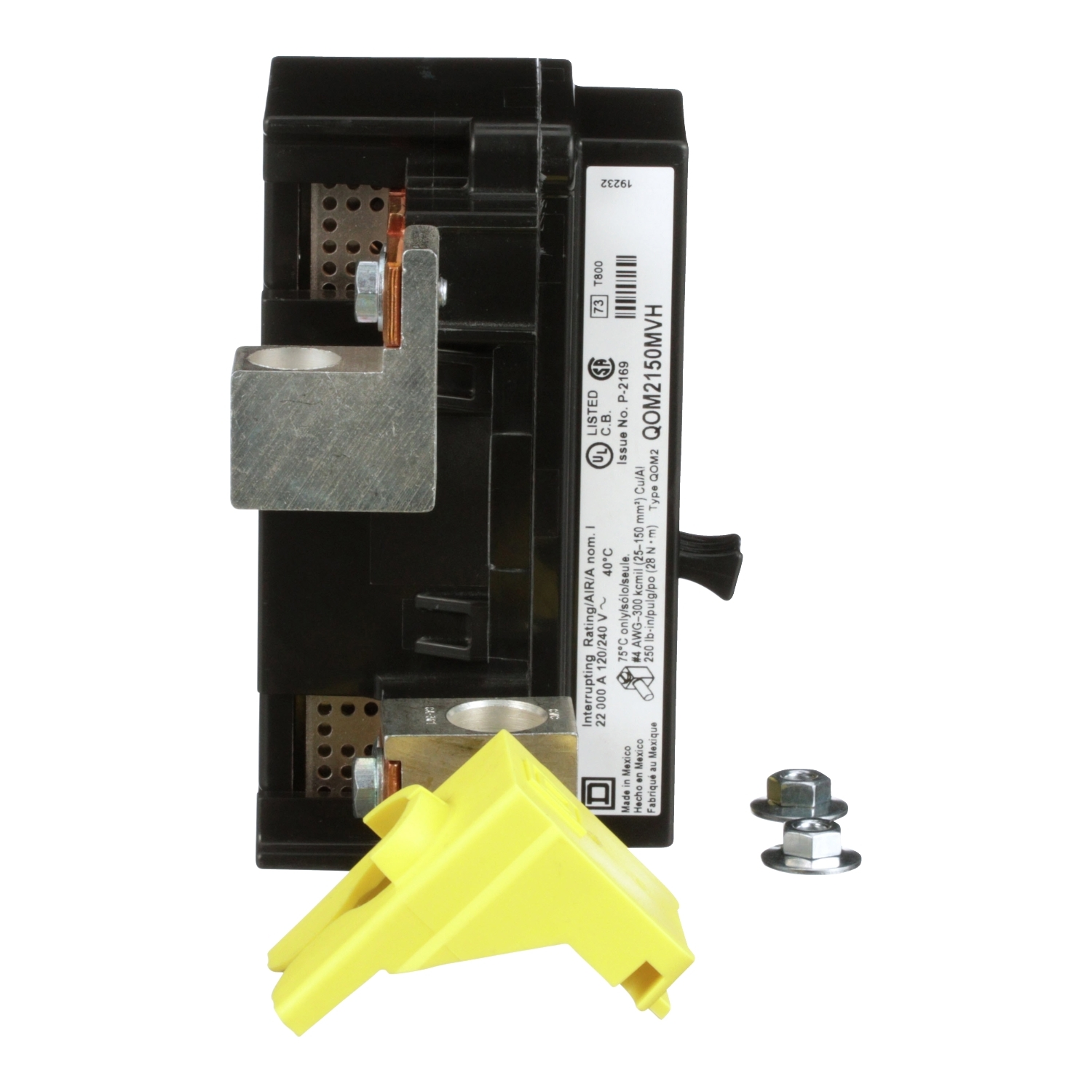

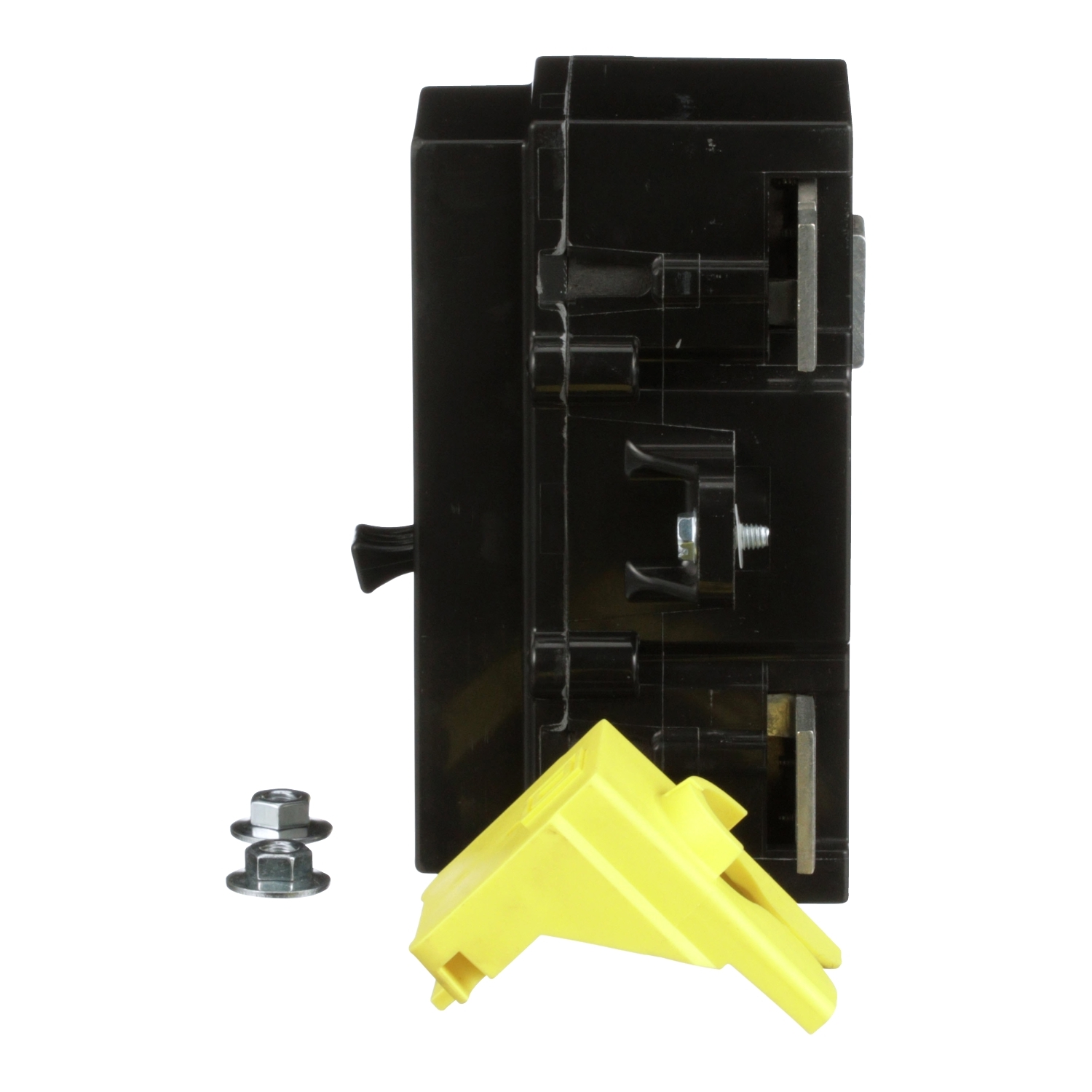

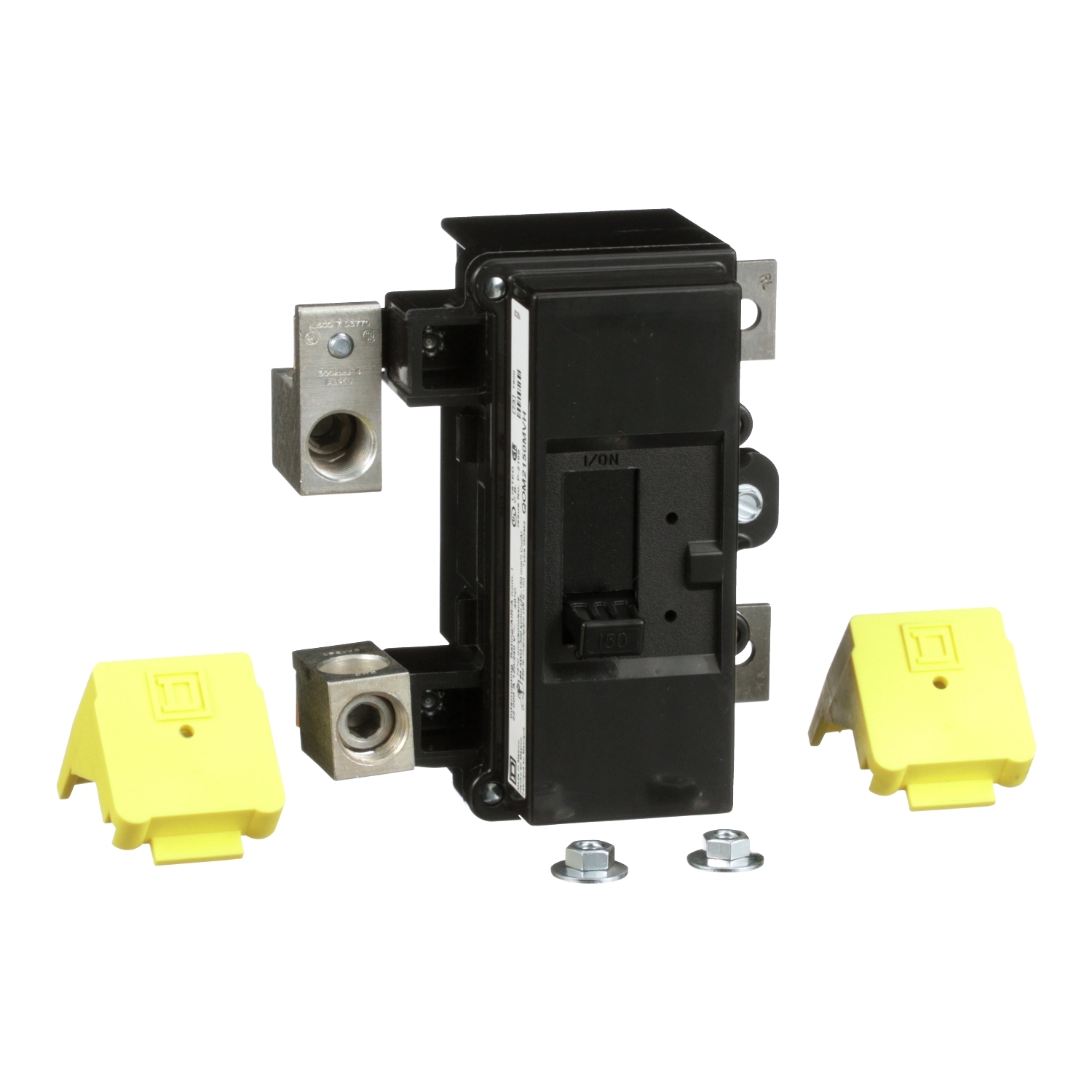

The Square D QOM2150MVH miniature circuit breaker provides overcurrent protection and switching on AC and DC systems. This 2-pole QO main breaker is rated at 150A at 120/240VAC with a 22kA breaking capacity and bolt-on mounting. It features an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication.
- Provides overcurrent protection
- Designed for switching on AC and DC systems
- Features VisiTrip trip indication
Product Highlights
The Square D QOM2150MVH is a 150A, 2-pole miniature circuit breaker with bolt-on mounting and 22kA breaking capacity.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QOM2150MVH
-
Country of Origin: United States
Technical Specifications
-
Type: CIRCUIT BREAKER
-
Brand: Square D
-
Current: 150 Amp
-
Voltage: 120 Volt
-
Amperage: 150 Amp
-
Sub Brand: QO
-
Trip Type: THERMAL MAGNETIC
-
Wire Size: 4 AWG to 300 kcmil
-
Trip Range: 150 A
-
Applications: QO LOAD CENTER,PRIMARY MAIN BREAKER
-
Mounting Type: Bolt-on
-
TC Connection: AWG 4...300 KCMIL COPPER OR ALUMINIUM,LUGS
-
Certifications: CSA,UL Listed
-
Conductor Size: 4 AWG-300 kcmil
-
Number of Poles: 2 Pole
-
Interrupt Rating: 22 kAIC
-
Number of Phases: 1 Phase
-
Line Rated Current: 150 A
-
Short Circuit Current: 22 kA
-
Catalog Number: QOM2150MVH
-
Manufacturer: Schneider Electric
-
Phase: 1
-
Breaking Capacity: 22 kA 120/240 V AC || 22 kA 120 V AC
-
[Ue] Rated Operational Voltage: 120/240 V AC || 120 V AC
-
Poles Description: 2P
-
Mounting Mode: bolt-on
-
Circuit Breaker Application: primary main breaker
-
Product Or Component Type: miniature circuit-breaker
-
Range Of Product: QO
-
Electrical Connection: lugs
-
Device Short Name: QOM2
-
Product Destination: QO load center
-
Awg Gauge: AWG 4...300 kcmil copper or aluminium
-
Load Center Type: main breaker
-
Product Certifications: UL Listed || CSA
-
Voltage Type: AC
-
Frame Type: QO
-
Series: QOM
-
Part Number: QOM2150MVH
-
AIC Rating: 22kA @ 120/240VAC
-
Mounting Style: Bolt-On
-
Terminal Type: Box Lugs
-
For Use With: MP Meter-Pak Meter Centers, EZ Meter-Pak Metering Equipment
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 4 AWG - 300 kcmil (Al/Cu)
-
Max Wire: 300 kcmil
-
Min Wire: 4 AWG
-
Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch
-
Accessories: Lugs Included
-
Standards: CSA C22.2 No. 5, UL 489
-
Approval: CSA, UL
-
Temp Rating: 40C
-
Construction Features: Visual Trip Indicator
-
UNSPSC: 39121601
