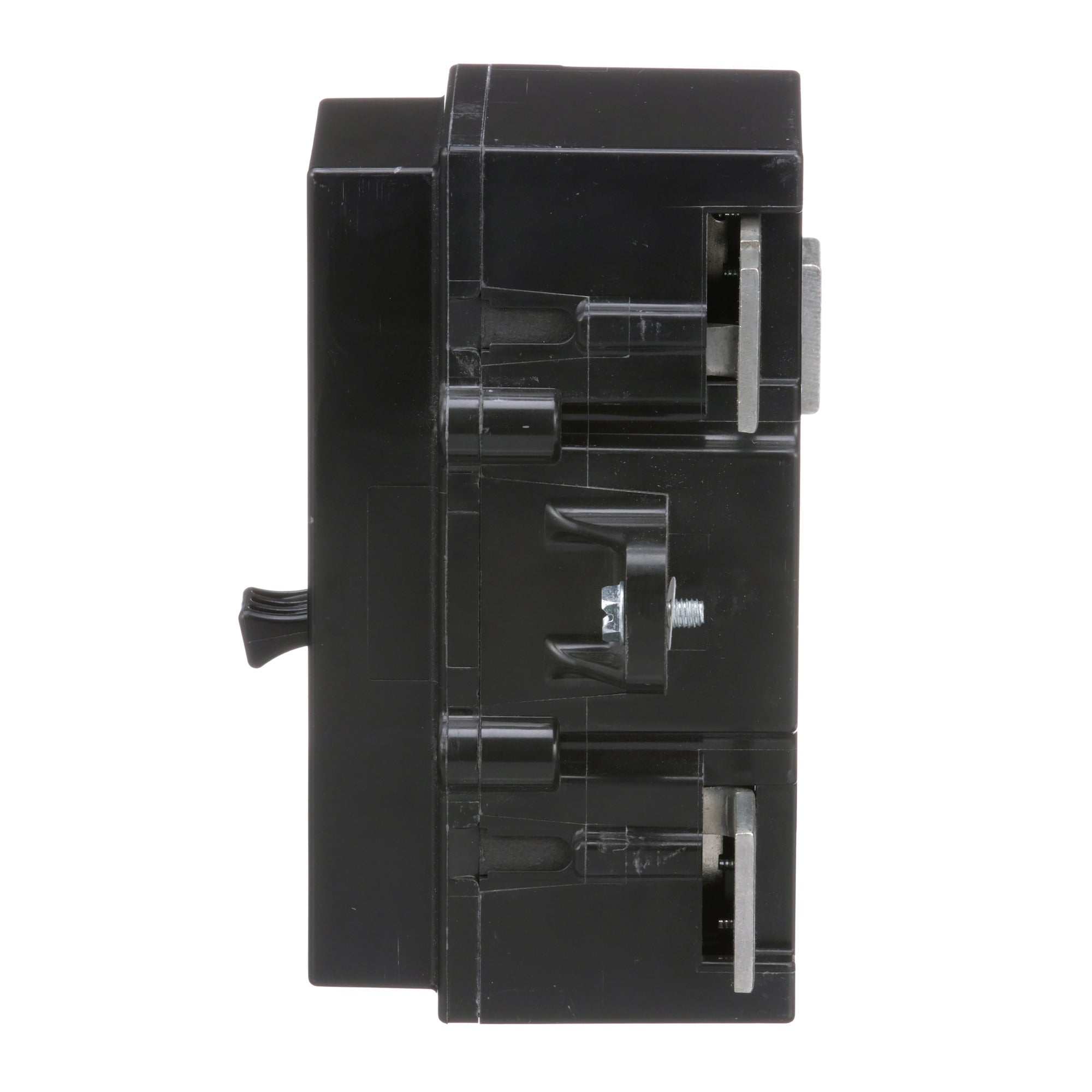

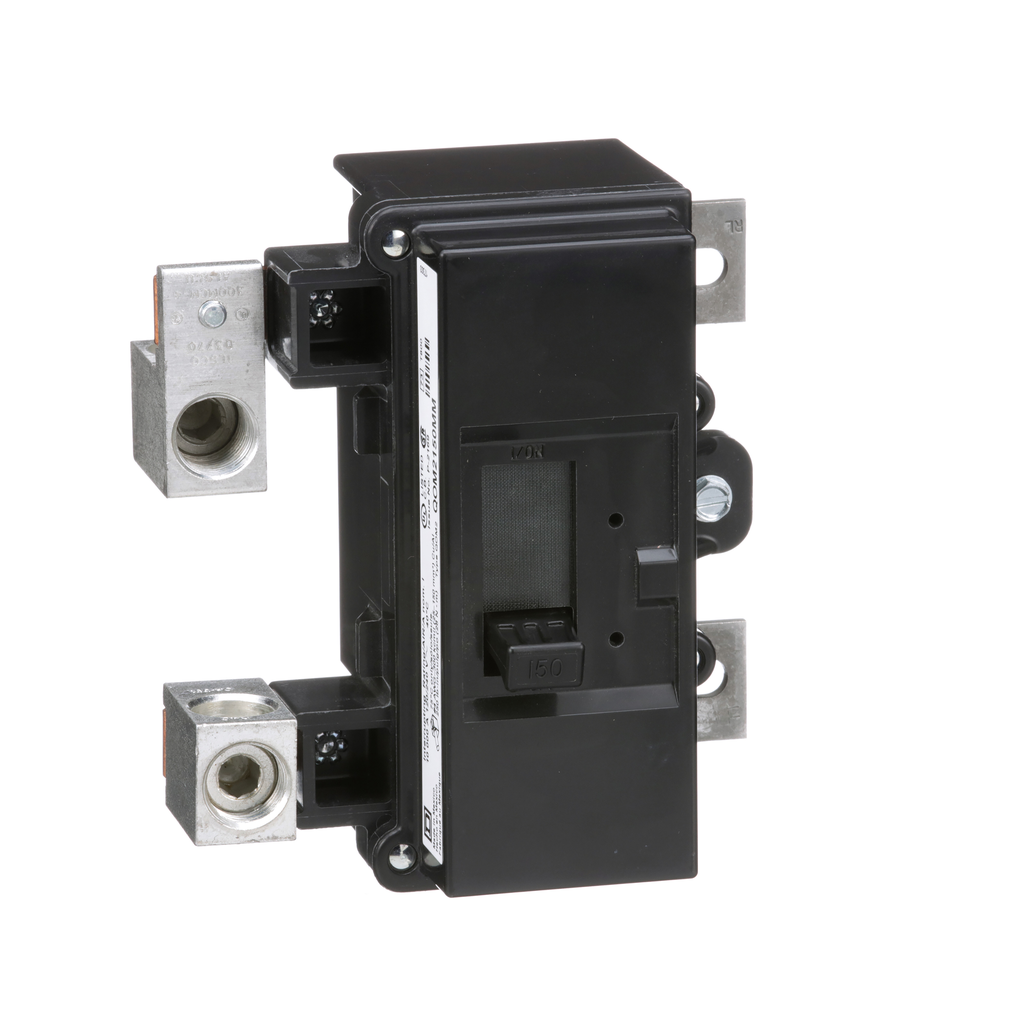

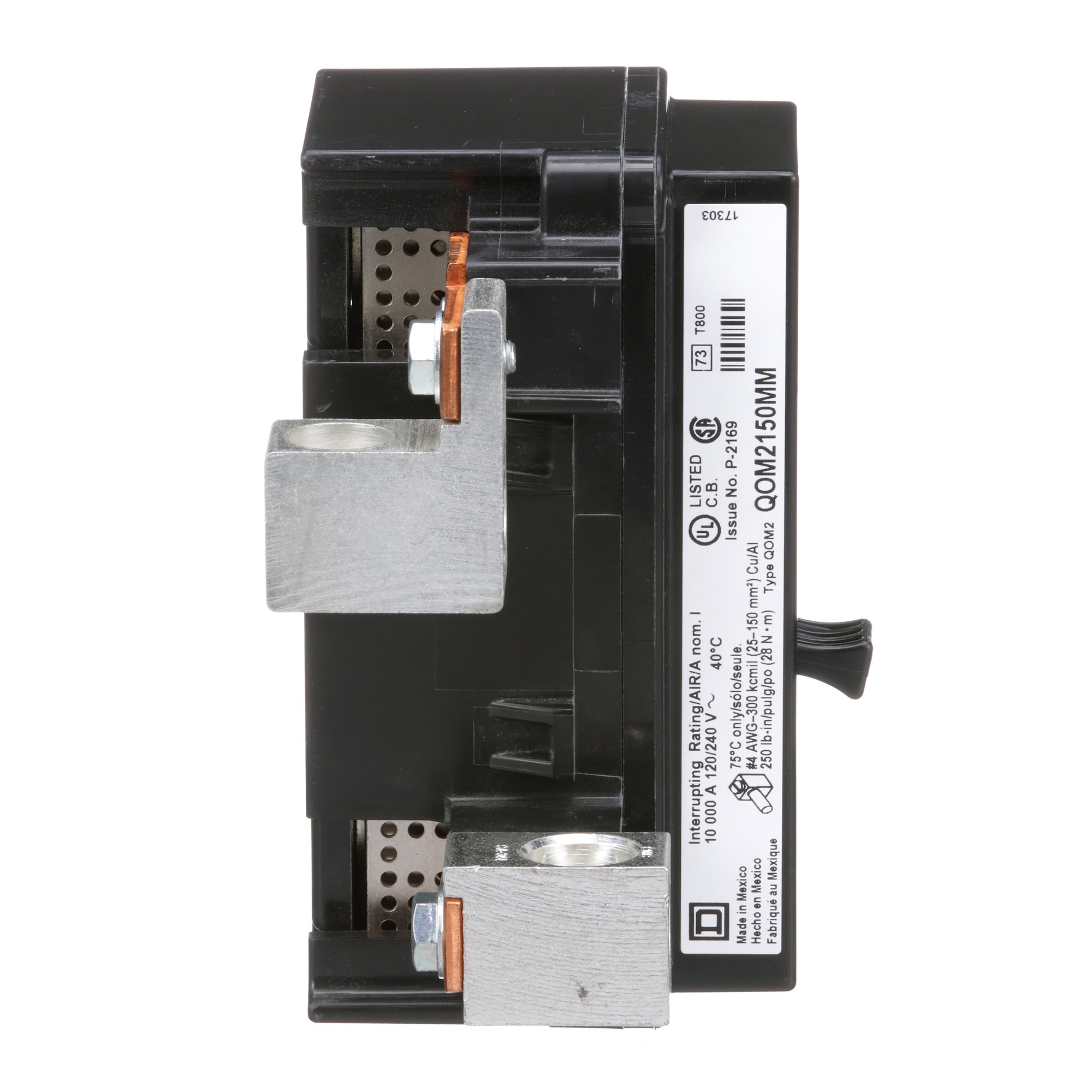

Square D QOM2150MM 2-Pole 150 Amp 120/240 VAC Bolt-On Main Tenant Circuit Breaker

Product Description

Square D QOM2150MM is a 2-pole circuit breaker designed for overcurrent protection. The MPN QOM2150MM offers functionality for 120 and 240 Volt AC systems. This breaker has a rating of 150 Amps and a bolt-on mounting style. It features VisiTrip technology for trip indication, ensuring safety and operational reliability.

• 2-pole design, 150 Amp rating
• UL Listed and CSA Certified
• Provides a trip-free mechanism with quick-make and quick-break action

Product Highlights

This circuit breaker is suitable for residential, commercial, and industrial use. Its compact design allows for a small system footprint, facilitating installation and maintenance.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QOM2150MM
• Current Rating: 150 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Mounting Type: Bolt-on
• Wire Size: AWG 4 to 300 kcmil copper or aluminium
• Country of Origin: Mexico
• Operating Temperature: 40 Degrees C
