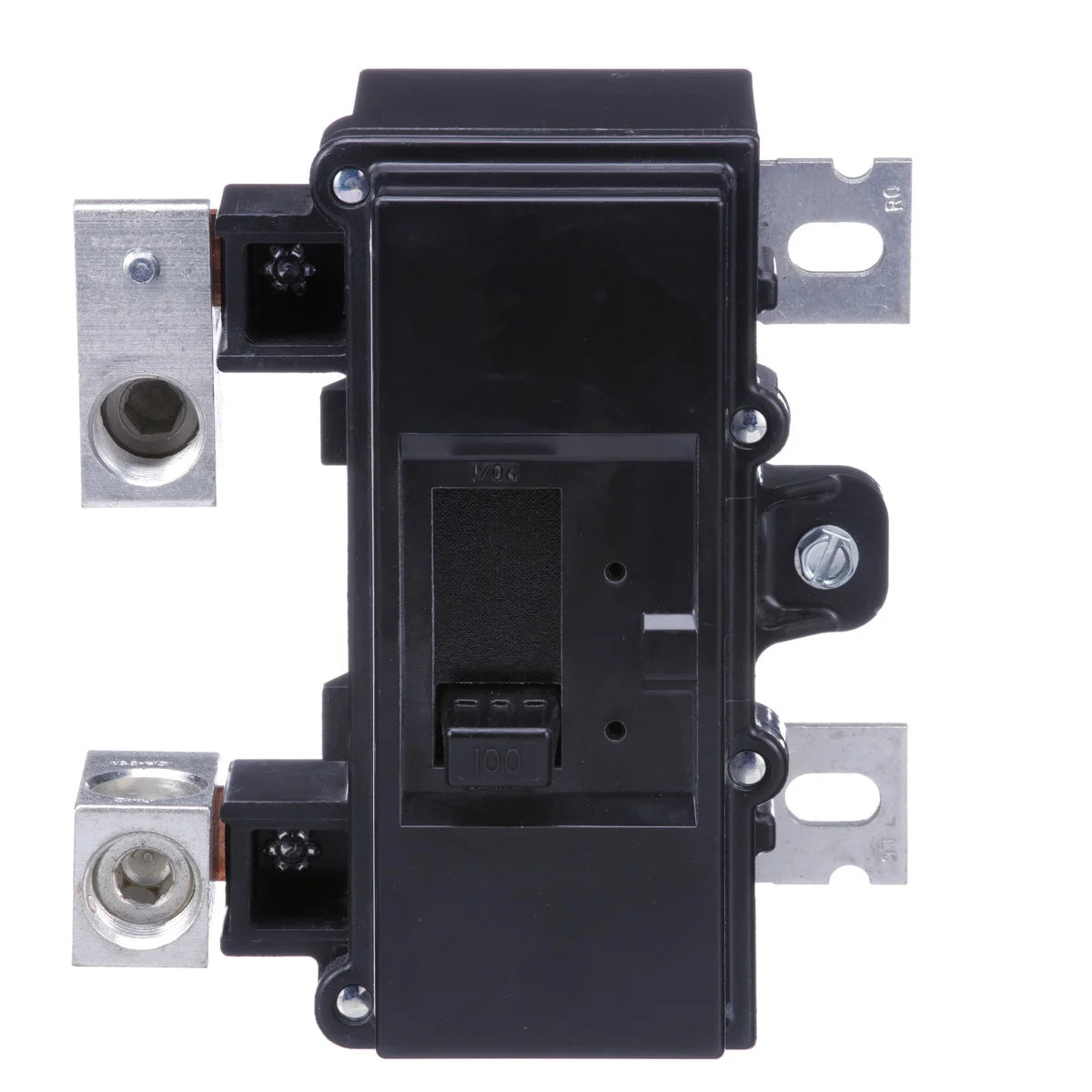

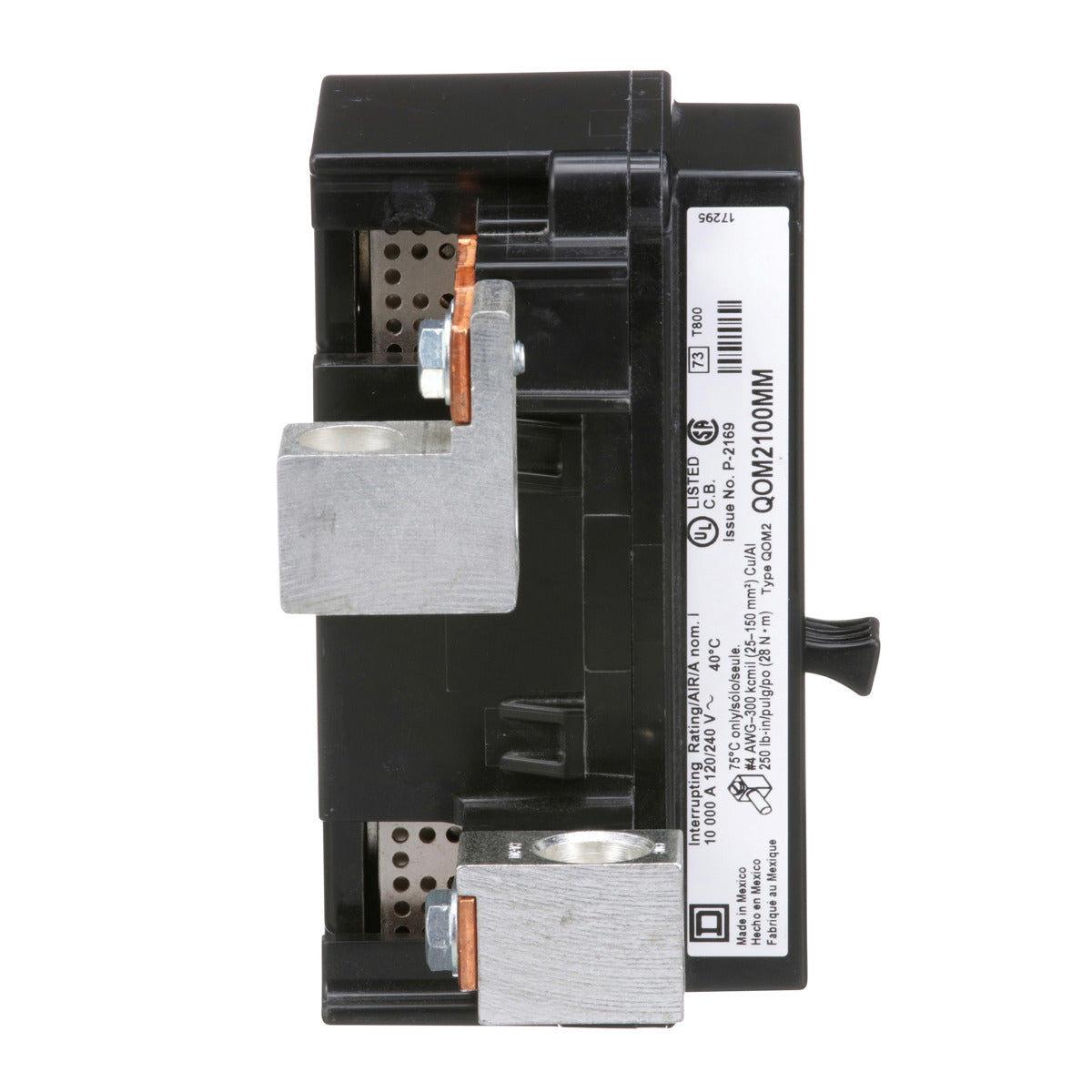

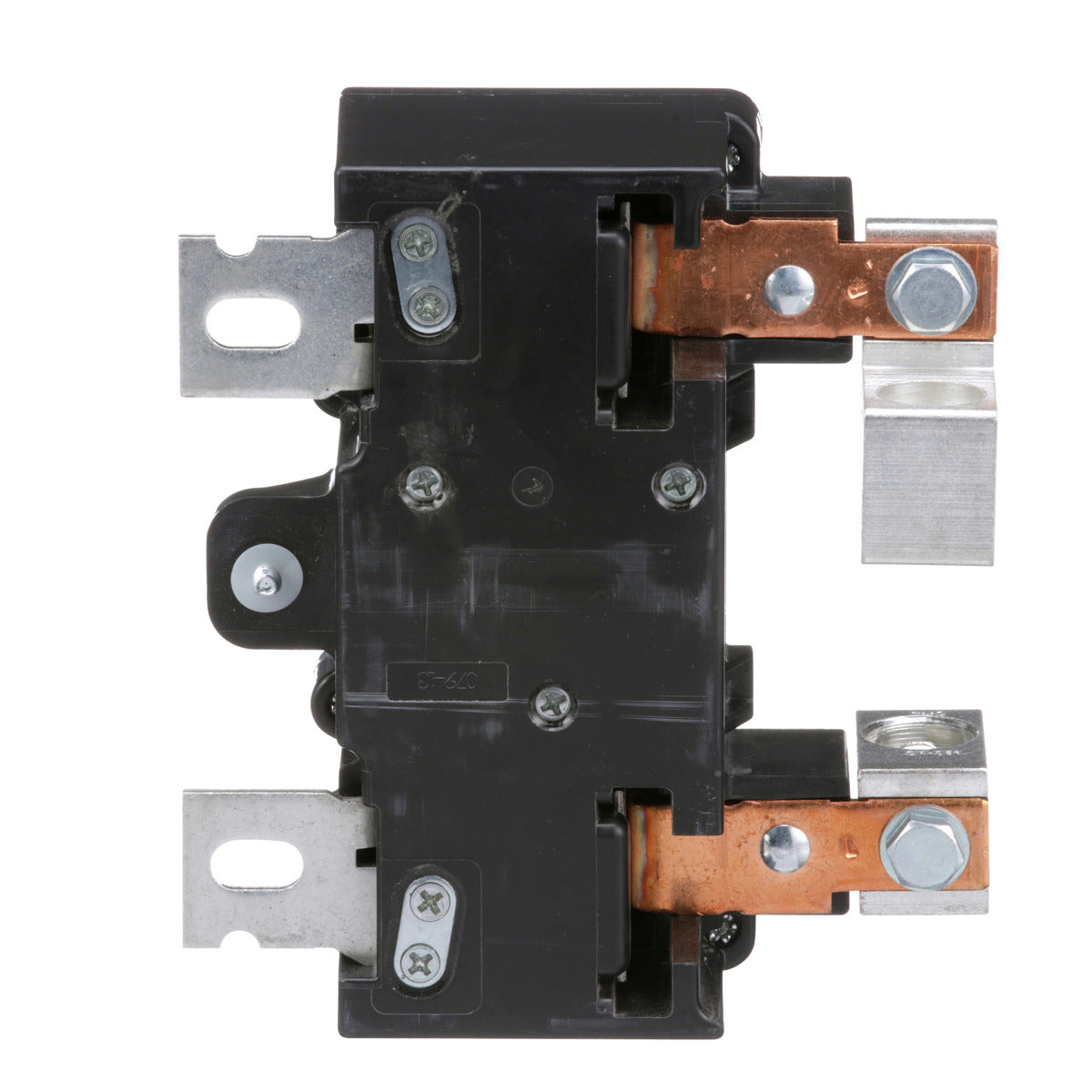

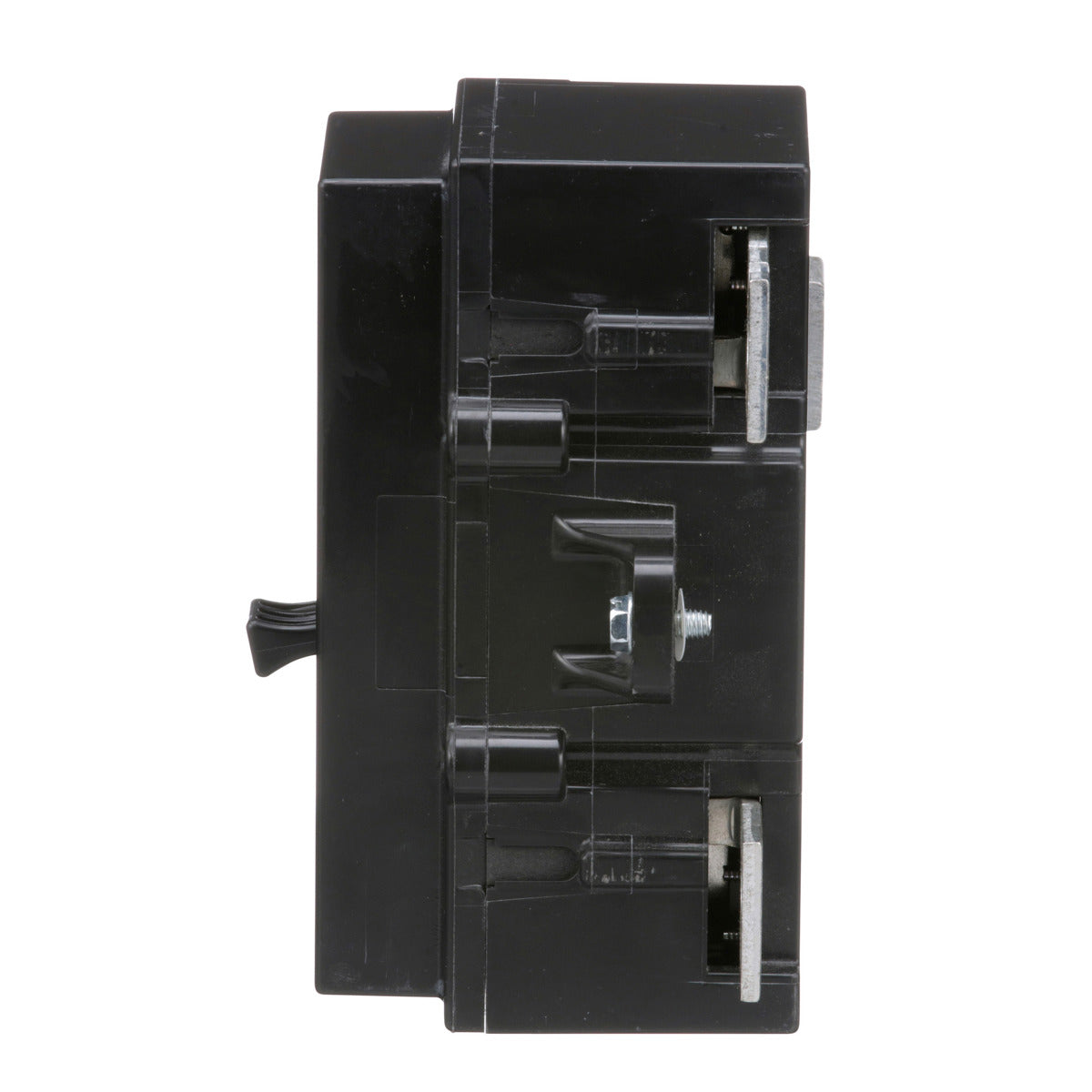

Square D QOM2100MM Miniature Circuit Breaker 100A 120/240V 1Ph Bolt-On

Product Description

The Square D QOM2100MM Miniature Circuit Breaker provides reliable overcurrent protection for AC and DC systems. Rated at one hundred amperes with a voltage of one hundred twenty to two hundred forty volts, this breaker is designed for bolt-on mounting and features a compact design suitable for various installations.

• Provides overcurrent protection and switching.
• Rated for one hundred amperes and suitable for two pole use.
• Includes VisiTrip trip indication for easy monitoring.

Product Highlights

This circuit breaker features a trip-free toggle mechanism and an interruption rating of ten kA, making it ideal for main breaker applications.

Product Information

Standard Information

• Product ID: 84101
• Brand: Square D

Technical Specifications

• Catalog Number: QOM2100MM
• Manufacturer: Schneider Electric
• Current Rating: 100 Amps
• Voltage Rating: 120/240 Volts
• Number of Poles: 2
• Mounting Type: Bolt-on
• Interrupt Rating: 10 kAIC
• Wire Size Compatibility: AWG 4 to 300 kcmil
