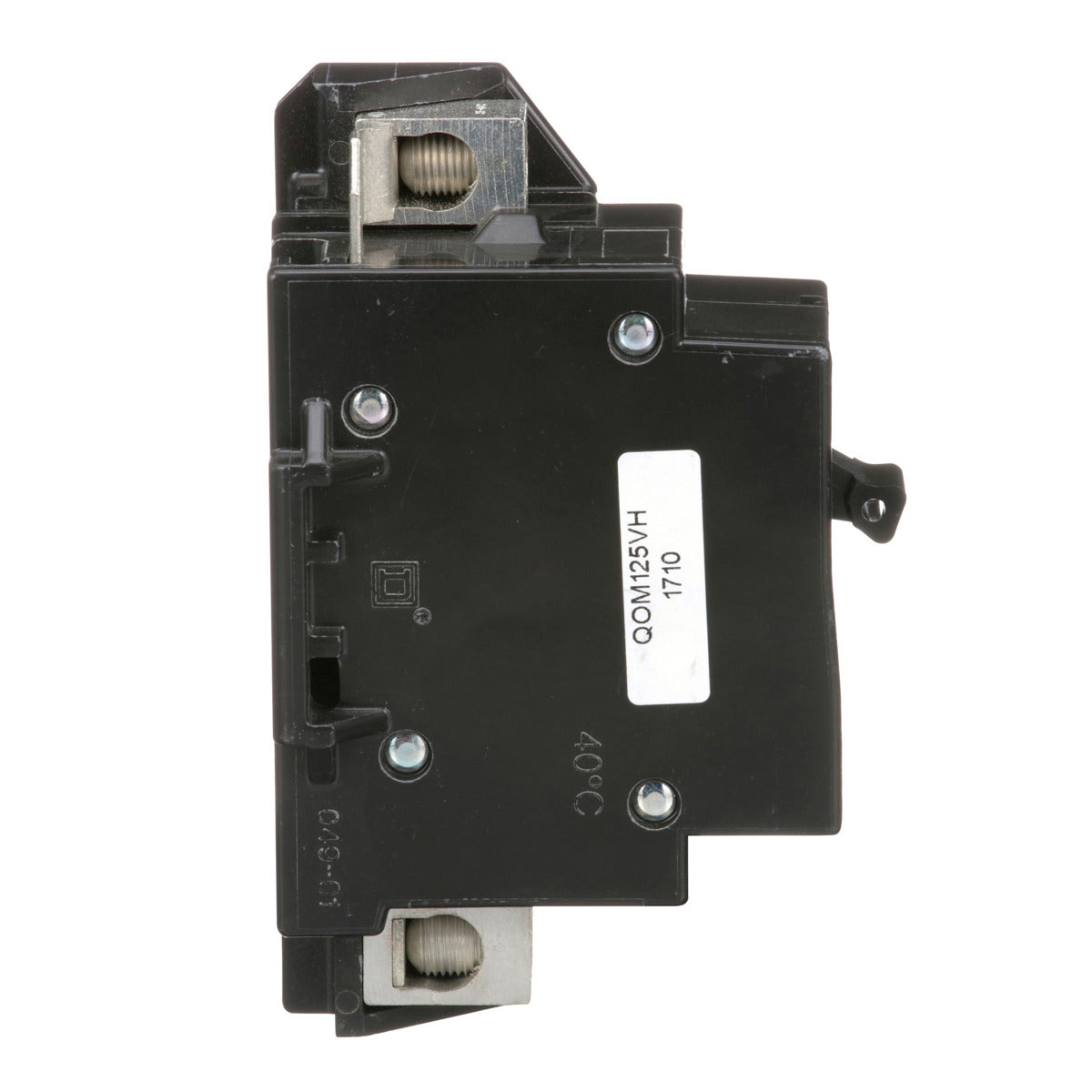

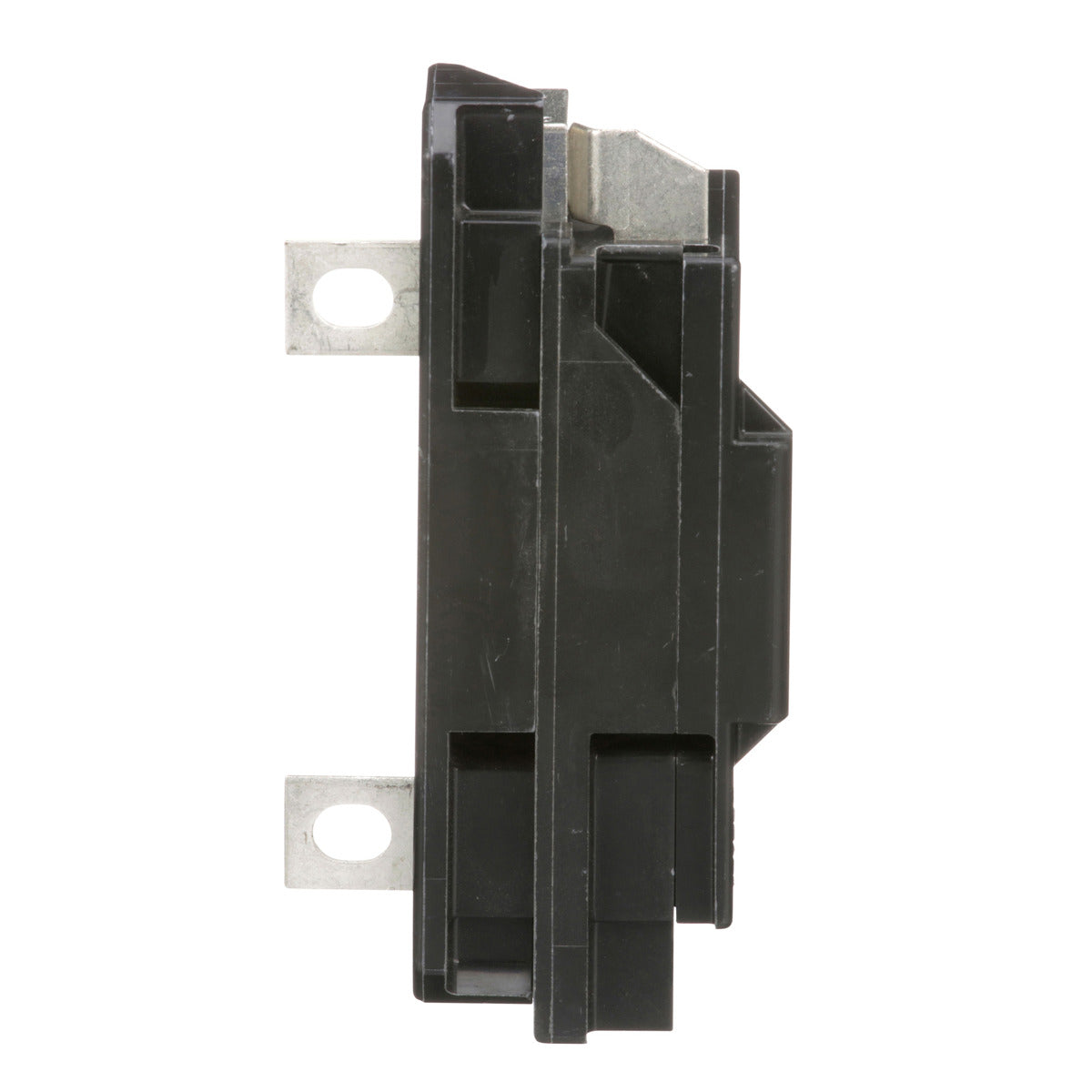

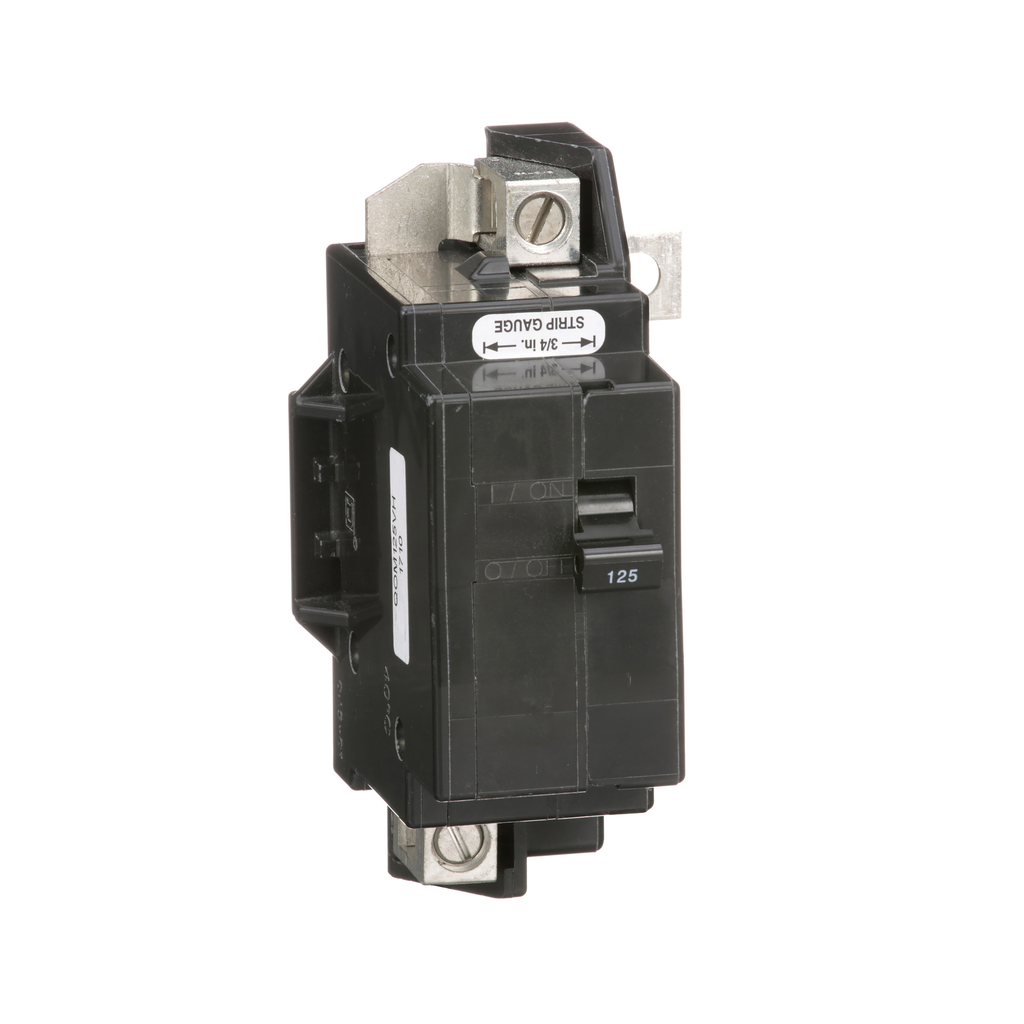

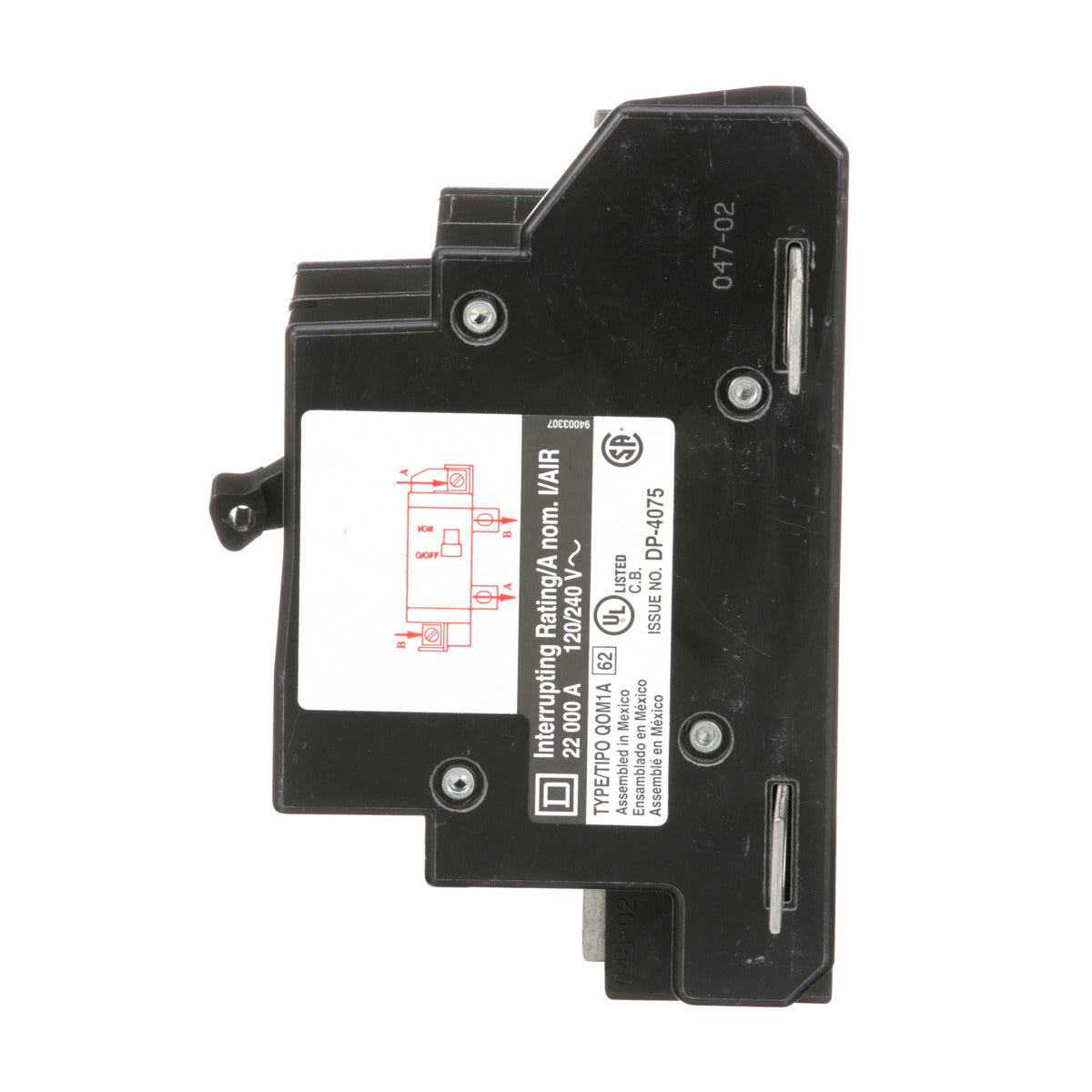

Square D QOM125VH Main Circuit Breaker 125A 120/240V 1Ph 2P Bolt-On

Product Description

Square D QOM125VH is a main circuit breaker rated at 125 Amps and suitable for 120/240 Volt systems. This is a two-pole, bolt-on breaker designed for thermal magnetic operation. It provides overcurrent protection for various applications including residential and commercial installations.

• 125 Amp rating at 120/240VAC
• 22kA breaking capacity
• Compliant with UL and CSA certifications

Product Highlights

The QOM125VH incorporates an over-center toggle mechanism for reliable operation and features VisiTrip, which indicates when the breaker has tripped. It is designed for use with QO load centers and has a compact design for limited space installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: QOM125VH
• Type: Circuit Breaker
• Current Rating: 125 Amp
• Voltage Rating: 120/240 Volt AC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Breaking Capacity: 22kA
• Wire Size: AWG 4...300 kcmil
• Country of Origin: Mexico
• Warranty Length: 18 Months
• Certifications: UL Listed, CSA Certified
