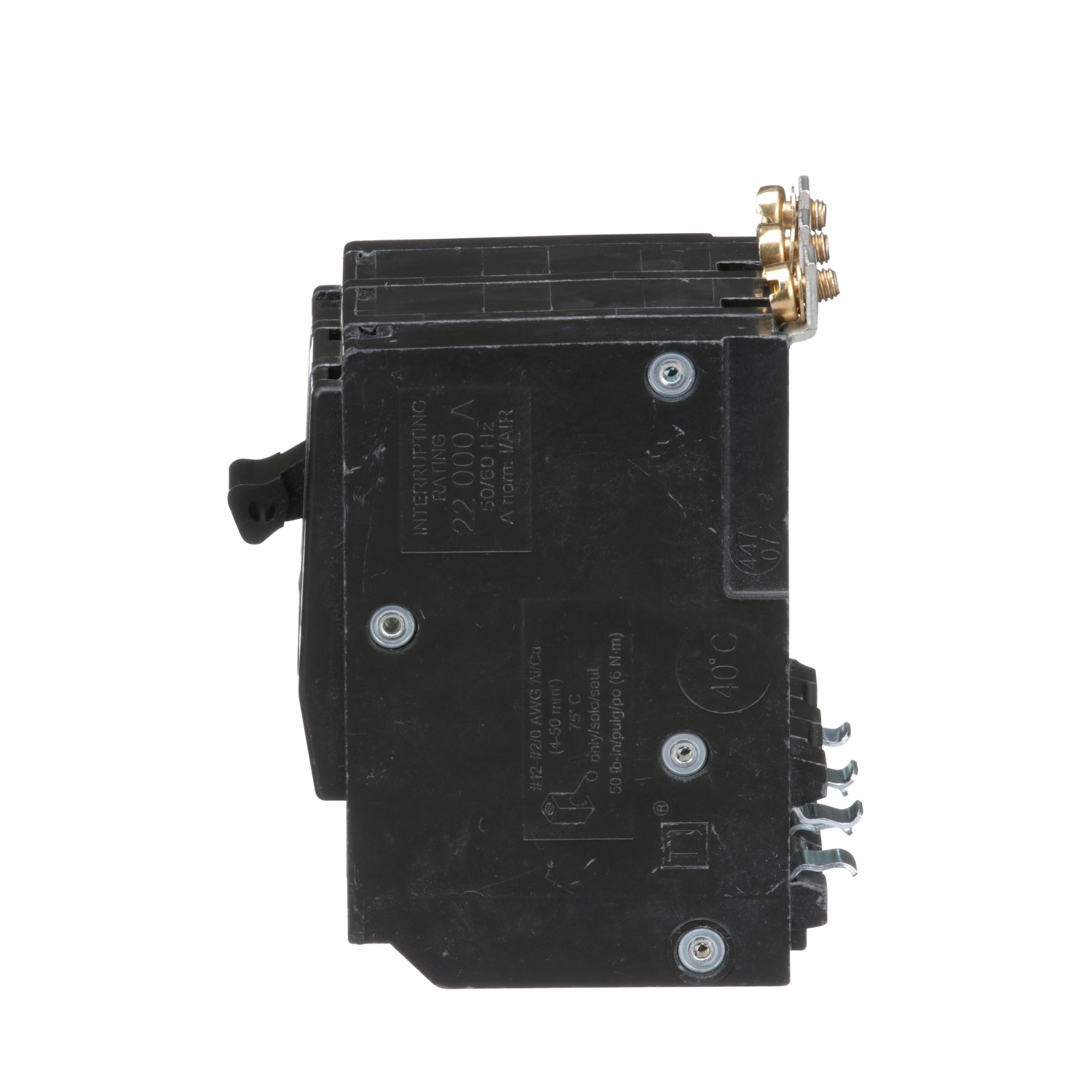

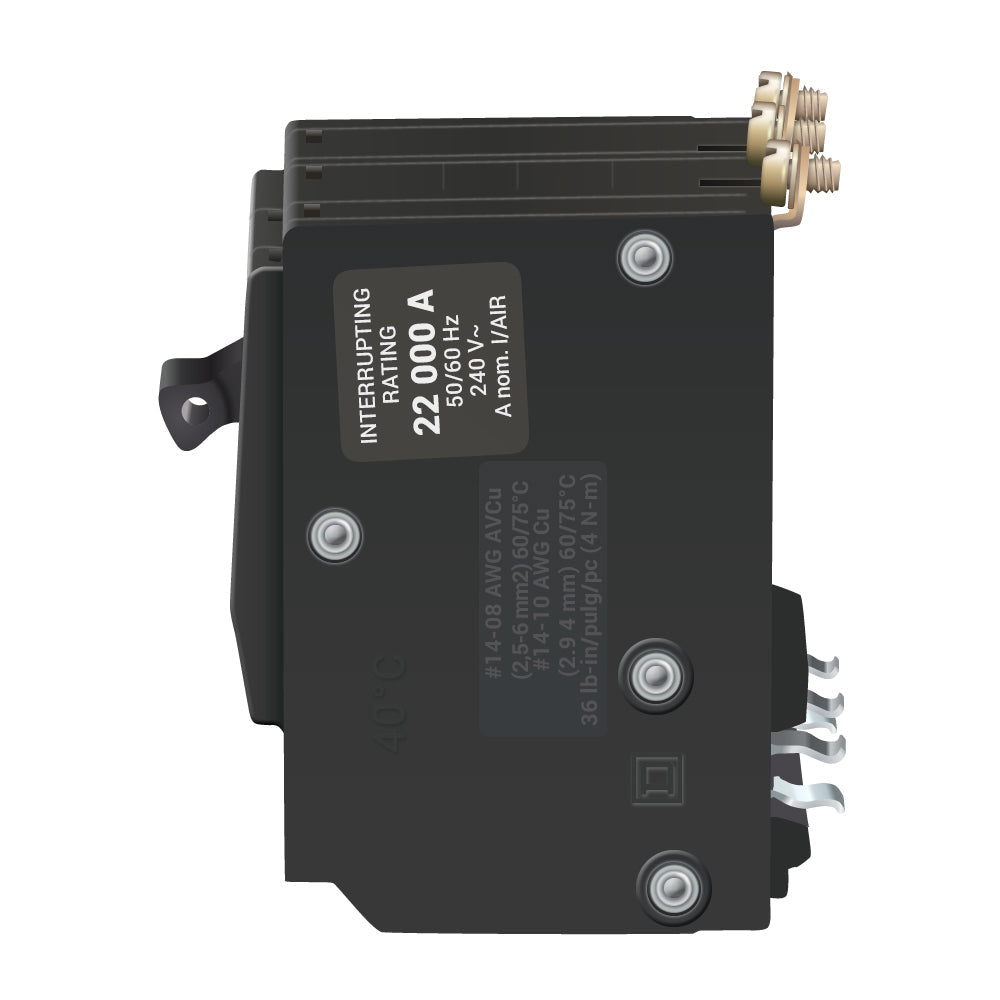

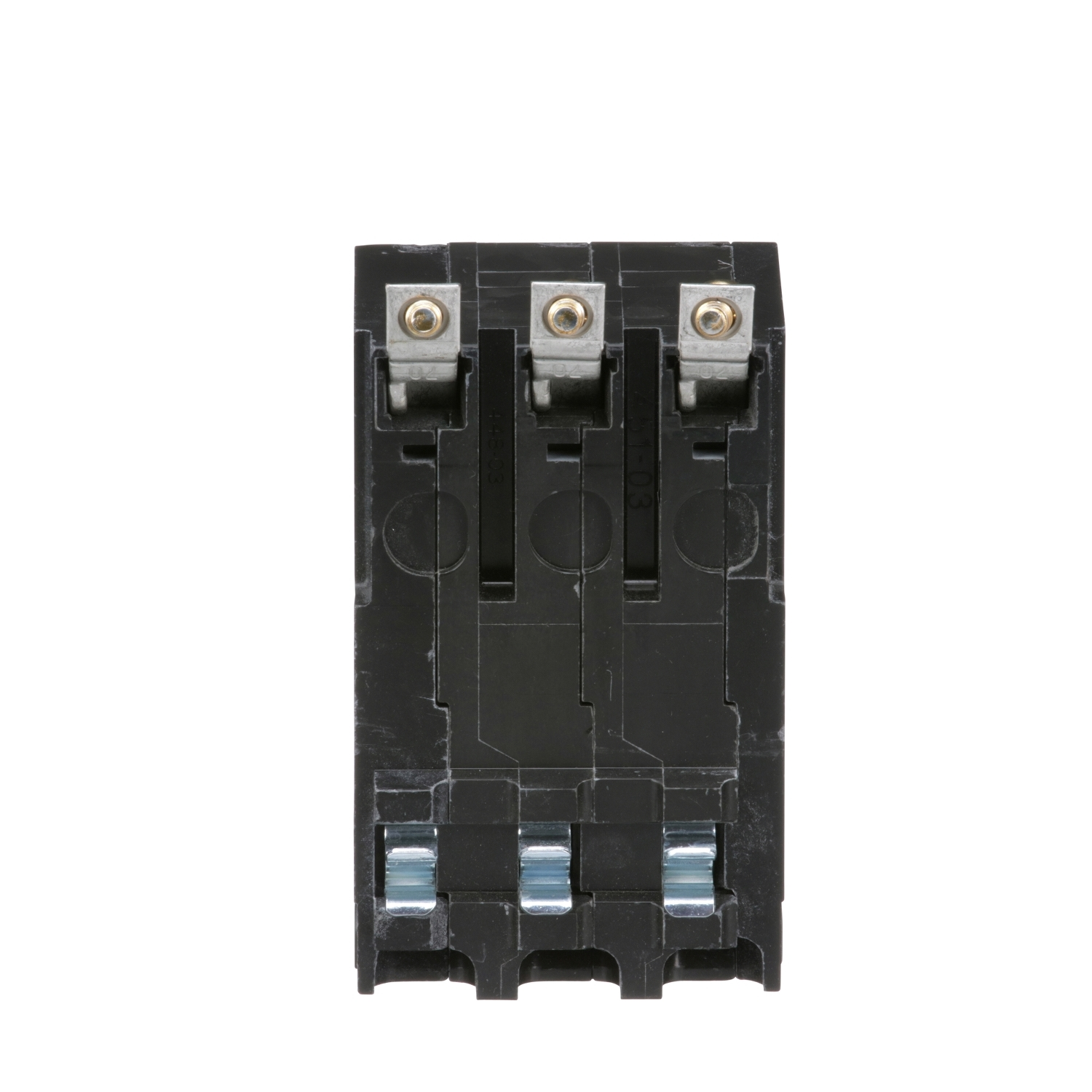

Square D QOB380VH 3-Pole 80 Amp Miniature Circuit Breaker

Product Description

The Square D QOB380VH is a 3-pole thermal magnetic circuit breaker that provides overcurrent protection and switching on AC and DC systems. Rated at 80A and 120/240VAC, this QO circuit breaker has a 22kA breaking capacity and bolt-on mounting. It features VisiTrip trip indication for visual indication of tripped circuits.

• Overcurrent protection
• Switching on ac and dc systems
• VisiTrip trip indication
• 22kA interrupting rating

Product Highlights

The Square D QOB380VH is ideal for use in NQOB and NQOD panelboards and offers reliable circuit protection.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QOB380VH
• Country of Origin: Mexico

Technical Specifications

• Type: MINIATURE CIRCUIT BREAKER
• Brand: Square D
• Range: QO
• Sub Brand: QO
• Current: 80 Amp
• Voltage: 120 Volt
• Amperage: 80 Amp
• Wire Size: AWG 4...AWG 2/0 copper or aluminium
• Product UPC: 78590105485
• 12-Digit UPC: 785901054856
• Applications: HACR RATED
• Mounting Type: Bolt-on
• TC Connection: BOX LUGS #4 TO #2/0 AWG(AL/CU)
• Certifications: CSA,UL Listed
• Conductor Size: 4-2/0 AWG
• Number of Poles: 3 Pole
• Interrupt Rating: 22 kAIC
• Line Rated Current: 80 A
• Circuit Breaker Type: Standard
• Operating Temperature: 40 degrees C
• Short Circuit Current: 22 kA
• Manufacturer: Schneider Electric
• Made in USA: No
• UPC: 785901054856
• GTIN: 00785901054856
• Frame Type: Q
• Tripping Method: Thermal Magnetic
• Mounting: Bolt On
• Poles: 3
• Electrical Connection: Box lugs
• [Ue] Rated Operational Voltage: 120/240 V AC || 240 V AC || 120 V AC
• Breaking Capacity: 22 kA 120/240 V AC || 22 kA 240 V AC || 22 kA 120 V AC
• Awg Gauge: AWG 4...AWG 2/0 copper or aluminium
• Tightening Torque: 5.6-5.6 N.m
• Number Of Spaces Required: 3
• Product Certifications: UL Listed || CSA
• Ambient Air Temperature For Operation: 40 °C
• System Voltage: 120 V AC, 120/240 V AC, 240 V AC
• Ratings: HACR rated
• Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 3
• Ambient Rating: 104 Degree F (40 Degree C)
• Part Number #: QOB380VH
• SKU #: 2393277
• UNSPSC: 39121603
• Voltage Rating: 120/240 VAC at 50/60 Hz (UL/CSA)
• Current Rating: 80 Ampere
• Interrupting Rating: 22 Kiloampere at 120/240 VAC (UL/CSA)
• Installation: Bolt-On
• Application: Appliance, Lighting
• Used On: NQ Series Panelboard
• Approval: UL, CSA
• Includes: Visi-Trip Indicator
• Trip Type: Thermal/Magnetic Trip
• Phase: 3 ph
• Connection: Box Lug Connection
• Frequency: 50/60 Hz
