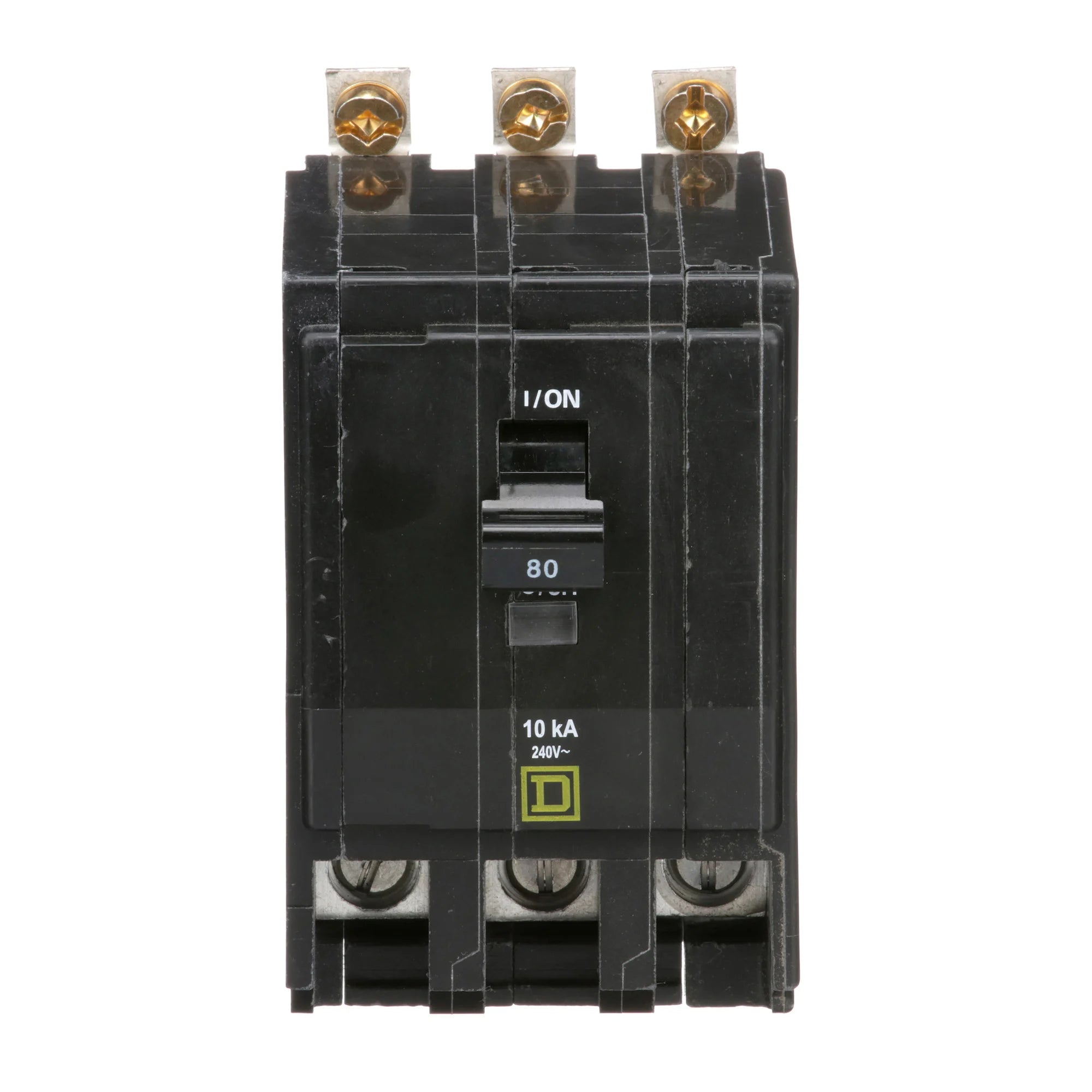

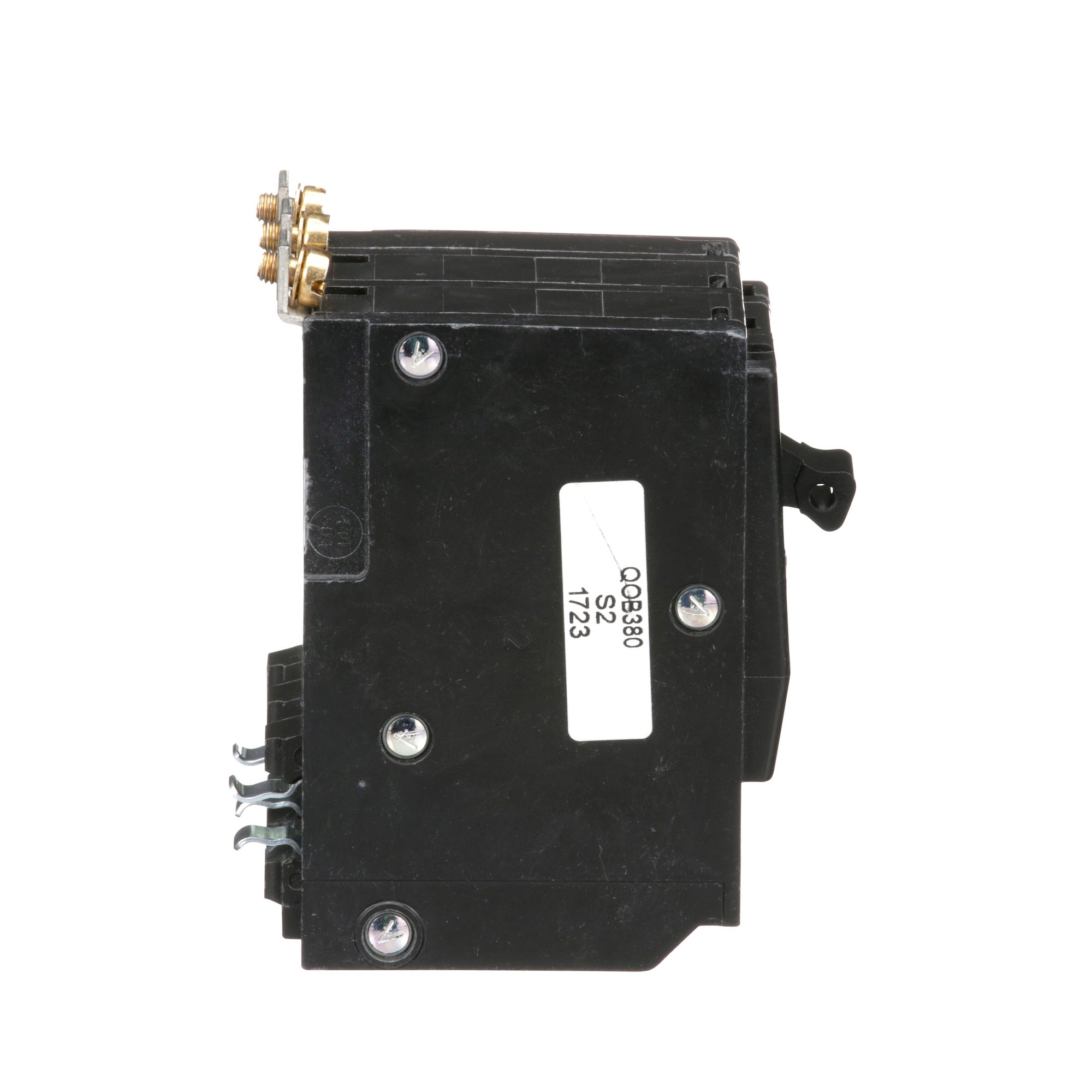

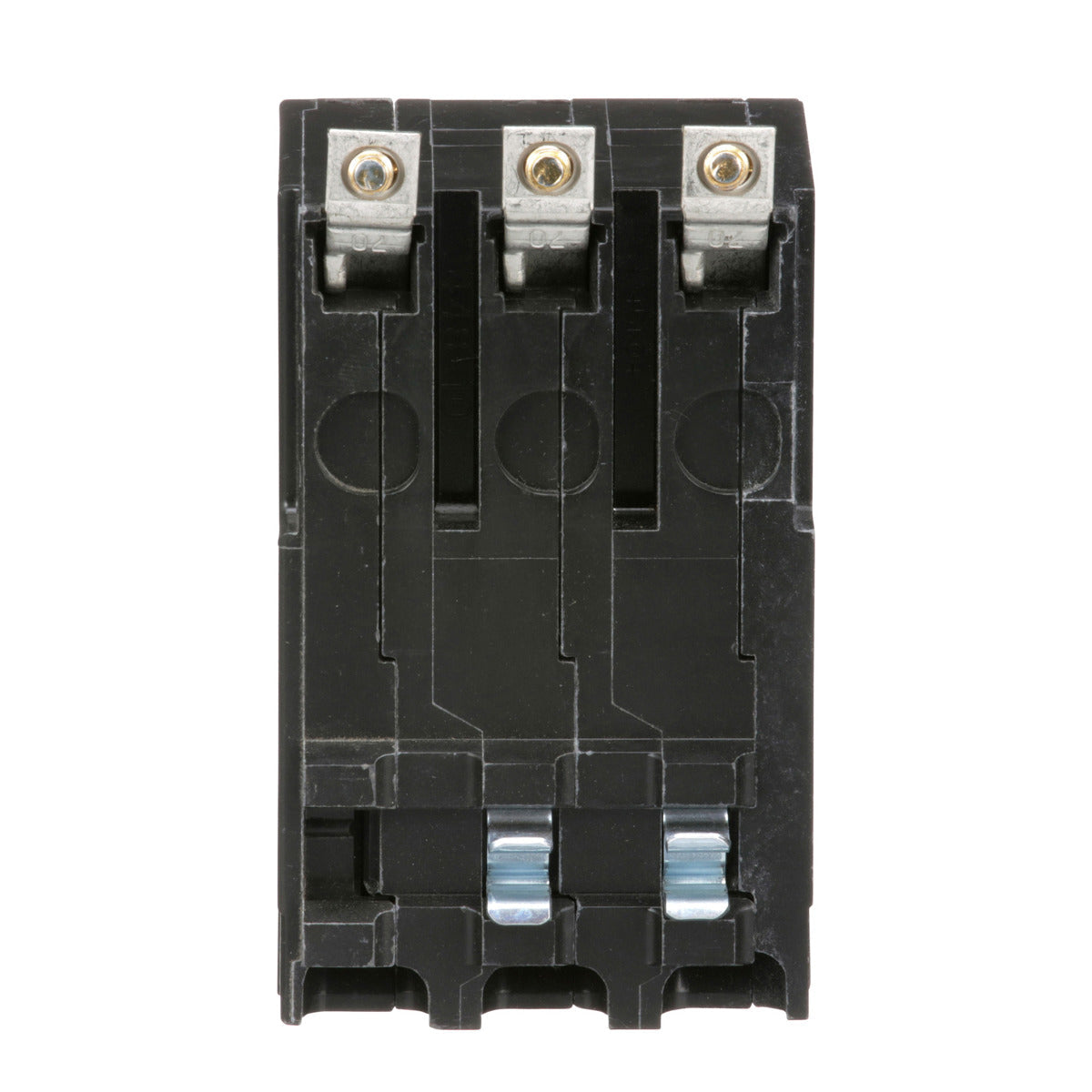

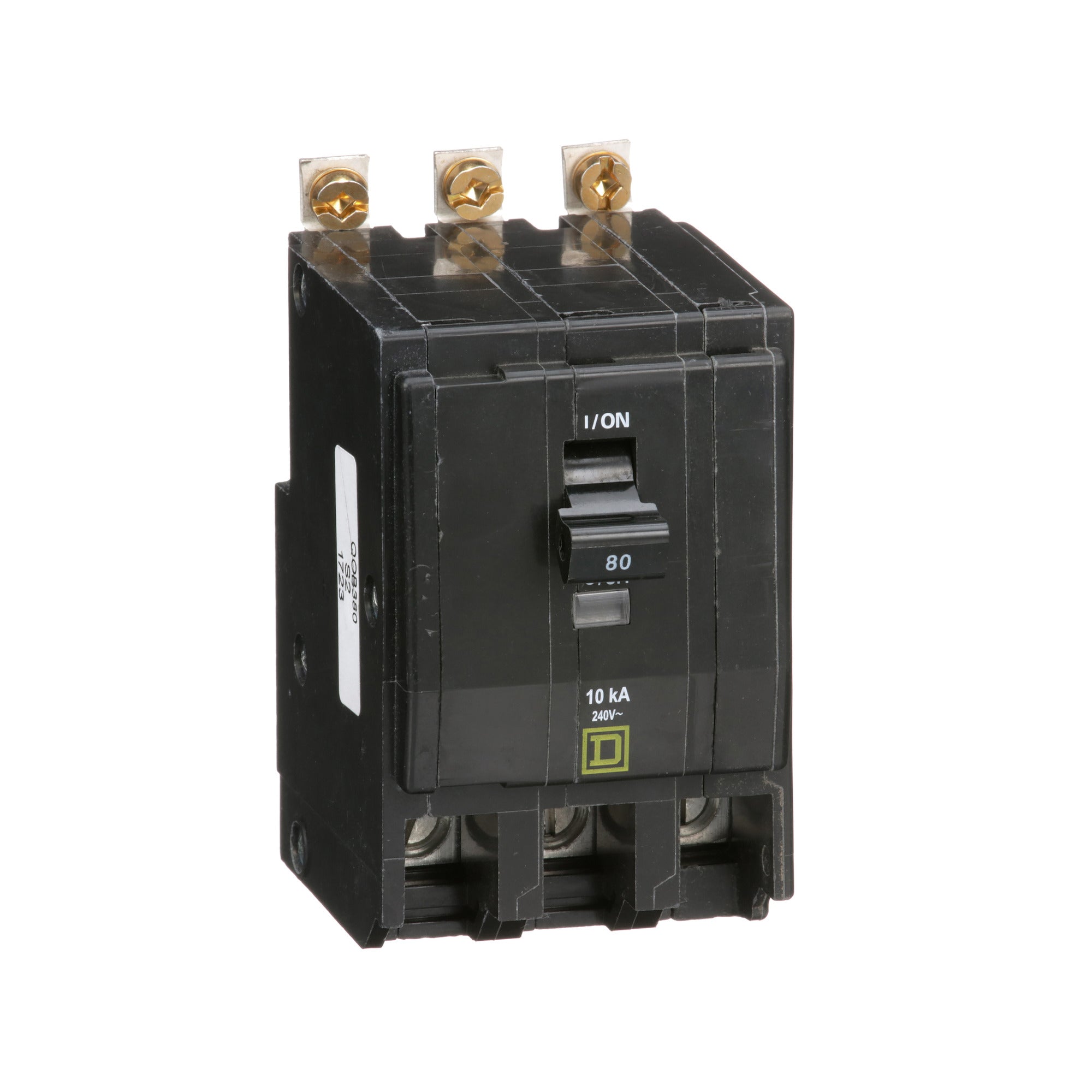

Square D QOB380 Miniature Circuit Breaker 80A 240V 3Ph Bolt-On

Product Description

The Square D QOB380 Miniature Circuit Breaker is a thermal magnetic circuit breaker designed for overcurrent protection in AC and DC systems. This model is rated for eighty amps at two hundred forty volts and features a bolt-on installation. The QOB series is known for its reliable performance and safety features.

• Three poles with a breaking capacity of ten kA.
• UL Listed under UL File E84967.
• VisiTrip technology indicates circuit status.

Product Highlights

The QOB380 is designed for optimal performance in commercial and residential electrical systems. It features a trip-free toggle mechanism and positive handle indication for improved reliability.

Product Information

Standard Information

• Brand: Square D
• MPN: QOB380

Technical Specifications

• Type: Miniature circuit breaker
• Current Rating: Eighty amps
• Voltage Rating: One hundred twenty to two hundred forty volts AC
• Number of Poles: Three
• Interrupt Rating: Ten kA
• Height: Three point five inches
• Width: Two point two four inches
• Depth: Two point nine one inches
• Weight: Zero point four eight five kilograms
• Country of Origin: Mexico
• Warranty Length: Eighteen months
