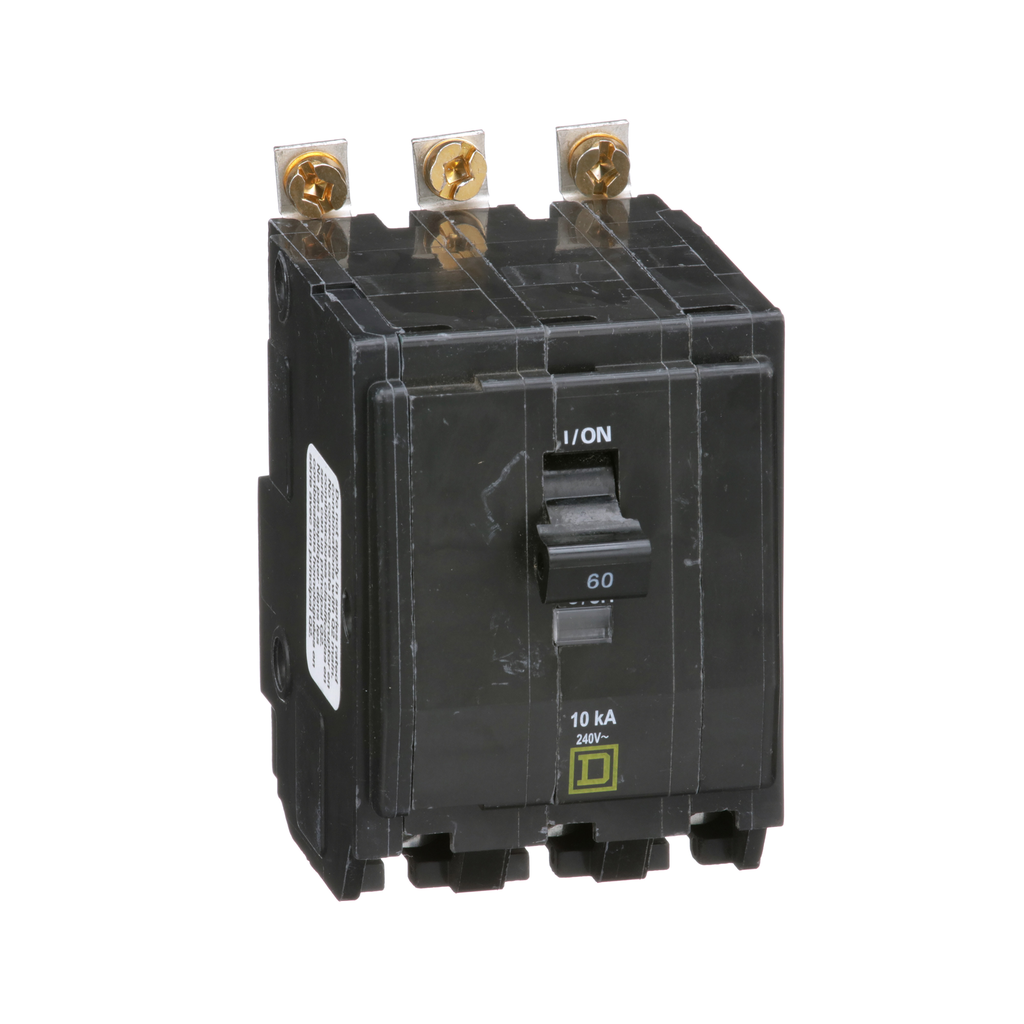

Square D QOB360 Miniature Circuit Breaker 60A 240V Bolt-On

Product Description

The Square D QOB360 Miniature Circuit Breaker is a reliable solution for overcurrent protection in electrical systems. This breaker is rated 60 Amps at 240 Volts and features a bolt-on installation, making it suitable for various applications. The QOB360 circuit breaker is designed for both AC and DC systems. It includes a VisiTrip indicator for easy identification when the circuit has tripped. This miniature circuit breaker meets UL and CSA standards.

• 60 Amp capacity at 240 VAC
• Three poles with bolt-on mounting
• 10 kA interrupting capacity

Product Highlights

Ideal for use in power distribution, the QOB360 ensures safe operation and easy access for maintenance.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QOB360
• Type: Miniature circuit-breaker
• Current Rating: 60 Amps
• Voltage Rating: 240 Volt
• Number of Poles: 3
• Interrupting Capacity: 10 kA
• Dimensions: 2.91 inches (Length) x 2.56 inches (Width) x 3.1 inches (Height)
• Country of Origin: Mexico
• Warranty: 18 months
