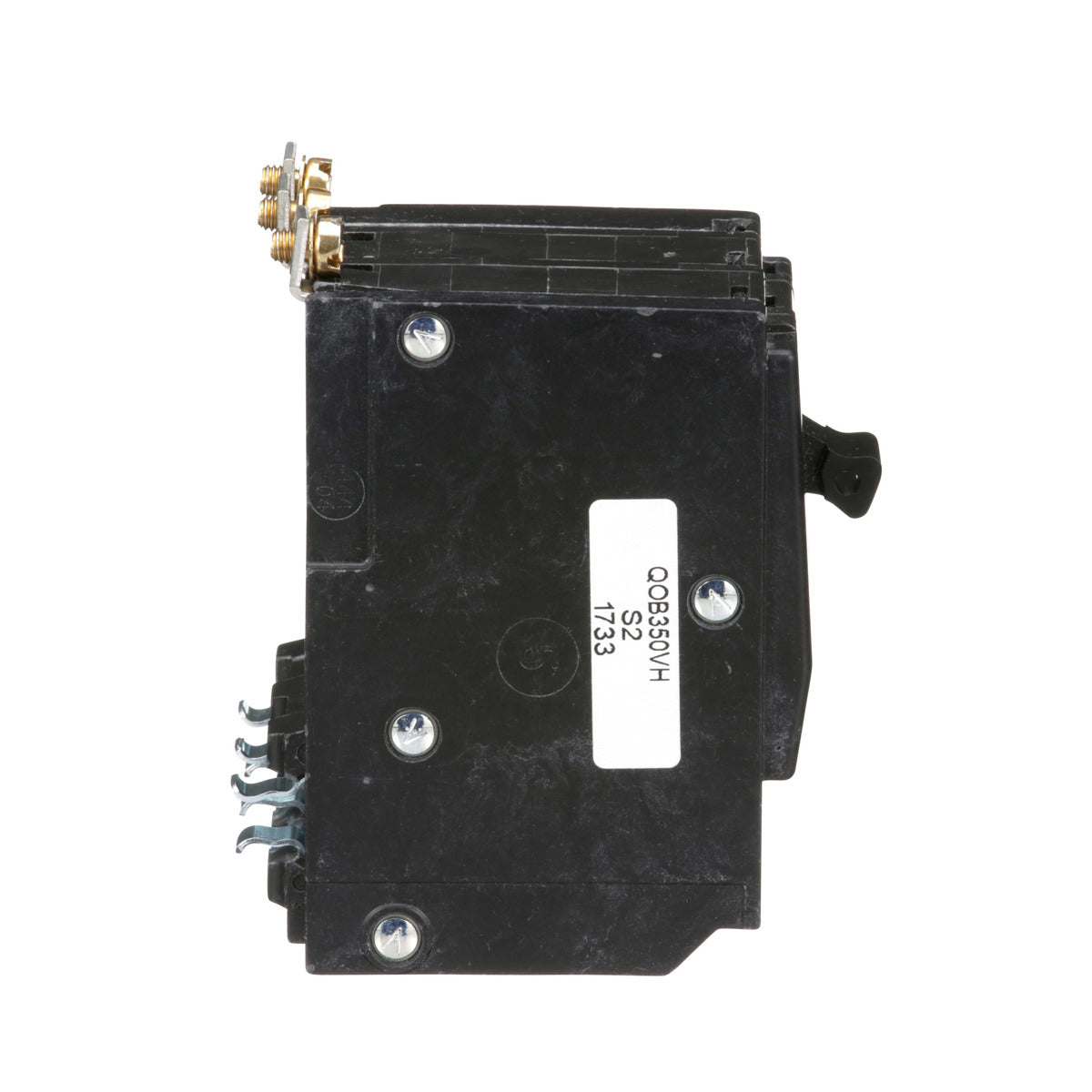

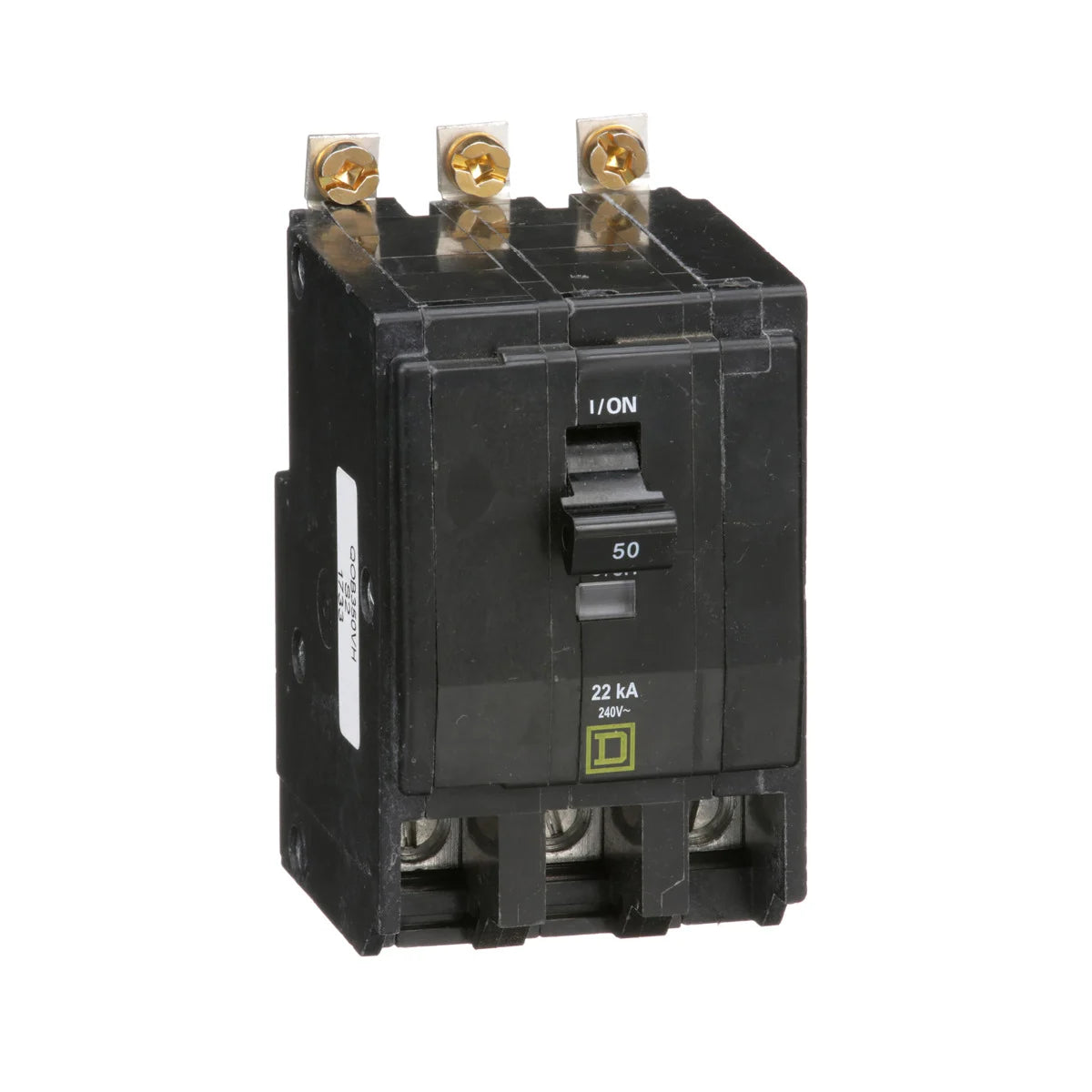

Square D QOB350VH Miniature Circuit Breaker 50A 240V 3Ph Bolt-On

Product Description

The Square D QOB350VH, an essential miniature circuit breaker, is rated at fifty amps and designed for 240 volts in a three-phase configuration. This product features a bolt-on mounting style, suitable for use in various QO distribution panels. It has a breaking capacity of twenty-two kiloamperes, ensuring reliable circuit protection.

• Three-pole design for enhanced circuit protection
• UL Listed and CSA Certified for safety and compliance
• Compatible with various QO distribution panels for flexible installations

Product Highlights

The QOB350VH provides quick make and break action, along with a VisiTrip indication feature, allowing users to see when the breaker has tripped. Its compact design and significant breaking capacity make it ideal for use in both residential and light commercial applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QOB350VH
• Type: Miniature Circuit Breaker
• Voltage: 120/240V AC
• Current: 50 Amp
• Number of Poles: 3 Pole
• Breaking Capacity: 22 kAIC
• Mounting Type: Bolt-on
• Depth: 74 mm
• Width: 57 mm
• Height: 79 mm
• Country of Origin: Mexico
• Certifications: CSA, UL Listed
• Warranty Length: 18 months
