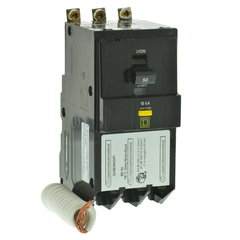

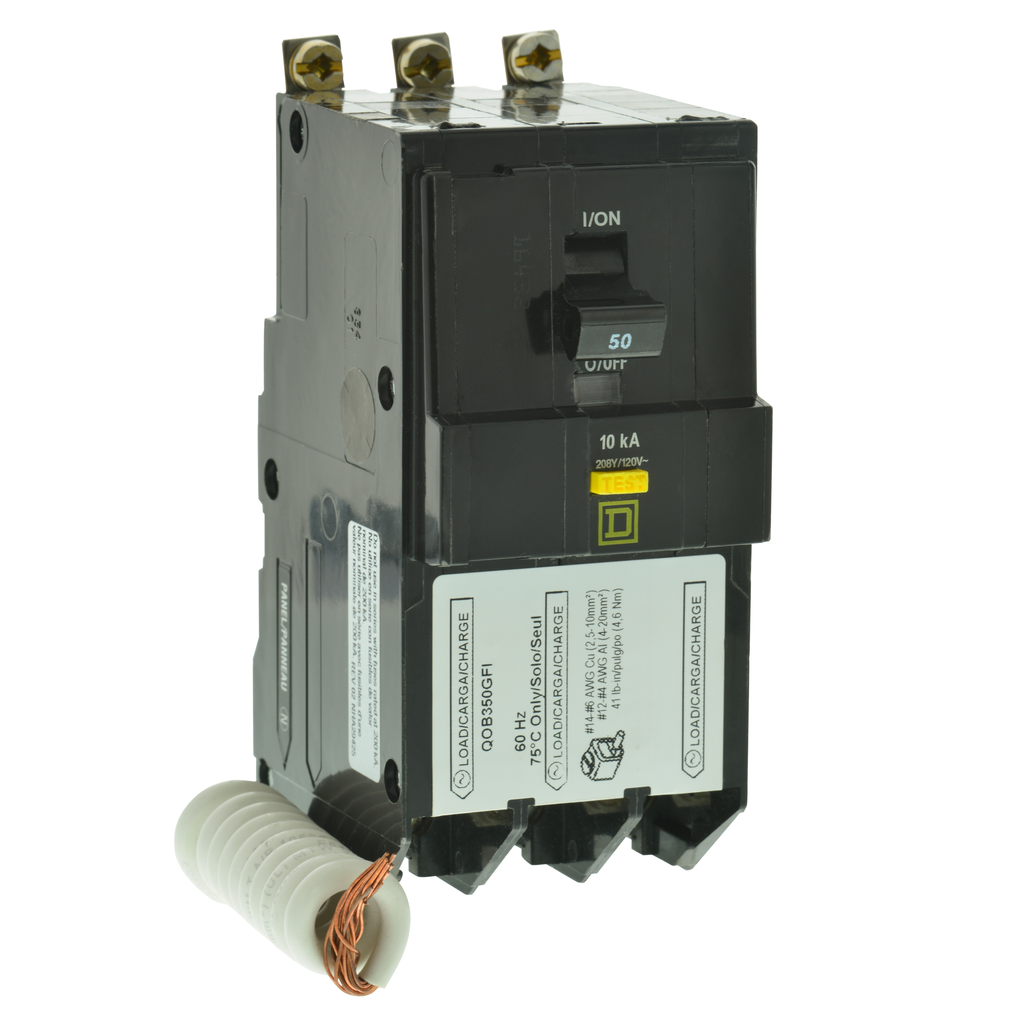

Square D QOB350GFI Mini Circuit Breaker 50A 208Y/120VAC

Product Description

The Square D QOB350GFI Mini Circuit Breaker, with MPN QOB350GFI, is designed for overcurrent protection on AC and DC systems. This thermal magnetic circuit breaker features a trip-free toggle mechanism and quick make/break action for reliable performance. The VisiTrip indicator provides a clear visual cue when the breaker trips. This model is a three-pole breaker rated at fifty amps at two hundred eight volts Y and one hundred twenty volts AC. It has a breaking capacity of ten kiloamperes and allows for bolt-on mounting. The unit includes a ground fault feature with a six milliampere level, making it safe for various applications. Square D QO circuit breakers are UL Listed and CSA Certified, ensuring compliance with safety standards.

• Rated at 50A with a breaking capacity of 10kA
• Includes ground fault protection with a six milliampere pigtail
• Trip-free toggle mechanism for quick action

Product Highlights

This mini circuit breaker is ideal for residential and commercial applications, providing reliable protection for your electrical system.

Product Information

Standard Information

• Catalog Number: QOB350GFI
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature circuit-breaker
• Current: 50 Amp
• Voltage: 120 Volt
• Number of Poles: 3 Pole
• Join Weight: 0.635 kg
• Country of Origin: United States
• Interrupt Rating: 10 kAIC
• Operating Temperature: 40 Degrees C
