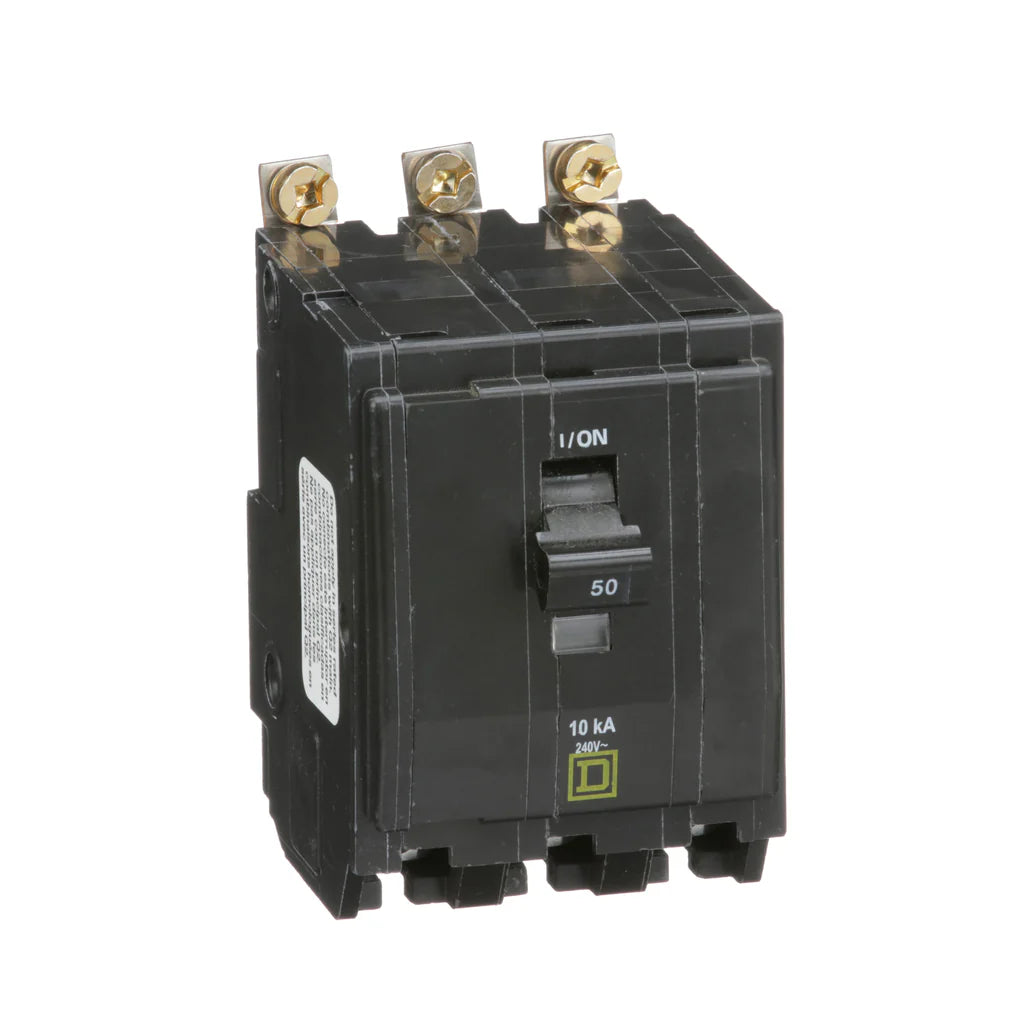

Square D QOB350 Miniature Circuit Breaker 50A 240V 3Ph Bolt-On

Product Description

The Square D QOB350 Miniature Circuit Breaker is designed to provide overcurrent protection in electrical systems. The MPN for this product is QOB350. It is rated for fifty amps and operates at two hundred forty volts in three-phase systems. This breaker features a compact design and is suitable for both AC and DC applications.

• Overcurrent Protection for AC and DC Systems
• Common Trip Mechanism Rated at 50A
• UL Listed and CSA Certified

Product Highlights

This breaker features a trip-free toggle mechanism and a VisiTrip trip indicator, providing visual feedback when the breaker has tripped.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature Circuit Breaker
• Voltage: 240 VAC
• Current: 50 Amps
• Poles: 3 Pole
• Interrupting Rating: 10 kA
• Mounting Type: Bolt-on
• Wire Size: AWG 8 to AWG 2 Copper or Aluminum
• Weight: 0.386 kg
