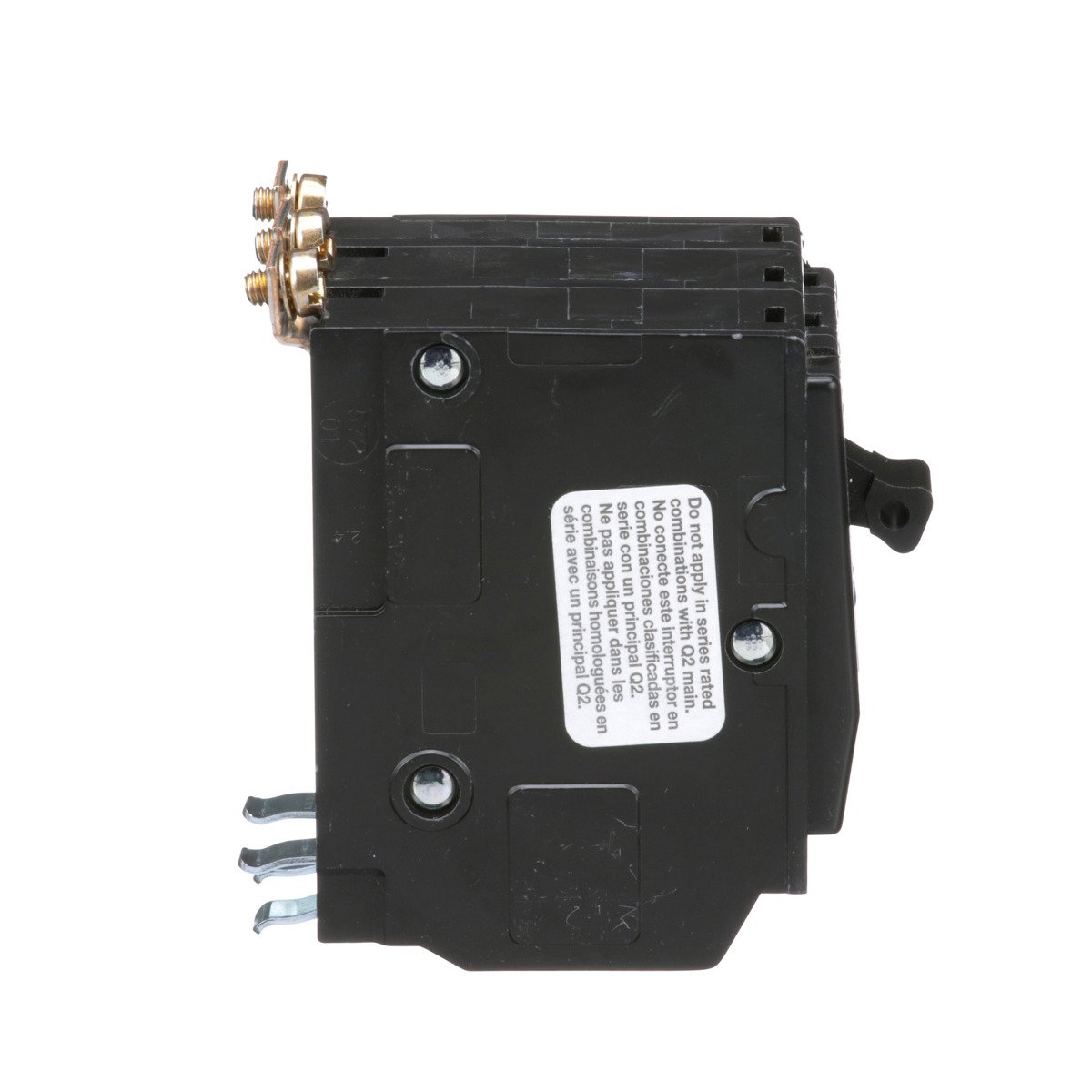

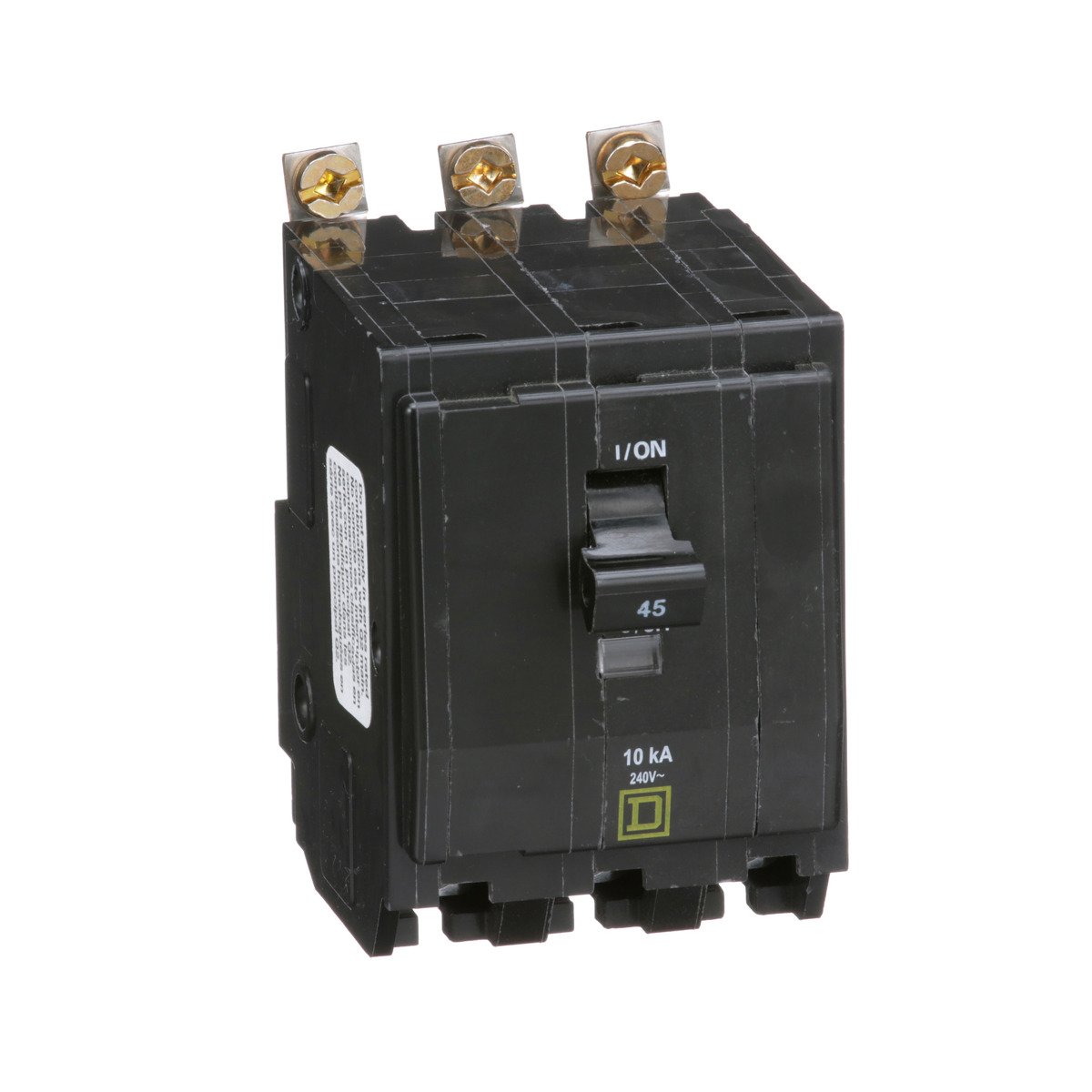

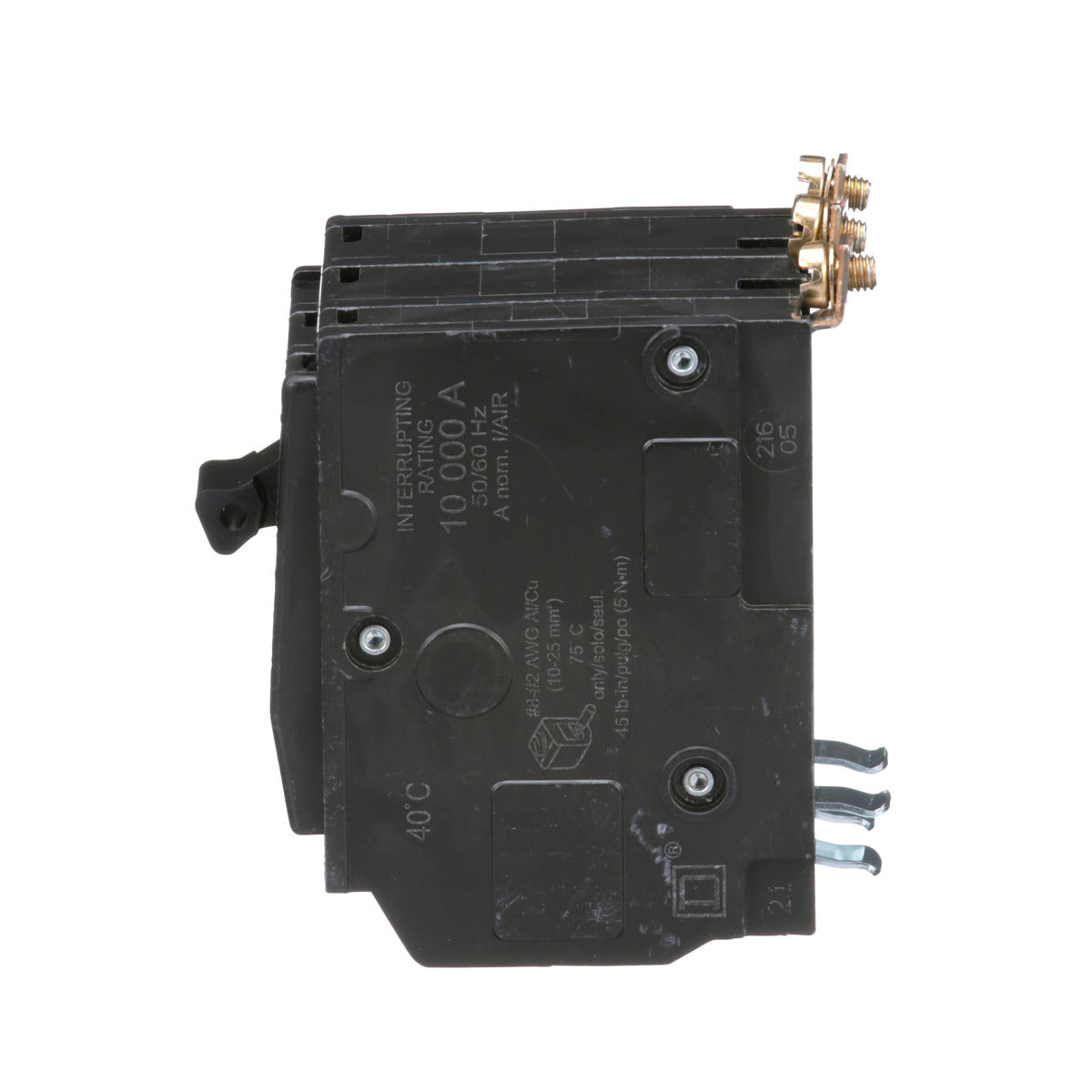

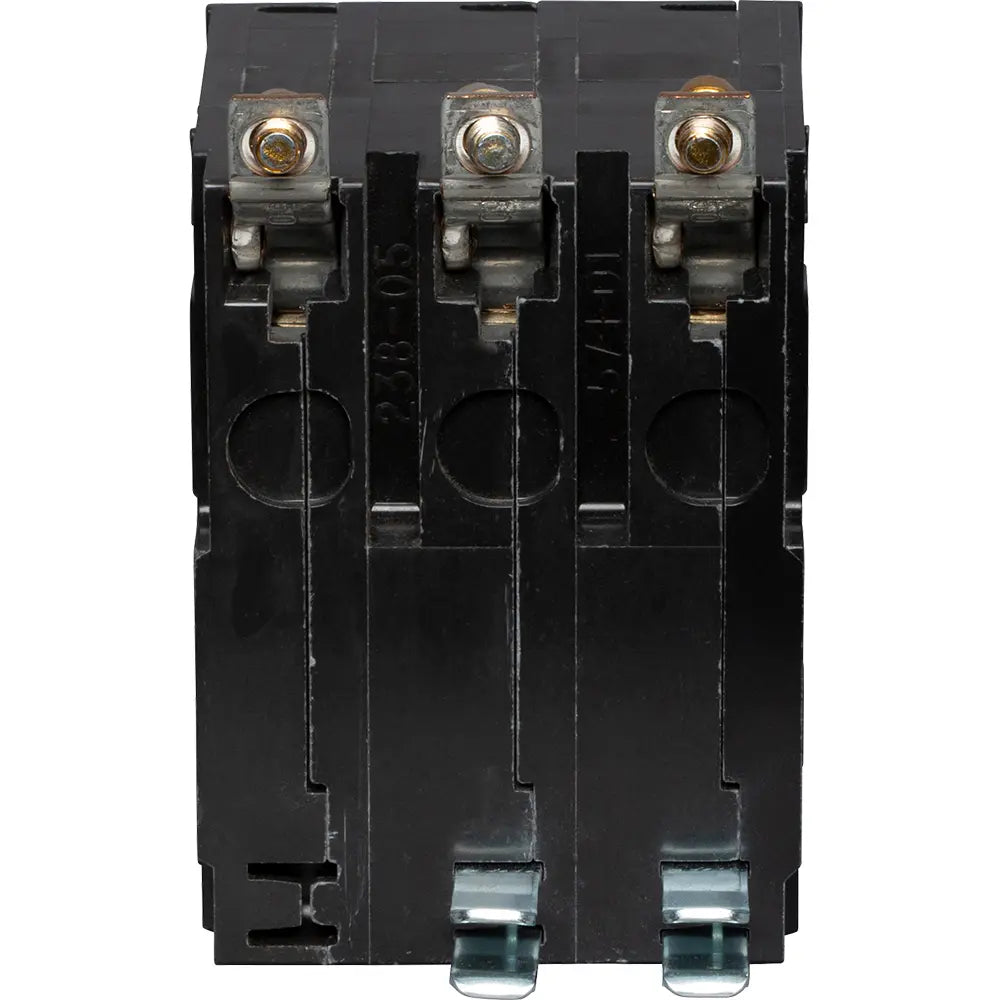

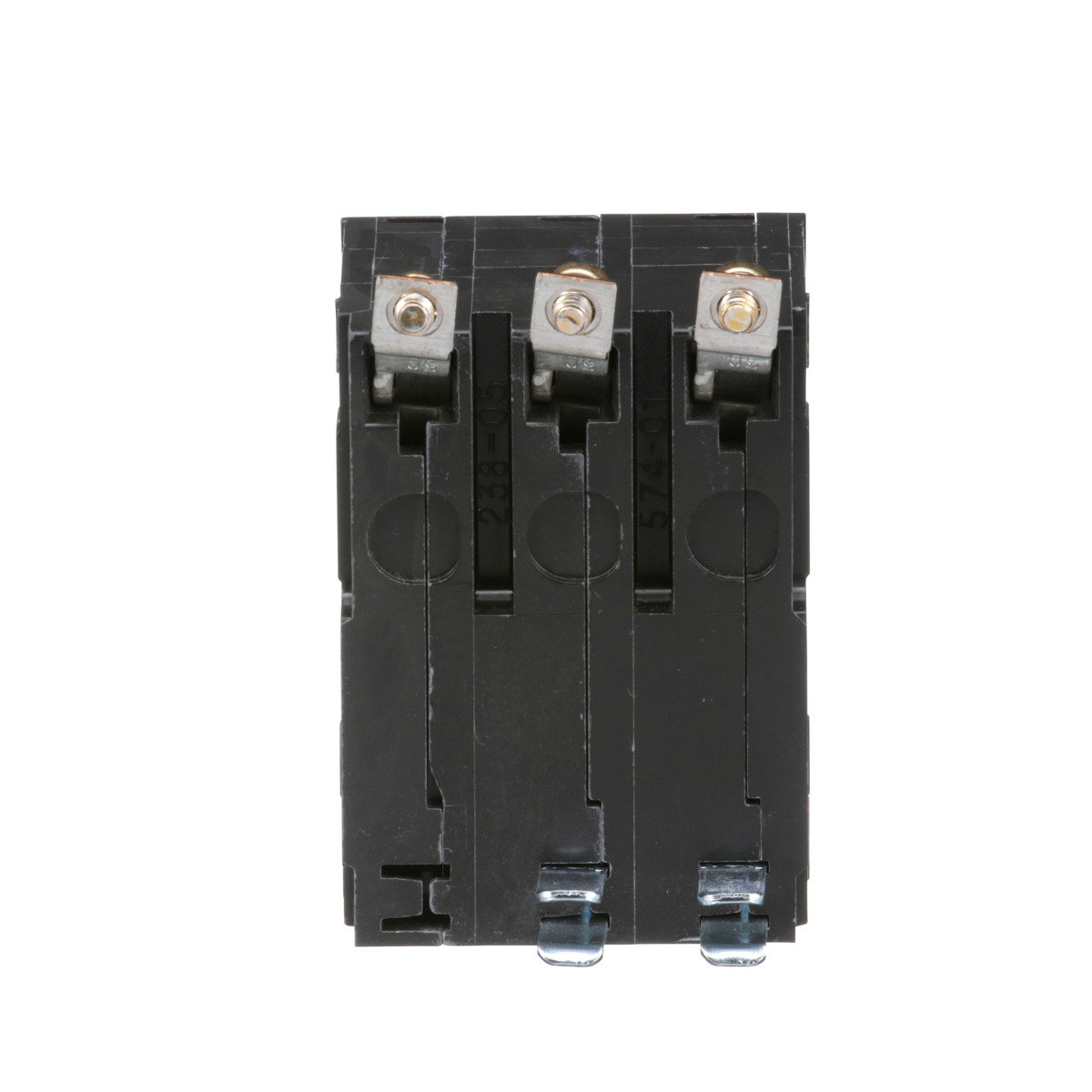

Square D QOB345 Type QO Mini Circuit Breaker, 45A, 120/240 VAC, 3-Pole

Product Description

The Square D QOB345 is a type QO mini circuit breaker designed for overcurrent protection and switching on AC and DC systems. This 3-pole breaker is rated at 45A and 120/240VAC with a 10kA breaking capacity and bolt-on mounting. It features a trip-free toggle mechanism with quick make, quick break action and VisiTrip trip indication.

• Provides overcurrent protection and switching on AC and DC systems.
• Features a trip-free toggle mechanism for reliable operation.
• Offers VisiTrip trip indication for visual status of the circuit.

Product Highlights

Mini circuit breaker with 45A, 120/240VAC, 3-Pole, 10kA breaking capacity and bolt-on mounting.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QOB345
• Country of Origin: Mexico

Technical Specifications

• Type: Bolt On - Standard Trip
• Depth: 2.91 Inches
• Width: 2.24 Inches
• Height: 3.11 Inches
• Material: Thermoplastic
• Standard: UL,CSA
• Connection: Screw terminal
• Voltage Rating: 120/240 VAC
• Amperage Rating: 45 Amperes
• Number Of Poles: 3-Pole
• Interrupt Rating: 10 kAIC
• Length: 2.91 Inch
• Current: 45 Amp
• Voltage: 120 Volt
• Sub Brand: QO
• Wire Size: 8 to 2 AWG (Aluminum/Copper)
• Applications: HACR rated
• Mounting Type: Bolt-on
• TC Connection: Box lugs
• Certifications: CSA,UL Listed
• Conductor Size: 8-2 AWG
• Line Rated Current: 45 A
• Circuit Breaker Type: Standard
• Operating Temperature: 40 Adegrees C
• Short Circuit Current: 10 kA
• Installation: Bolt-On
• Application: Appliance, Lighting
• Used On: NQ Series Panelboard
• Frame Type: Q
• Tripping Method: Thermal Magnetic, Common Trip
• Includes: Visi-Trip Indicator
• Poles: 3
• Amps: 45
• Volts AC: 120/240
• Mounting: Bolt On
• Interrupt Rating AC: 10 kA
