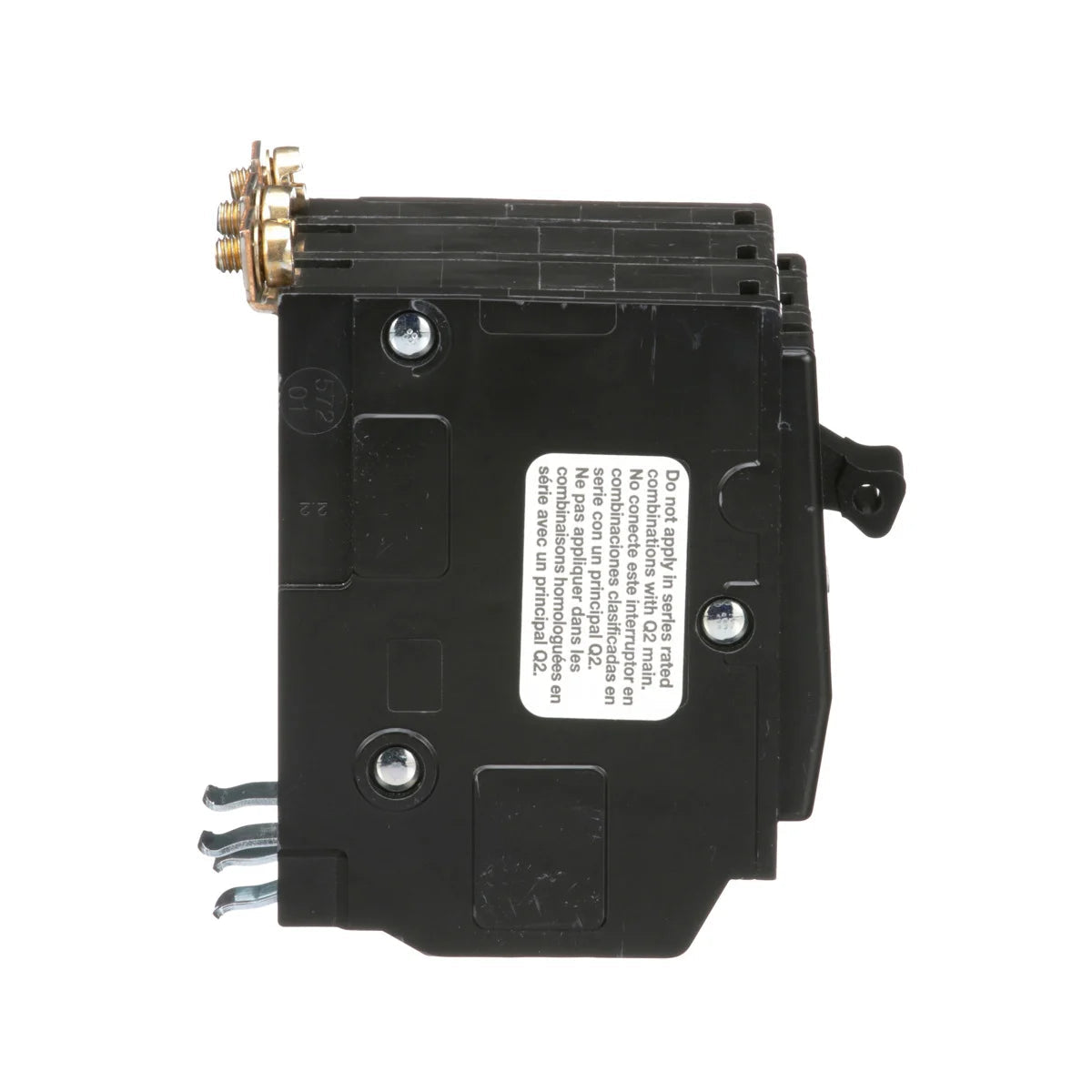

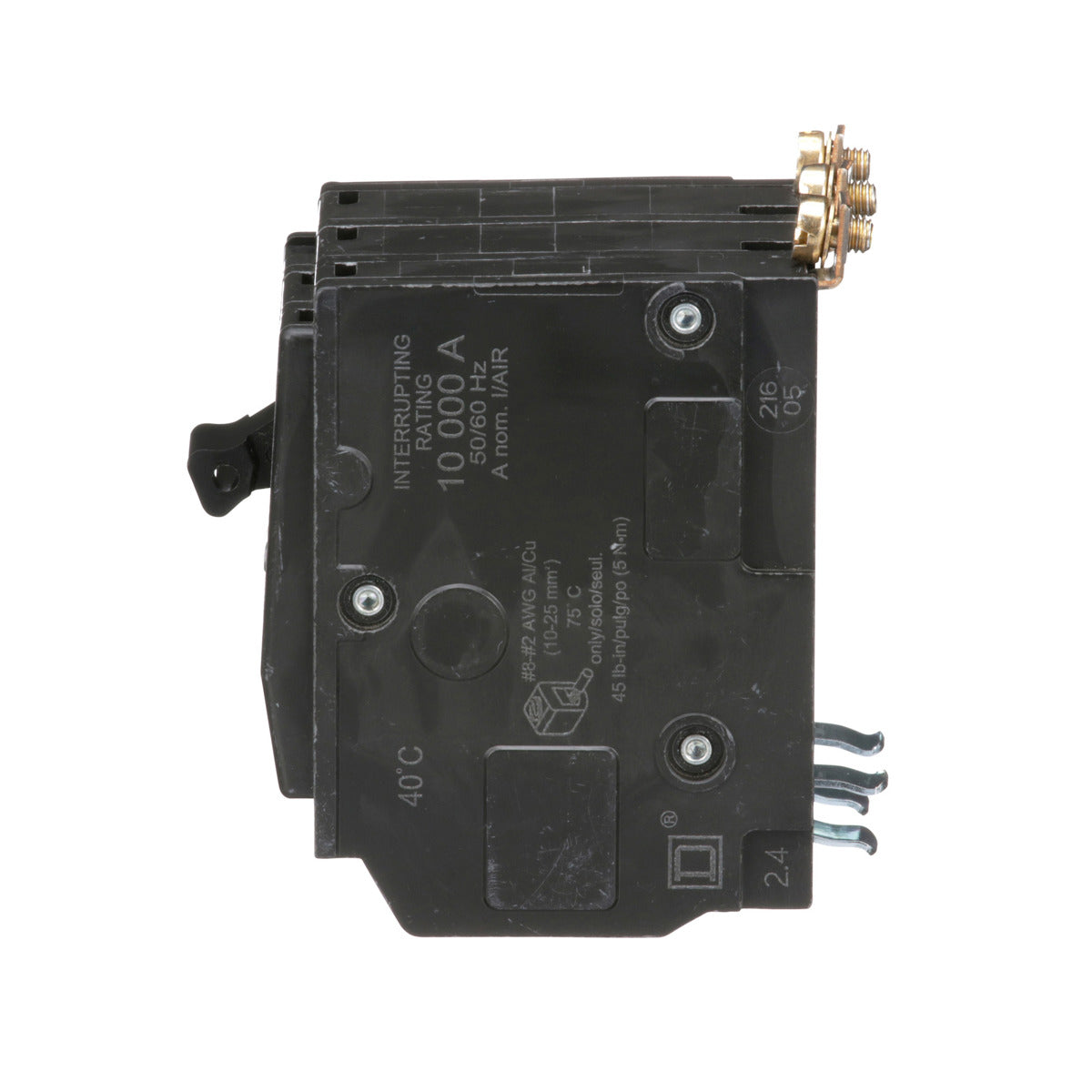

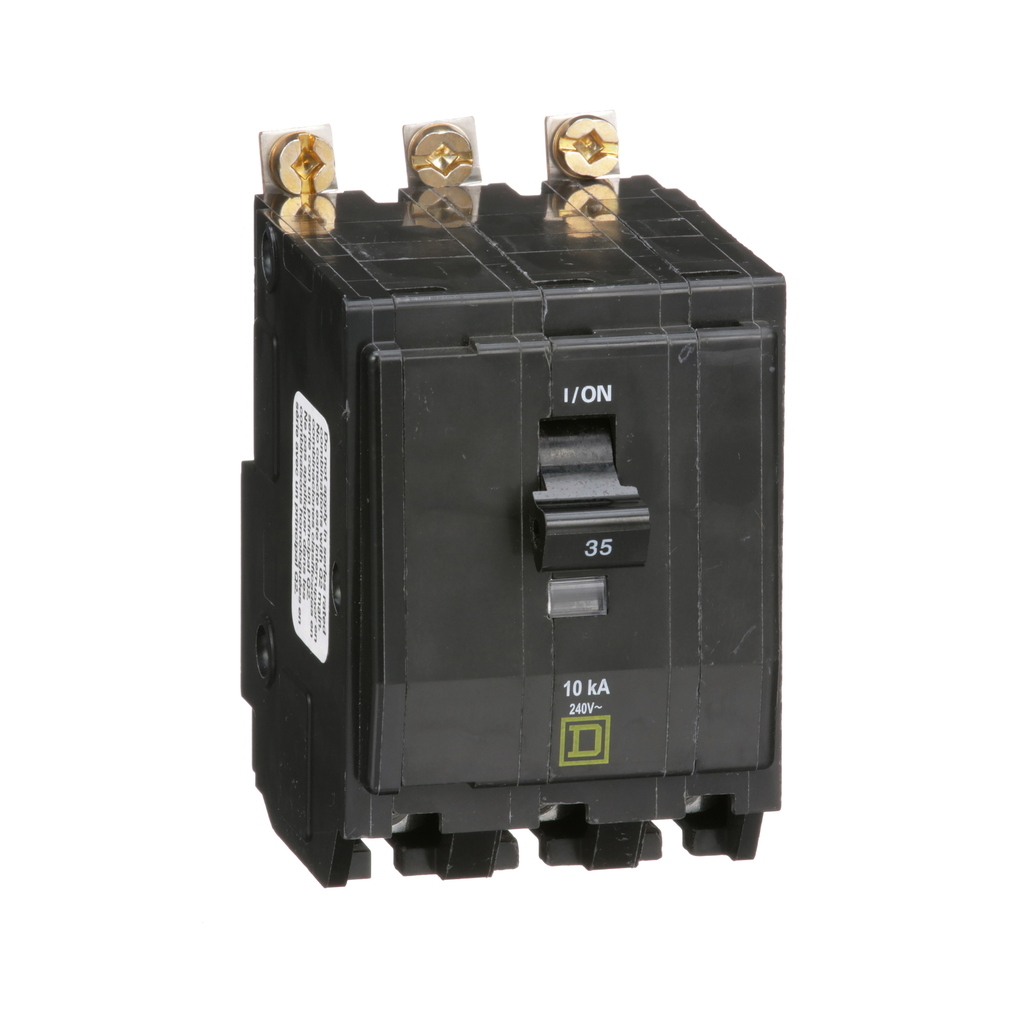

Square D QOB335 Miniature Circuit Breaker 35A 240V 3Ph, Bolt-On

Product Description

The Square D QOB335 is a miniature circuit breaker with a rating of thirty-five amps at two hundred forty volts for three-phase systems. It provides overcurrent protection and switching capability for both AC and DC applications.

• Three-pole configuration with bolt-on mounting.
• 10 kA breaking capacity to handle short circuits.
• UL listed and CSA certified for safety compliance.

Product Highlights

This circuit breaker features a trip-free toggle mechanism with quick make and quick break action, ensuring reliable operation. It includes VisiTrip indication for easy identification of tripped conditions and an optional range of factory-installed accessories.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: QOB335
• Voltage: 120/240V
• Current: 35A
• Number of Poles: 3
• Width: 57 mm
• Height: 79 mm
• Depth: 74 mm
• Interrupt Rating: 10 kA
• Operating Temperature: -40 to 40 Degrees C
• Country of Origin: Mexico
• Warranty Length: 18 months
