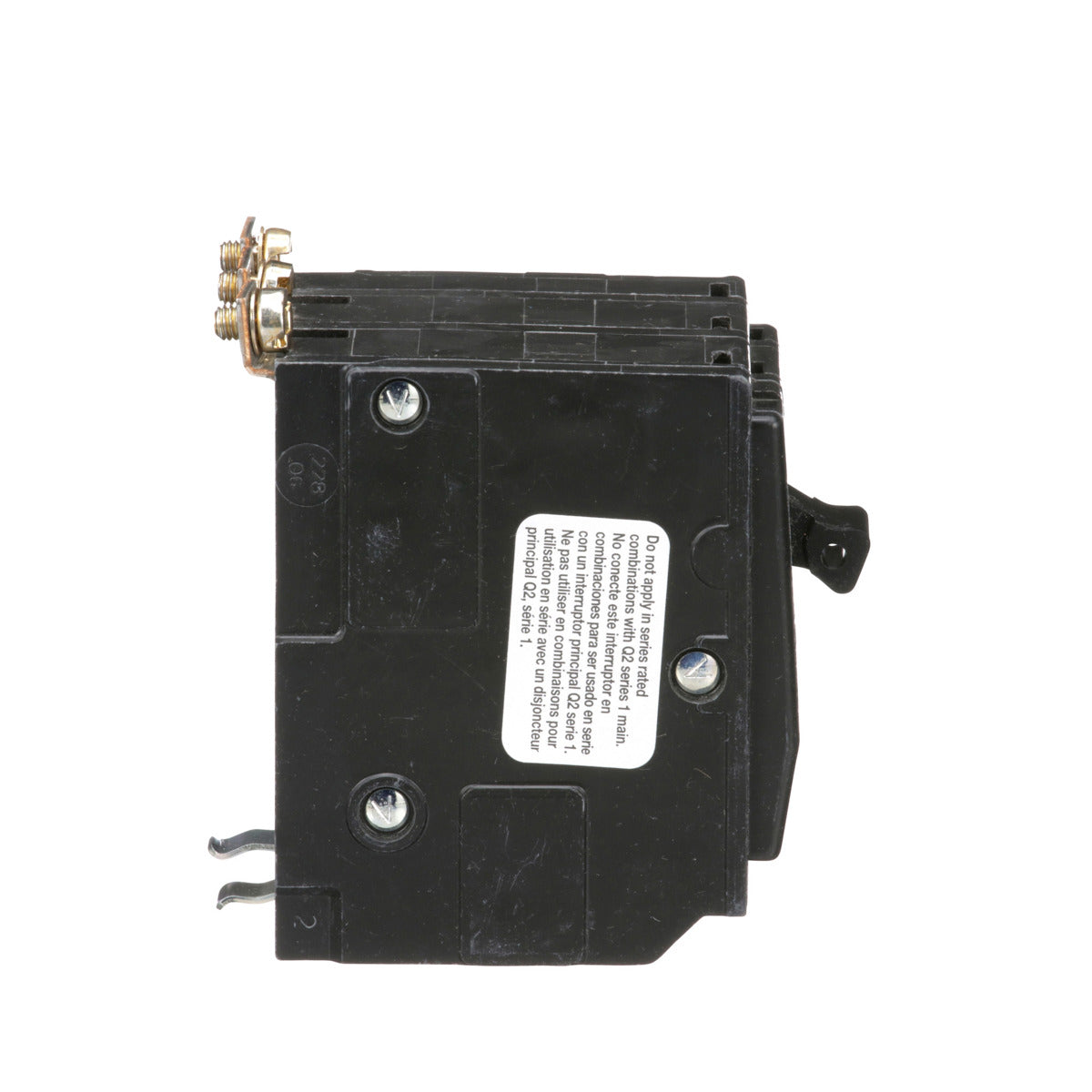

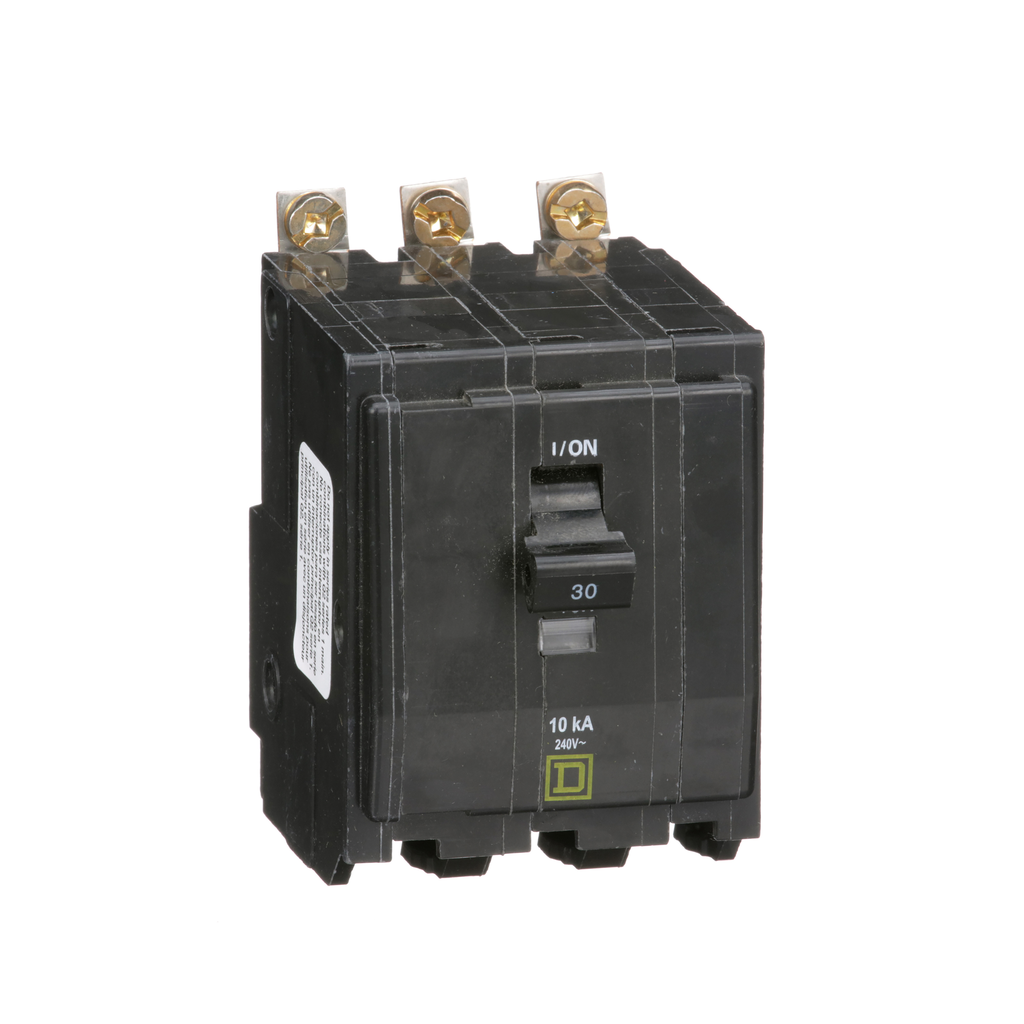

Square D QOB330 Miniature Circuit Breaker 30A 240V Bolt-On

Product Description

The Square D QOB330 Miniature Circuit Breaker is a thermal magnetic circuit breaker designed for 30 amp operation at 240 volts. This product is suitable for both alternating current (AC) and direct current (DC) applications. It features a trip-free toggle mechanism that ensures quick break action while providing positive indication of the handle position. The circuit breaker includes a VisiTrip indicator that shows when the breaker has tripped. This model is a three-pole breaker designed for bolt-on installation and has a breaking capacity of ten thousand amperes.

• 30A rated for 240V AC
• Three poles with bolt-on mounting
• UL Listed and CSA Certified for safety

Product Highlights

This circuit breaker provides reliable overcurrent protection, making it suitable for various electrical applications. The compact design reduces the amount of panel space required.

Product Information

Standard Information

• Catalog Number: QOB330
• Manufacturer: Schneider Electric (Square D)

Technical Specifications

• Type: Miniature Circuit Breaker
• Number of Poles: 3
• Current Rating: 30 Amp
• Voltage Rating: 240 Volt
• Interrupting Rating: 10 kA
• Mounting Type: Bolt-On
• Width: 2.91 Inch
• Height: 3 Inches
