Product Description

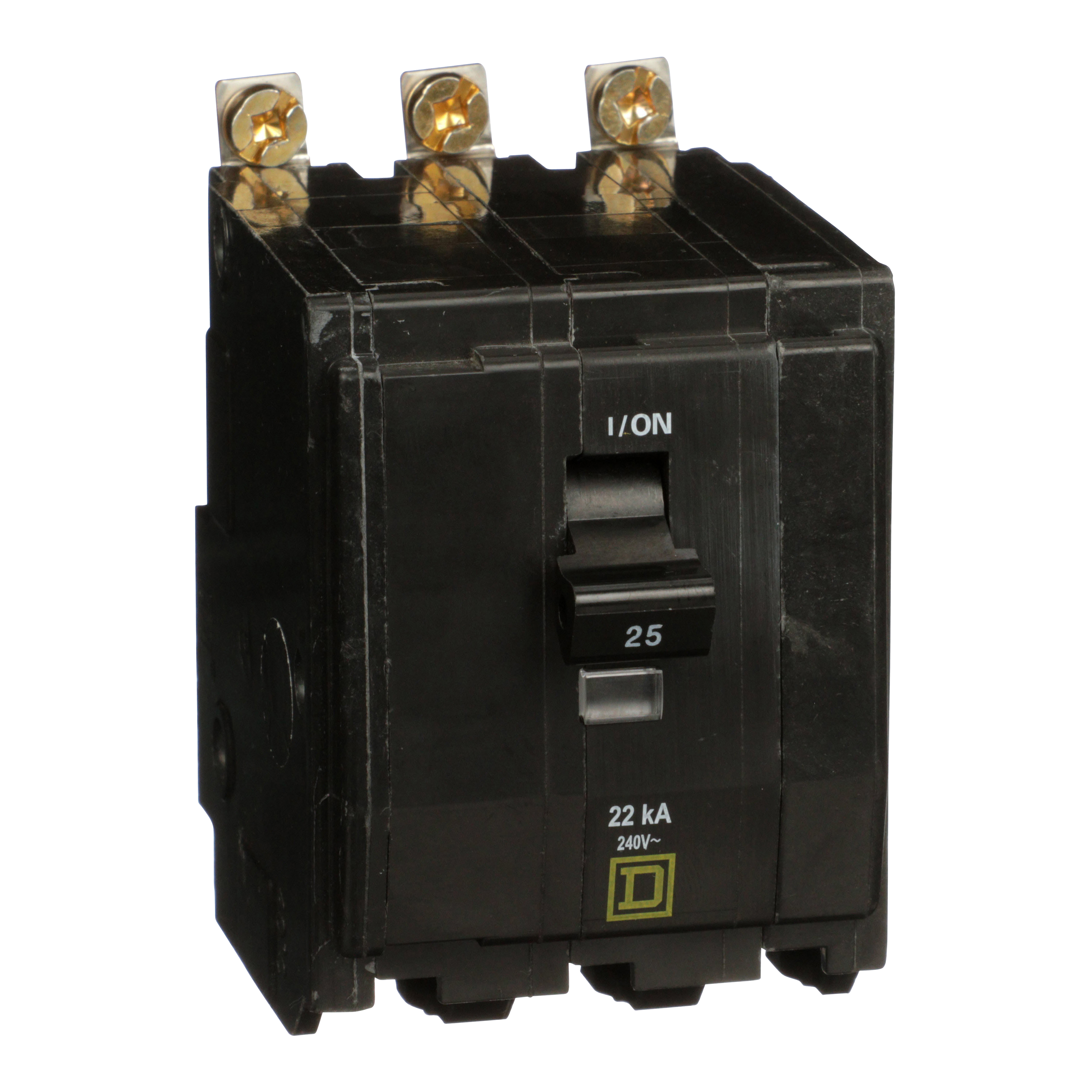

The Square D QOB325VH is a 3-pole thermal magnetic miniature circuit breaker designed for overcurrent protection and switching on AC and DC systems. Featuring a trip-free toggle mechanism, it ensures quick make and break action with positive handle indication. The VisiTrip trip indication offers a visual alert when the circuit breaker has tripped. Rated at 25A at 120/240VAC with a 22kA breaking capacity and bolt-on mounting.
- Provides overcurrent protection
- Enables switching on AC and DC systems
- Features a trip-free toggle mechanism
Product Highlights
Offers reliable overcurrent protection and switching with visual trip indication for easy troubleshooting.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QOB325VH
-
Country of Origin: Mexico
Technical Specifications
-
Type: Miniature circuit-breaker
-
Brand: Square D
-
Depth: 2.91
-
Width: 2.25
-
Height: 3
-
Current: 25 Amp
-
Voltage: 120 Volt
-
Amperage: 25 Amp
-
Sub Brand: QO
-
Wire Size: 14 to 8 AWG Al/Cu
-
Net Weight: 0.80
-
Applications: HACR rated
-
Mounting Type: Bolt-on
-
TC Connection: Pressure plate
-
Certifications: CSA,UL Listed
-
Conductor Size: 14-8 AWG
-
Number of Poles: 3
-
Interrupt Rating: 22 kA at 120/240 VAC kA
-
Country of Origin: Mexico
-
Line Rated Current: 25 A
-
Circuit Breaker Type: Standard
-
Operating Temperature: 40 °C
-
Short Circuit Current: 22 kA
-
Voltage Rating: 120/240 VAC
-
Manufacturer: Schneider Electric
-
Installation: Bolt-On
-
Application: Appliance, Lighting
-
Used On: NQ Series Panelboard
-
Approval: UL, CSA
-
Frame Type: Q
-
Tripping Method: Thermal Magnetic
-
Includes: Visi-Trip Indicator
-
Range Of Product: QO
-
Product Or Component Type: miniature circuit-breaker
-
Circuit Breaker Application: HACR rated
-
Mounting Mode: bolt-on
-
Poles Description: 3P
-
Electrical Connection: pressure plate
-
[Ue] Rated Operational Voltage: 120/240 V AC || 240 V AC || 120 V AC
-
Awg Gauge: AWG 14...AWG 8 copper or aluminium
-
Breaking Capacity: 22 kA 120/240 V AC || 22 kA 240 V AC || 22 kA 120 V AC
-
Tightening Torque: 4.6-4.6 N.m
-
Number Of Spaces Required: 3
-
Product Certifications: UL Listed || CSA
-
Alternate Catalog Number: QOB325VH
-
Amperage Rating: 25 A
-
ARRA Compliant: N
-
Buy American Compliant: N
-
Catalog Number: QOB325VH
-
Connection: Pressure Plate
-
Connection Type: Pressure Plate
-
EU RoHS Indicator: Y
-
Frequency Rating: 50/60 Hz
-
Material: Fiberglass Filled Thermoset
-
Number Of Poles: 3
-
Phase: 3
-
Standard: UL LISTED - CSA CERTIFIED
-
Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR Rated
-
Temperature Rating: 104 °F
-
Trip Type: Thermal Magnetic
-
UNSPSC: 39121603
-
UPC 11: 78590137197
-
UPC 12: 785901371977
