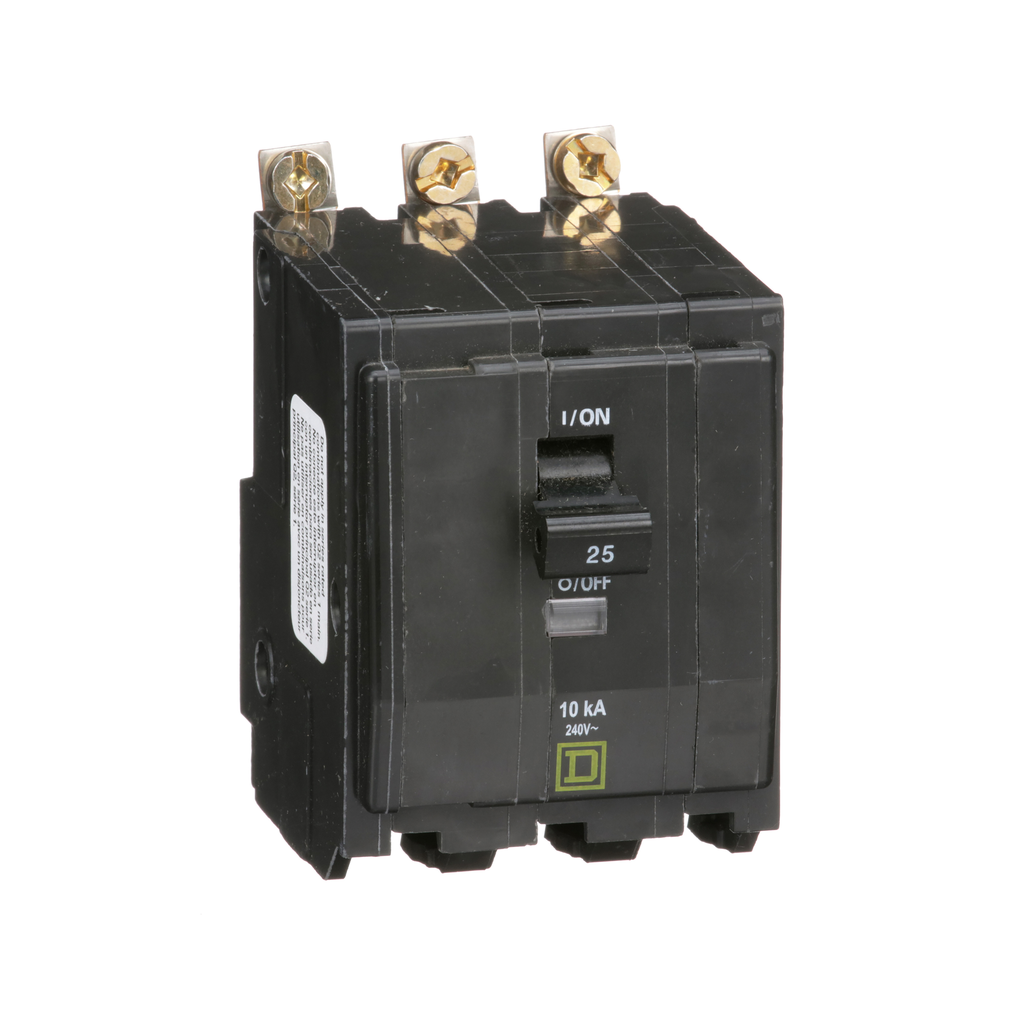

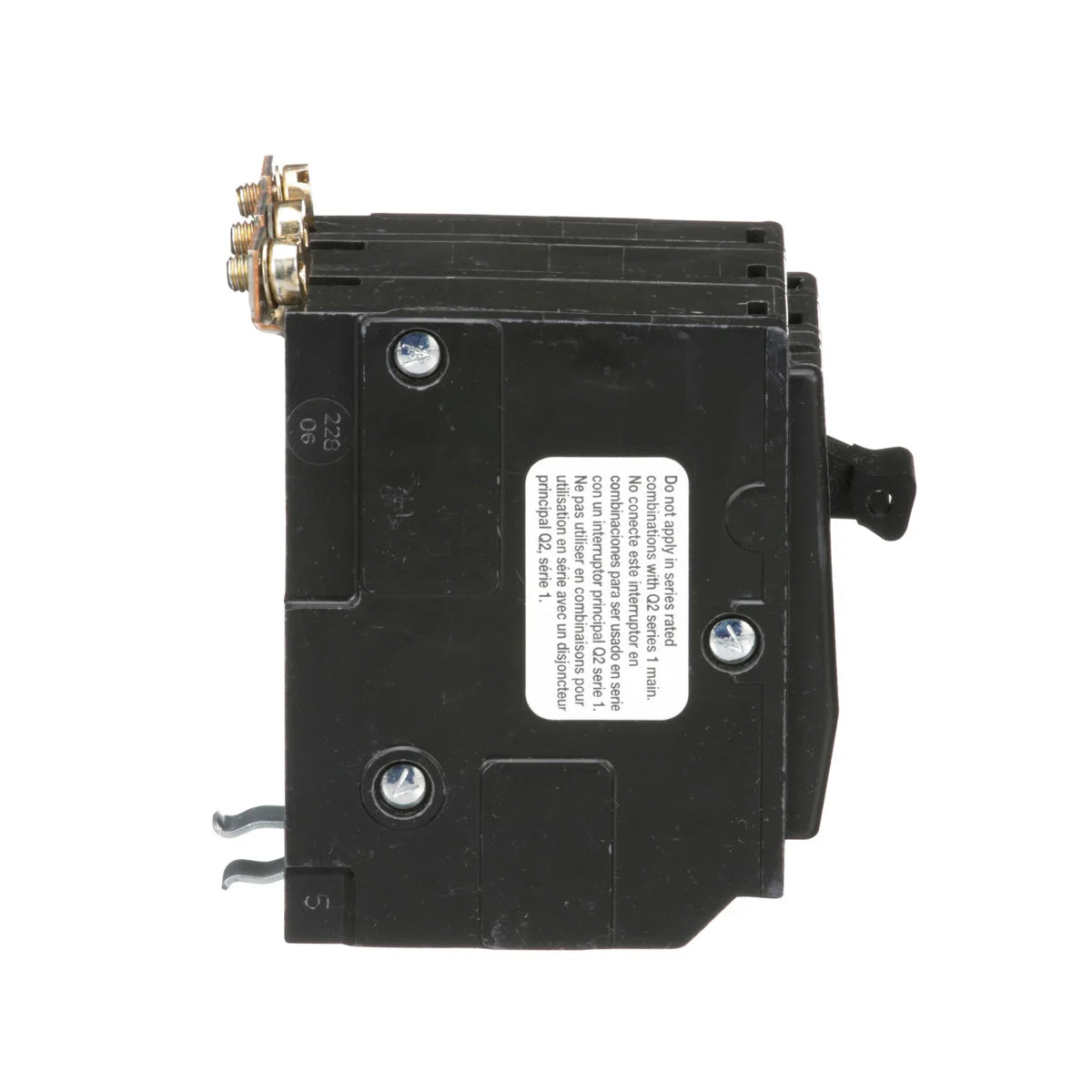

Square D QOB325 Miniature Circuit Breaker 25A 240V 3Ph Bolt-On

Product Description

The Square D QOB325 Miniature Circuit Breaker is designed for overcurrent protection in AC and DC systems. It features a three-pole configuration rated for twenty-five amps at 240 volts. This model uses bolt-on mounting, offering ease of installation in various applications.

• Provides overcurrent protection for AC and DC systems
• Quick making and breaking action with positive trip indication
• UL listed and CSA certified for reliable performance

Product Highlights

This circuit breaker offers essential features such as VisiTrip trip indication, allowing users to see when the breaker has tripped. Its high breaking capacity of 10,000 amperes ensures it effectively protects the circuit from overloads.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Current Rating: 25 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 3 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kAIC
• Applications: HACR rated
• Country of Origin: Mexico
• Warranty Length: 18 months
