Product Description

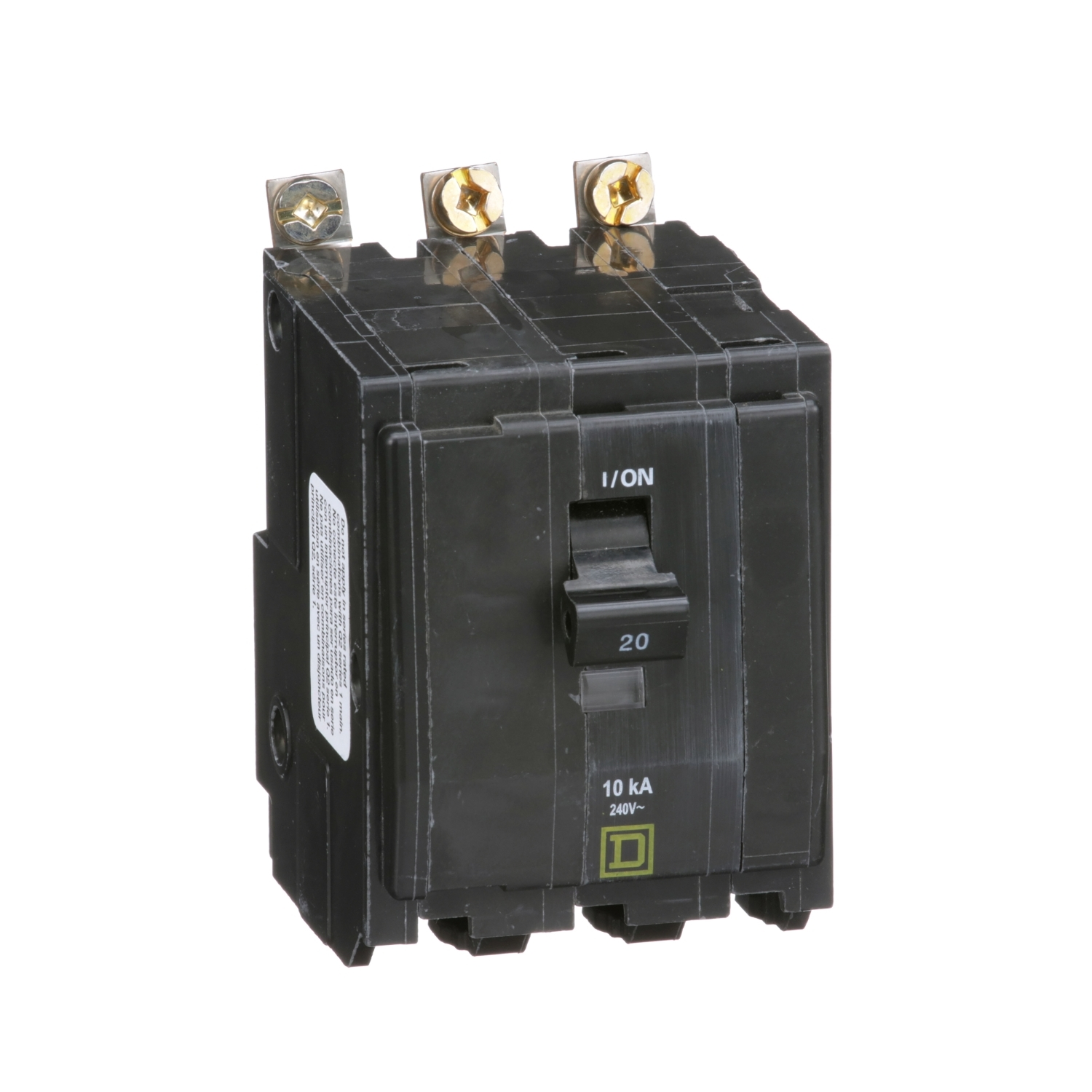

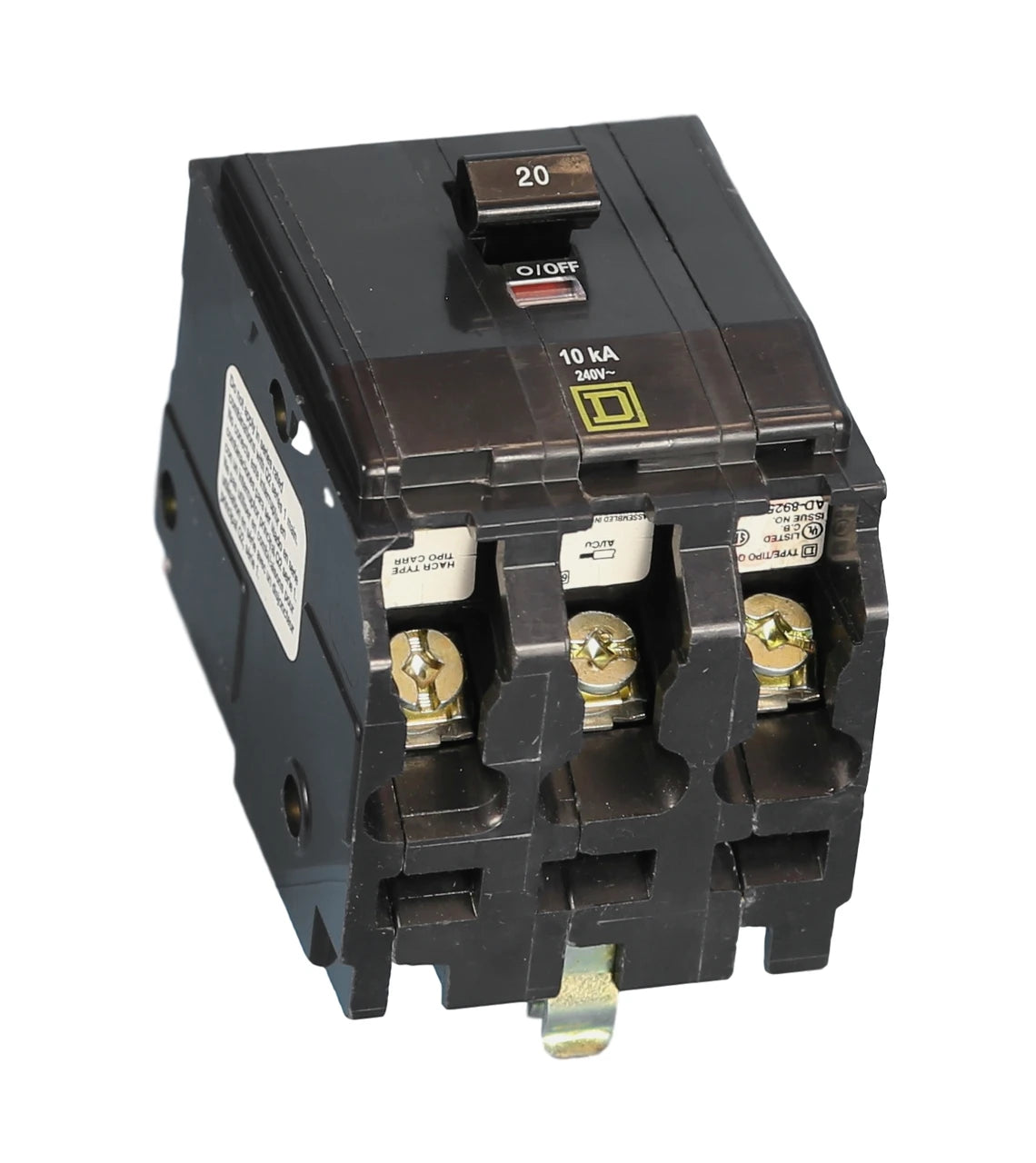

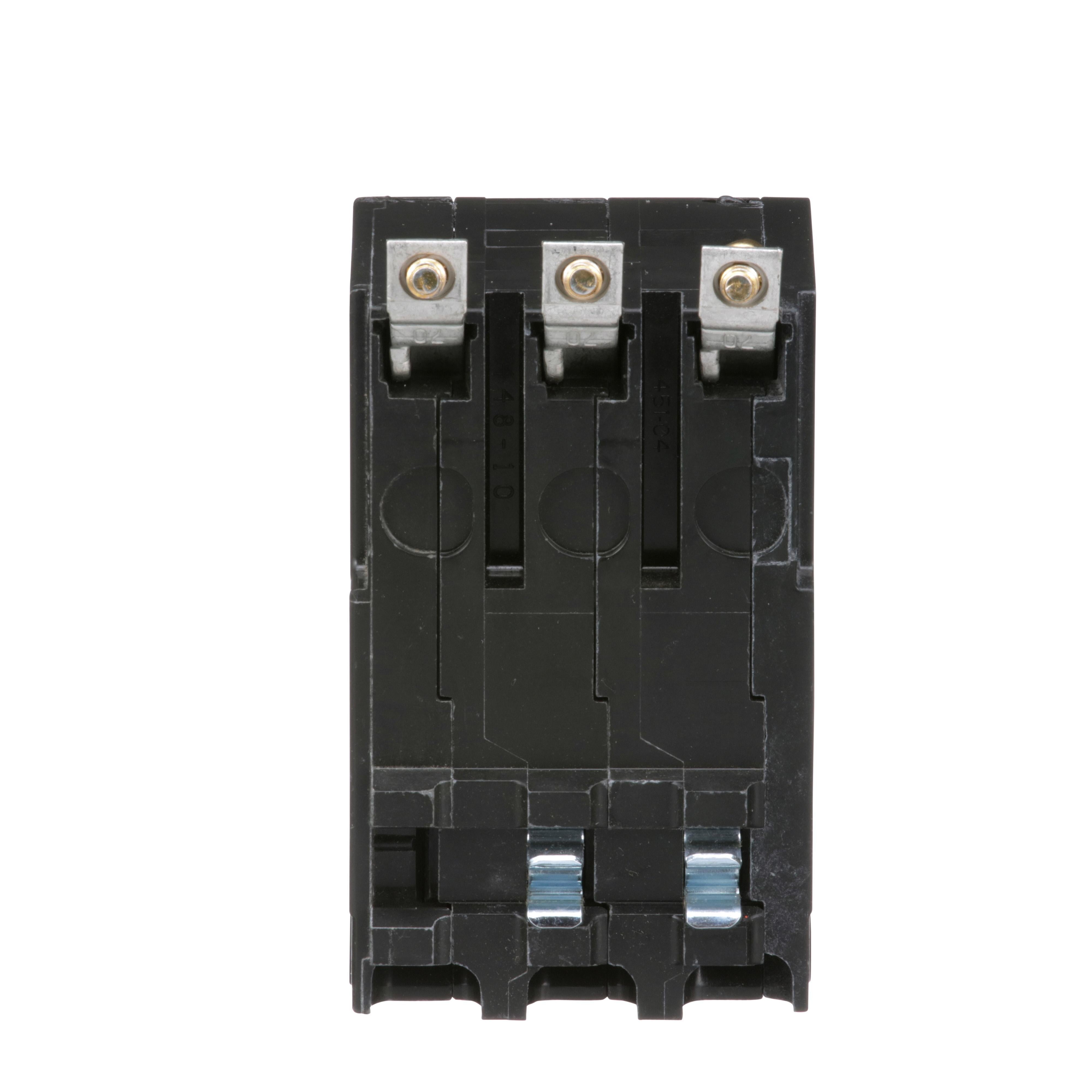

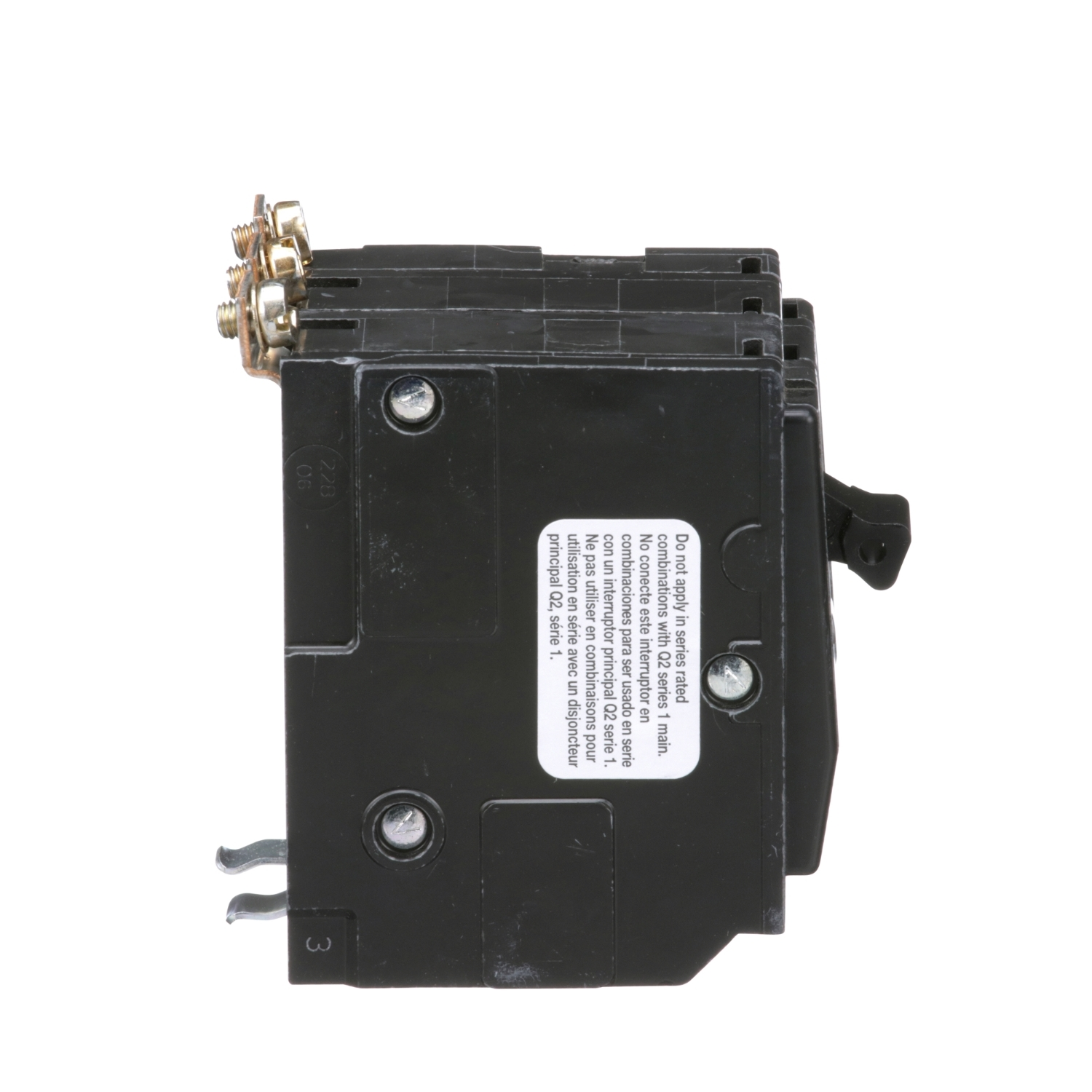

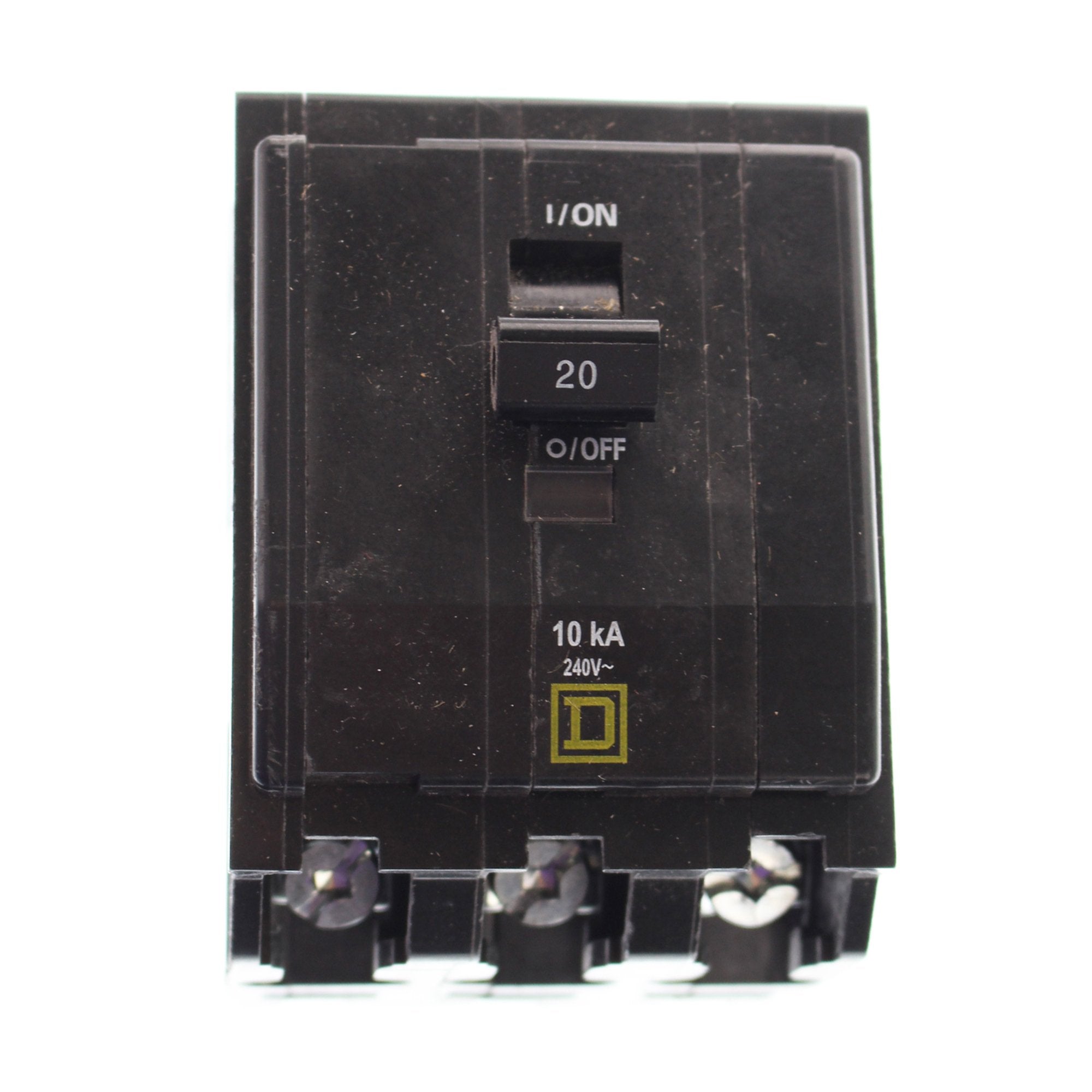

The Square D QOB320 is a miniature circuit breaker that provides overcurrent protection and switching on AC and DC systems. This 3-pole QOB bolt-on circuit breaker is rated at 20A at 120/240VAC and provides 10kA breaking capacity. It features VisiTrip trip indication and a trip-free toggle mechanism.
- Overcurrent protection
- Switching on AC and DC systems
- Over center, trip free toggle mechanism
Product Highlights
The Square D QOB320 is ideal for use in QO distribution panels and offers reliable protection for various applications.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer Part Number: QOB320
-
Country of Origin: Ireland
Technical Specifications
-
Catalog Number: QOB320
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Country of Origin: Ireland
-
Made in USA: No
-
RoHS URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401317&lang=en-us
-
UPC: 785901417095
-
GTIN: 00785901417095
-
Type: Standard
-
Frame: QOB
-
Amperage Rating: 20 A
-
Voltage Rating: 120/240 VAC
-
Interrupt Rating: 10 kA
-
Mounting Type: Bolt-On
-
Number Of Poles: 3
-
Phase: 3
-
Frequency Rating: 50/60 Hz
-
Trip Type: Thermal/Magnetic
-
Wire Size: 14 to 8 AWG
-
Connection Type: Pressure Plate
-
Temperature Rating: 40 deg C
-
Alternative Part Number: 8041683
-
AC Voltage Rating: 240VAC
-
DC Voltage Rating: 48VDC
-
For Use With: Square D NQOD Panelboards
-
Series: QOB
-
Terminal Connection: Screw Clamp
-
Max. AIR Rating: 10 kA
-
Frame Size: 100A/QO
-
Min. Wire Size: 14 AWG
-
Max. Wire Size: 8 AWG
-
Standards: UL Listed, CSA Certified
-
Poles: 3 Pole
-
Product: Miniature circuit-breaker
-
Range: QO
-
Line Rated Current: 20 A
-
System Voltage: 120 V AC, 120/240 V AC, 240 V AC, 48 V DC
-
Ratings: HACR rated
-
Electrical Connection: Pressure plate
-
Number of Panel Spaces: 3
-
Ambient Rating: 104 Degree F (40 Degree C)
-
Part Number #: QOB320
-
Country of origin: IE
-
UNSPSC: 39121603
