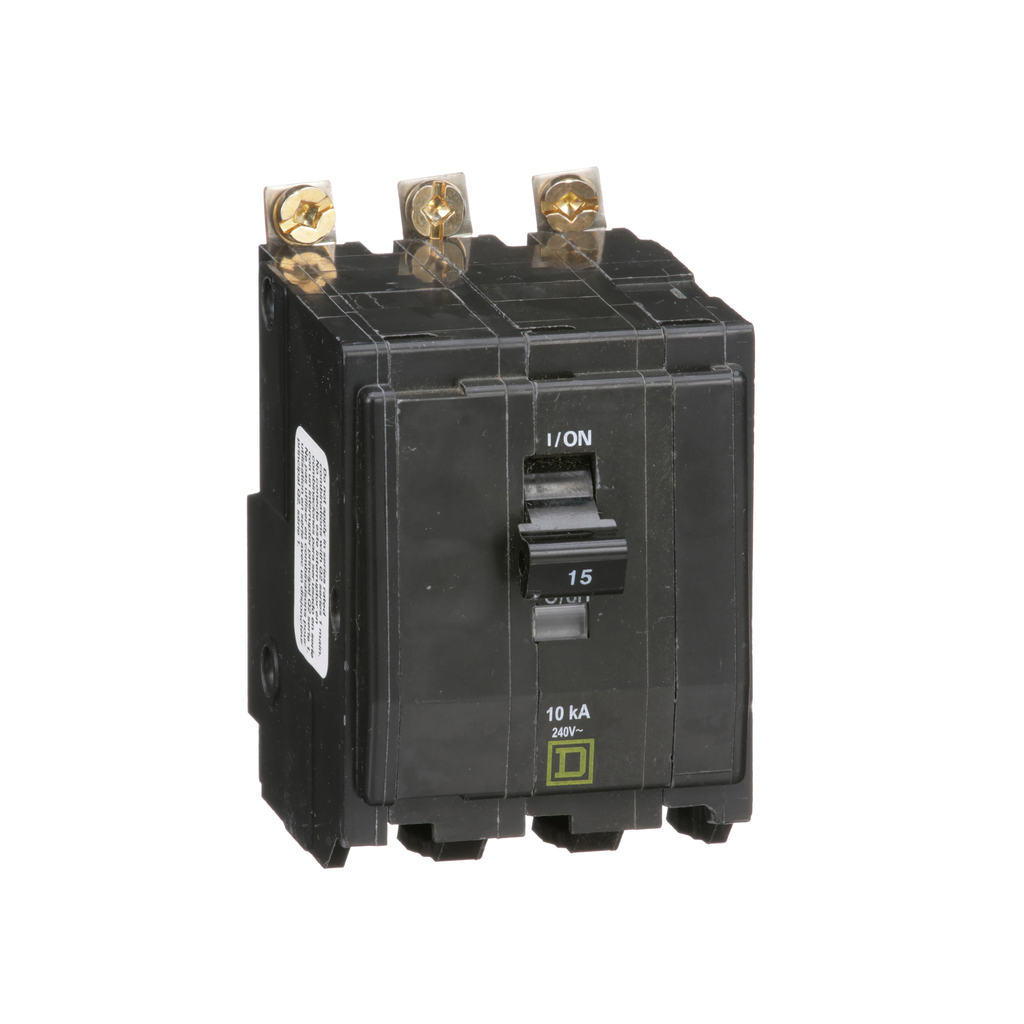

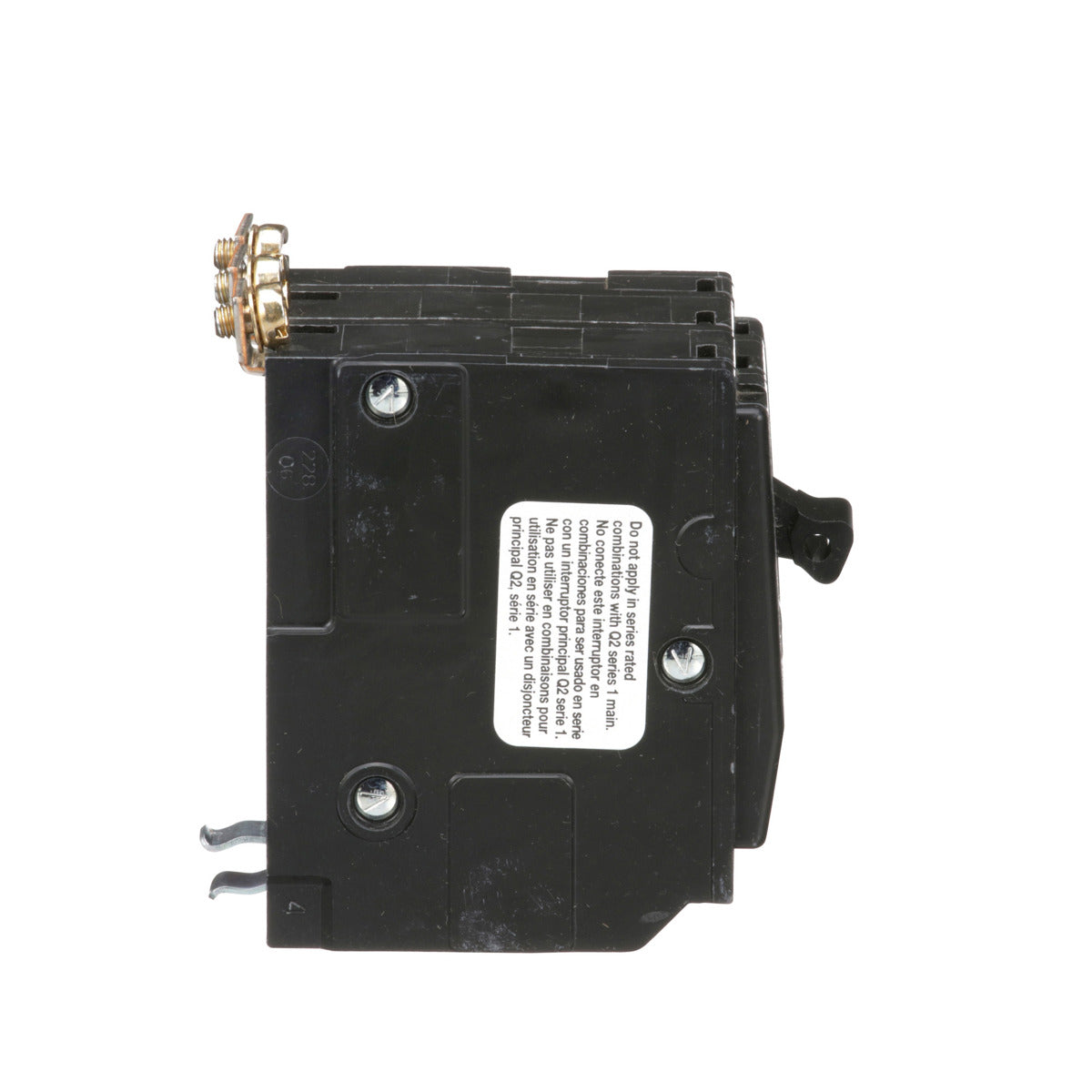

Square D QOB315 Miniature Circuit Breaker 15A 240V 3Ph Bolt-On

Product Description

The Square D QOB315 is a miniature circuit breaker, MPN QOB315, designed for overcurrent protection. This unit is a three-pole breaker rated at fifteen amps and capable of handling 240 volts. It features a bolt-on installation for secure mounting. Its design ensures that it provides quick and reliable operation in both AC and DC systems.

• Rated at 15A, 240V for effective circuit protection.
• Quick-make and quick-break mechanism for reliable performance.
• UL listed and CSA certified for safety and compliance.

Product Highlights

This Square D circuit breaker offers a compact design to save space in panelboards while providing robust protection against electrical faults.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QOB315
• Type: Miniature circuit-breaker
• Number of Poles: 3
• Current Rating: 15 Amps
• Voltage Rating: 240 VAC
• Interrupt Rating: 10 kA
• Wire Size: AWG 14 to AWG 8
• Depth: 74 mm
• Width: 57 mm
• Height: 76 mm
• Mounting Type: Bolt-on
• Country of Origin: Mexico
• Certifications: UL Listed, CSA Certified
