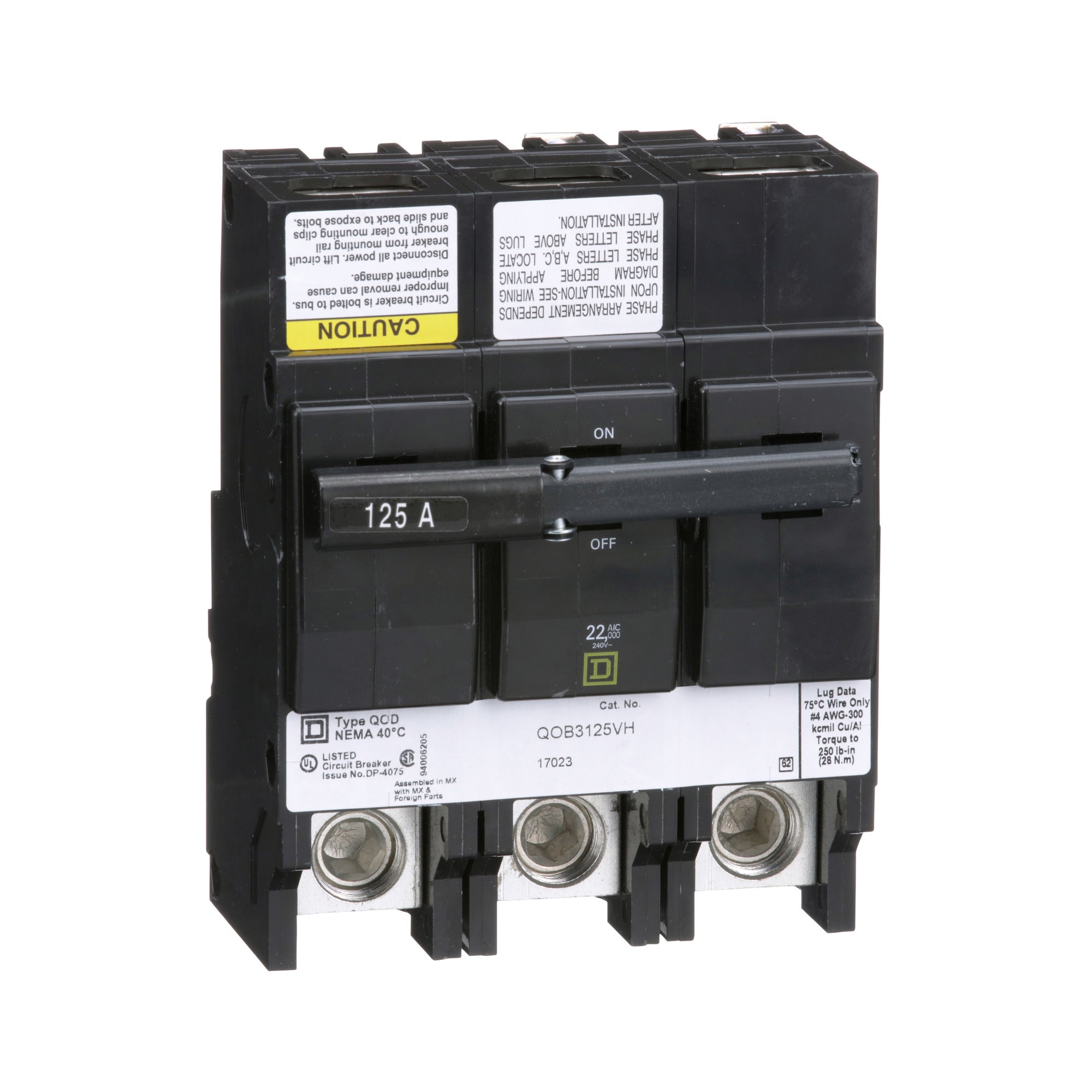

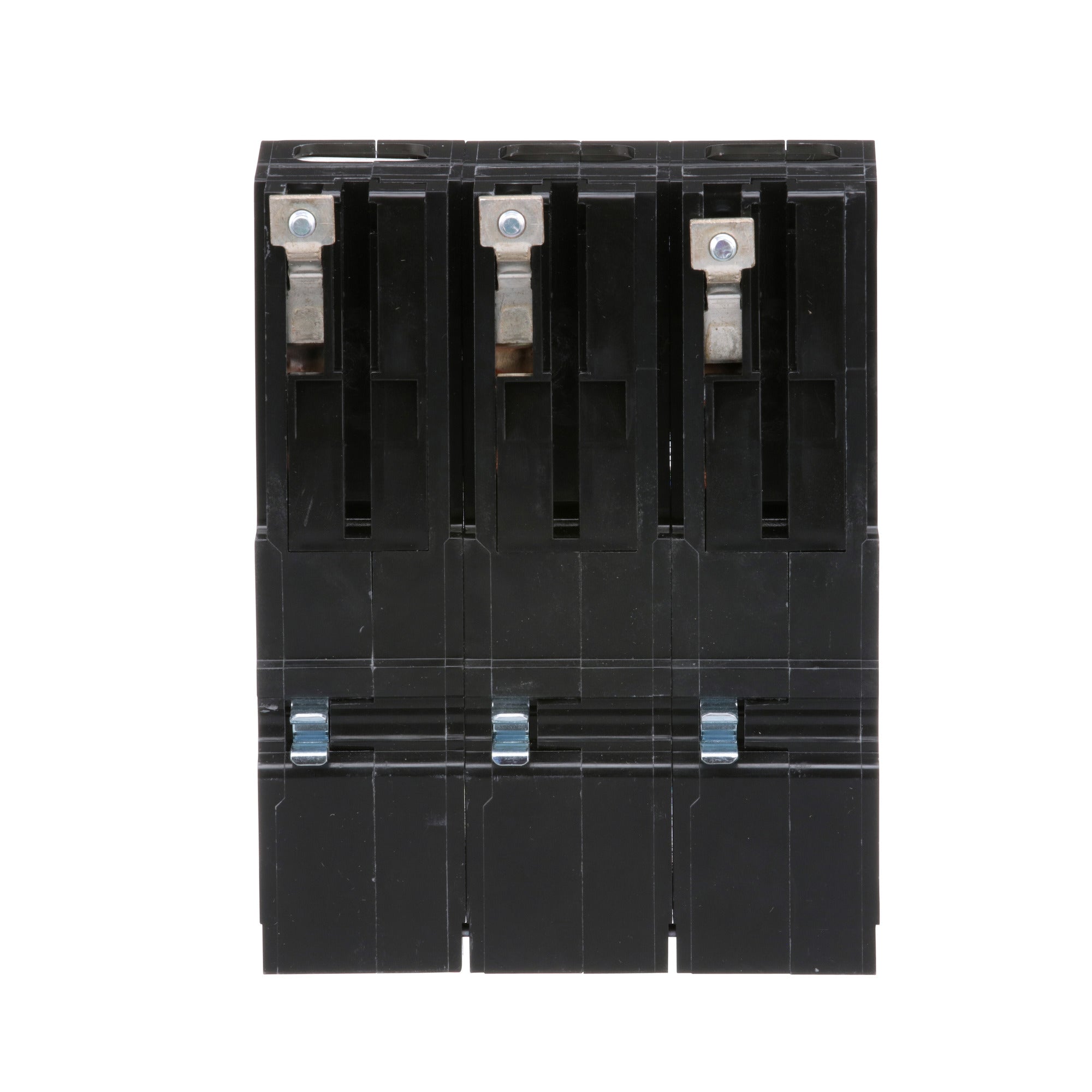

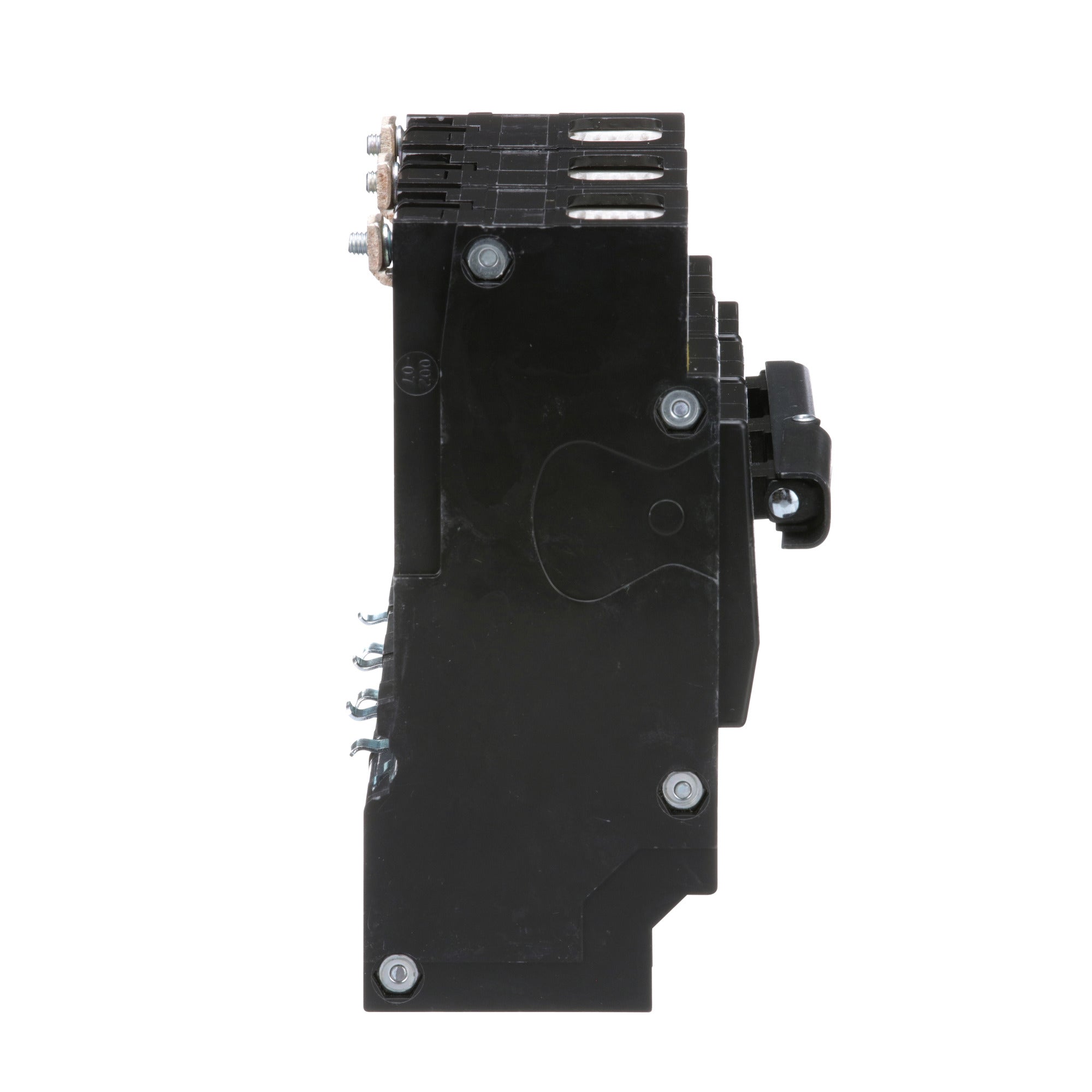

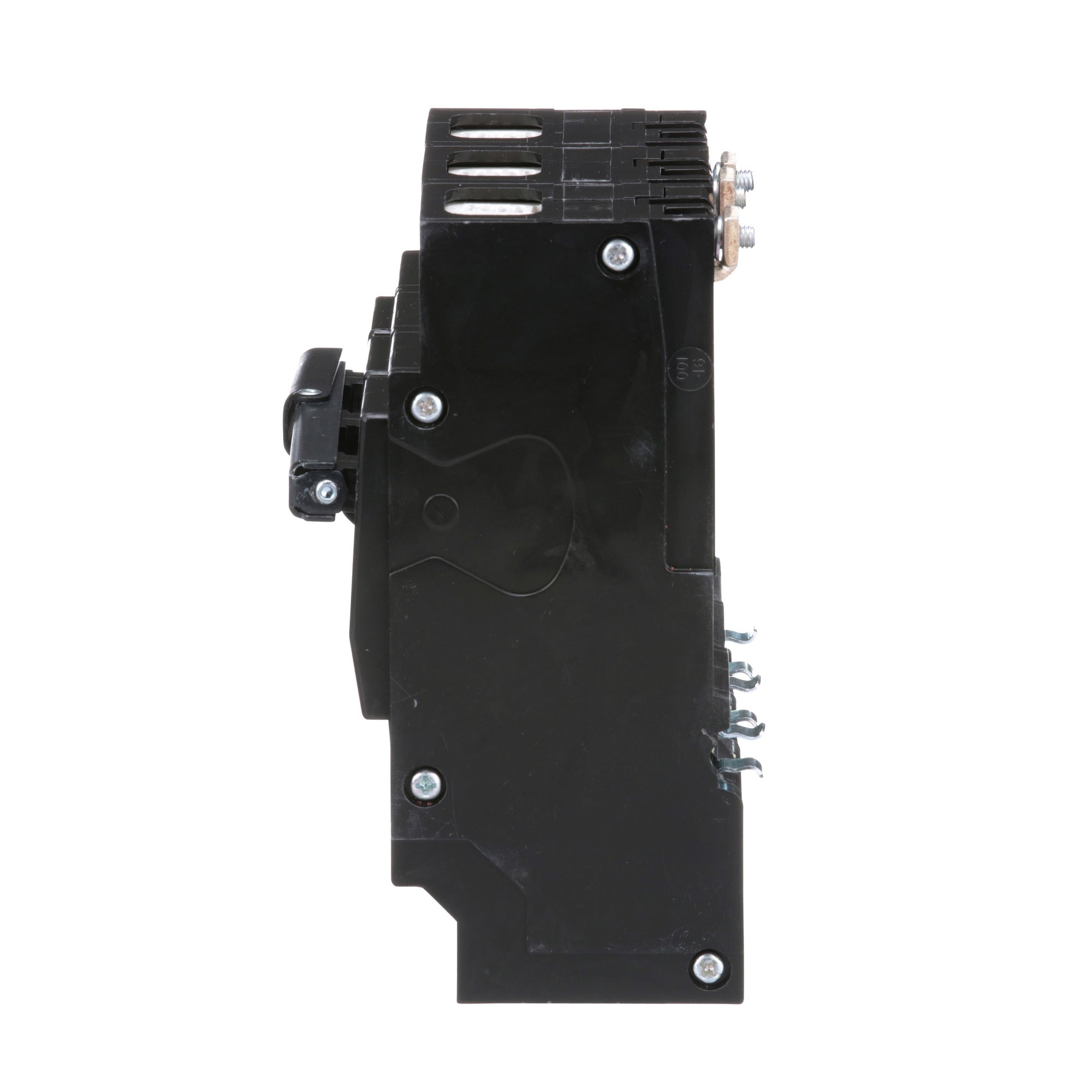

Square D QOB3125VH Miniature Circuit Breaker 125A 240V 3Ph Bolt-On

Product Description

The Square D QOB3125VH is a three-pole miniature circuit breaker rated for 125A at 240V. This model features a trip-free toggle mechanism that ensures quick make and break action. With a breaking capacity of 22kA, it provides reliable overcurrent protection for both AC and DC systems.

• Suitable for 120/240V applications
• Bolt-on mounting for easy installation
• UL Listed and CSA Certified for safety compliance

Product Highlights

This circuit breaker includes VisiTrip indication for clear tripping status visibility and supports various factory-installed accessories such as shunt trips and auxiliary switches.

Product Information

Standard Information

• Catalog Number: QOB3125VH
• Brand: Square D

Technical Specifications

• Current Rating: 125 Amp
• Voltage: 120/240 Volt AC
• Number of Poles: 3 Pole
• Breaking Capacity: 22 kA
• Mounting Type: Bolt-on
• Country of Origin: Mexico
• Weight: 0.435 kg
• Width: 4.5 inches
• Height: 5.7 inches
• Depth: 4.9 inches
