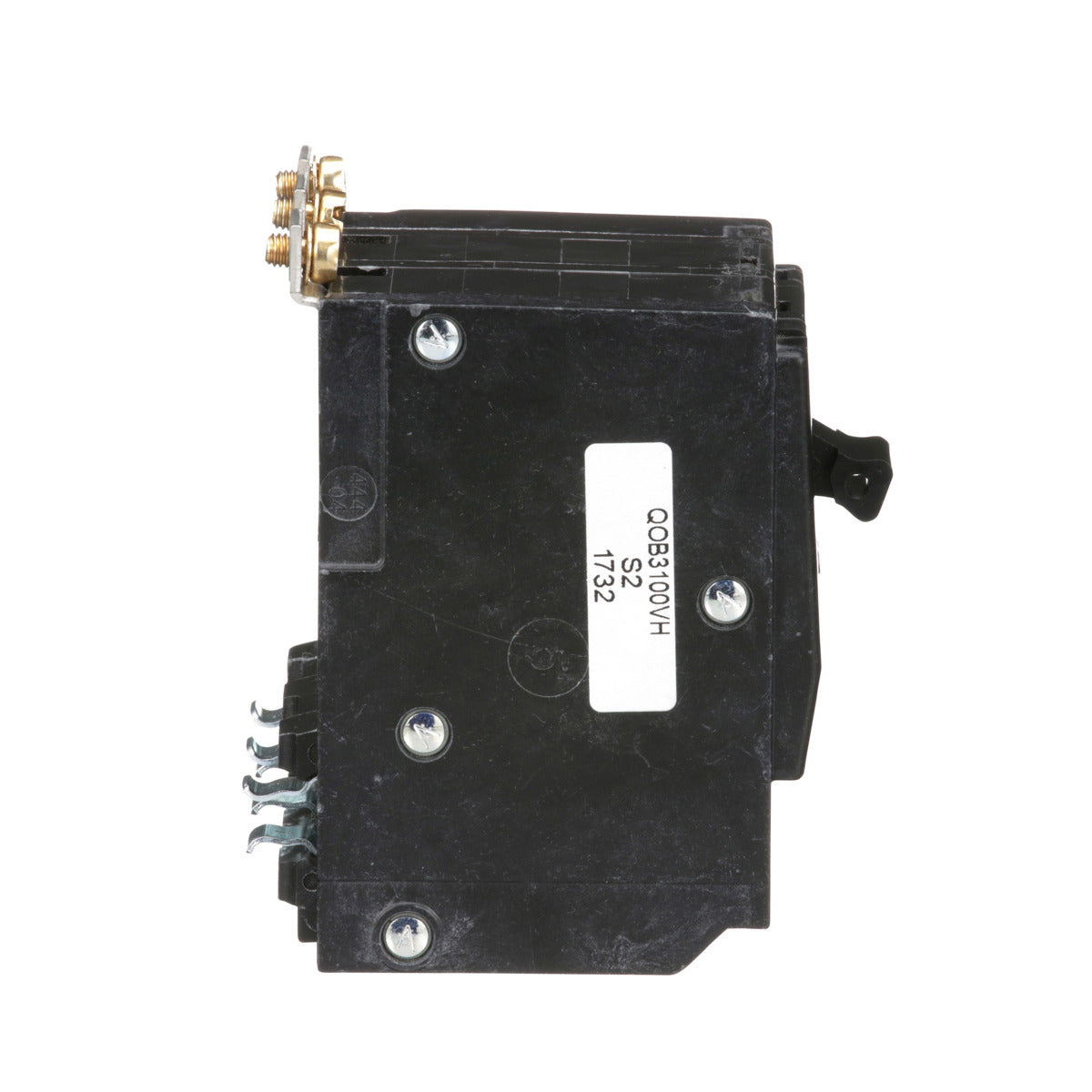

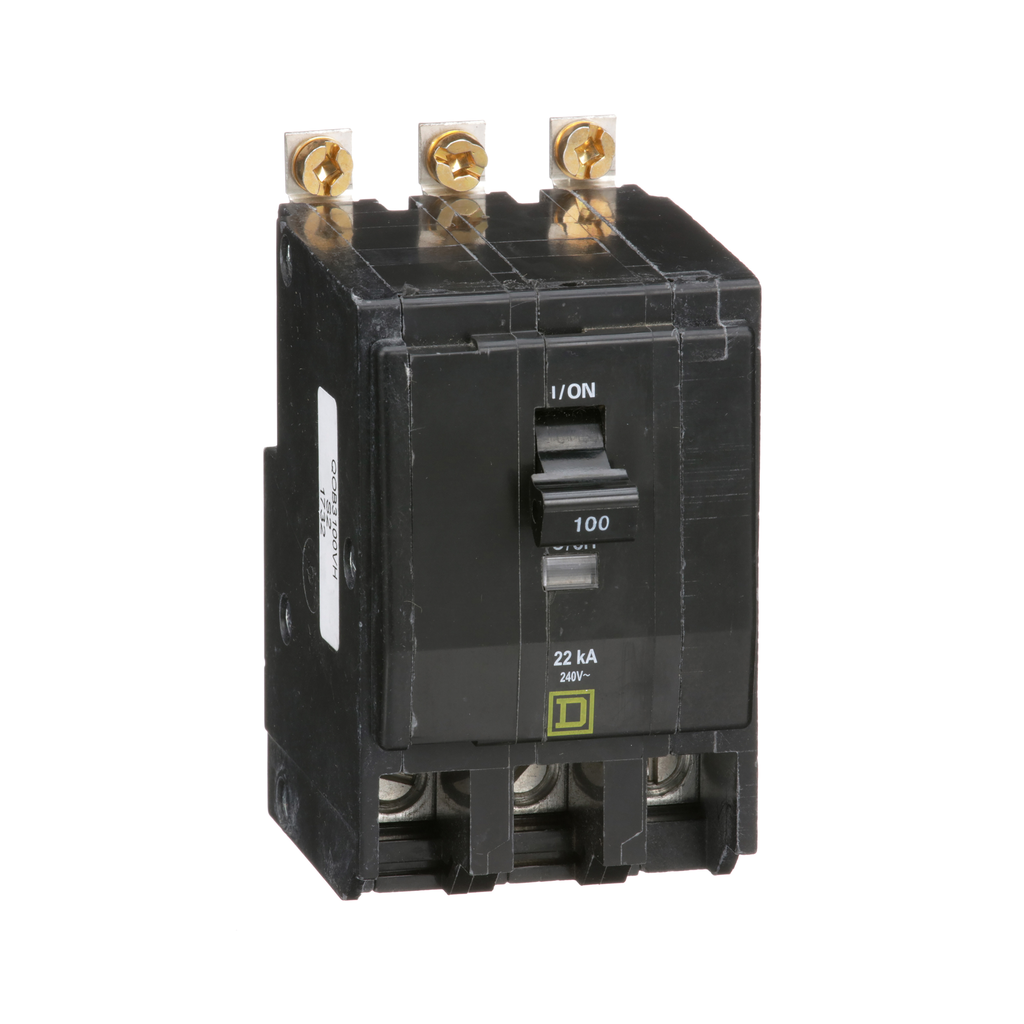

Square D QOB3100VH 240 Volt 100 Amp Miniature Circuit Breaker

Product Description

The Square D QOB3100VH is a 240 Volt, 100 Amp miniature circuit breaker designed for thermal magnetic overcurrent protection in alternating current and direct current systems. This breaker features an overcenter, trip-free toggle mechanism that ensures rapid action during a fault condition. With VisiTrip technology, users can easily see if the breaker has tripped, confirming circuit interruption. As a three-pole, bolt-on circuit breaker, it is rated for 100 Amps at 240 Volts AC, providing a robust breaking capacity of twenty-two kA.

• Three-pole design for versatile applications
• UL Listed and CSA certified for safety assurance
• Includes factory-installed accessories like auxiliary switches and shunt trips

Product Highlights

Ideal for use in residential and commercial power distribution, the QOB3100VH ensures reliable protection for electric circuits.

Product Information

Standard Information

• Catalog Number: QOB3100VH
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature circuit breaker
• Current Rating: 100 Amps
• Voltage Rating: 240 Volts AC
• Number of Poles: 3
• Breaking Capacity: 22 kA
• Mounting Type: Bolt-on
• Depth: 2.91 inches
• Width: 2.24 inches
• Height: 3.50 inches
• Weight: 1.06 kg
• Certifications: UL, CSA
• Warranty Period: 18 months
