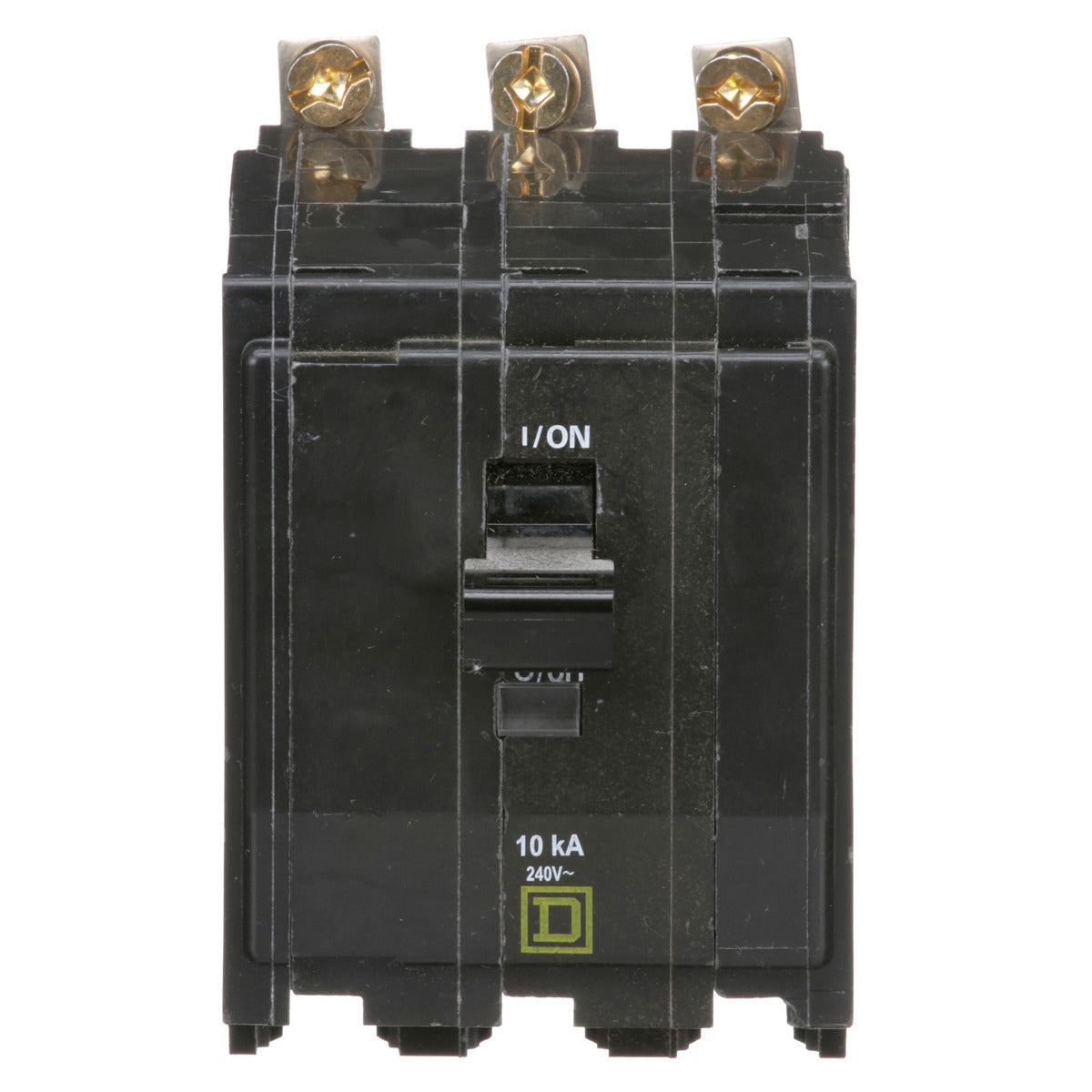

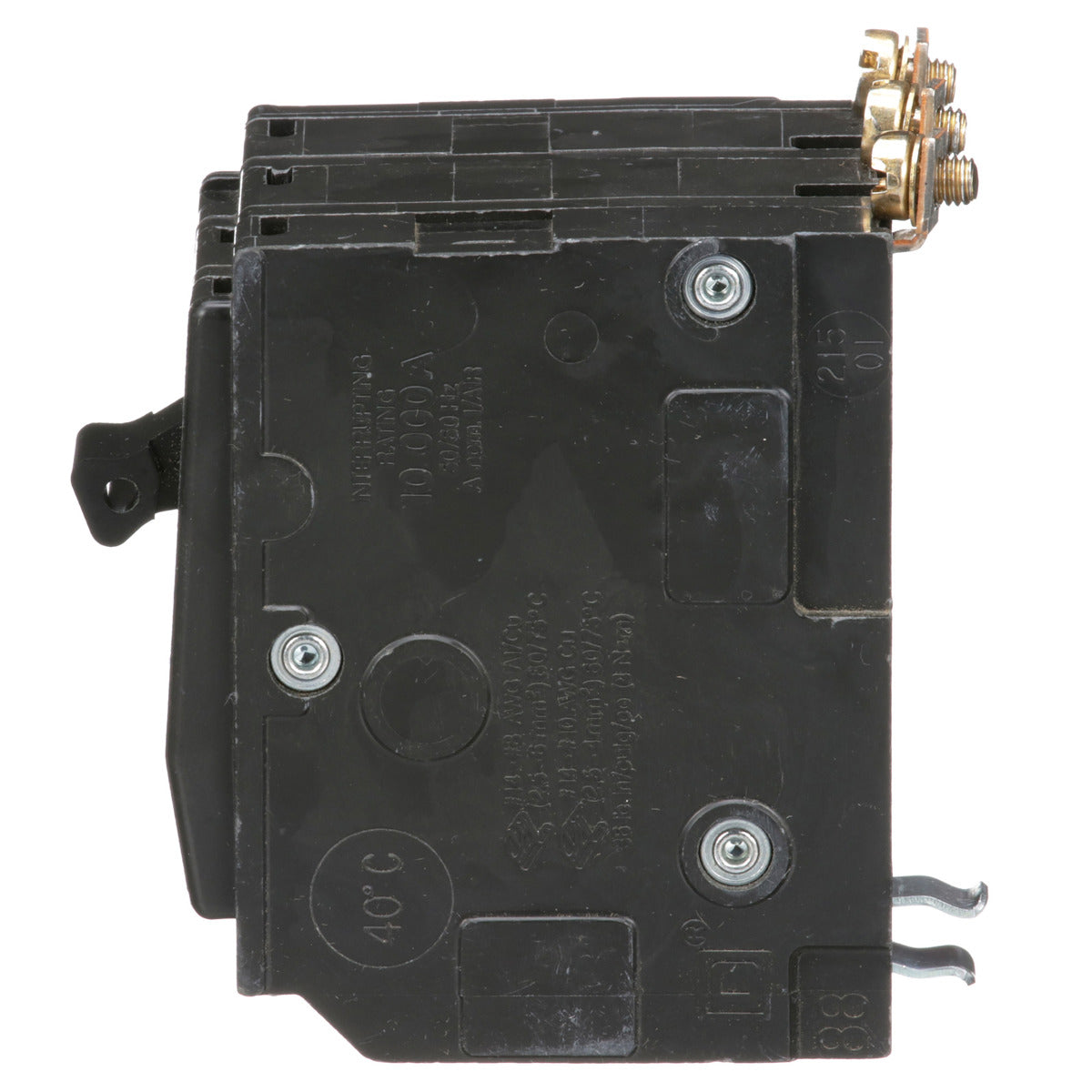

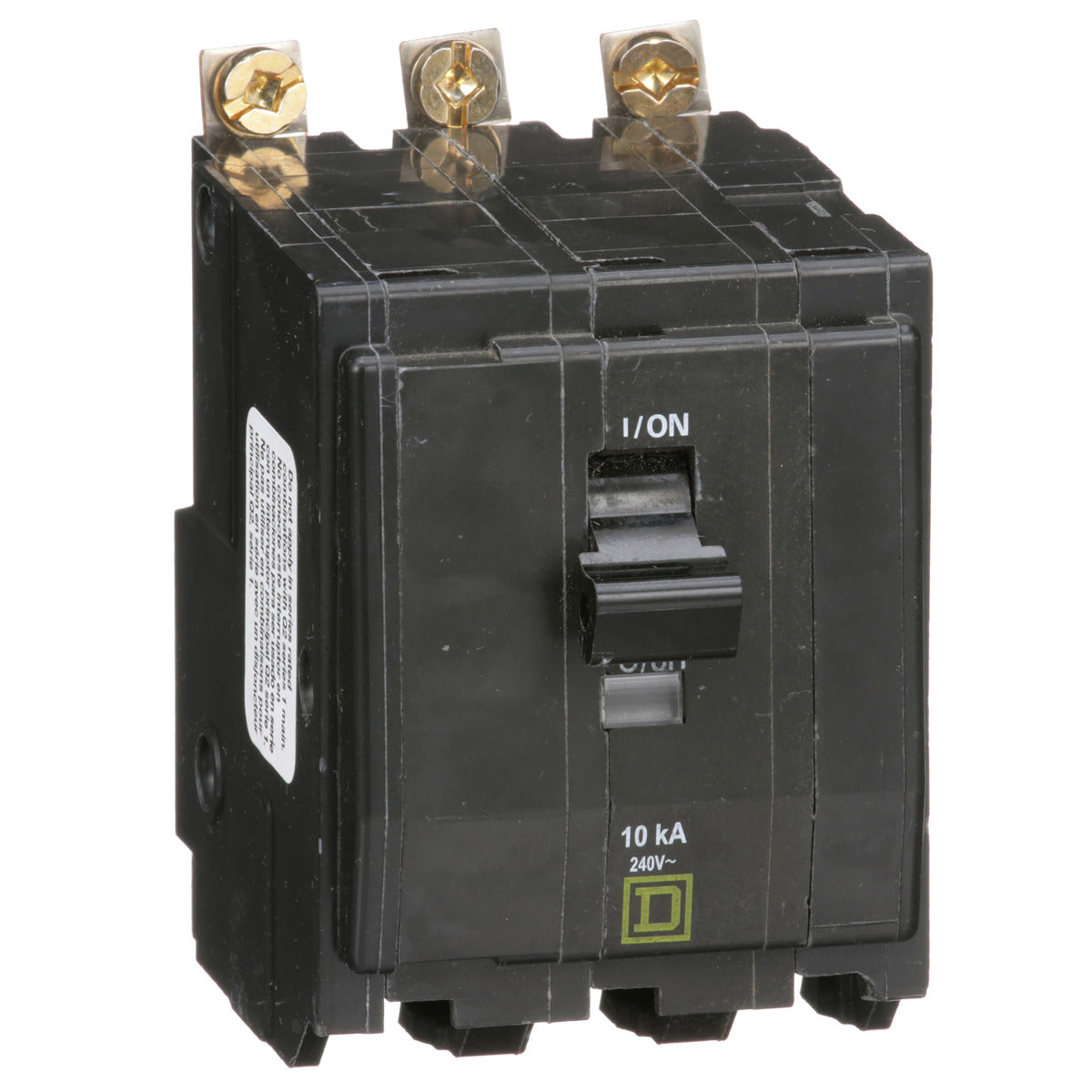

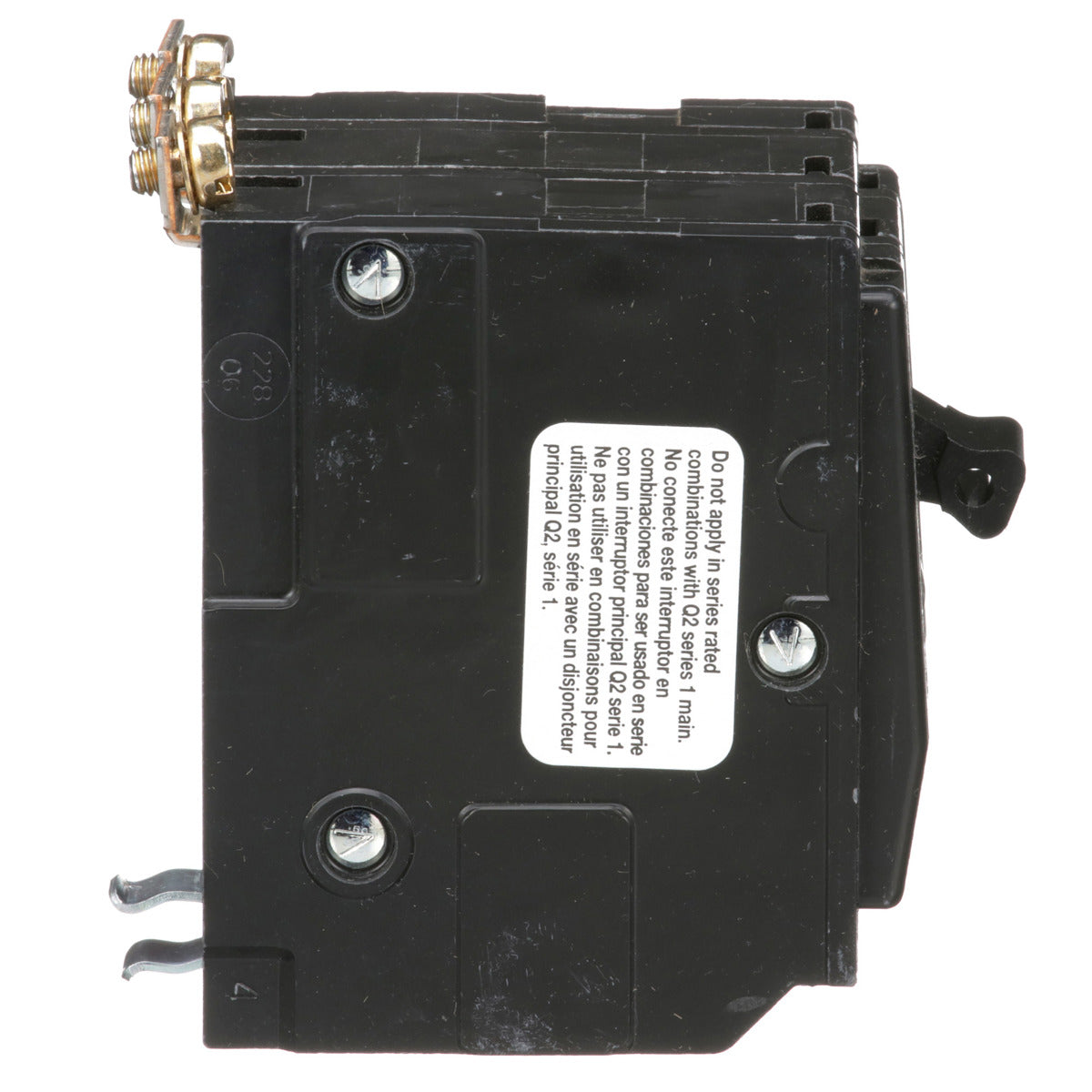

Square D QOB310 Miniature Circuit Breaker 10 Amp 3 Pole

Product Description

The SQUARE D QOB310 is a thermal magnetic circuit breaker that provides overcurrent protection and switching on AC and DC systems. This 3-pole breaker features an over center, trip-free toggle mechanism with quick make, quick break action, and positive handle indication. It also has VisiTrip trip indication and provides 10kA breaking capacity with bolt-on mounting.

• Provides overcurrent protection and switching on AC and DC systems
• Features a trip-free toggle mechanism for quick operation
• Offers VisiTrip trip indication for visual status

Product Highlights

The QOB310 circuit breaker is rated at 10A at 120/240VAC and is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QOB310
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Depth: 74 mm
• Width: 57 mm
• Height: 76 mm
• Length: 2.91 Inch
• Current: 10 Amp
• Voltage: 120 Volt
• Amperage: 10 Amp
• Material: Fiberglass
• Sub Brand: QO
• Wire Size: AWG 14...AWG 8 copper or aluminium
• Product UPC: 78590151869
• 12-Digit UPC: 785901518693
• Mounting Type: Bolt-on
• TC Connection: Pressure plate
• Certifications: CSA,UL Listed
• Conductor Size: 14-8 AWG
• Number of Poles: 3 Pole
• Interrupt Rating: 5, 10 kAIC
• Line Rated Current: 10 A
• Circuit Breaker Type: Standard
• Short Circuit Current: 10 kA
• Catalog Number: QOB310
• Manufacturer: Schneider Electric
• UPC: 785901518693
• GTIN: 00785901518693
