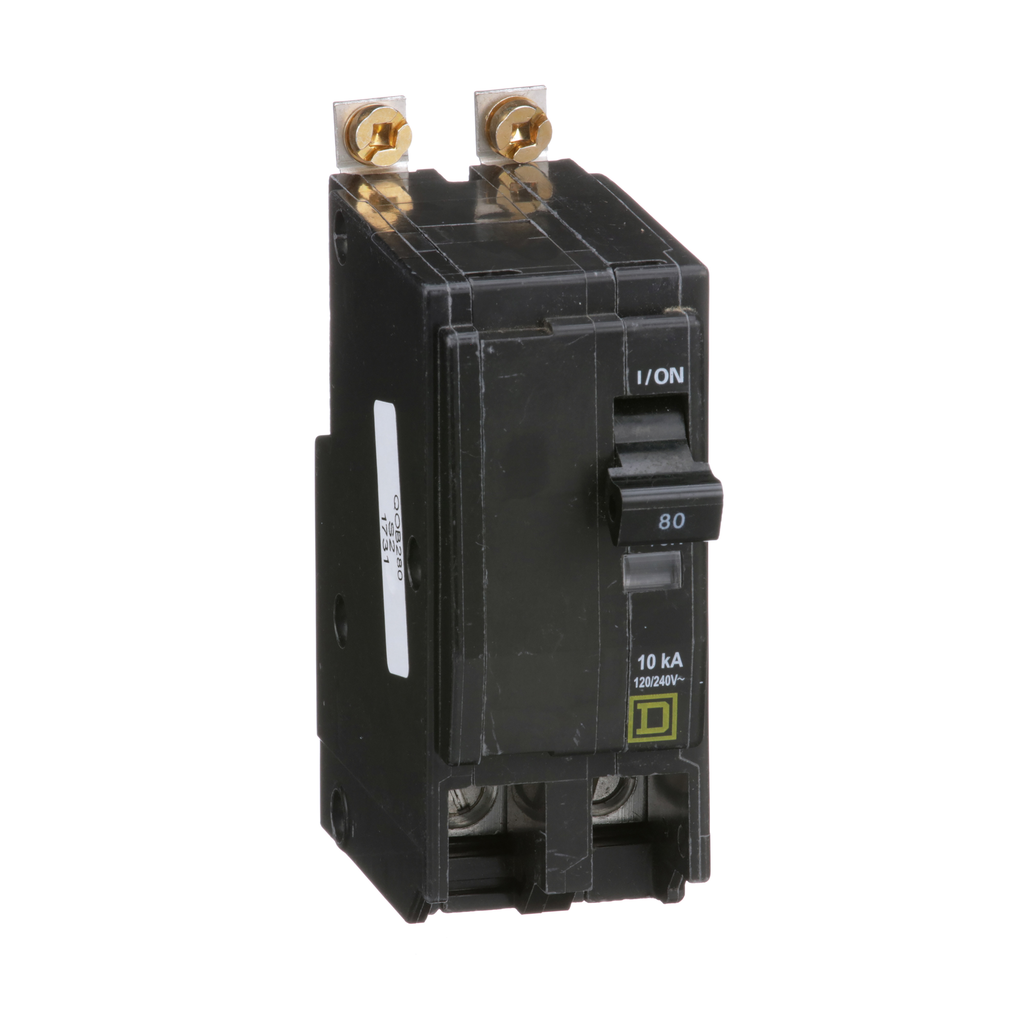

Square D QOB280 Miniature Circuit Breaker 80A 120/240V 1Ph 2P

Product Description

The Square D QOB280 is an 80 amp miniature circuit breaker rated for 120/240 volts. This breaker is designed for both alternating current and direct current systems. It features a quick make, quick break action and offers a positive handle indication. The VisiTrip indicator shows when the breaker has tripped. This two-pole unit has a breaking capacity of ten kiloamperes and is suitable for bolt-on mounting.

• 80 amp rating for reliable overcurrent protection
• UL Listed and CSA certified for safety and compliance
• Compatible with QO series panel boards for efficient installation

Product Highlights

Ideal for residential and commercial uses, this circuit breaker provides essential protection against overloads and short circuits, ensuring the safety and performance of electrical installations.

Product Information

Standard Information

• Brand: Square D
• MPN: QOB280

Technical Specifications

• Voltage Rating: 120/240 VAC
• Current Rating: 80 Amps
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Mounting Type: Bolt-on
• Applications: Appliance, Lighting
• Width: 2.91 inches
• Weight: 0.727 kg
• Warranty Length: 18 months
