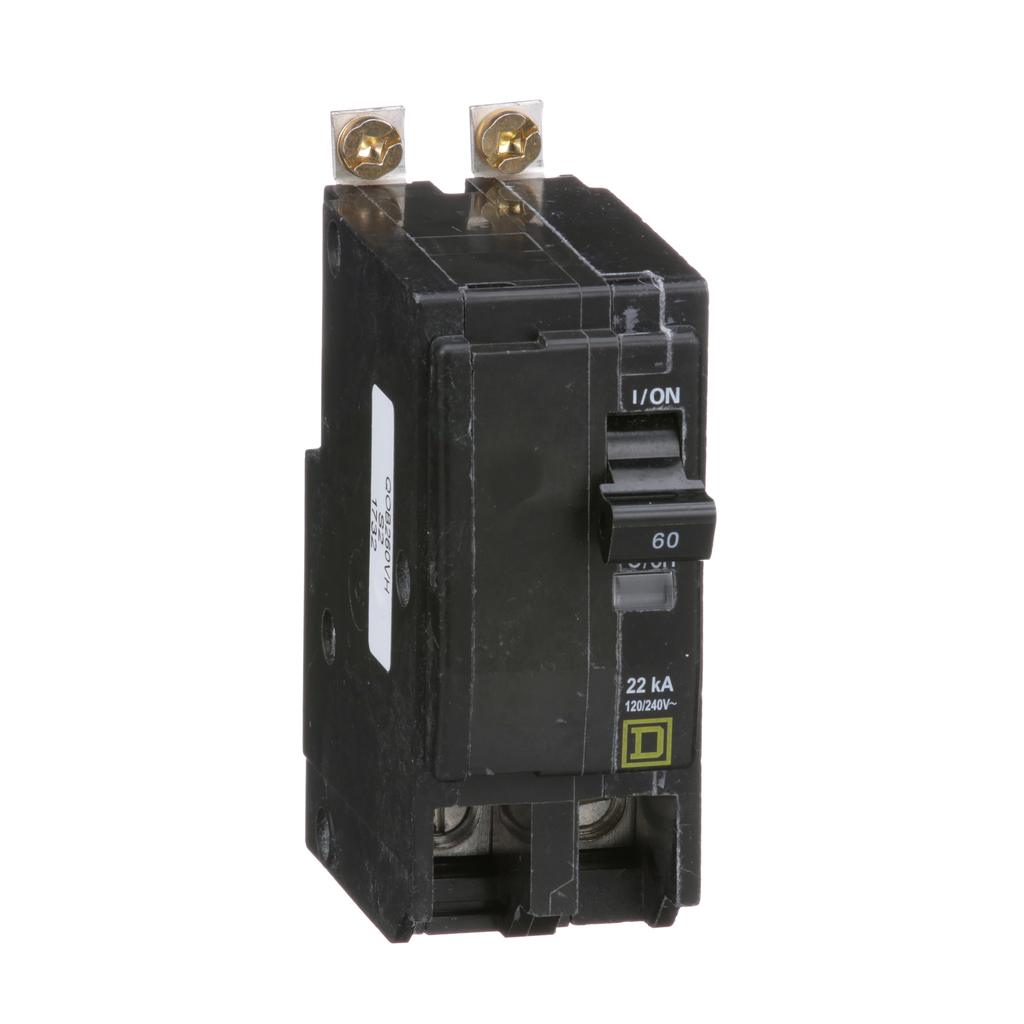

Square D QOB260VH Miniature Circuit Breaker 60 Amp 240 Volt

Product Description

The Square D QOB260VH is a two-pole 60 amp miniature circuit breaker designed for effective overcurrent protection in AC and DC systems. It features a compact design suitable for applications involving a voltage of up to 240 volts. The breaker incorporates a thermal magnetic mechanism, ensuring reliable switching and protection against overloads. This model includes a trip indication feature that signals when the breaker has experienced an interruption.

• Two-pole circuit design rated at 60 amps.
• Suitable for both residential and commercial electrical systems.
• UL listed and CSA certified for safety compliance.

Product Highlights

This miniature circuit breaker is engineered for easy installation with a bolt-on mounting type for secure placement in your electrical panel. Its 22 kA breaking capacity ensures that it can handle fault conditions effectively. The QOB260VH is compatible with copper and aluminum wire sizes from AWG eight to AWG two, making it versatile for various applications.

Product Information

Standard Information

• Catalog Number: QOB260VH
• Brand: Square D

Technical Specifications

• Type: Miniature circuit-breaker
• Current Rating: 60 Amps
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Bolt-on
• Breaking Capacity: 22 kAIC
• Dimensions: 2.91 Inch Length, 38 mm Width, 79 mm Height
• Weight: 0.336 kg
• Country of Origin: Mexico
