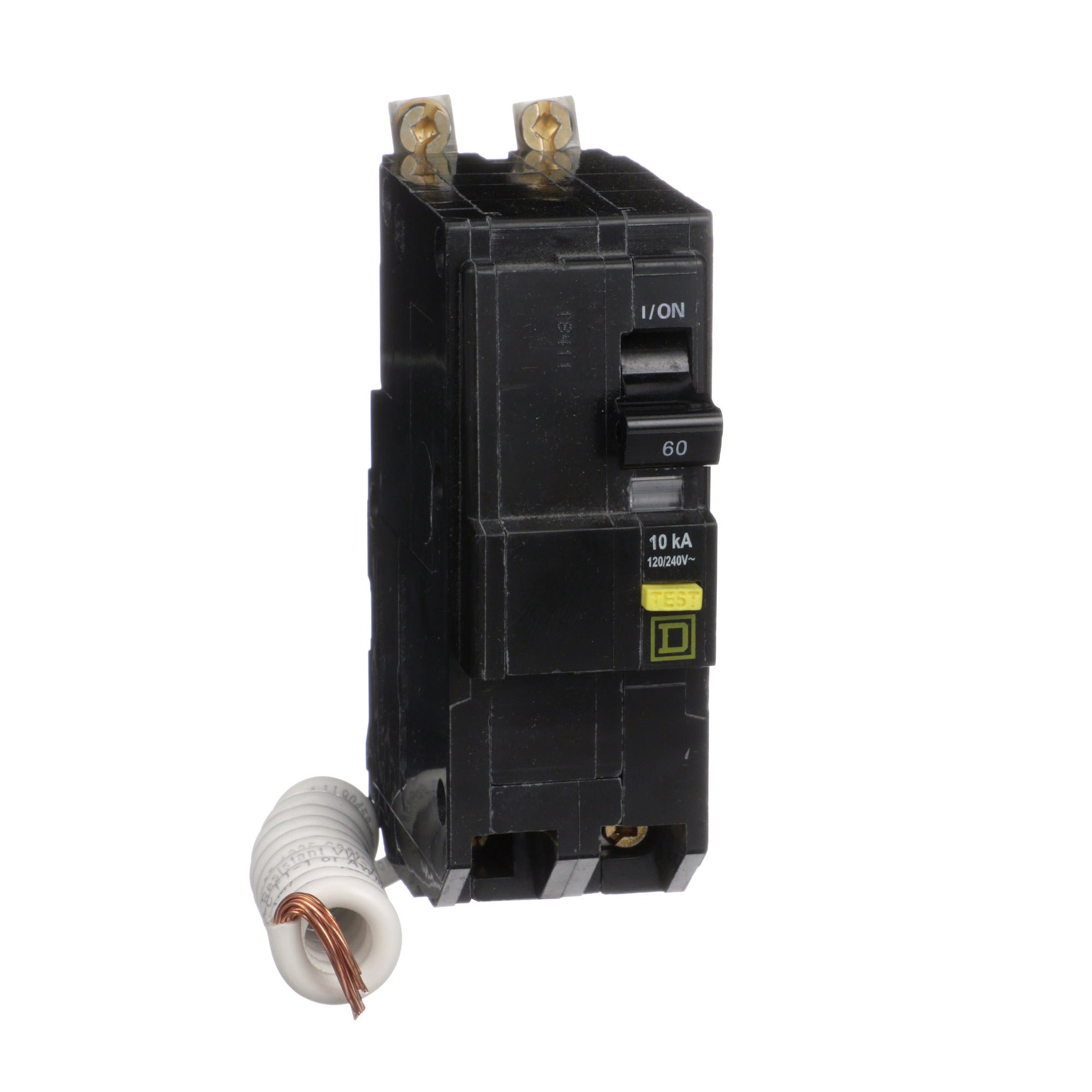

Square D QOB260GFI Miniature Circuit Breaker 60 Amp 120/240 Volt Ground Fault

Product Description

The Square D QOB260GFI is a 2-pole, 60 amp circuit breaker designed for AC and DC systems. With its thermal magnetic mechanism, it provides essential overcurrent protection and switching capabilities. This breaker features a trip-free toggle mechanism for quick actuation and a positive handle indication. VisiTrip technology included offers a visual indication when the breaker trips, ensuring easy monitoring. This model is rated for 60 amps at 120/240 volts and has a breaking capacity of 10kA. It also includes a six milliamperes ground fault protection option with pigtail, suitable for installations needing class A ground-fault protection.

• 2-pole configuration for dual circuit operation.
• UL and CSA certified for safety and reliability.
• Includes factory-installed accessories such as shunt trips and auxiliary switches.

Product Highlights

Ideal for residential and commercial applications, the QOB260GFI circuit breaker is built to provide overload and short circuit protection. Its modern design and reliable operations ensure stability in power distribution.

Product Information

Standard Information

• Catalog Number: QOB260GFI
• Brand: Square D

Technical Specifications

• Type: Miniature Circuit Breaker
• Current: 60 Amp
• Voltage: 120/240 Volt
• Mounting Type: Bolt-on
• Interrupt Rating: 10 kAIC
• Width: 38 mm
• Height: 105 mm
• Depth: 74 mm
