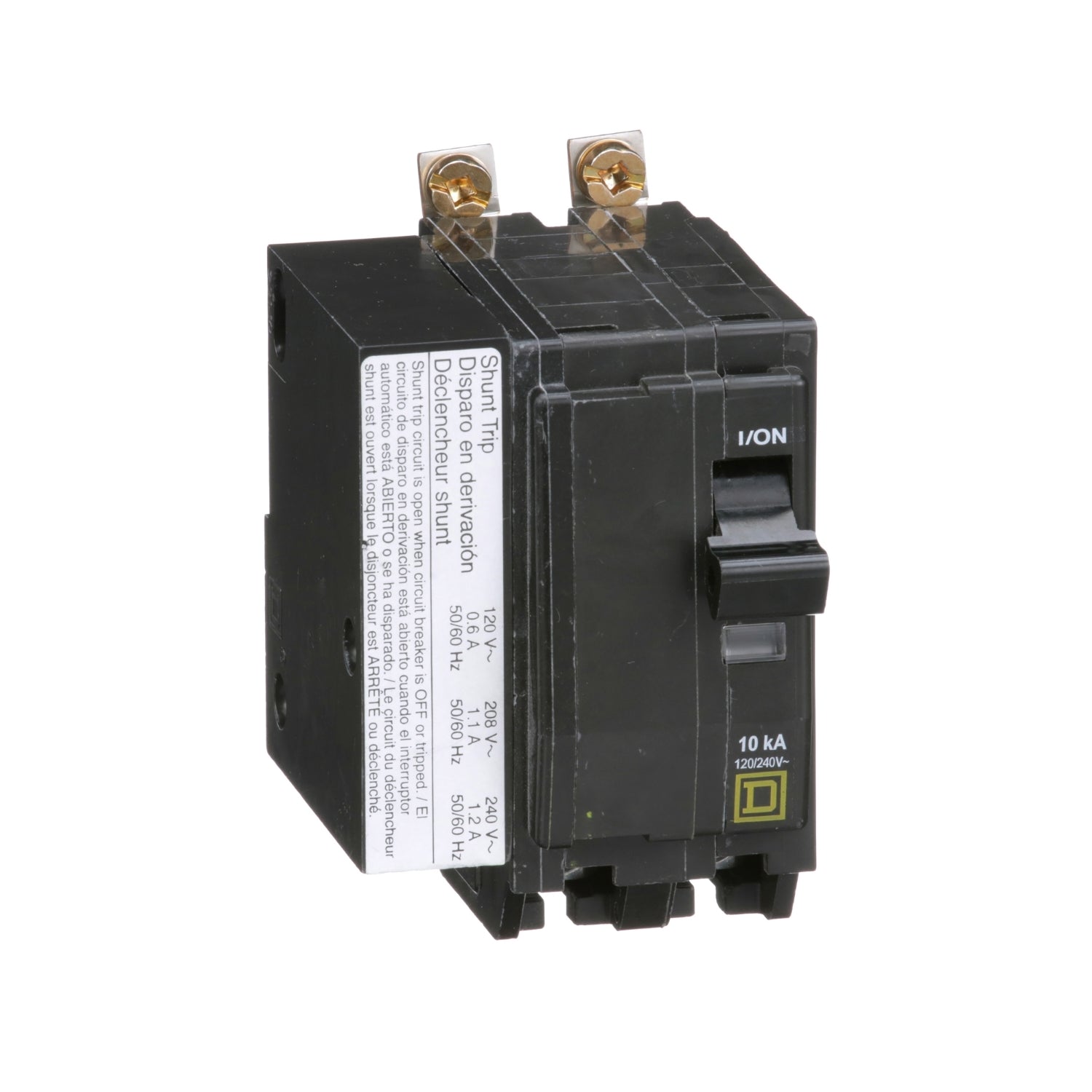

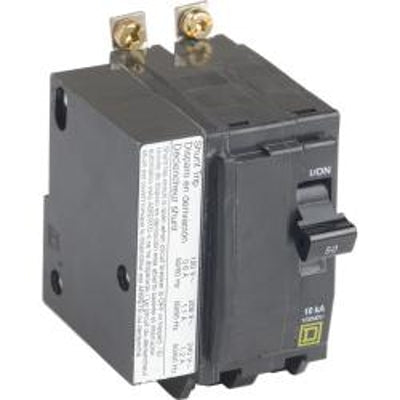

Square D QOB2601021 2-Pole 60 Amp 120/240 Volt Bolt-On Thermal Magnetic Miniature Circuit Breaker

Product Description

The Square D QOB2601021 is a two-pole thermal magnetic circuit breaker that provides overcurrent protection and switching on AC and DC systems. It features a trip-free toggle mechanism with quick make, quick break action and positive handle indication. The VisiTrip trip indication provides a visual indication that the circuit breaker has tripped. Rated at 60A at 120/240VAC with a 10kA breaking capacity and bolt-on mounting. Includes an AC shunt trip.

• Provides overcurrent protection and switching on AC and DC systems
• Features a trip-free toggle mechanism with quick make, quick break action and positive handle indication
• VisiTrip trip indication provides a visual indication that the circuit breaker has tripped

Product Highlights

The Square D QOB2601021 is a 2-pole, 60A, 120/240VAC bolt-on circuit breaker with a 10kA interrupting rating and AC shunt trip.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QOB2601021
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Depth: 74 mm
• Width: 57 mm
• Height: 79 mm
• Length: 2.91 Inch
• Current: 60 Amp
• Voltage: 120 Volt
• Amperage: 60 Amp
• Material: Fiberglass
• Sub Brand: QO
• Wire Size: AWG 8...AWG 2 copper or aluminium
• Product UPC: 78590149435
• 12-Digit UPC: 785901494355
• Applications: HACR rated
• Mounting Type: Bolt-on
• TC Connection: Box lugs
• Certifications: CSA,UL Listed
• Conductor Size: 8-2 AWG
• Number of Poles: 2 Pole
• Interrupt Rating: 5, 10 kAIC
• Country of Origin: Mexico
• Line Rated Current: 60 A
• Circuit Breaker Type: Standard
• Short Circuit Current: 10 kA
• Voltage Rating: 120/240 VAC at 50/60 Hz (UL/CSA), 48 VDC
• Current Rating: 60 Ampere
• Installation: Bolt-On
• Application: Appliance, Lighting
• Used On: NQ Series Panelboard
• Approval: UL, CSA
• Frame Type: Q
• Tripping Method: Thermal Magnetic, Common Trip
• Poles: 2
• Protection: Thermal Magnetic
• Trip Functions: LI - Long-Time and Instantaneous
• Phase: 1
• AIR Rating: 10 kA
• Amp Rating: 60
• Standards: UL Listed CSA Certified HACR Rated (Heating, Air Conditioning, Refrigeration)
• Amps: 60
• Break Time: Instantaneous
• Model: QOB2601021
• MPN: QOB2601021
• Inturrupt Rating: 10 Ka
