Product Description

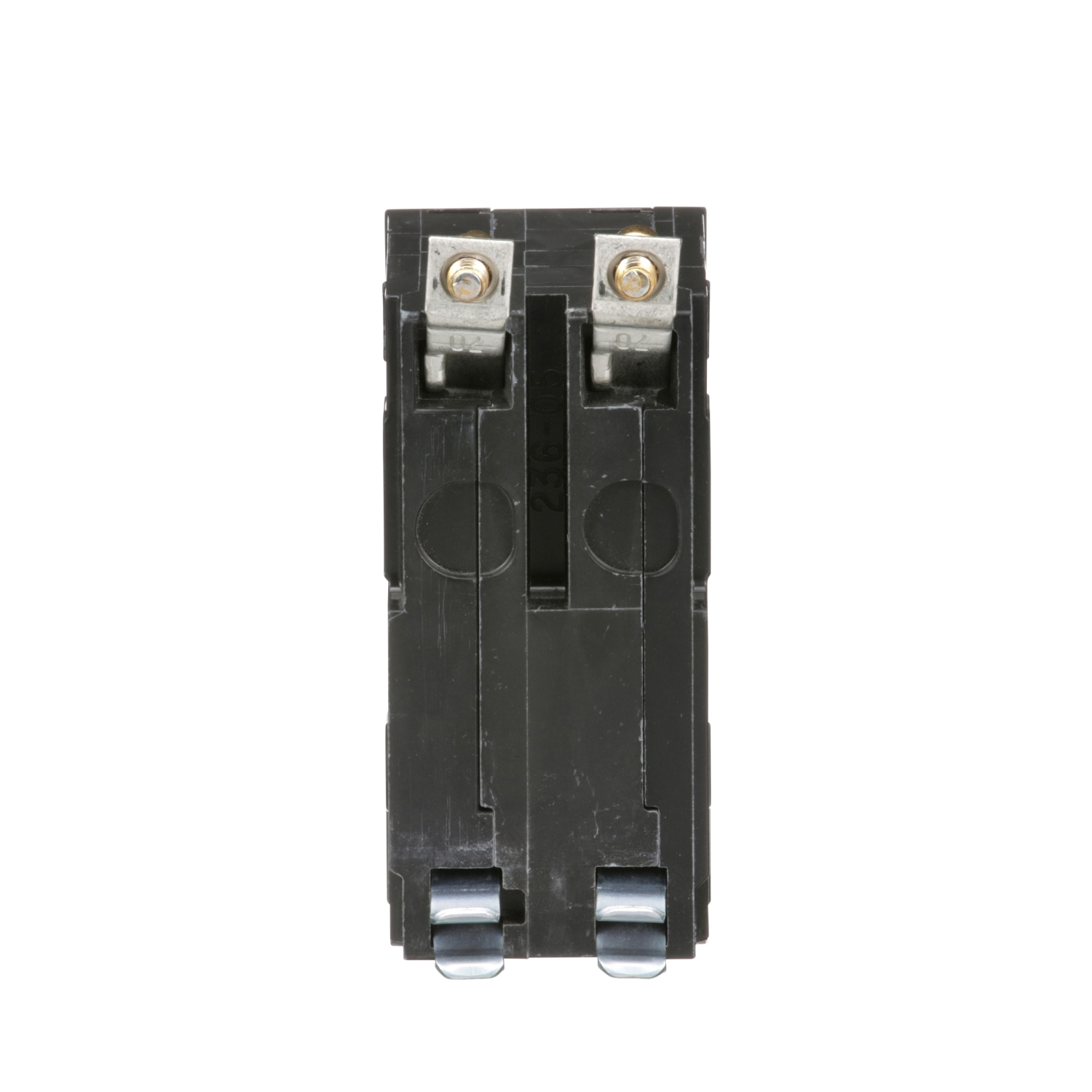

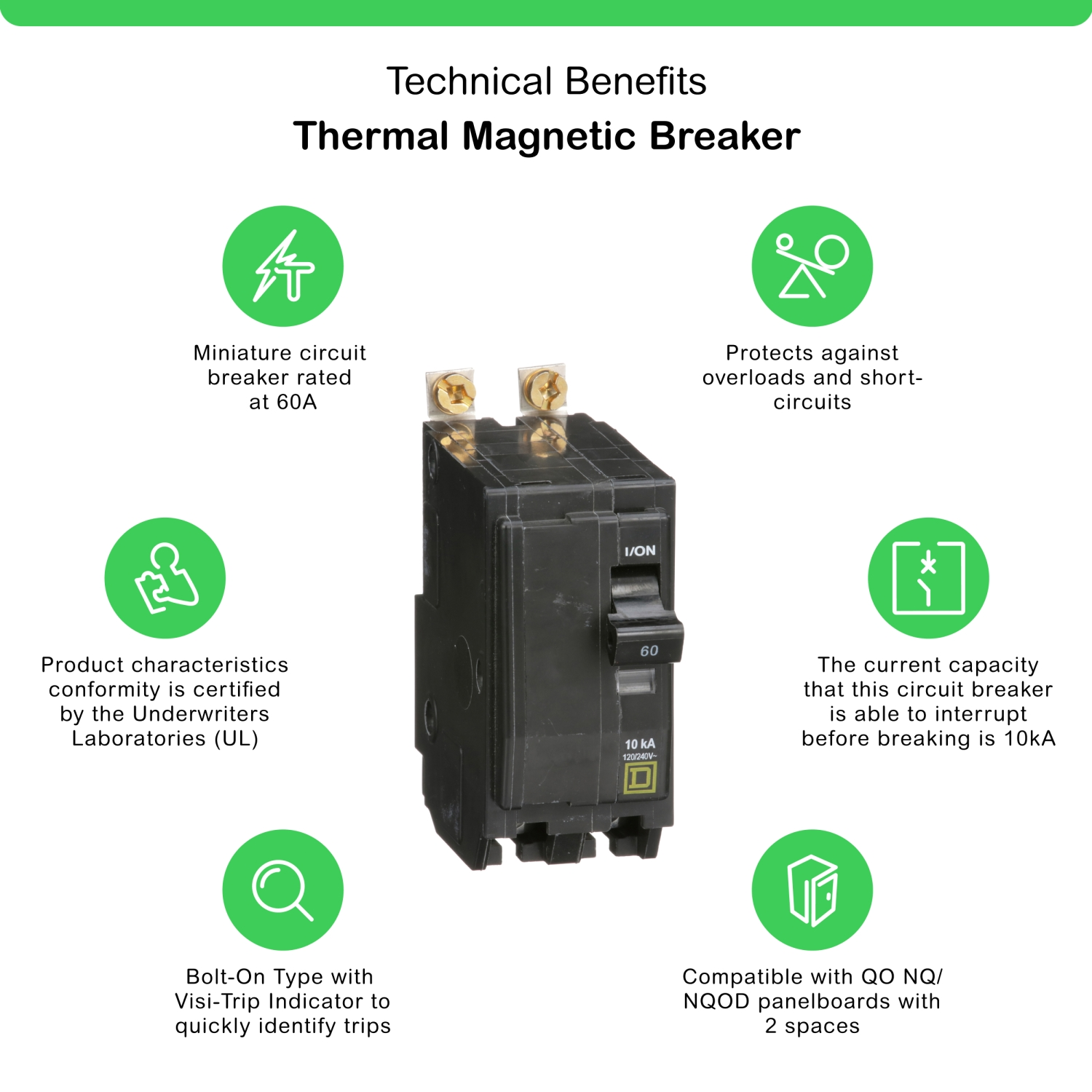

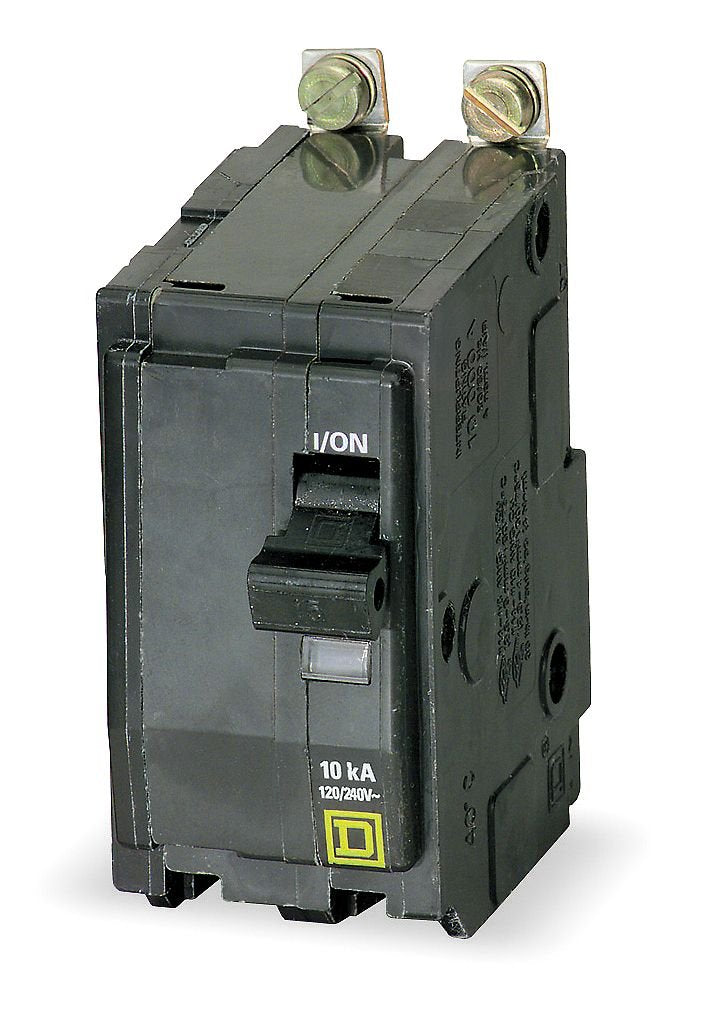

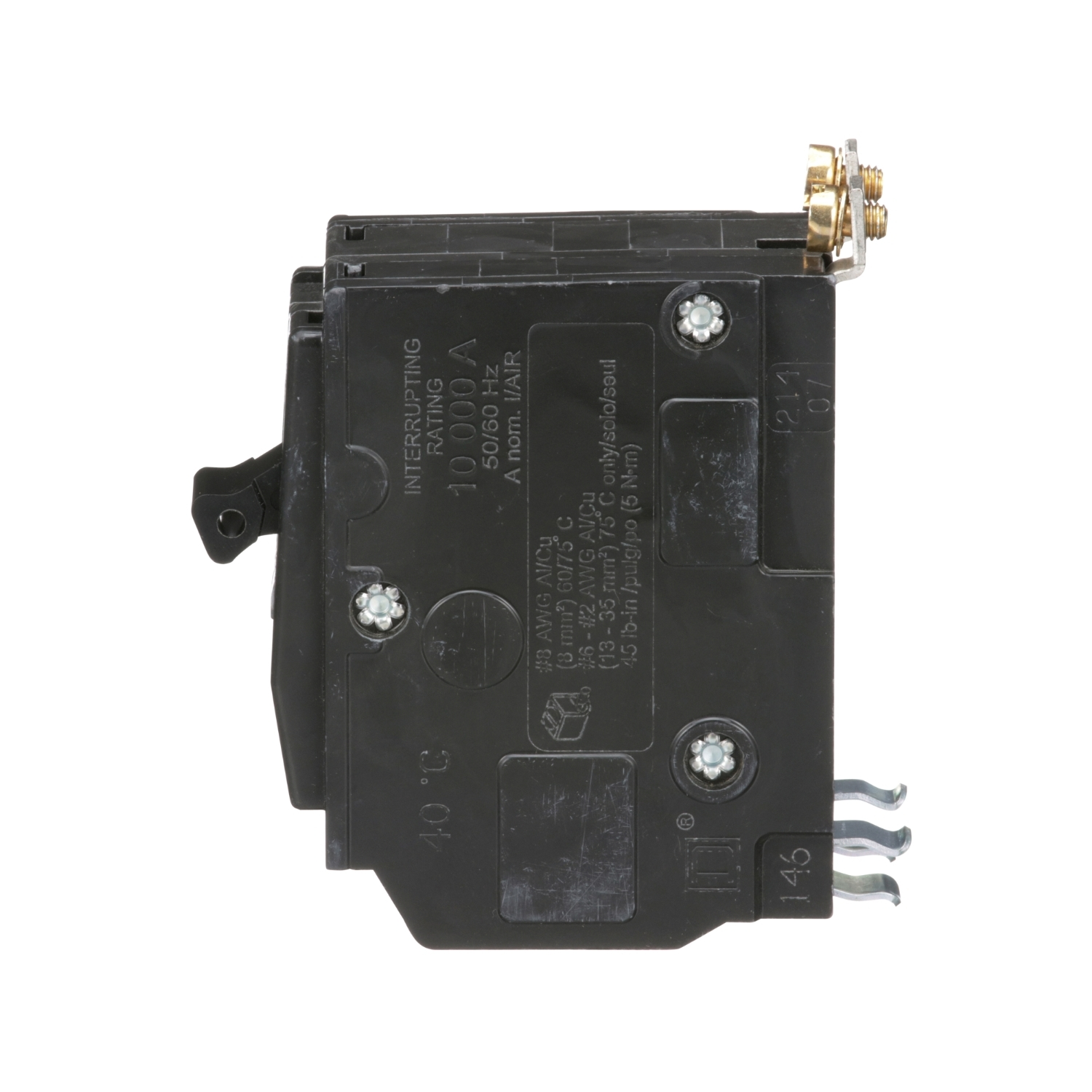

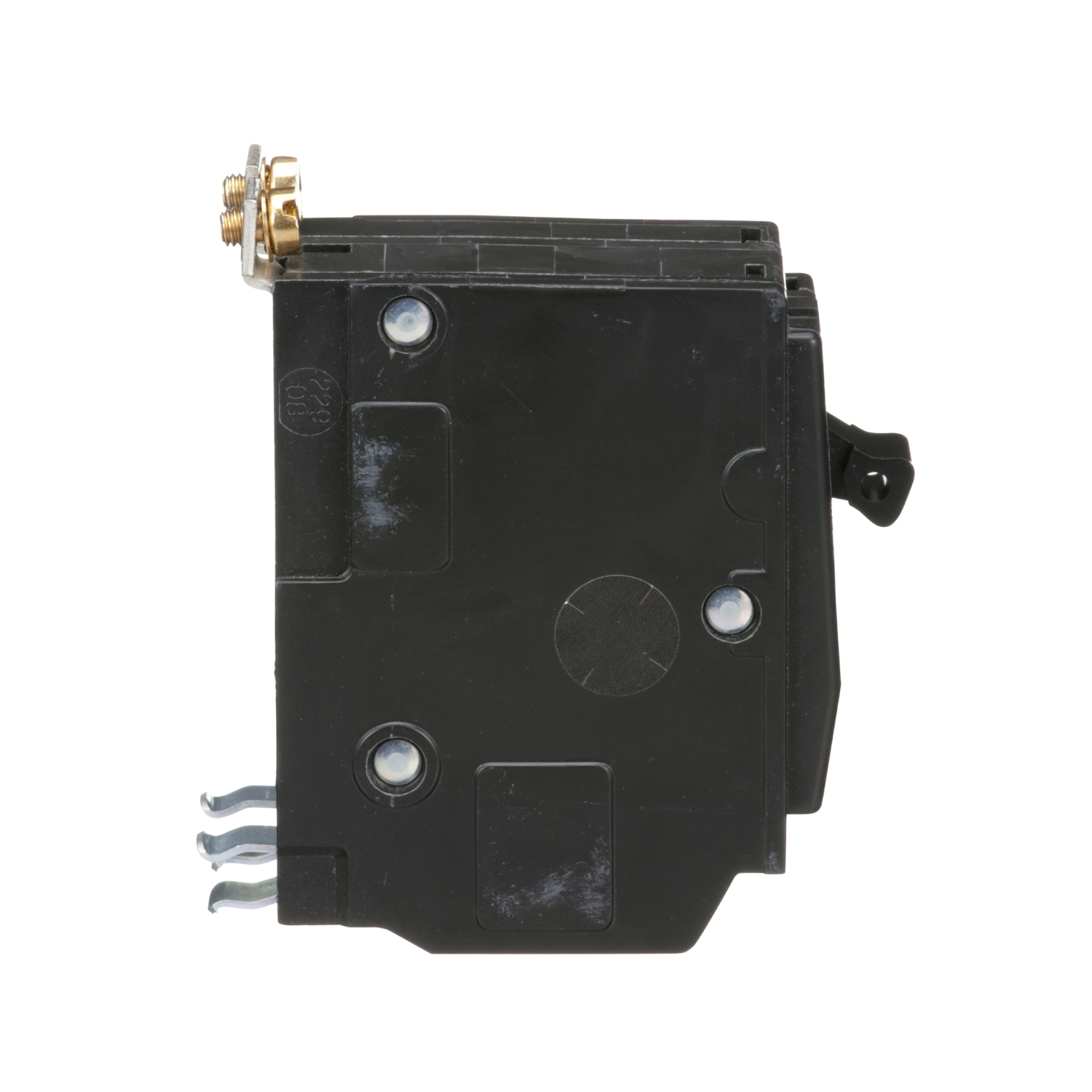

The Square D QOB260 is a miniature circuit breaker designed for overcurrent protection and switching on AC and DC systems. This 2-pole breaker is rated at 60A and 120/240VAC. It features a Visi-Trip indicator and a trip-free toggle mechanism with quick make, quick break action and positive handle indication.
- Suitable for use with NQ, NQOD panelboards and QO loadcenters
- Interrupt current rating of 10 Kilo-Amps
- Features common and thermal-magnetic trip function to ensure reliability
Product Highlights
The QOB260 provides reliable circuit protection with visual trip indication and easy installation.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer Part Number: QOB260
-
Country of Origin: Mexico
Technical Specifications
-
Item Model Number: QOB260
-
Brand: Square D
-
Amperage: 60 Amp
-
Voltage: 120/240VAC/48VDC
-
Poles: 2
-
Phase: 1
-
Interrupt Current Rating: 10 Kilo-Amps
-
Connection: Box lugs
-
Wire Size: 8 - 2 AWG (Aluminum/Copper)
-
Mounting: Bolt-on
-
Circuit Breaker Type: Standard
-
Terminal Connection: Lug
-
Max. AIR Rating: 10 kA
-
Frame Size: 100A/QO
-
Min. Wire Size: 8 AWG
-
Max. Wire Size: 2 AWG
-
Standards: UL Listed, CSA Certified
-
Frame: QOB
-
Mounting Type: Bolt-On
-
Trip Type: Thermal/Magnetic
-
Frequency Rating: 50/60 Hz
-
Temperature Rating: 40 deg C
-
Line Rated Current: 60 A
-
Short Circuit Current: 10 kA
-
Current Rating: 60 A
-
Voltage Rating: 120/240
-
Number Of Poles: 2
-
Interrupt Rating: 5, 10 kAIC
-
Electrical Connection: Box lugs
-
Application: For providing overload and short circuit protection
