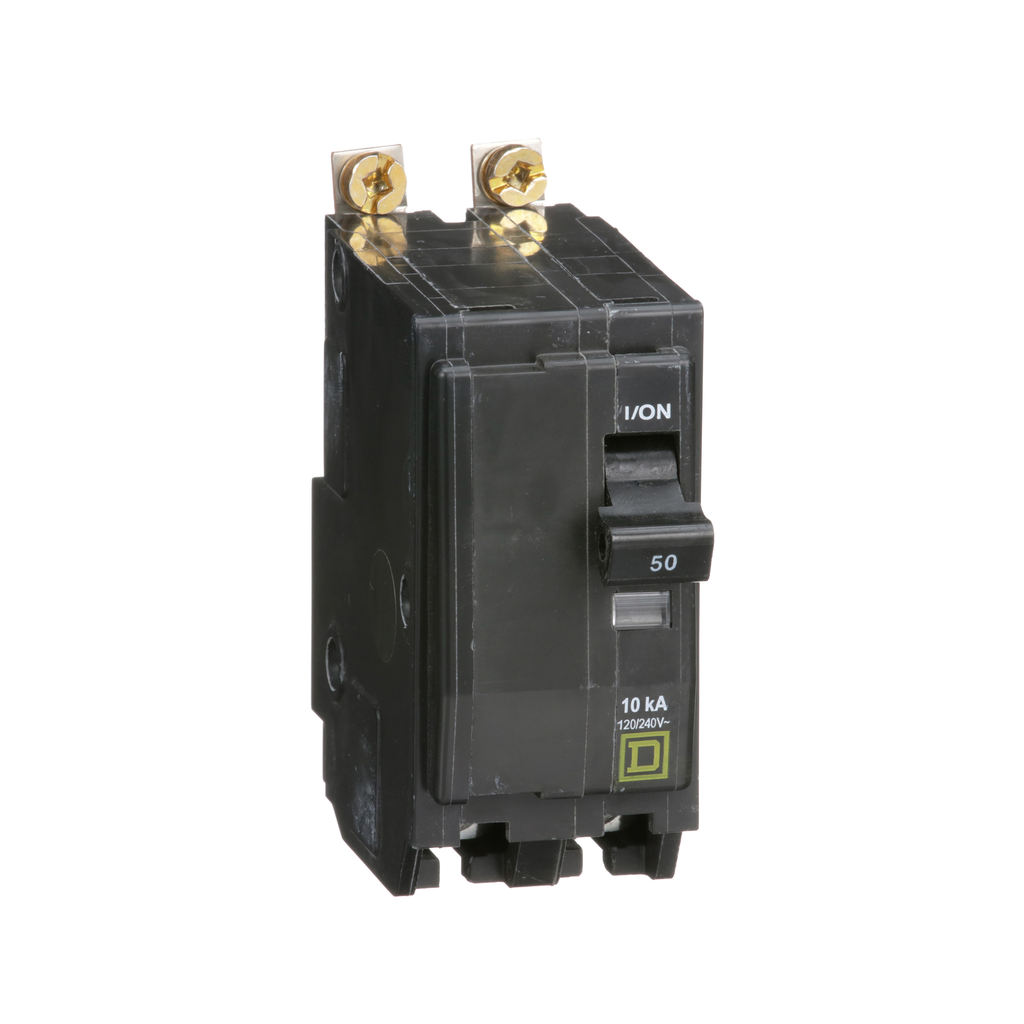

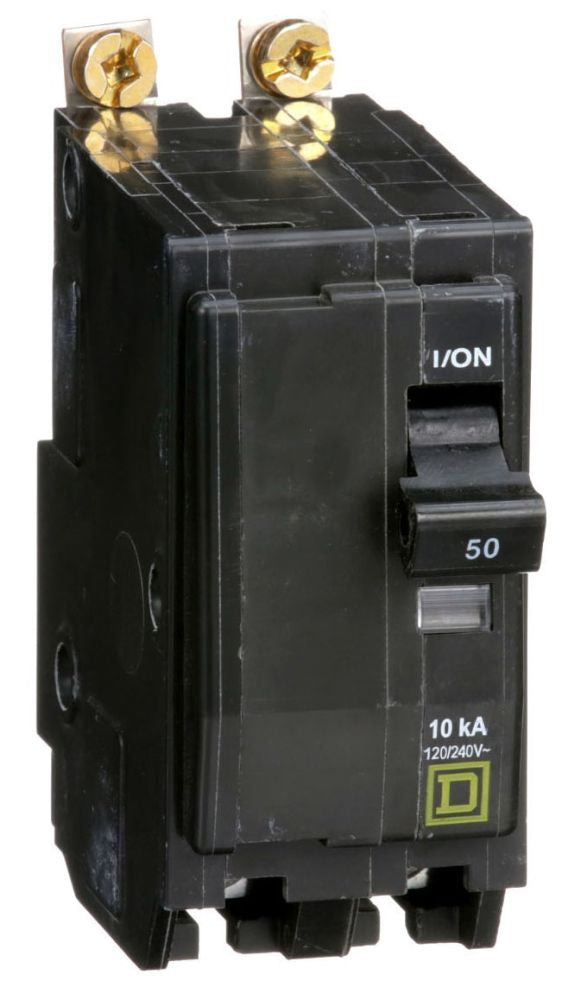

Square D QOB250 Miniature Circuit Breaker 50A 120/240V 1Ph 2P - QOB250

Product Description

The Square D QOB250 Miniature Circuit Breaker offers reliable protection for electrical circuits at a rating of fifty amps and a voltage of one hundred twenty or two hundred forty volts. This bolt-on model is designed for use in various QO distribution panels, providing efficient circuit protection. It is UL listed for safety and compliance.

• Has a two-pole configuration.
• Compatible with box lugs for secure connections.
• Suitable for HACR rated applications.

Product Highlights

Ideal for residential and commercial installations requiring effective circuit protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric (Square D)

Technical Specifications

• Current Rating: 50 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 2
• Installation Type: Bolt-on
• Interrupting Rating: 10 kA at 120/240 VAC
• Wire Size: AWG 8 to AWG 2 copper or aluminum
• Overall Dimensions: Length of 2.91 inches, Width of 1.50 inches, Height of 3.30 inches
• Net Weight: 0.249 kg
